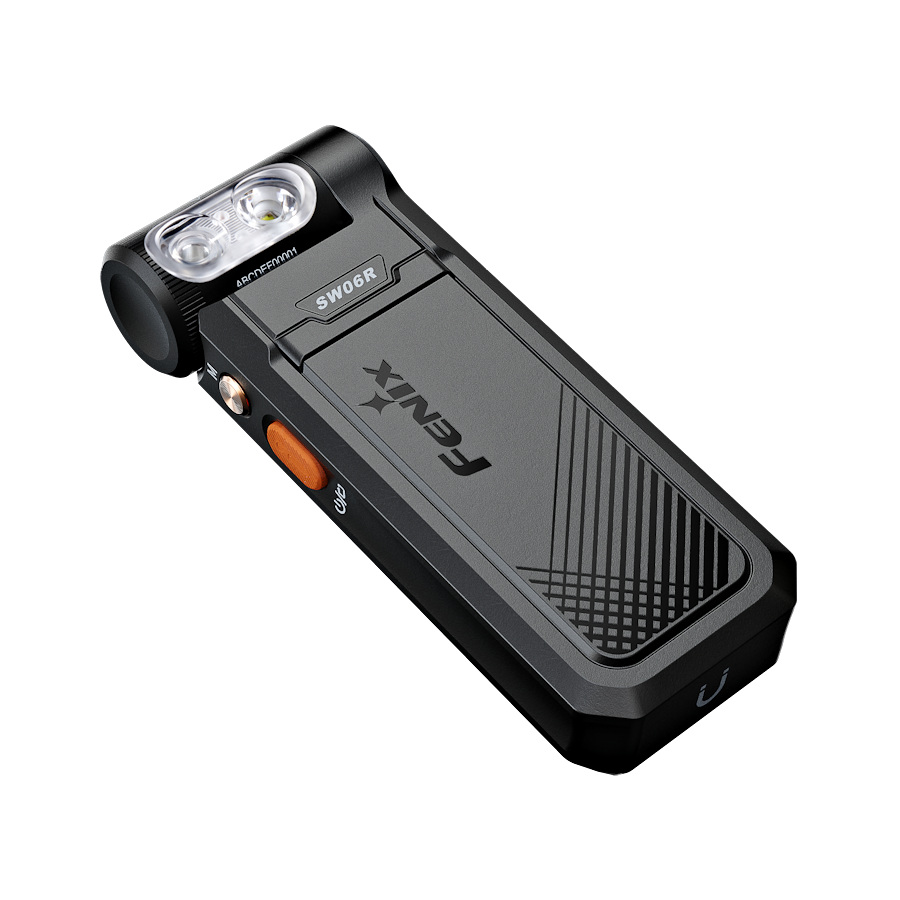

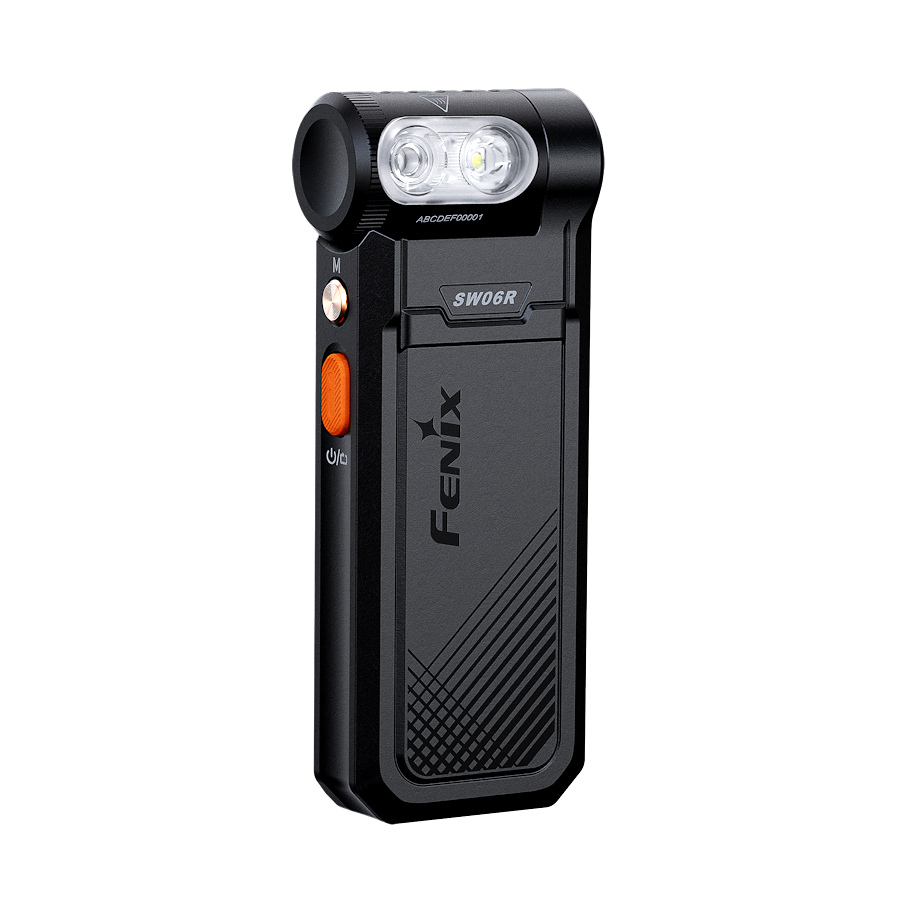

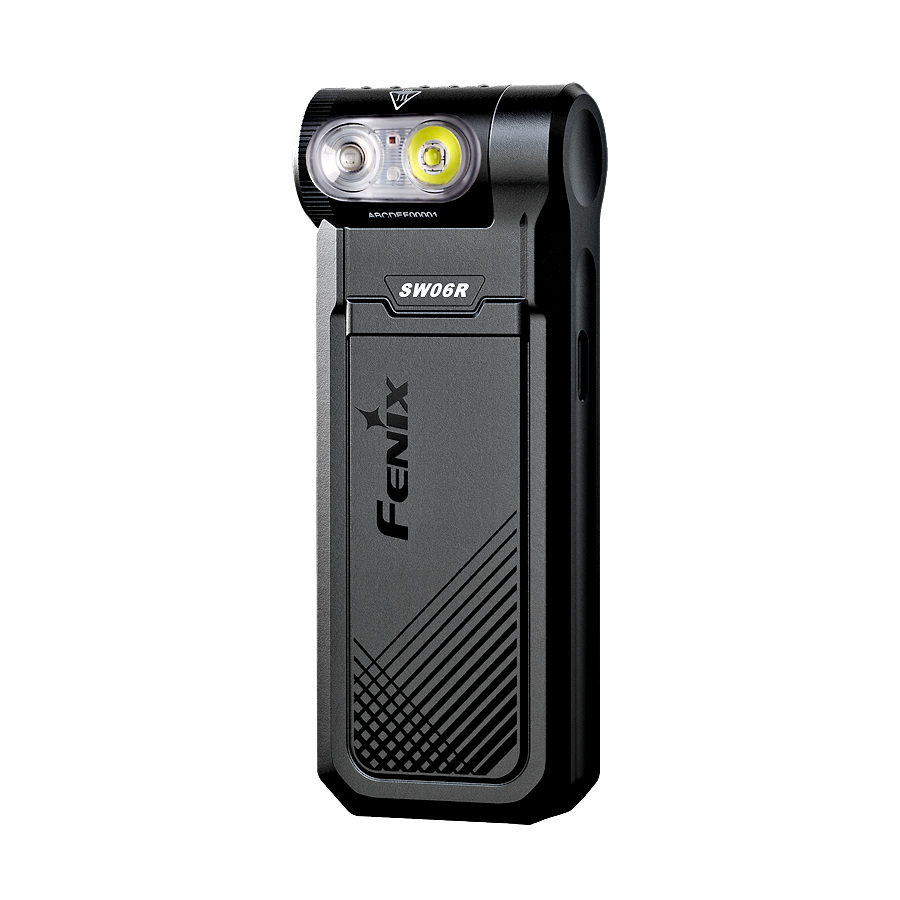

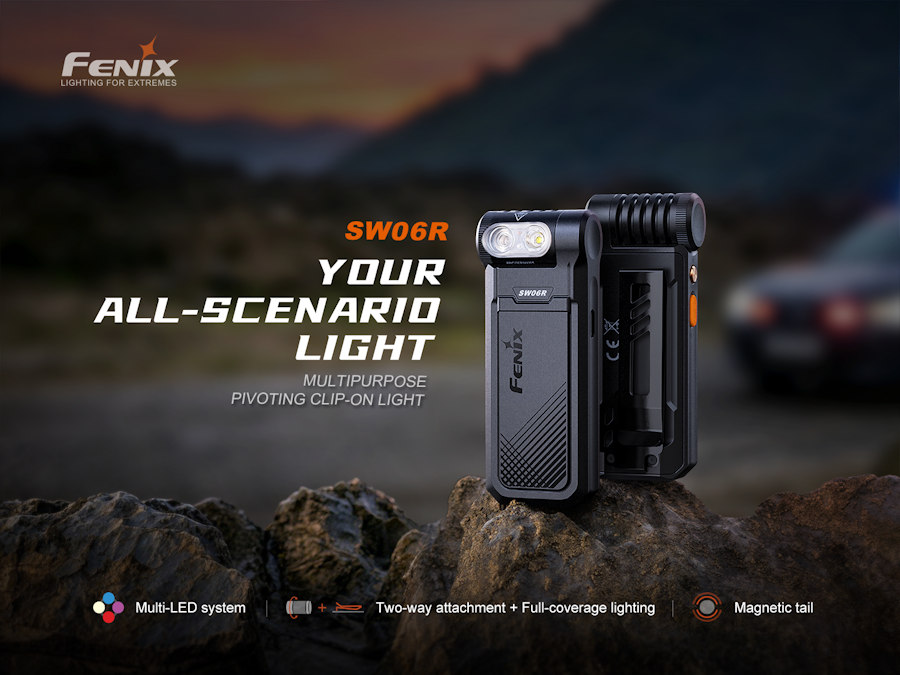

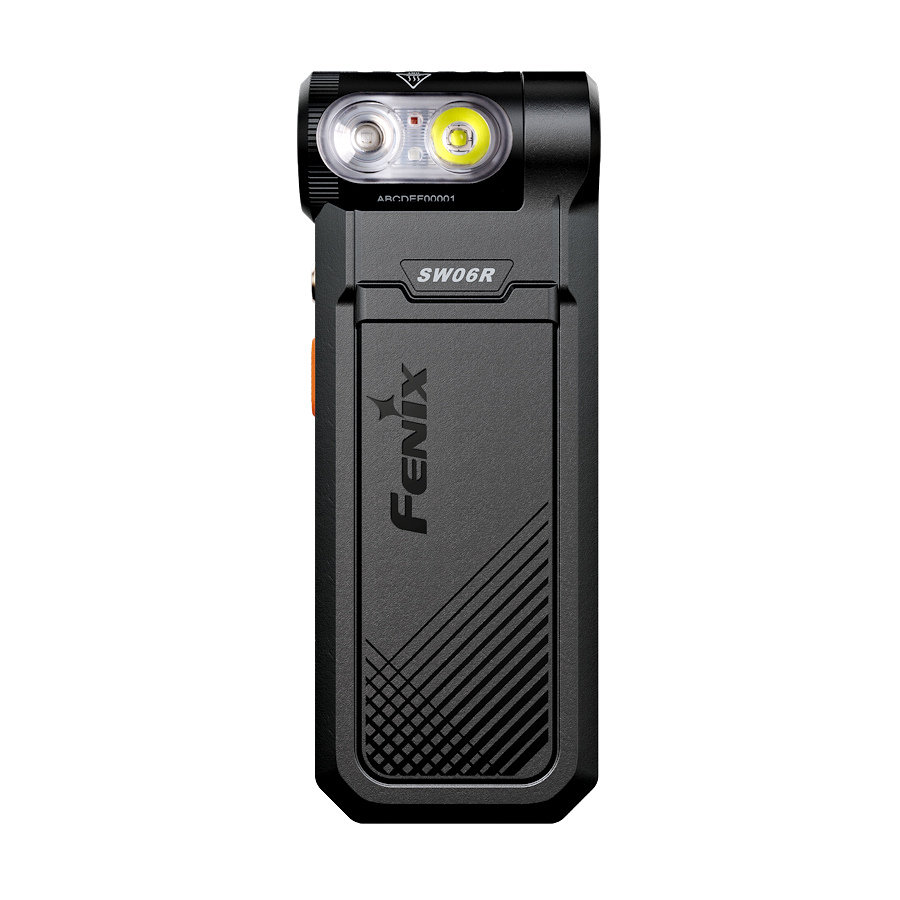

Fenix SW06R is a multi-purpose rechargeable torch / clip light featuring a powerful 500 lumen white beam, 10 lumen red, 5 lumen blue and 1500mw 365nm UV LED's mounted into a tough rotary head. The head offers 200 degrees of angle adjustment for perfect beam positioning.
4 white light brightness levels, red, red flash, red & blue flash and 365nm UV modes offer extensive versatility for law enforcement, outdoor and general use.
The light is operated by dual switches, a mode switch to select the lighting mode and a main switch for on/off and to select levels within a mode.
SW06R can be fixed to a pocket, back pack, webbing or a cap using its bi-directional metal clip. Alternately attach it to a steel surface using the magnetic base.
The built-in 1300mAH Li-Po battery is recharged via an inner water proof USB-C socket at the side of the light.
• 500 lumen LED torch for general use, red LED for night vision protection, red flash + red & blue flash for signalling and UV LED for document & currency inspection

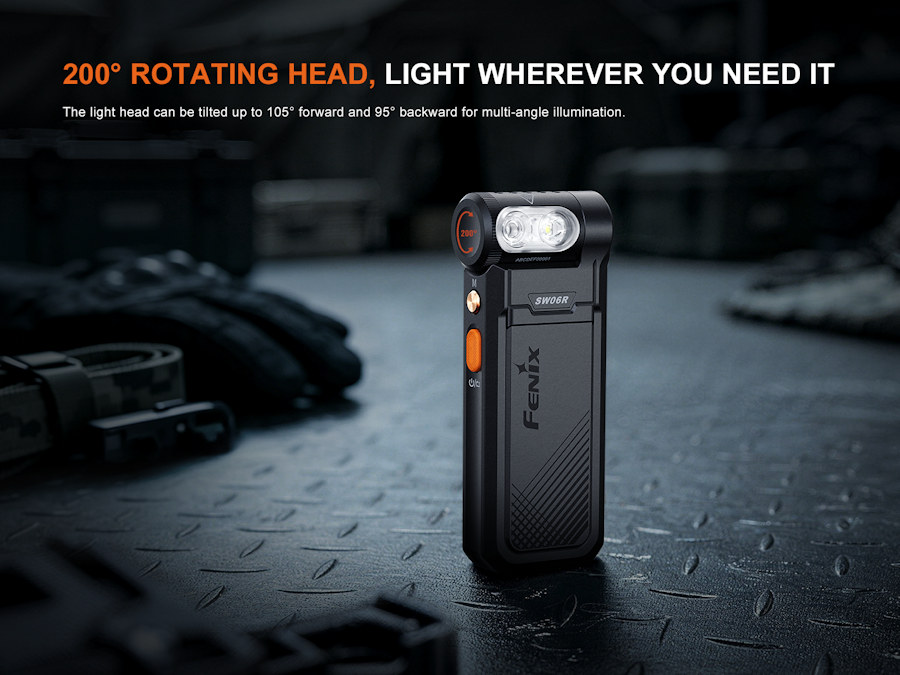

• Aluminium rotary head - 105 degrees forward, 95 degrees rearward adjustment
• Dual switches
• Built-in 1300 mAh rechargeable battery
• Inner waterproof USB-C charging port

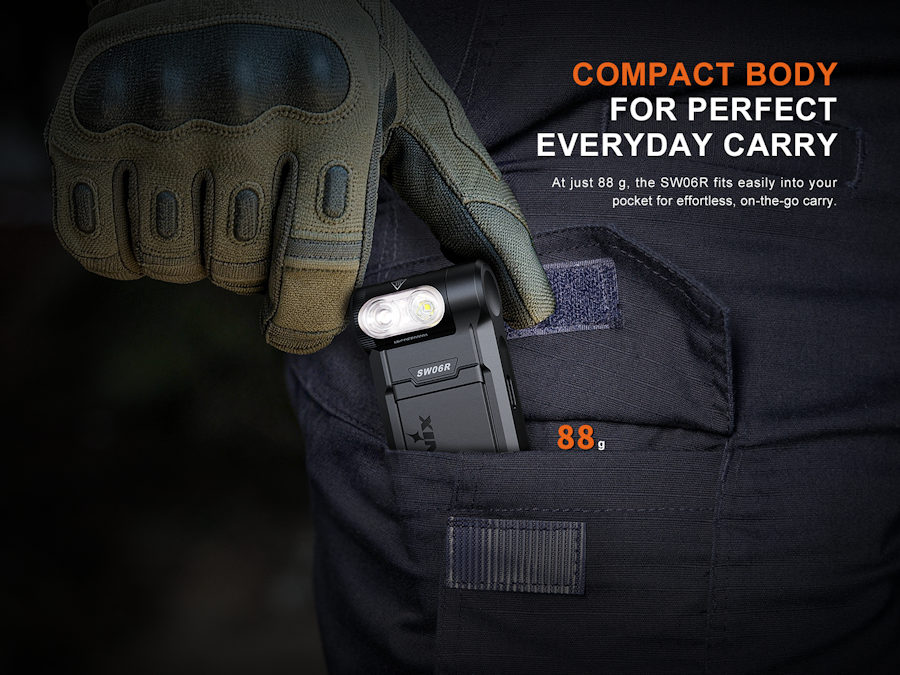

• Compact, easily pocketable

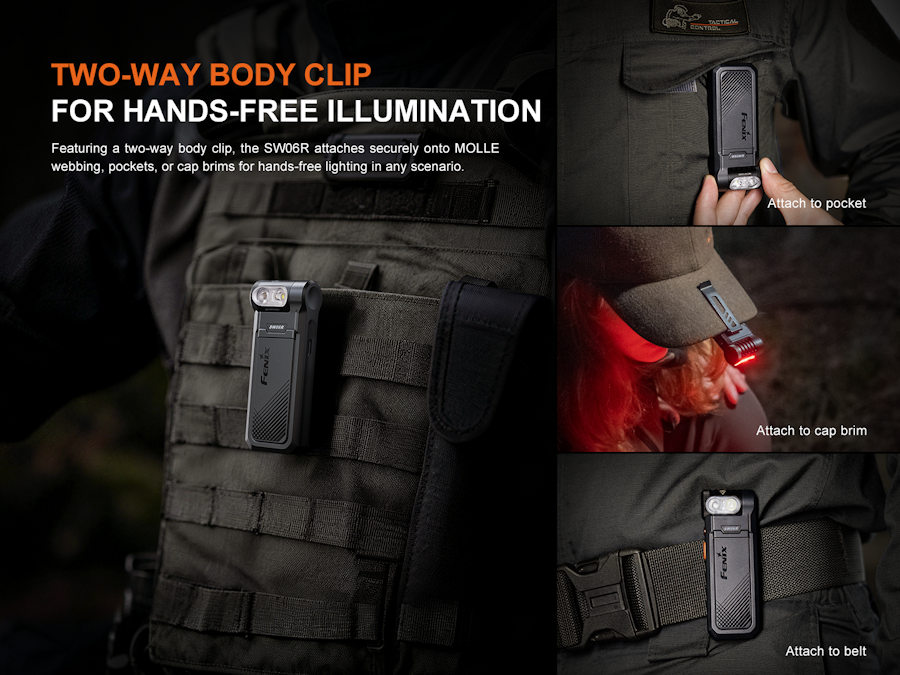

• Versatile bi-directional pocket clip and magnetic base for multiple mounting options
• Mode memory on white light - remembers your last used lighting level
• 2 hour charge time
• Can be operated while charging
• Battery level indicator
• Low voltage warning

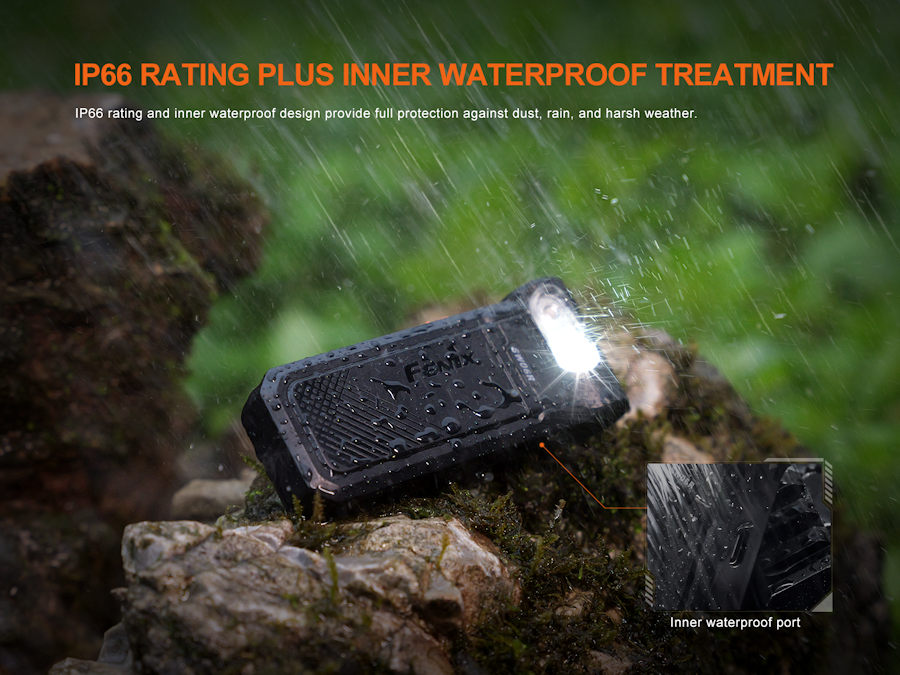

• IP66 weatherproof
• 1.5m drop tested

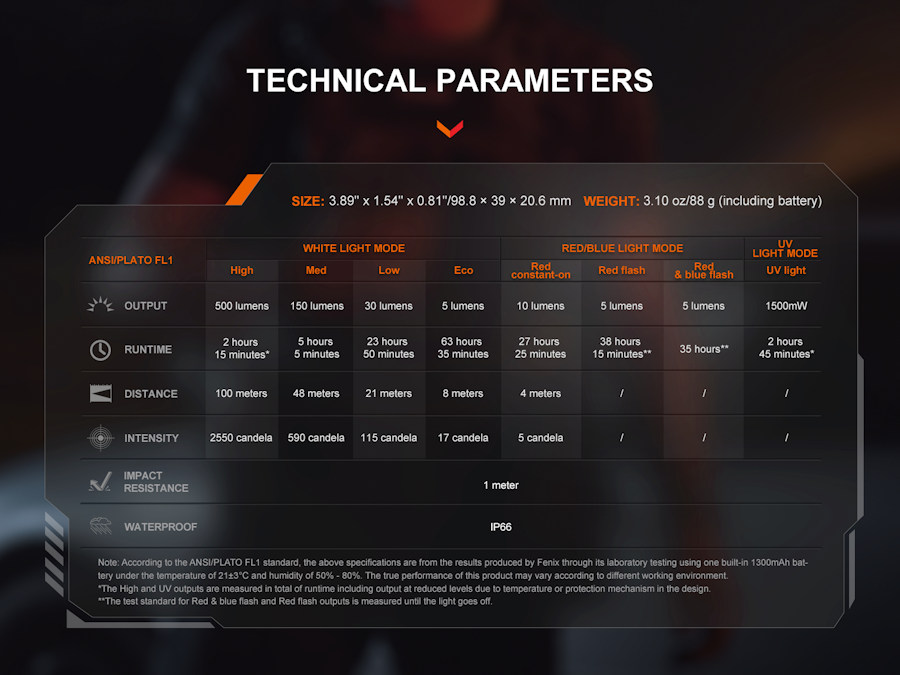

• 98.8 x 39 x 20.6mm
• Weighs only 88g
Dual side switch for on/off, output selection and mode switching
Construction
Durable aircraft-grade aluminum and quality plastics
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
Yes
Pocket Clip
Yes
Waterproofing
IP66, weatherproof and dustproof
Dimensions/Weight
98.8mm (Length) x 39mm (Width) x 20.6mm (Depth)
88 grams
Further Info
N/A
Operation

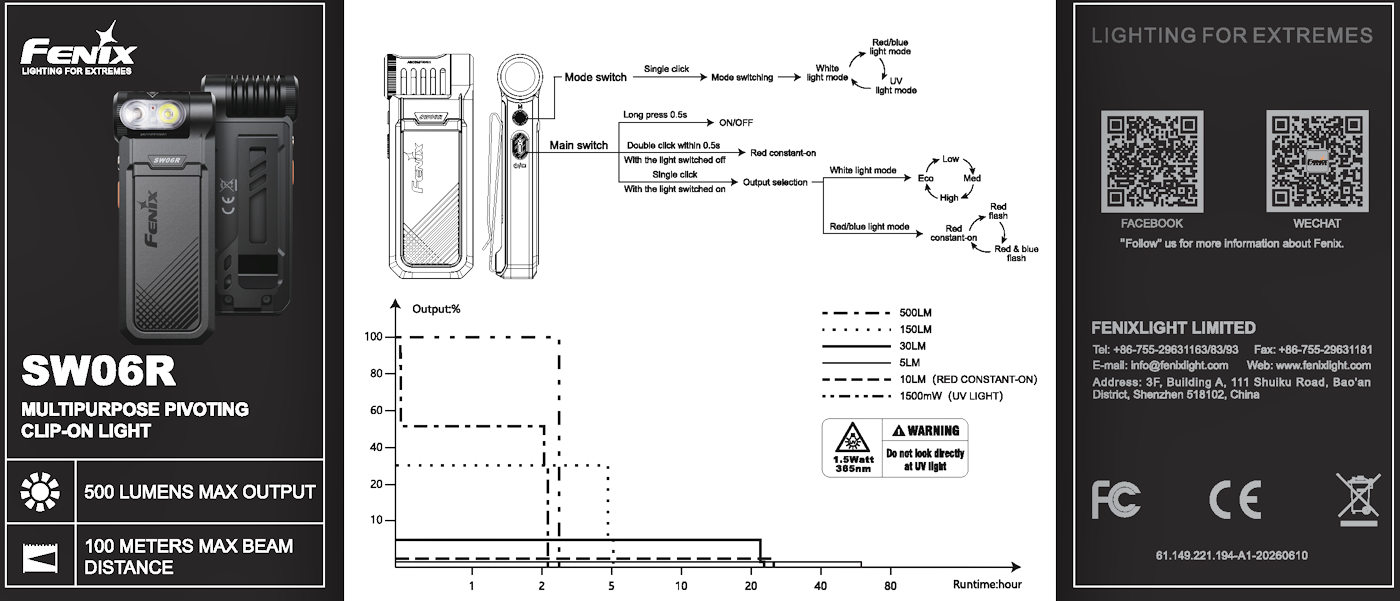

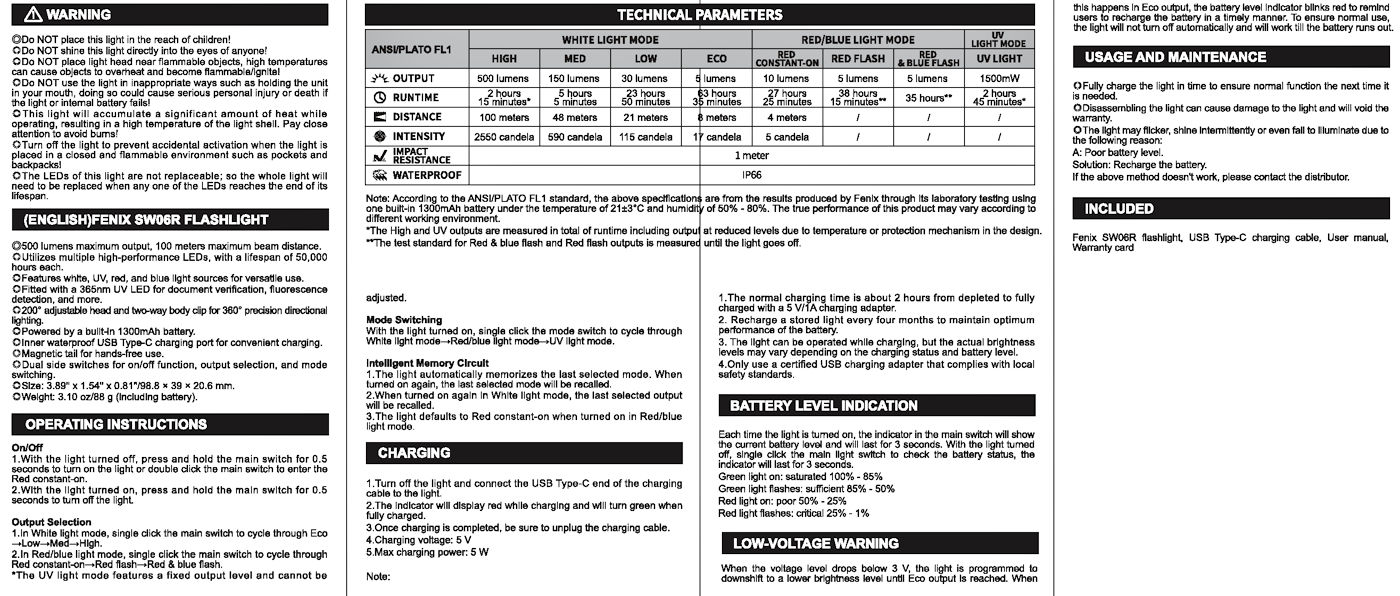

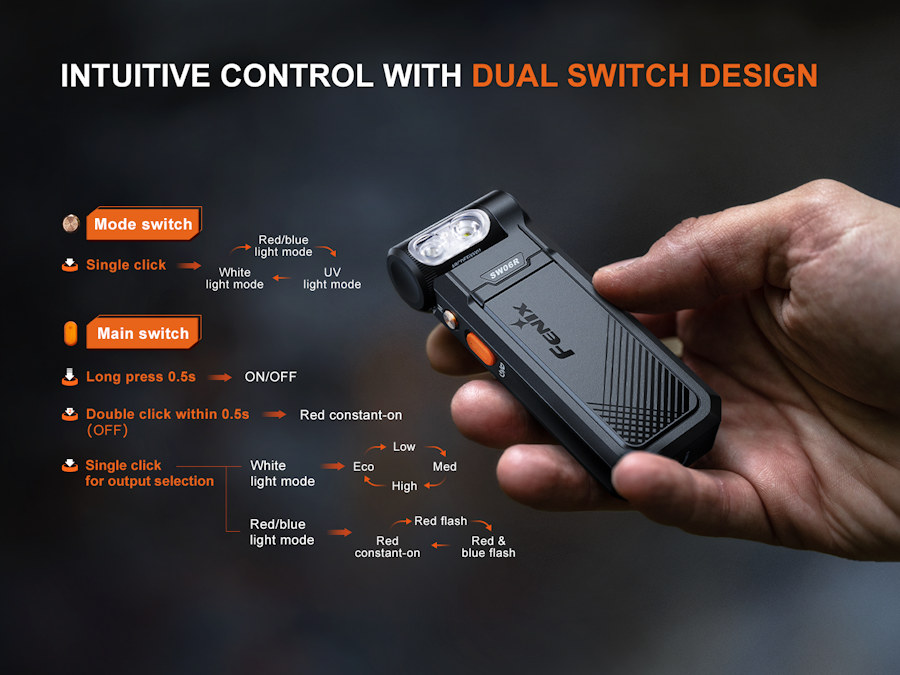

Fenix SW06R Operation:
On/Off:
With the light turned off, long press the main switch for 0.5 seconds to turn on the light or double click the main switch to enter the Red constant-on mode.
With the light turned on, press and hold the main switch for 0.5 seconds to turn off the light.
Output Selection:
In White light mode, single click the main switch to cycle through Eco→Low→Med→High. In Red/blue light mode, single click the main switch to cycle through Red constant-on→Red flash→Red & blue flash.
*The UV light mode features a fixed output level and cannot be adjusted.
Mode Switching:
With the light turned on, single click the mode switch to cycle through White light mode→Red/blue light mode→UV light mode.
Intelligent Memory Circuit:
The light automatically memorises the last selected mode. When turned on again, the last selected mode will be recalled. When turned on again in White light mode, the last selected output will be recalled. The light defaults to Red constant-on when turned on in Red/blue light mode.
Charging:

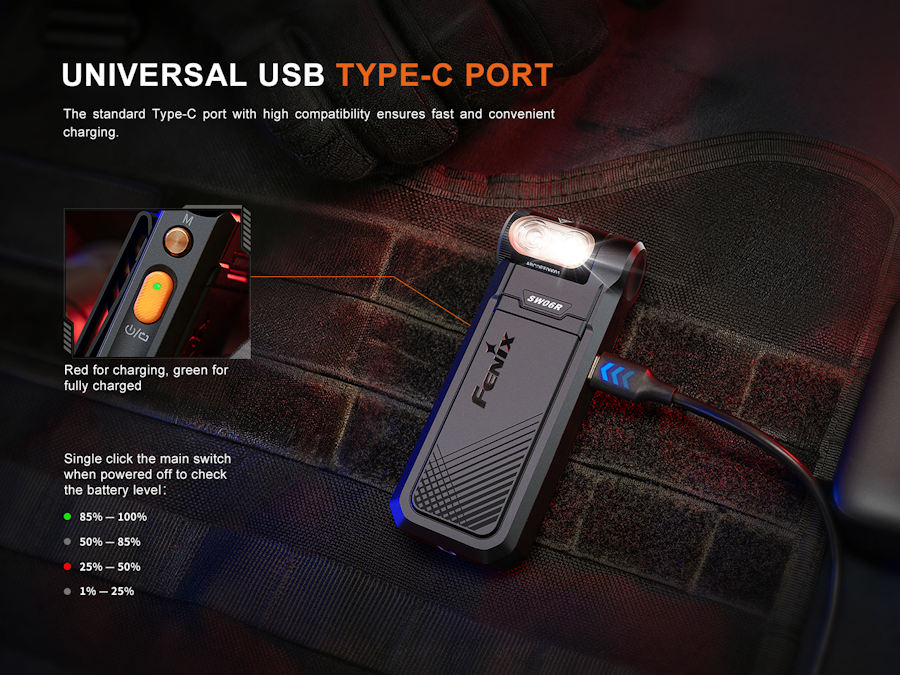

Turn off the light and connect the USB Type-C end of the charging cable to the light. The indicator will display red while charging and will turn green when fully charged. Once charging is completed, be sure to unplug the charging cable. Charging voltage: 5 V Max charging power: 5 W
Note:
The normal charging time is about 2 hours from depleted to fully charged with a 5 V/1A charging adapter. Recharge a stored light every four months to maintain optimum performance of the battery. The light can be operated while charging, but the actual brightness may vary depending on the charging status and battery level. Only use a certified USB charging adapter that complies with local safety standards.
Battery Level Indication:
Each time the light is turned on, the indicator in the main switch will show the current battery level and will last for 3 seconds. With the light turned off, single click the main light switch to check the battery status, the indicator will last for 3 seconds.
Green light on: saturated 100% - 85% Green light flashes: sufficient 85% - 50% Red light on: poor 50% - 25% Red light flashes: critical 25% - 1%
Low-Voltage Warning:
When the voltage level drops below 3 V, the light is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the battery level indicator blinks red to remind users to recharge the battery in a timely manner. To ensure normal use, the light will not turn off automatically and will work till the battery runs out.
Usage and Maintenance:
â—ŽFully charge the light in time to ensure normal function the next time it is needed. â—ŽDisassembling the light can cause damage to the light and will void the warranty. â—ŽThe light may flicker, shine intermittently or even fail to illuminate due to the following reason:
Problems:
A: Poor battery level. Solution: Recharge the battery. If the above method doesn't work, please contact the distributor.
Package & Contents

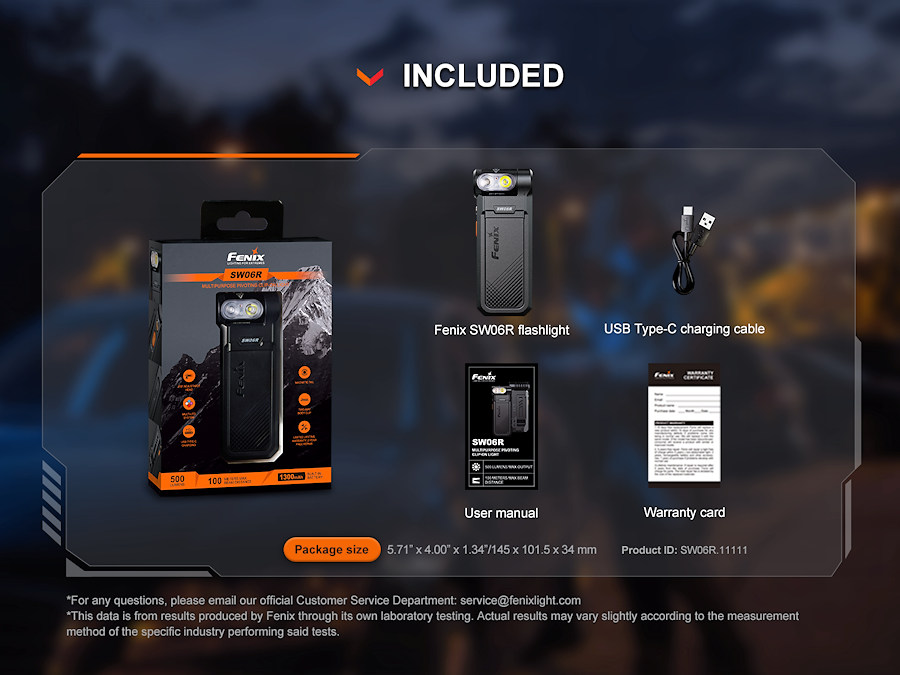

Retail packaged Fenix SW06R USB type C charger cable Instruction manual Warranty card
