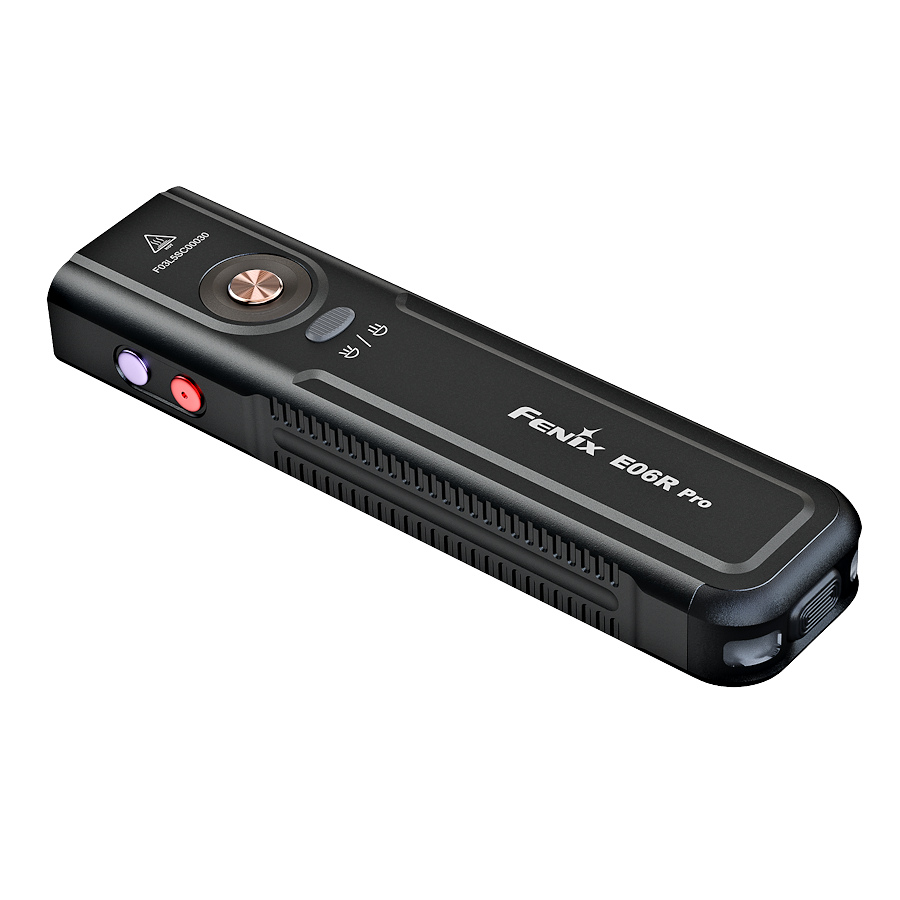

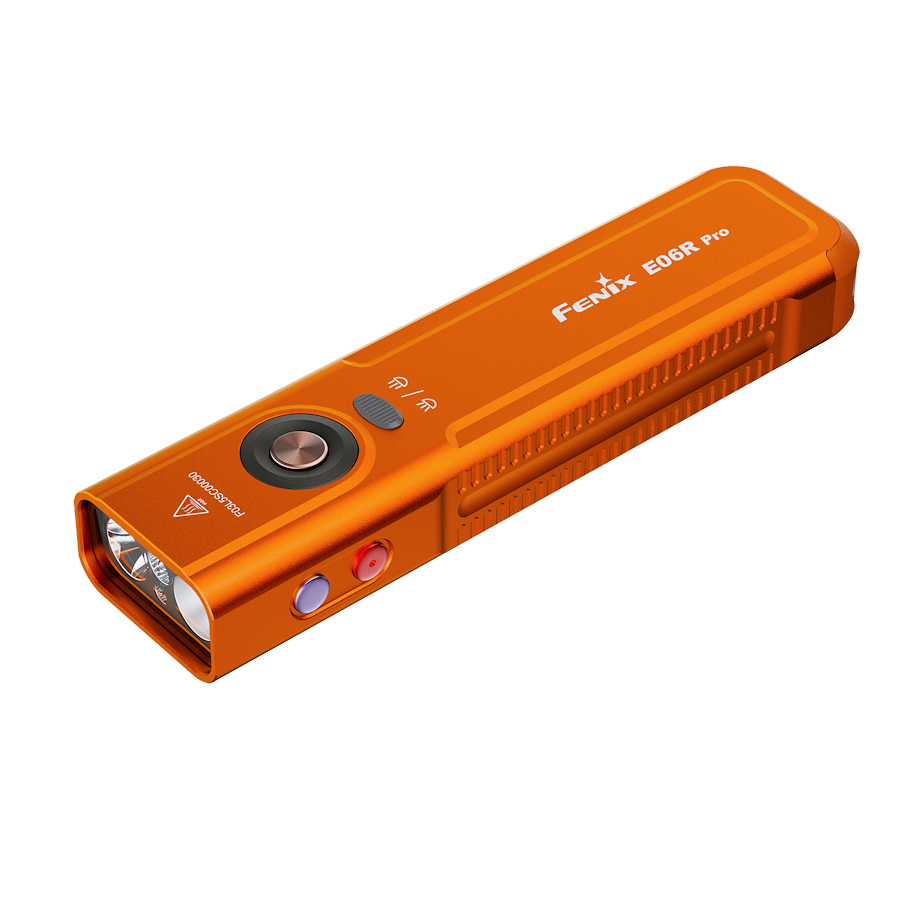

Fenix E06R Pro Multi-Purpose EDC torch - Coming Soon!

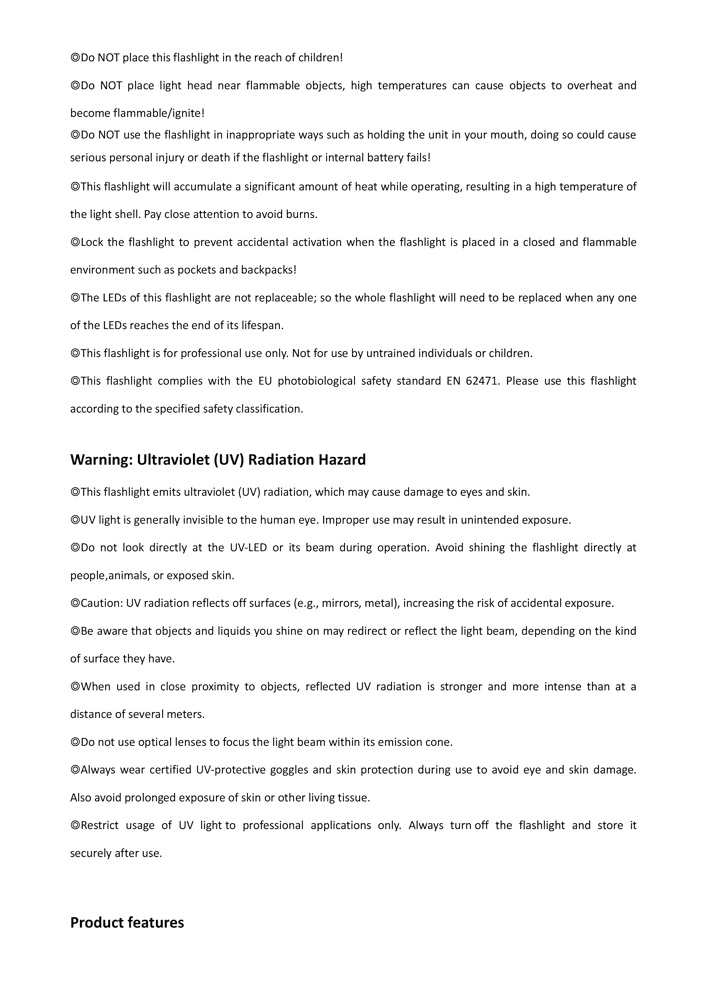

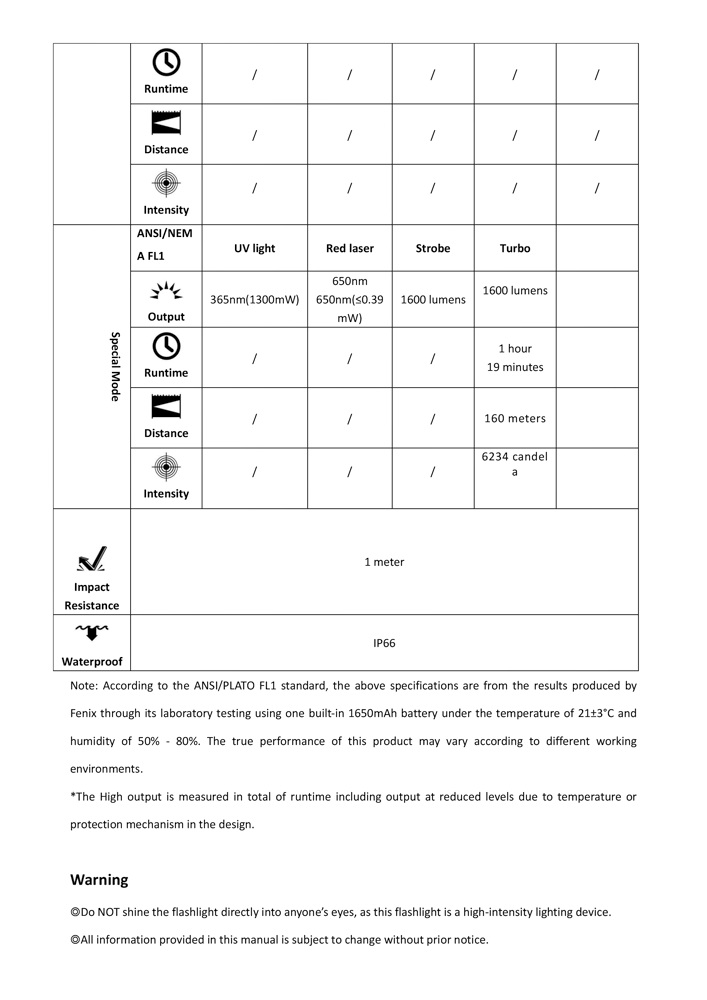

Warning:

◎Do NOT shine the flashlight directly into anyone’s eyes, as this flashlight is a high-intensity lighting device.
◎All information provided in this manual is subject to change without prior notice.
◎Do NOT place this flashlight in the reach of children!
◎Do NOT place light head near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
◎Do NOT use the flashlight in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the flashlight or internal battery fails!
◎This flashlight will accumulate a significant amount of heat while operating, resulting in a high temperature of the light shell. Pay close attention to avoid burns.
◎Lock the flashlight to prevent accidental activation when the flashlight is placed in a closed and flammable environment such as pockets and backpacks!
◎The LEDs of this flashlight are not replaceable; so the whole flashlight will need to be replaced when any one of the LEDs reaches the end of its lifespan.
◎This flashlight is for professional use only. Not for use by untrained individuals or children.
◎This flashlight complies with the EU photobiological safety standard EN 62471. Please use this flashlight according to the specified safety classification.

Warning: Ultraviolet (UV) Radiation Hazard:

◎This flashlight emits ultraviolet (UV) radiation, which may cause damage to eyes and skin.
◎UV light is generally invisible to the human eye. Improper use may result in unintended exposure.
◎Do not look directly at the UV-LED or its beam during operation. Avoid shining the flashlight directly at people,animals, or exposed skin.
◎Caution: UV radiation reflects off surfaces (e.g., mirrors, metal), increasing the risk of accidental exposure.
◎Be aware that objects and liquids you shine on may redirect or reflect the light beam, depending on the kind of surface they have.
◎When used in close proximity to objects, reflected UV radiation is stronger and more intense than at a distance of several meters.
◎Do not use optical lenses to focus the light beam within its emission cone.
◎Always wear certified UV-protective goggles and skin protection during use to avoid eye and skin damage. Also avoid prolonged exposure of skin or other living tissue.
◎Restrict usage of UV light to professional applications only. Always turn off the flashlight and store it securely after use.

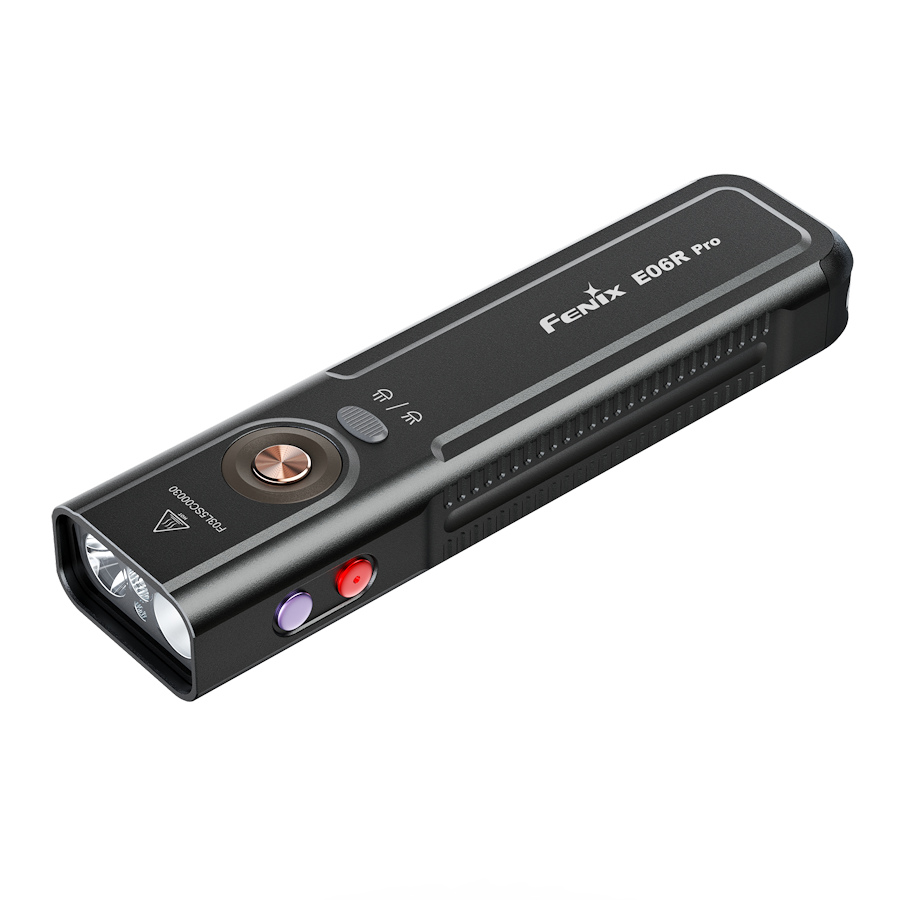

Fenix E06R Pro operation:

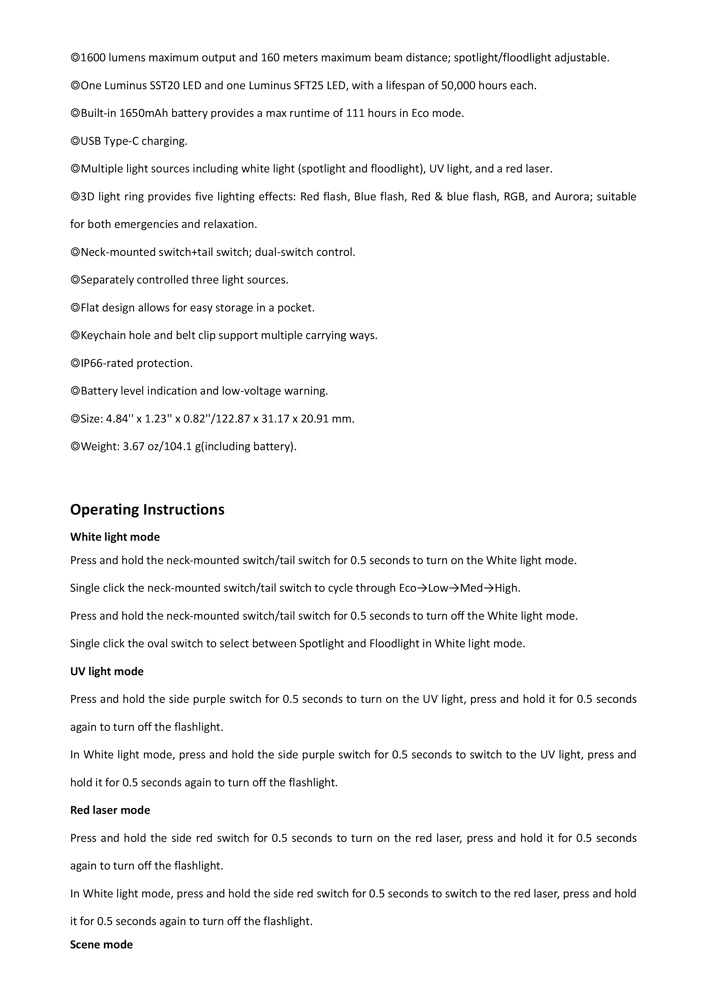

White light mode:

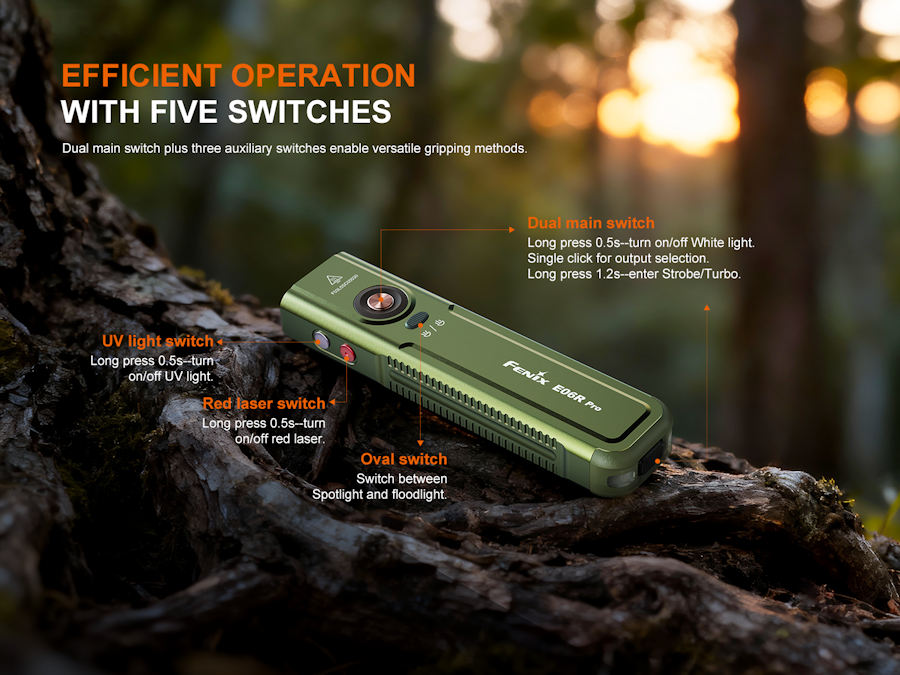

Press and hold the neck-mounted switch or tail switch for 0.5 seconds to turn on the White light mode.
Single click the neck-mounted switch or tail switch to cycle through Eco→Low→Med→High.
Press and hold the neck-mounted switch or tail switch for 0.5 seconds to turn off the White light mode.

Single click the oval switch to select between Spotlight and Floodlight in White light mode.

UV light mode:

Press and hold the purple side switch for 0.5 seconds to turn on the UV light, press and hold it for 0.5 seconds again to turn off the flashlight.

In White light mode, press and hold the side purple switch for 0.5 seconds to switch to the UV light, press and hold it for 0.5 seconds again to turn off the flashlight.

Red laser mode:

Press and hold the side red switch for 0.5 seconds to turn on the red laser, press and hold it for 0.5 seconds again to turn off the flashlight.

In White light mode, press and hold the side red switch for 0.5 seconds to switch to the red laser, press and hold it for 0.5 seconds again to turn off the flashlight.

Scene mode:

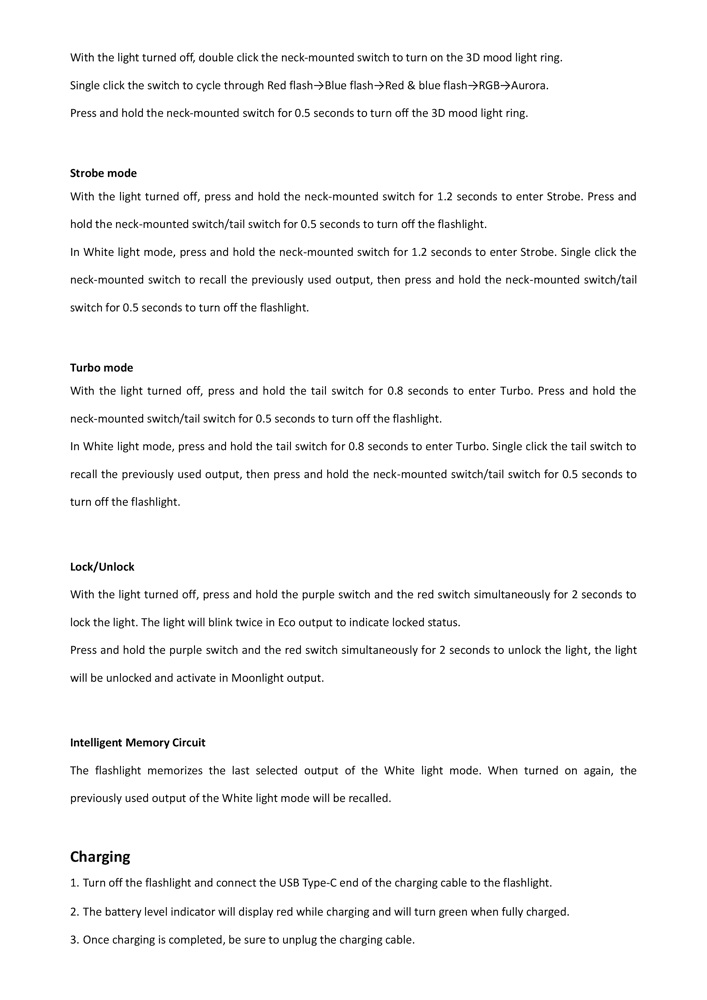

With the light turned off, double click the neck-mounted switch to turn on the 3D mood light ring.
Single click the switch to cycle through Red flash→ Blue flash→ Red & blue flash→ RGB→ Aurora.
Press and hold the neck-mounted switch for 0.5 seconds to turn off the 3D mood light ring.

Strobe mode:

With the light turned off, press and hold the neck-mounted switch for 1.2 seconds to enter Strobe. Press and hold the neck-mounted switch/tail switch for 0.5 seconds to turn off the flashlight.

In White light mode, press and hold the neck-mounted switch for 1.2 seconds to enter Strobe. Single click the neck-mounted switch to recall the previously used output, then press and hold the neck-mounted switch/tail switch for 0.5 seconds to turn off the flashlight.

Turbo mode:

With the light turned off, press and hold the tail switch for 0.8 seconds to enter Turbo. Press and hold the neck-mounted switch/tail switch for 0.5 seconds to turn off the flashlight.

In White light mode, press and hold the tail switch for 0.8 seconds to enter Turbo. Single click the tail switch to recall the previously used output, then press and hold the neck-mounted switch/tail switch for 0.5 seconds to turn off the flashlight.

Lock/Unlock:

With the light turned off, press and hold the purple switch and the red switch simultaneously for 2 seconds to lock the light. The light will blink twice in Eco output to indicate locked status.
Press and hold the purple switch and the red switch simultaneously for 2 seconds to unlock the light, the light will be unlocked and activate in Moonlight output.

Intelligent Memory Circuit:

The flashlight memorizes the last selected output of the White light mode. When turned on again, the previously used output of the White light mode will be recalled.

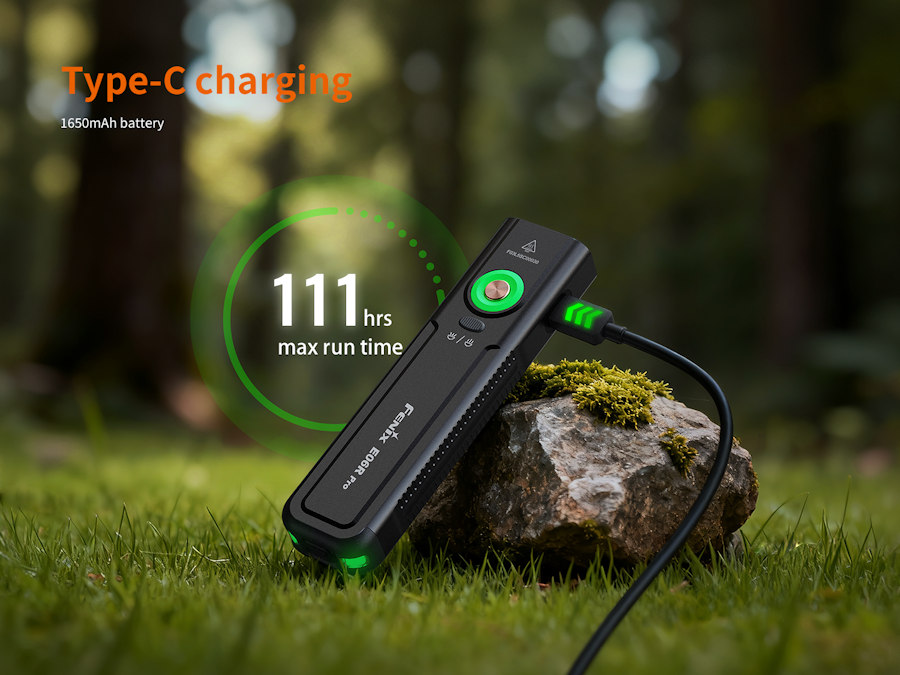

Charging:

1. Turn off the flashlight and connect the USB Type-C end of the charging cable to the flashlight.
2. The battery level indicator will display red while charging and will turn green when fully charged.
3. Once charging is completed, be sure to unplug the charging cable.
4. While charging, if the battery level is below 3.3 V, only the White light mode can be activated; if the battery level is above 3.3 V, the Scene mode and Turbo mode cannot be activated.

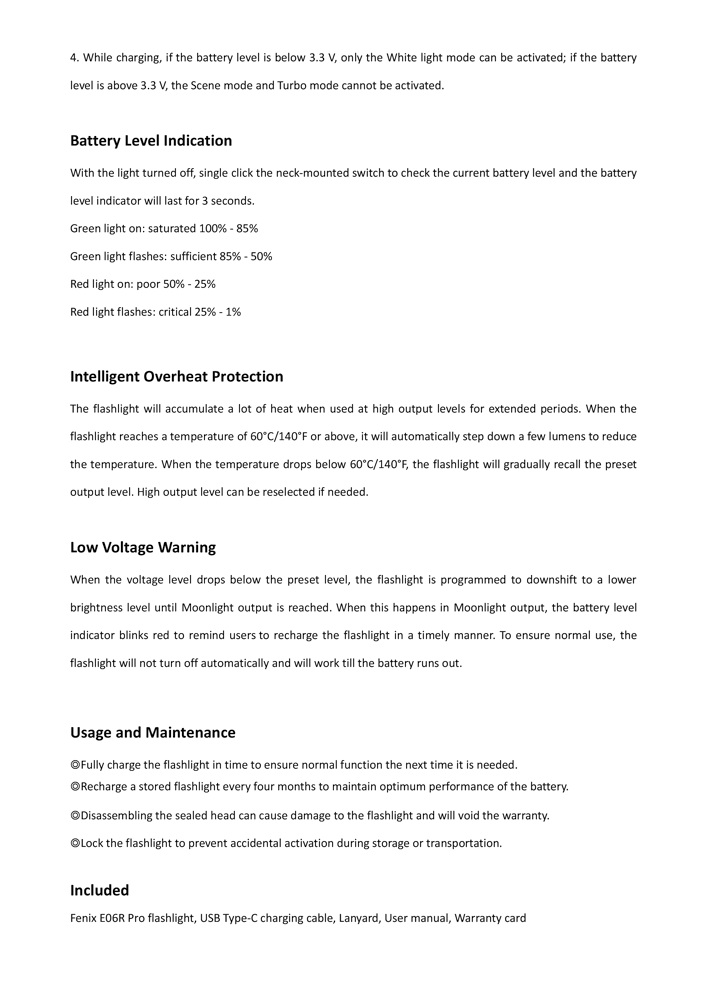

Battery Level Indication:

With the light turned off, single click the neck-mounted switch to check the current battery level and the battery level indicator will last for 3 seconds.

Green light on: saturated 100% - 85%
Green light flashes: sufficient 85% - 50%
Red light on: poor 50% - 25%
Red light flashes: critical 25% - 1%

Intelligent Overheat Protection:

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the flashlight reaches a temperature of 60°C/140°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C/140°F, the flashlight will gradually recall the pre-set output level. High output level can be reselected if needed.

Low Voltage Warning:

When the voltage level drops below the pre-set level, the flashlight is programmed to downshift to a lower brightness level until Moonlight output is reached. When this happens in Moonlight output, the battery level indicator blinks red to remind users to recharge the flashlight in a timely manner. To ensure normal use, the flashlight will not turn off automatically and will work until the battery runs out.

Usage and Maintenance:

◎Fully charge the flashlight in time to ensure normal function the next time it is needed.
◎Recharge a stored flashlight every four months to maintain optimum performance of the battery.
◎Disassembling the sealed head can cause damage to the flashlight and will void the warranty.
◎Lock the flashlight to prevent accidental activation during storage or transportation.
