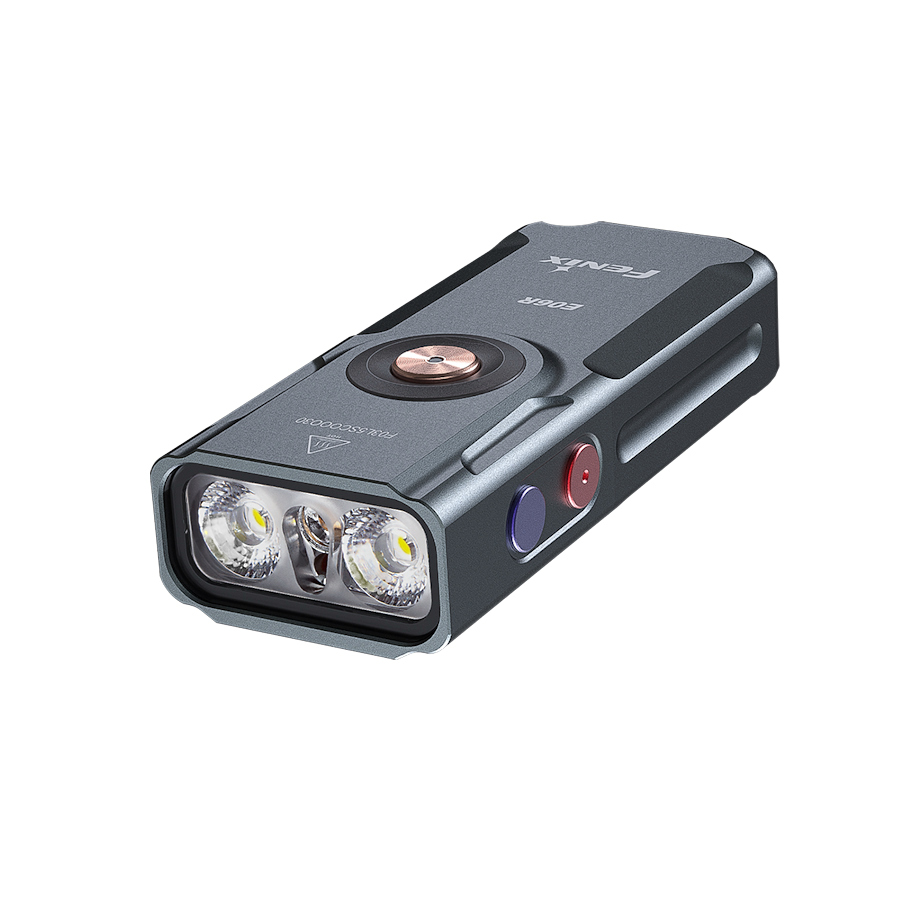

Fenix E06R is a compact, highly versatile 4 in 1 tool which incorporates a powerful 700 lumen LED beam, 580mW 365nm UV LED, 0.39mw red laser, and a multi purpose ring light into a single unit. E06R is powered by a 750mAh rechargeable battery, charged via a built-in USB-C socket.
The torch features a strong clip for pocket, back pack or cap mounting, and a key chain split ring is supplied.
LED torch:
Ideal for every day illumination. 4 brightness levels of 5, 30, 150 and 700 lumens.
365nm UV light:
For industrial leak detection, bank note inspection etc.
Red laser:
Perfect for presentations.
LED ring light:
Great for use as a back pack marker out on the hills, or emergency vehicle light (torch features a magnetic tail)
RGB morphing: 0.5 lumens
Red fade in / out: 1 lumen
Blue fade in / out: 1 lumen
Red / blue / multicolour warning flash: 1 lumen
Fenix E06R LED torch features:

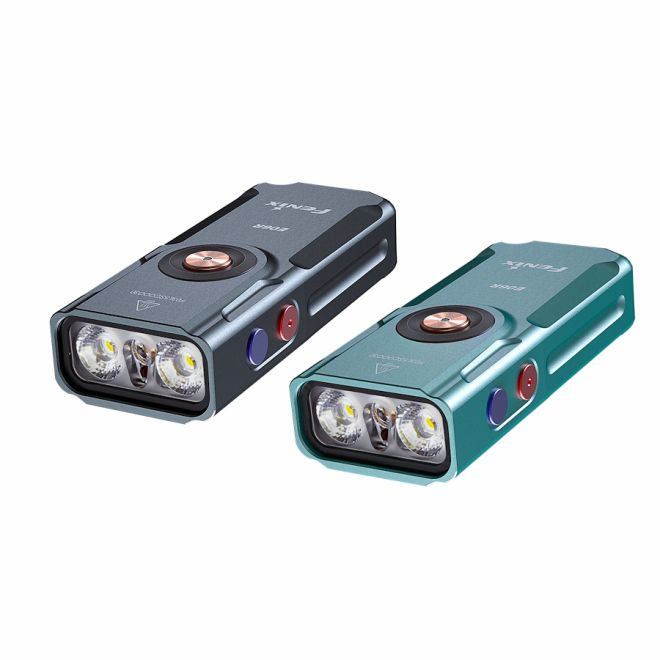

• Available in Gunmetal Grey and Turquoise colours
• Individual switches for torch/ring light, red laser and UV light
• 750mAh lithium polymer battery built-in
• USB-C charging, charge time 2 hrs
• Electronic lock to prevent accidental activation
• Compact and ergonomic
• Premium metal construction
• Type111 hard anodized finish
• Magnetic tail for convenient use
• Inner waterproof charging socket
• Over heat protection
• Low voltage warning
• Drop tested 1.5m
• IP66 weatherproof
For full product details please refer to the user manual in the small images area.
Specification
Model
E06R
Battery Type
Built in rechargeable battery
Battery Quantity
1
Additional Battery Type
N/A (Note battery is not user replaceable)
LED Type
2 x Luminus SST12 Led, 365nm UV LED, Red Laser & Ring LED
RGB: 0.5 Lumens, Red pulse: 1 Lumen, Blue pulse: 1 Lumen, Red & Blue flash: 1 Lumen, Colour Morph: 0.5 lumen, UV Light: 580mW/365nm, Red Laser: 0.39mW
Flashing Modes
Red and blue multi-colour flash - red fade in / out - blue fade in / out - RGB colour morphing
Max Beam Distance
110m
Reflector
TIR Lens
Lens Type
TIR Lens
Switch Type
Main On - Off - Mode Switch with Side UV light and Laser Pointer switches
Construction
A6061-T6 aircraft grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
Yes
Pocket Clip
Yes
Waterproofing
IP66, weatherproof and dustproof
Dimensions/Weight
69mm (Length) x 29mm (Width) x 16mm (Depth)
54 grams
Further Info
N/A
Operation
Fenix E06R operation:
White light mode:
Press and hold the neck-mounted switch for 0.5 seconds to turn on the White light mode. Single click the switch to cycle through Eco→Low→Med→High. Press and hold the switch for 0.5 seconds to turn off the White light mode.
UV light mode:
Press and hold the side purple switch for 0.5 seconds to turn on/off the UV light.
Red laser mode:
Press and hold the side red switch for 0.5 seconds to turn on/off the Red laser.
Breathing light:
With the light switched off, double click the neck-mounted switch to turn on the breathing light. Single click the switch to cycle through RGB→Red pulse→Blue pulse→Red & blue flash. Press and hold the neck-mounted switch for 0.5 seconds to turn off the breathing light.
Lock/Unlock:
Lock:
With the light switched off, press and hold the side purple switch and side red switch simultaneously for 2 seconds to lock the light, the light will blink twice in Eco output to indicate locked status.
Unlock:
With the light locked, press and hold the side purple switch and side red switch simultaneously for 2 seconds to unlock the light, the light will be unlocked and activated in Eco output.
Intelligent Memory Circuit:
The light memorizes the last selected output in White light mode. When turned on again, the previously used output of White light mode will be recalled.
Charging:
1. Turn off the light and connect the USB Type-C socket of the charging cable to the light. 2. The indicator will display red while charging and will turn green when fully charged. 3. Once charging is completed, be sure to unplug the charging cable. 4. Only Eco output can be operated while charging.
Battery Level Indication:
With the light turned off, single click the switch to check the current battery level and the indicator will last for 3 seconds.
Green light on: saturated 100% - 85% Green light flashes: sufficient 85% - 50% Red light on: poor 50% - 25% Red light flashes: critical 25% - 1%
Intelligent Overheat Protection:
The light will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 65°C/149°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C/149°F, the light will gradually recall the preset output level.
Low Voltage Warning:
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the battery level indicator blinks red to remind you to recharge the light.
Usage and Maintenance:
â—ŽFully charge the light in time to ensure normal function the next time it is needed. â—ŽRecharge a stored light every four months to maintain optimum performance of the battery.
Package & Contents
Retail Packaged Fenix E06R Torch USB C Charge Lead Lanyard Key Chain split ring User Manual Warranty Card
