Slightly bigger, more powerful and with additional battery capacity over its little brother (Fenix HM50R V2.0) Fenix HM53R also adds a magnetic tail cap and an additional brightness level in both red and white light modes.

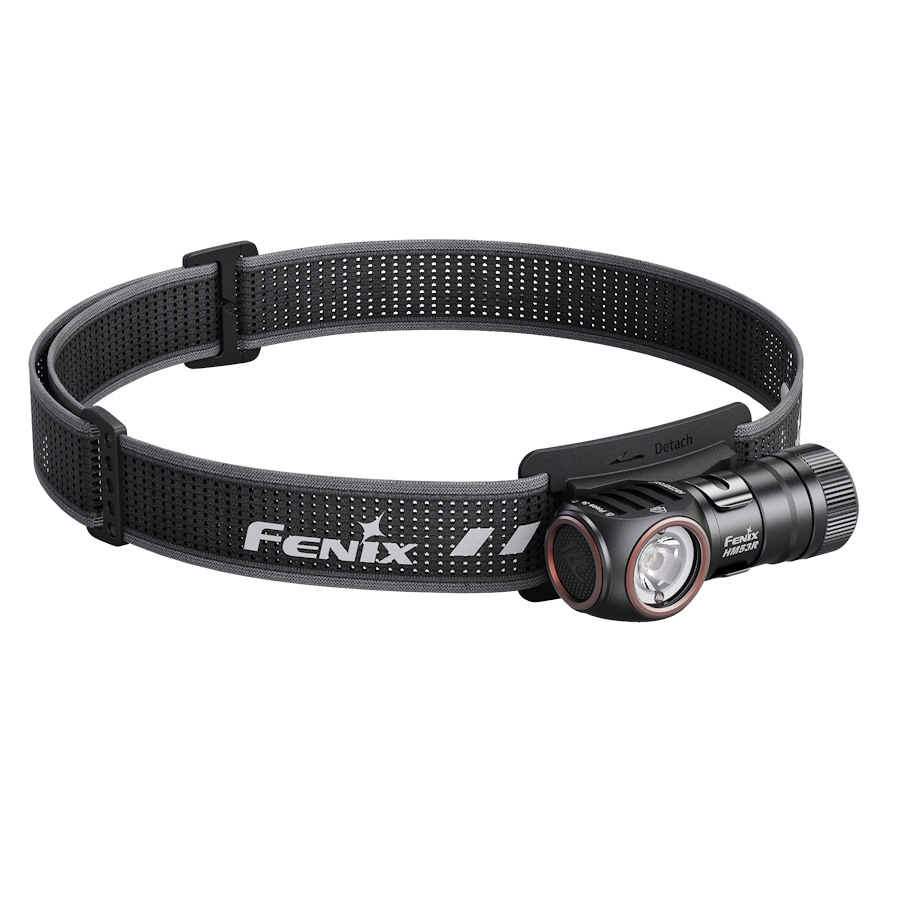

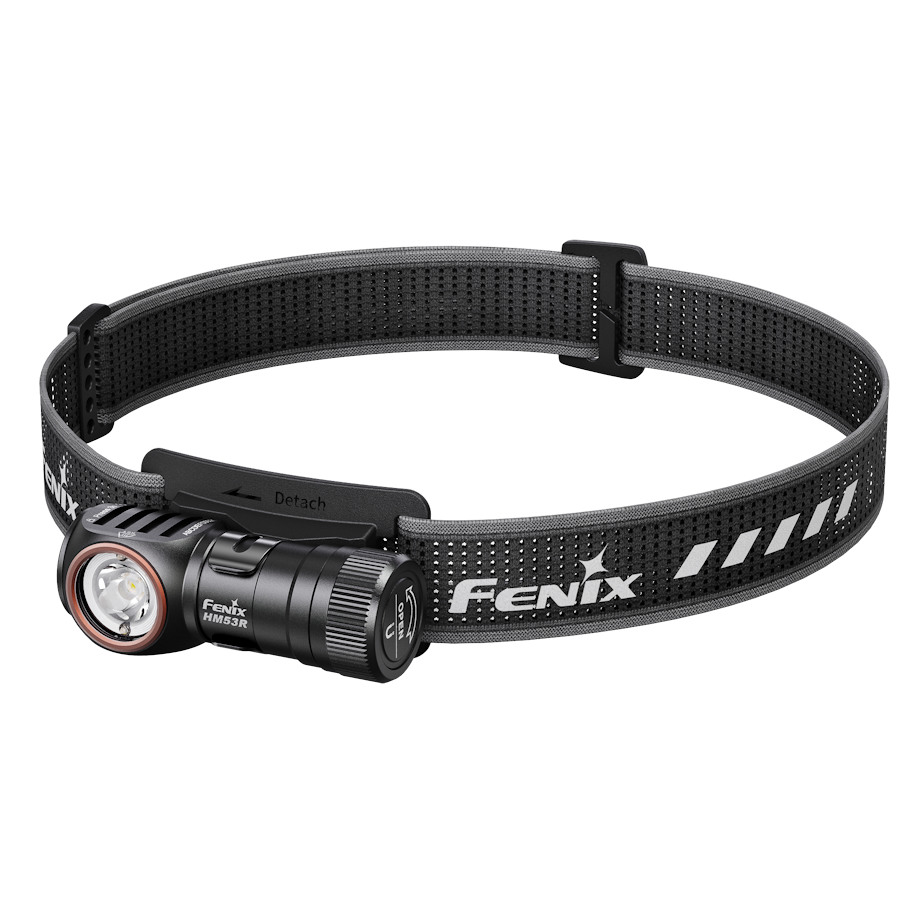

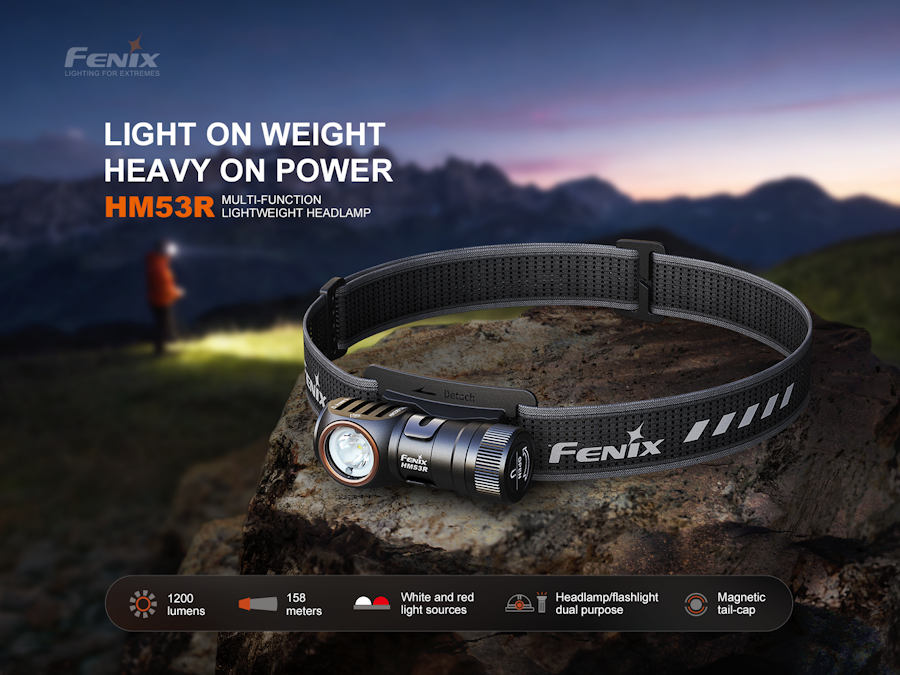

Fenix HM53R rechargeable multi-use head lamp is an ideal all rounder. Take it camping, hiking, fishing, running, dog walking or use it in the workplace. It's so light to wear, weighing in at just 102 grams that you could almost forget you're wearing it but for the impressive 1200 lumen max output. A handy secondary red light delivers outputs of 3 and 30 lumens, ideal for protecting your night vison.
The headlamp charges via a built-in USB-C socket in just 2.5 hours, and features a breathable reflective headband for comfort and safety.

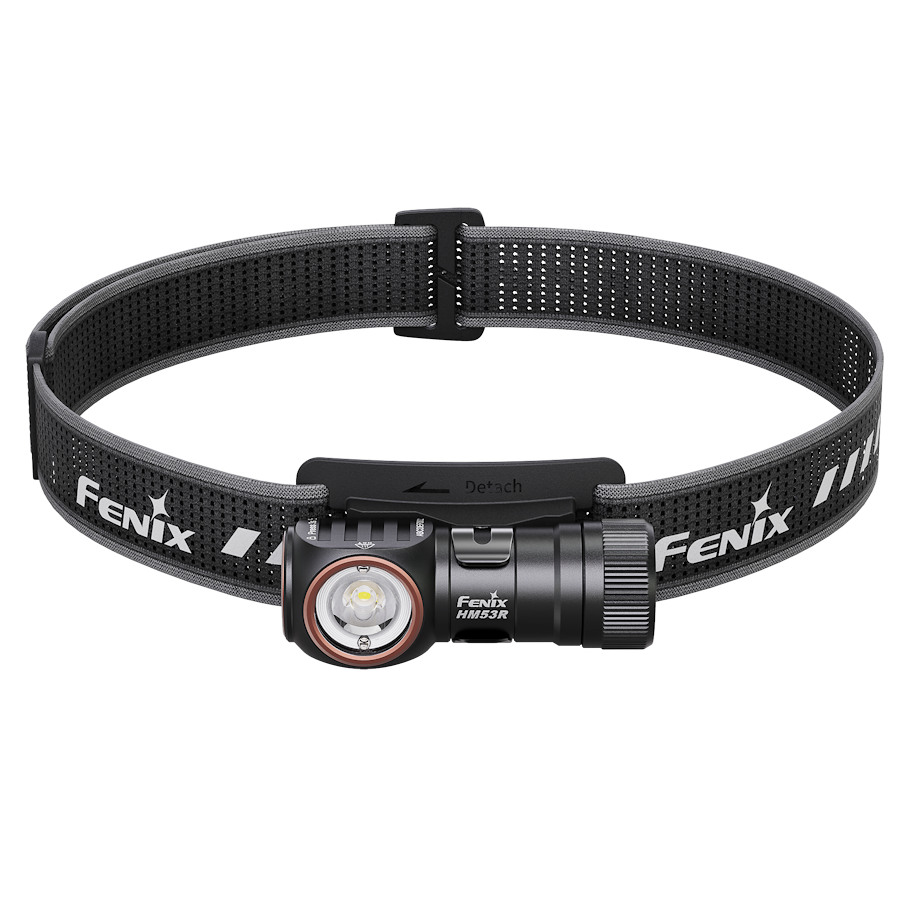

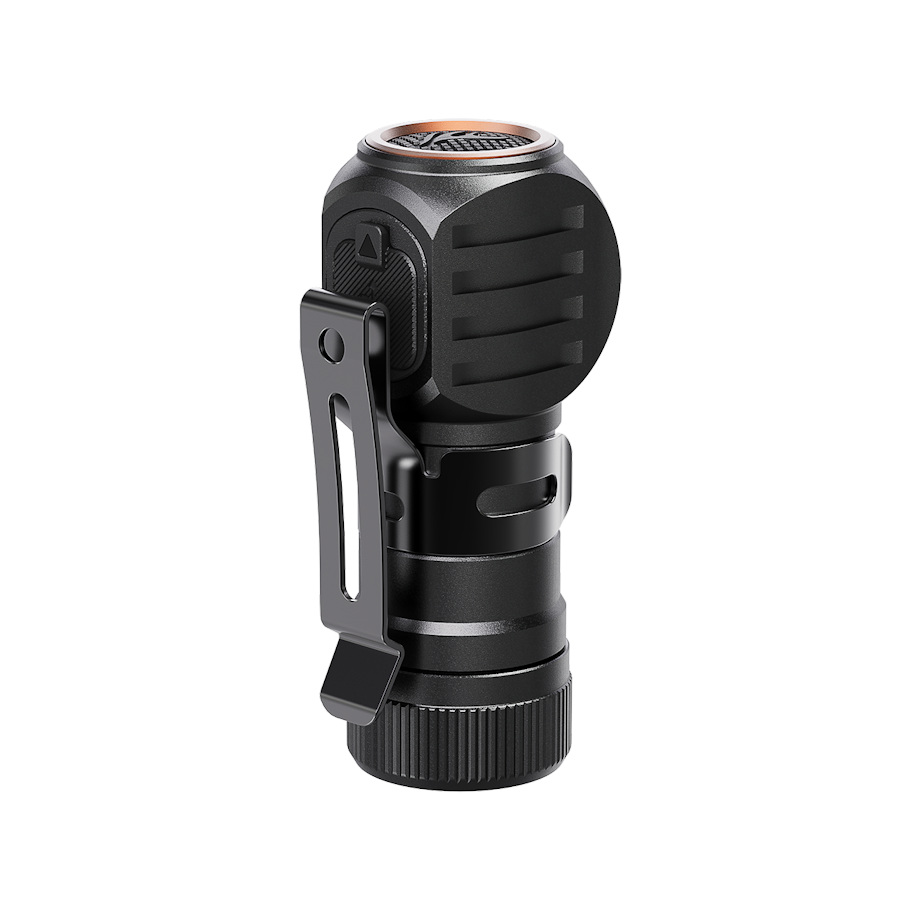

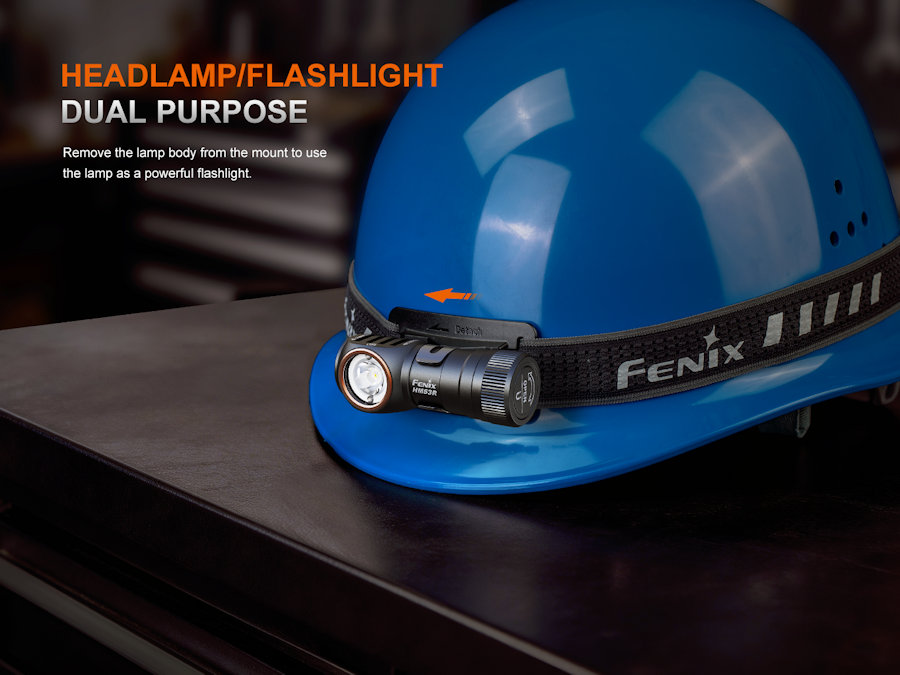

HM53R can be removed from the headband to be used as a hand held right angle torch, attached with the included pocket clip, or mounted with the magnetic tail cap for complete versatility.
It is compact, tough, waterproof, impact resistant and reliable in cold conditions. The supplied 18350 rechargeable lithium battery can be swapped out for CR123A non rechargeable lithium battery if required.

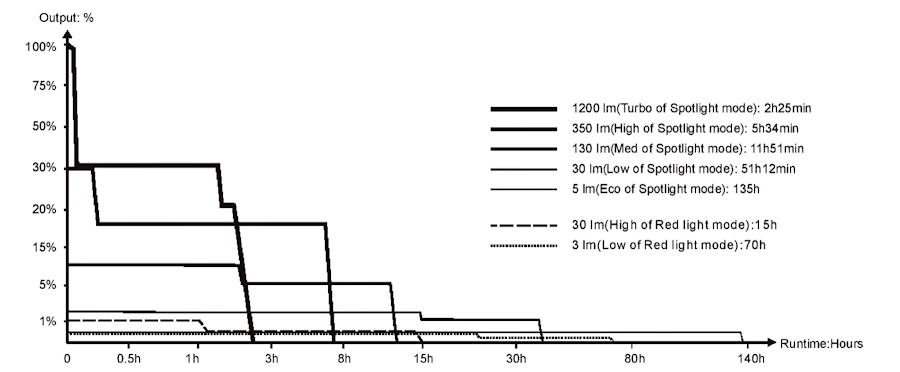

Outputs levels are tuned to offer the maximum run time, so the higher brightness levels will automatically reduce to a lower level in order to achieve this. The headlamp features a mode memory to recall your last used setting. A battery level indicator is also built - in to keep you updated on the remaining power.
Battery level indication:
With the headlamp switched Off, single click the switch to display the battery level for 3 seconds: (Only works with the supplied L18-1600 battery)
- Green constant On: more than 80%
- Green flashes: 50% - 80%
- Red constant On: 20% - 50%
- Red flashes: less than 20%
Charging:

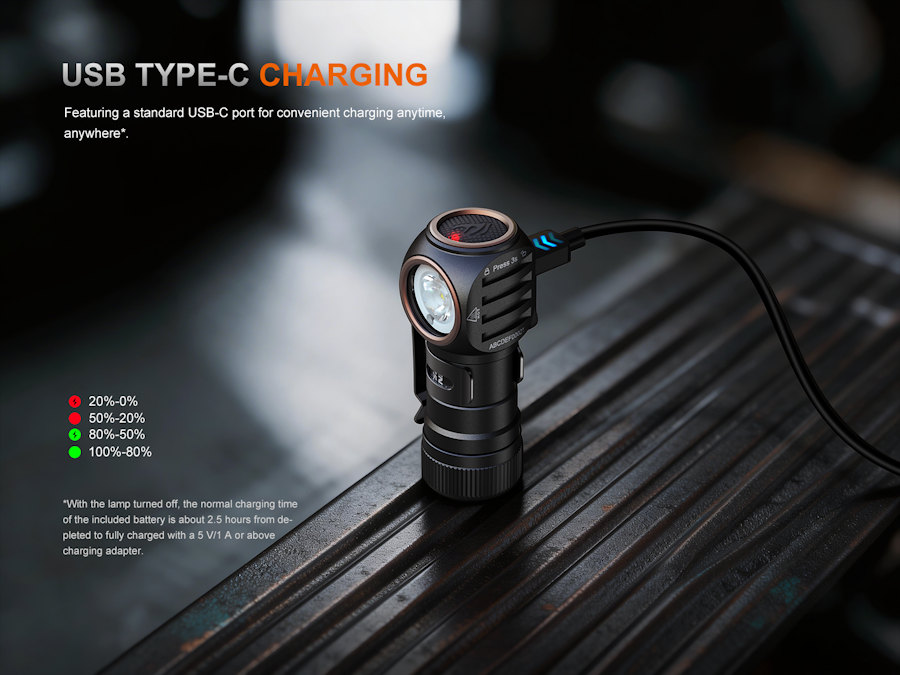

Open the anti dust cap (located at the back of the light) and plug the USB-C cable into the charging port of the headlamp. The indicator will display red while charging and will turn green when fully charged . Once charging is completed, be sure to remove the charging cable and replace the anti dust cap. With the lamp turned off, the normal charging time of the included Fenix ARB-L18-1600 battery is approximately 2.5 hours from depleted to fully charged with a 5 V/1 A charging adaptor (not included).
Fenix HM53R V2.0 features:
• 1200 lumens maximum output, 158 meters maximum beam distance.
• Uses one Luminus SST-25 cold white LED and two OSRAM-2835 red LEDs

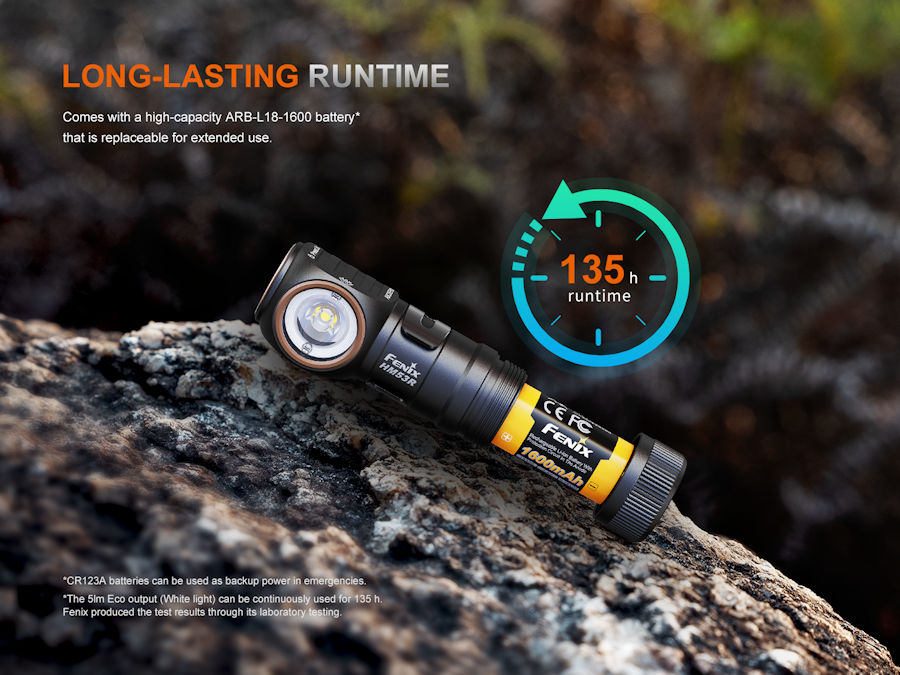

• Powered by an included 1600mAh 18350 battery. Also compatible with 16340/CR123A batteries for emergency use.
• Inner waterproof USB Type-C charging port
• Large side switch for simple and glove-friendly operation.

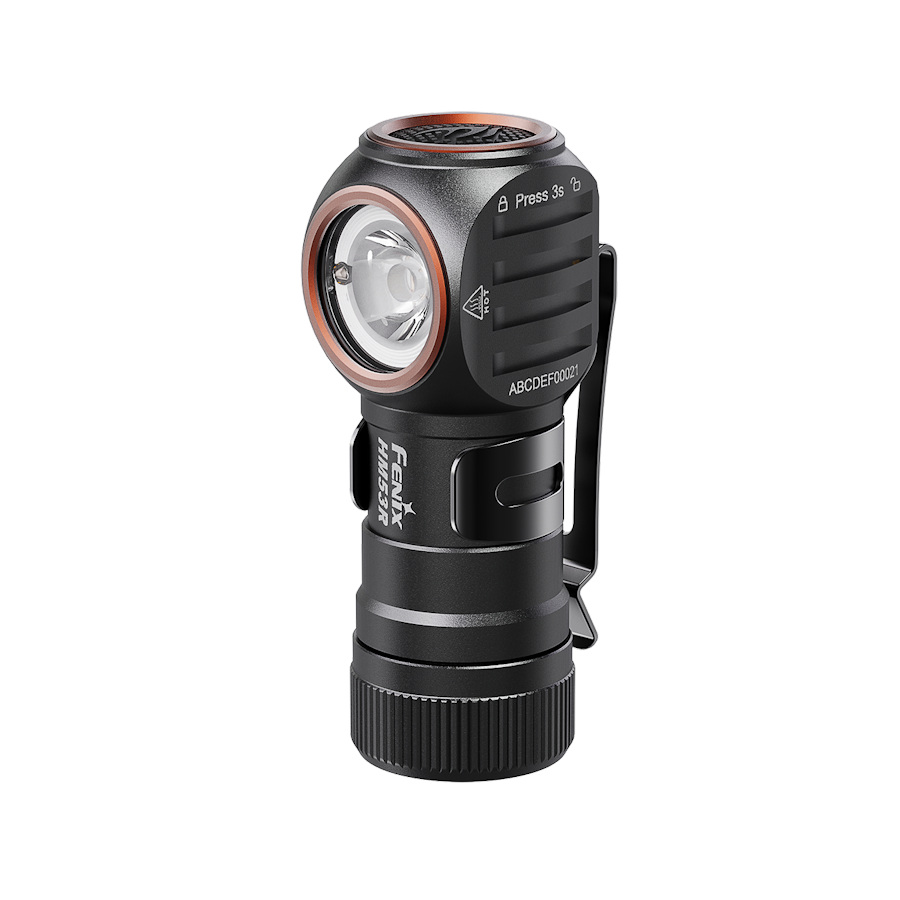

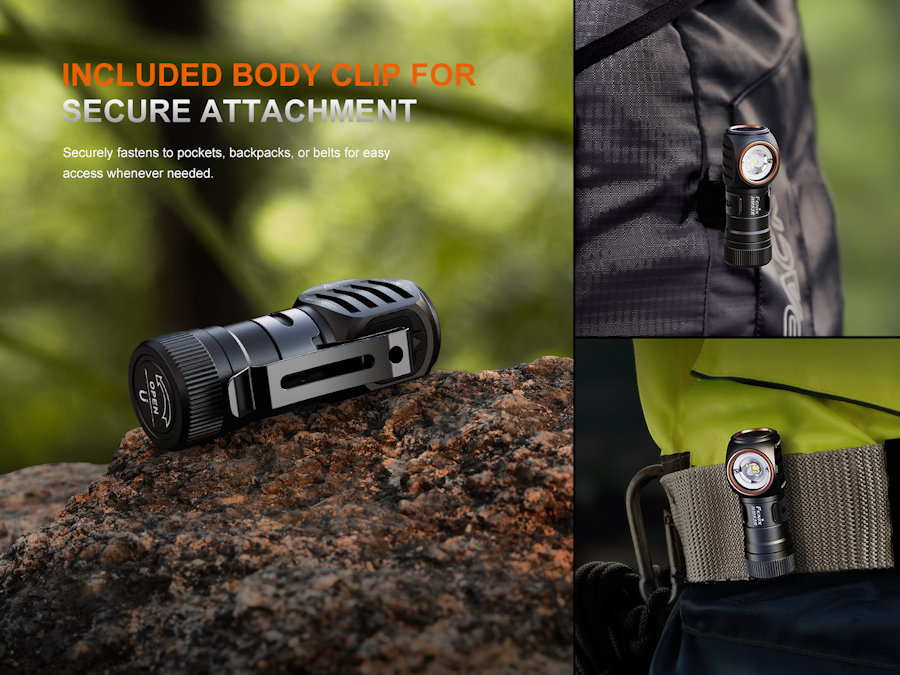

• Headlamp mount, body clip, and magnetic tail-cap provide multiple mounting options.
• Lockout function avoids accidental activation
• Full-metal housing with premium type HAIII hard-anodized anti-abrasive finish.
• Weight: 3.60 oz/102 g (including battery, headband, and mount).
• Size: 2.80'' × 1.46'' × 1.42''/71 × 37 × 36 mm.

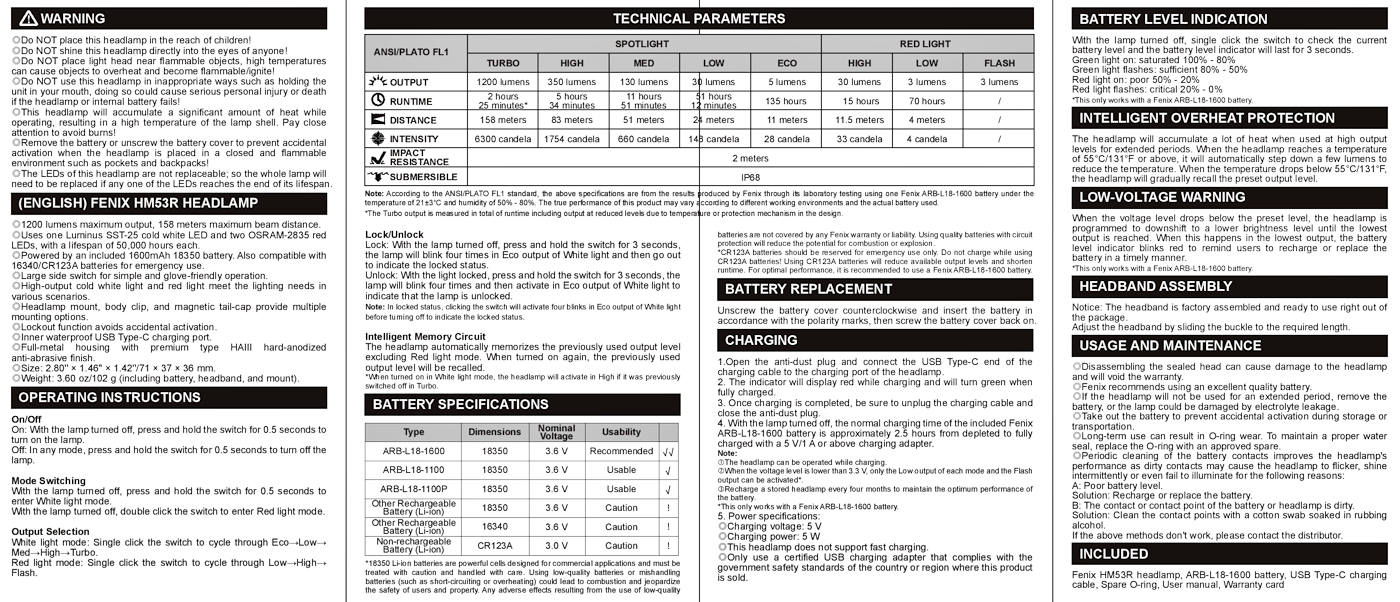

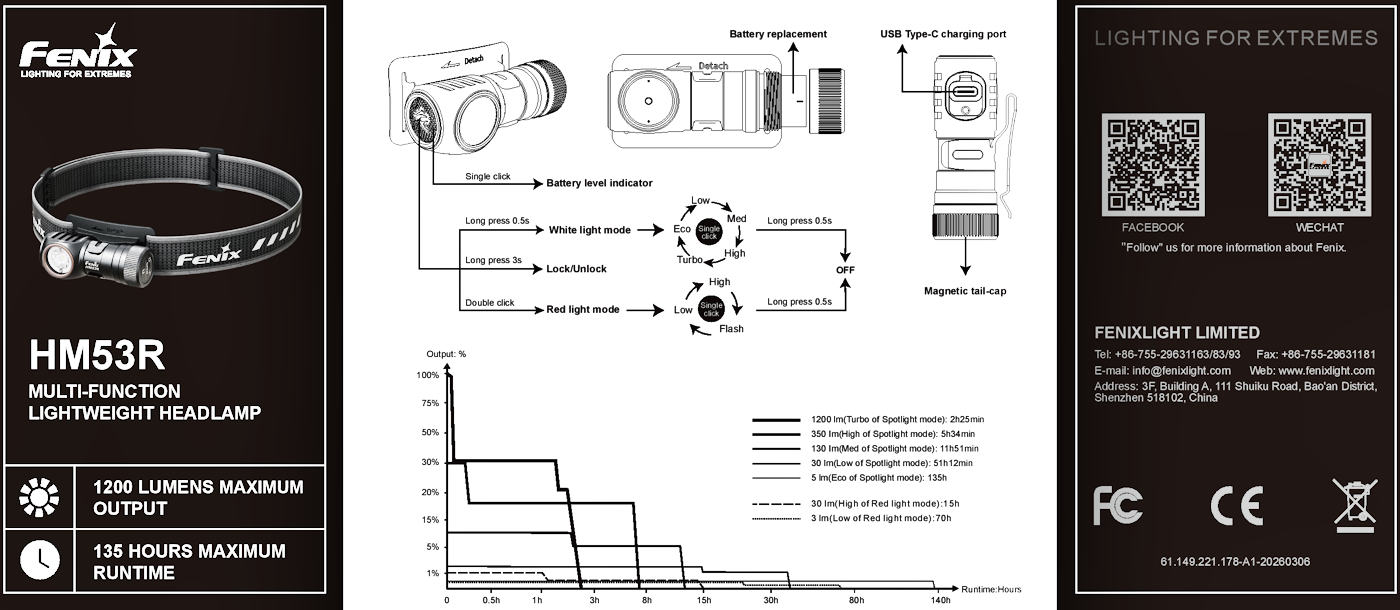

For full product details please refer to the user manual in the small images area.

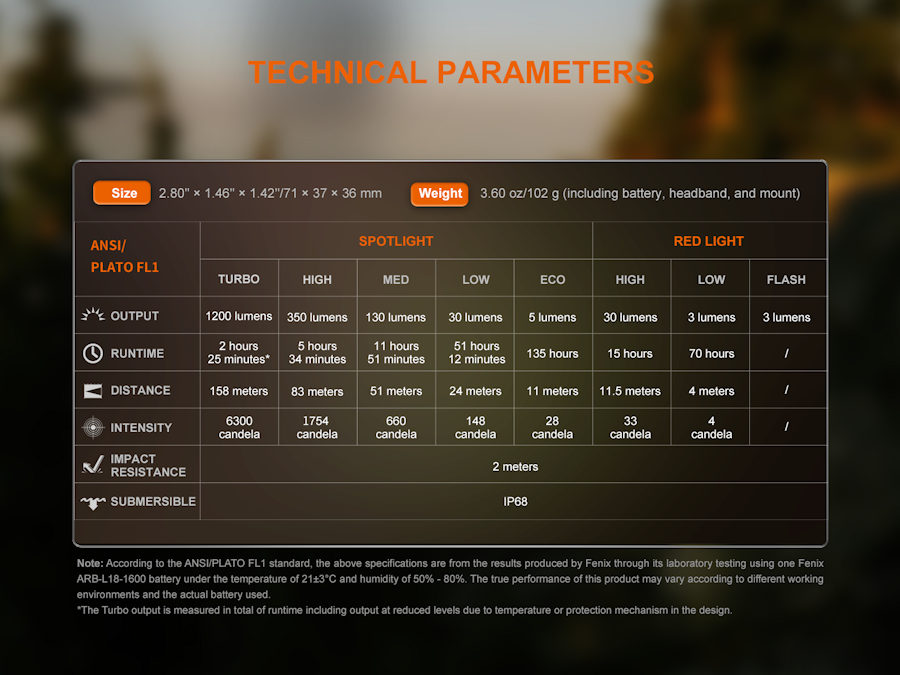

Specification
Includes a red LED
Yes
LED Type
Uses one Luminus SST-25 cold white LED and two OSRAM-2835 red LEDs,
Red Low: 3 lumens (70 hrs), Red High: 30 lumens (15 hrs), Red Flash: 3 lumens
Flashing Modes
Red, Red Flash
Max Beam Distance
158m
Reflector
TIR Lens
Lens Type
TIR Lens
Switch Type
Head mounted On - Off - Mode switch
Construction
A6061-T6 aircraft grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
Yes
Pocket Clip
Yes
Waterproofing

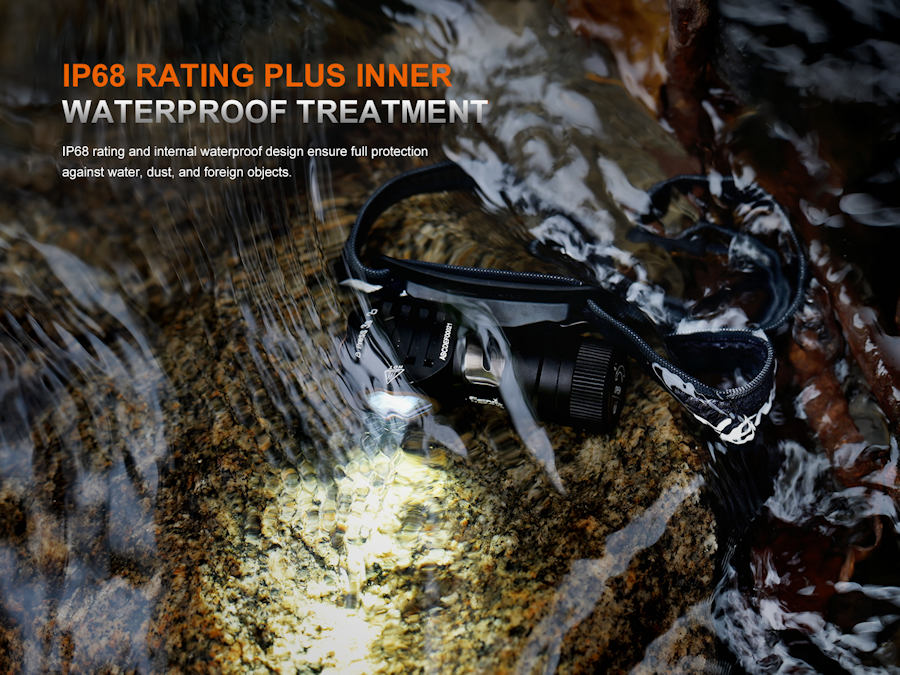

IP68, 2m depth & dustproof
Dimensions/Weight
71mm (Length) x 37mm (Depth) x 36mm (Width)
102 grams (including lamp holder, headband and battery)
Further Info
N/A
Operation

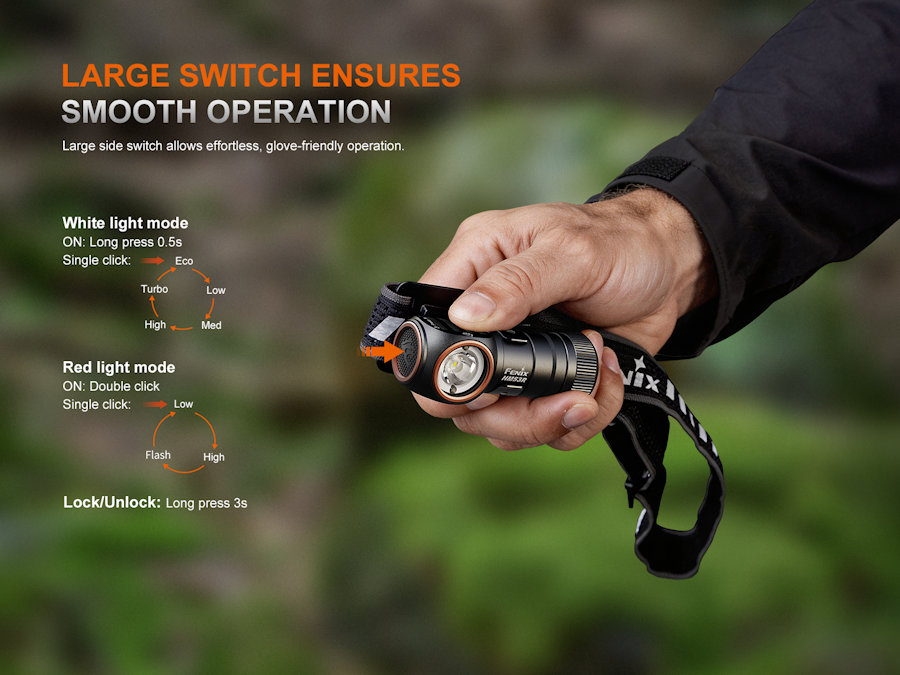

Fenix HM53R operation: On/Off:
On: With the lamp turned off, press and hold the switch for 0.5 seconds to turn on the lamp. Off: In any mode, press and hold the switch for 0.5 seconds to turn off the lamp. Mode Switching:
With the lamp turned off, press and hold the switch for 0.5 seconds to enter White light mode. With the lamp turned off, double click the switch to enter Red light mode. Output Selection:
White light mode: Single click the switch to cycle through Eco→Low→Med→High→Turbo. Red light mode: Single click the switch to cycle through Low→High→Flash. Lock/Unlock:
Lock: With the lamp turned off, press and hold the switch for 3 seconds, the lamp will blink four times in Eco output of White light and then go out to indicate the locked status.
Unlock: With the light locked, press and hold the switch for 3 seconds, the lamp will blink four times and then activate in Eco output of White light to indicate that the lamp is unlocked. Note: In locked status, clicking the switch will activate four blinks in Eco output of White light before turning off to indicate the locked status. Intelligent Memory Circuit:
The headlamp automatically memorizes the previously used output level excluding Red light mode. When turned on again, the previously used output level will be recalled.
*When turned on in White light mode, the headlamp will activate in High if it was previously switched off in Turbo. Battery Specifications:
Fenix ARB-L18-1600 18350 3.6 V Recommended √√ Fenix ARB-L18-1100 18350 3.6 V Usable √ Fenix ARB-L18-1100P 18350 3.6 V Usable √ Other Rechargeable Battery (Li-ion) 18350 3.6 V Caution ! Other Rechargeable Battery (Li-ion) 16340 3.6 V Caution ! Non-rechargeable Battery (Li-ion) CR123A 3.0 V Caution !
*18350 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion.
*CR123A batteries should be reserved for emergency use only. Do not charge while using CR123A batteries! Using CR123A batteries will reduce available output levels and shorten runtime. For optimal performance, it is recommended to use a Fenix ARB-L18-1600 battery. Battery Replacement:
Unscrew the battery cover counter clockwise and insert the battery in accordance with the polarity marks, then screw the battery cover back on. Charging:
1. Open the anti-dust plug and connect the USB Type-C end of the charging cable to the charging port of the headlamp. 2. The indicator will display red while charging and will turn green when fully charged. 3. Once charging is completed, be sure to unplug the charging cable and close the anti-dust plug. 4. With the lamp turned off, the normal charging time of the included Fenix ARB-L18-1600 battery is approximately 2.5 hours from depleted to fully charged with a 5 V/1 A or above charging adapter. Note:
1. The headlamp can be operated while charging. 2. When the voltage level is lower than 3.3 V, only the Low output of each mode and the Flash output can be activated. Note: This only works with a Fenix ARB-L18-1600 battery. 3. Recharge a stored headlamp every four months to maintain the optimum performance of the battery.
Charging specifications:
â—ŽCharging voltage: 5 V â—ŽCharging power: 5 W â—ŽThis headlamp does not support fast charging. â—ŽOnly use a certified USB charging adapter that complies with the government safety standards of the country or region where this product is sold. Battery Level Indication:
With the lamp turned off, single click the switch to check the current battery level and the battery level indicator will last for 3 seconds.
Green light on: saturated 100% - 80% Green light flashes: sufficient 80% - 50% Red light on: poor 50% - 20% Red light flashes: critical 20% - 0%
*This only works with a Fenix ARB-L18-1600 battery. Intelligent Overheat Protection:
The headlamp will accumulate a lot of heat when used at high output levels for extended periods. When the headlamp reaches a temperature of 55°C/131°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 55°C/131°F, the headlamp will gradually recall the preset output level. Low-voltage Warning:
When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until the lowest output is reached. When this happens in the lowest output, the battery level indicator blinks red to remind users to recharge or replace the battery in a timely manner.
*This only works with a Fenix ARB-L18-1600 battery. Headband Assembly:
Notice: The headband is factory assembled and ready to use right out of the package. Adjust the headband by sliding the buckle to the required length. Usage and Maintenance:
â—ŽDisassembling the sealed head can cause damage to the headlamp and will void the warranty. â—ŽFenix recommends using an excellent quality battery. â—ŽIf the headlamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage. â—ŽTake out the battery to prevent accidental activation during storage or transportation. â—ŽLong-term use can result in O-ring wear. To maintain a proper water seal, replace the O-ring with an approved spare. â—ŽPeriodic cleaning of the battery contacts improves the headlamp's performance as dirty contacts may cause the headlamp to flicker, shine intermittently or even fail to illuminate for the following reasons: Problems:
A: Poor battery level. Solution: Recharge or replace the battery. B: The contact or contact point of the battery or headlamp is dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact the distributor.
