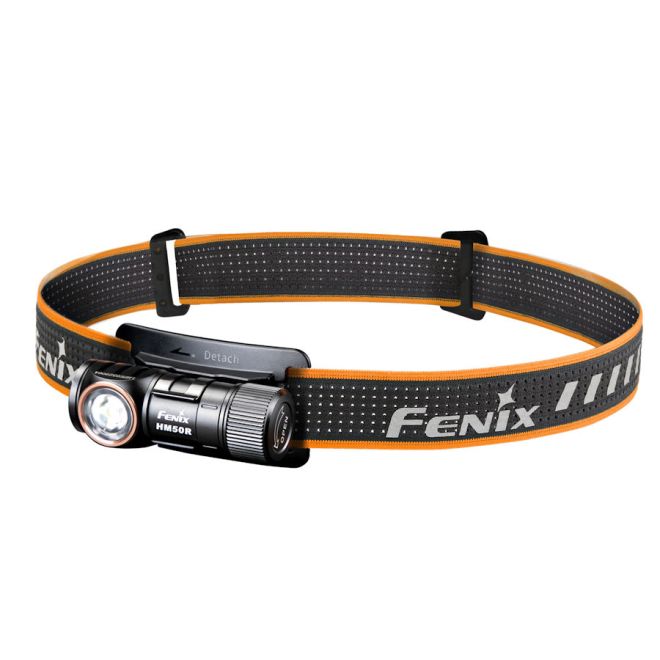

Fenix HM50R V2.0 700 Lumen Mini LED Headlamp

£67.95
In Stock

  • Features a Cree XP-G3 S4 LED
  • 700 Max lumen output
  • Uses 1 x Fenix ARB-L16-700P battery

  • Add to Basket

    For commercial orders and large purchases, contact us at 02921157162, or

    Product Description
    Specification
    Operation
    Package & Contents
    Product Description
    Fenix HM50R V2.0 rechargeable multi-purpose head lamp is ideal as an ultra durable head torch / torch for industrial, every day and sporting tasks. Fenix HM50R V2.0 light weight LED headlamp offers an impressive upgrade over its predecessor with increased output, up from 500 to 700 lumens, the addition of 2 red light modes, USB-C fast charging and new breathable & reflective headband design.

    The light can be used as a headlamp or easily removed from its slide-in holder for use as a right angled mini torch, complete with pocket clip for easy attachment to clothing etc. HM50R V2.0 can be charged in just 1.5 hours via the supplied USB-C cable (can be used with either a mains charger or charged on the go with a rechargeable power bank that features a USB output socket).

    This model is ultra-compact, tough, waterproof, impact resistant and cold resistant. For the most extreme conditions the supplied 16340 rechargeable lithium battery can be swapped out for a CR123 non-rechargeable lithium battery which will give protection down to -40 degrees C.

    The large single side switch controls both White and Red output modes:
    Please note that most outputs will dim during use in order to extend run time (see run Fenix run time graph below)

    White light mode:

    Low: 30 lumens (42 hrs) - 23m beam
    Med: 130 lumens (8 hrs) - 49m beam
    High: 400 lumens (3 hrs) - 86m beam
    Turbo: 700 lumens (1 hr) - 115m beam

    Red Mode:

    Red: 5 lumens (60 hrs) - 6m beam
    Red SOS: 5 lumens (120 hrs) - 6m beam (light visible at considerable distance)

    Outputs levels are tuned to offer the maximum run time, so the higher brightness levels will automatically reduce to a lower level in order to achieve this. The headlamp features a mode memory to recall your last used setting. A battery level indicator is also built - in to keep you updated on the remaining power.

    Battery level indication:

    With the headlamp switched Off, single click the switch to display the battery level for 3 seconds: (Only works with the supplied L16-700P battery)

     - Green constant On: more than 80%
     - Green flashes: 50% - 80%
     - Red constant On: 20% - 50%
     - Red flashes: less than 20%

    Charging:

    Remove the dust cap and plug the USB-C cable into the charging port of the headlamp. Once charging is completed, be sure to remove the charging cable and replace the dust cap. The LED indicator built into the switch displays red when charging and turns green when fully charged (approx 1.5 hrs). The headlamp can be used on low, red light and red flash mode while charging but charging time will be prolonged.

    Fenix HM50R V2.0 features:

    • Lockout function - avoids accidental activation (hold button for 3 seconds to activate / de activate)
    • Intelligent overheat protection reduces output at 60 deg C
    • Low voltage warning (With Fenix L16-700P battery, LED blinks to remind you to recharge)
    • Easily replaceable rechargeable battery
    • Can be used underwater at 2m depth for 4 hours

    For full product details please refer to the user manual in the images area.



    Specification
    ModelHM50R V2.0
    Battery Type16340
    Battery Quantity1
    Additional Battery Type1 x CR123A
    LED TypeCree XP-G3 S4 LED
    Output/RuntimeTurbo: 700 lumens (1 hr*), High: 400 lumens (3 hrs), Mid: 130 lumens (8 hrs), Low: 30 lumens (42 hrs)

    Red: 5 lumens (60 hrs), Red Flash: 5 lumens (120 hrs)
    Flashing ModesRed, Red Flash
    Max Beam Distance115 m
    ReflectorTIR Lens
    Lens TypeTIR lens
    Switch TypeHead mounted On - Off - Mode switch
    ConstructionA6061-T6 aircraft grade aluminum
    FinishPremium Type III hard-anodized anti-abrasive finish
    Tail StandYes
    Pocket ClipYes
    WaterproofingIP68, 2m depth & dustproof
    Dimensions/Weight64mm (Length) x 36mm (Width) x 32mm

    78 grams (including lamp holder, headband and battery)
    Further InfoN/A
    Operation
    Fenix HM50R V2.0 operation:

    On/off:

    On: With the lamp switched off, press and hold the switch for 0.5 seconds to enter white light mode.
    On - Direct to red: With the lamp switched off, double click the switch to enter red light mode.
    Off: With the lamp switched on, press and hold the switch for 0.5 seconds to turn the lamp off.

    Output Selection:

    White light mode: Single click the switch to cycle through Low →Med →High →Turbo. (with Intelligent memory clrcult)
    Red light mode: single click the switch to cycle through Red light → Red flash. (without Intelligent memory circuit)

    Lockout Function:

    Lock: When the lamp is switched off, press and hold the switch for 3 seconds, the lamp will be switched on white light and then blink red four times to indicate locked status.

    Unlock: When the lamp is locked, press the switch for 3 seconds, the lamp will be activated with 4 one-second red blinks and activated on Red Light.
    Package & Contents

    Retail Packaged Fenix HM50R V2.0 Headlamp
    ARB-L16-700P Battery
    Spare O-ring
    Charging cable
    User Manual
    Warranty card
