LR50R V2.0 - Coming Soon!

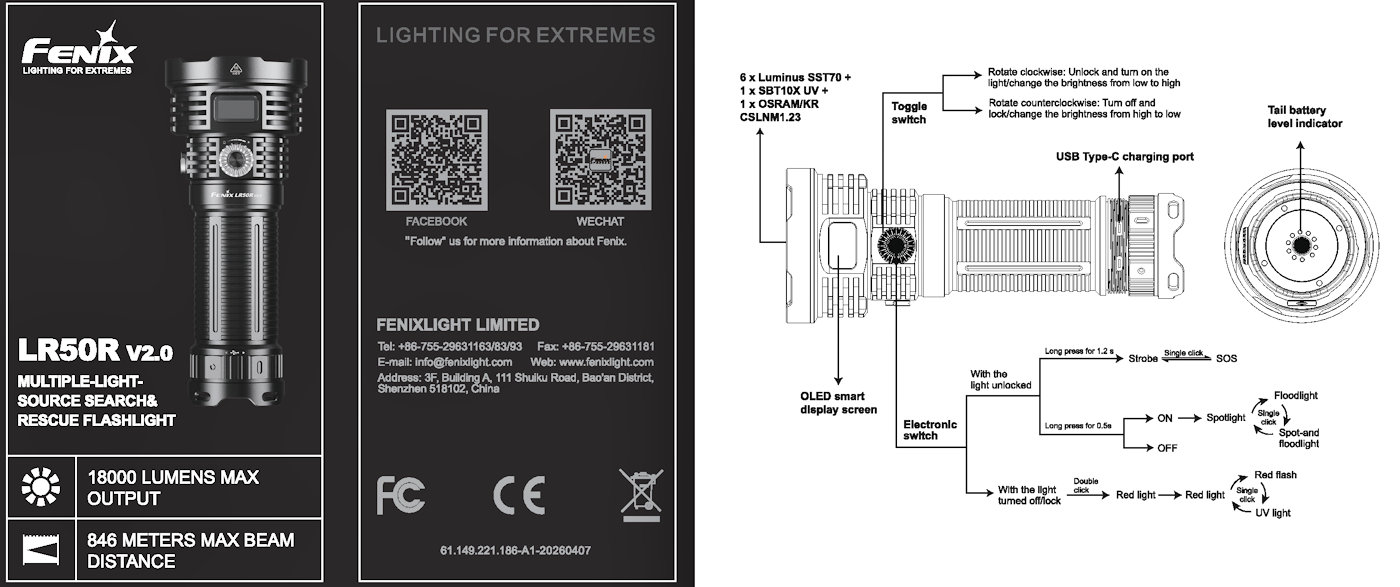

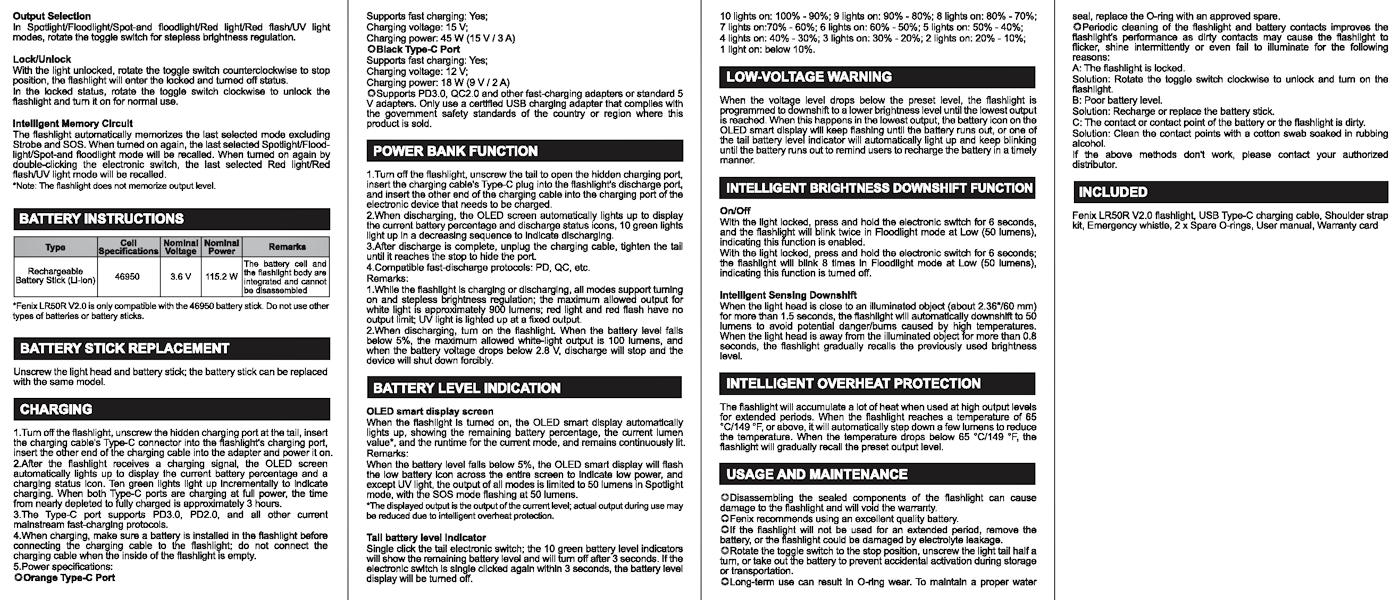

Fenix LR50R V2.0 torch operation:

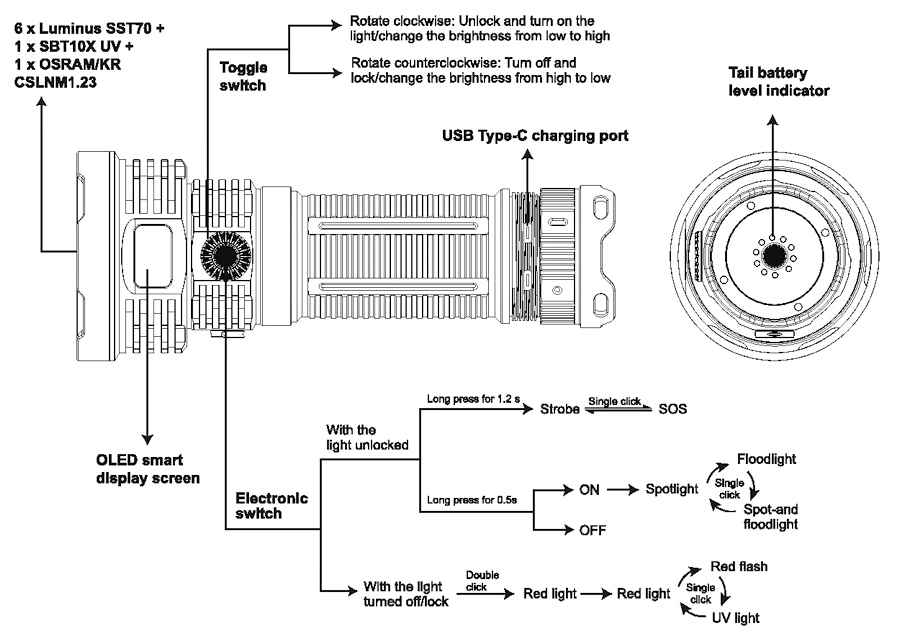

On/Off:

On: With the light locked, rotate the toggle switch clockwise to turn on the light; with the light turned off and unlocked, press and hold the electronic switch for 0.5 seconds to turn on the flashlight.
Off: Rotate the toggle switch counter clockwise to the stop position, or press and hold the electronic switch for 0.5 seconds to turn off the flashlight.

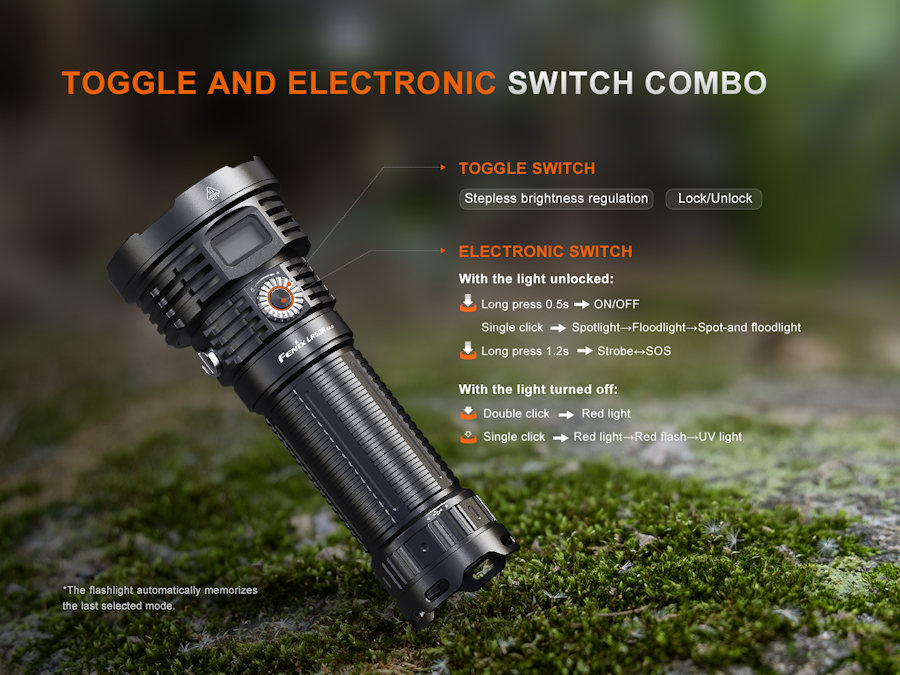

Mode Switching:

With the light turned on, single click the electronic switch to cycle through Spotlight mode→Floodlight mode→Spot-and floodlight mode.

With the light turned off/locked, double click the electronic switch to enter Red light/Red flash/UV light mode (the last selected lighting mode before turning off). Single click the electronic switch to cycle through Red light mode→Red flash mode→UV light mode, and press and hold it for 0.5 seconds to exit Red light/Red flash/UV mode and turn off the flashlight.

Strobe/SOS Mode:

With the light unlocked, press and hold the electronic switch for 1.2 seconds to enter Strobe mode. Single click the electronic switch to cycle through Strobe→SOS. Press and hold the electronic switch again for 1.2 seconds to exit Strobe/SOS mode.

Output Selection:

In Spotlight/Floodlight/Spot-and floodlight/Red light/Red flash/UV light modes, rotate the toggle switch for stepless brightness regulation.

Lock/Unlock:

With the light unlocked, rotate the toggle switch counter clockwise to stop position, the flashlight will enter the locked and turned off status.
In the locked status, rotate the toggle switch clockwise to unlock the flashlight and turn it on for normal use.

Intelligent Memory Circuit:

The flashlight automatically memorizes the last selected mode excluding Strobe and SOS. When turned on again, the last selected Spotlight/Floodlight/Spot-and floodlight mode will be recalled. When turned on again by double-clicking the electronic switch, the last selected Red light/Red flash/UV light mode will be recalled.
*Note: The flashlight does not memorize output level.

Battery Instructions:

Rechargeable Battery Stick (Li-ion) 46950 3.6 V 115.2 W
The battery cell and the flashlight body are integrated and cannot be disassembled.
* Fenix LR50R V2.0 is only compatible with the 46950 battery stick. Do not use other types of batteries or battery sticks.

Battery Stick Replacement:

Unscrew the light head and battery stick; the battery stick can be replaced with the same model.

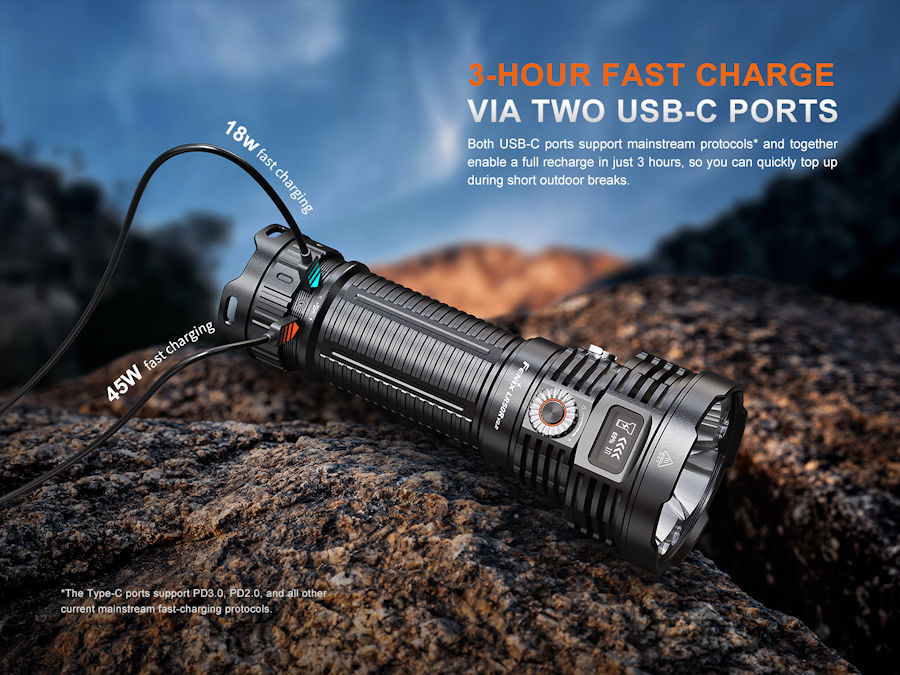

Charging:

Turn off the flashlight, unscrew the hidden charging port at the tail, insert the charging cable's Type-C connector into the flashlight's charging port, insert the other end of the charging cable into the adapter and power it on.
After the flashlight receives a charging signal, the OLED screen automatically lights up to display the current battery percentage and a charging status icon. Ten green lights light up incrementally to indicate charging. When both Type-C ports are charging at full power, the time from nearly depleted to fully charged is approximately 3 hours.

The Type-C port supports PD3.0, PD2.0, and all other current mainstream fast-charging protocols.
When charging, make sure a battery is installed in the flashlight before connecting the charging cable to the flashlight; do not connect the charging cable when the inside of the flashlight is empty.

Power specifications:

Orange Type-C Port:
Supports fast charging: Yes;
Charging voltage: 15 V;
Charging power: 45 W (15 V / 3 A)

Black Type-C Port:
Supports fast charging: Yes;
Charging voltage: 12 V;
Charging power: 18 W (9 V / 2 A)

Supports PD3.0, QC2.0 and other fast-charging adapters or standard 5 V adapters. Only use a certified USB charging adapter that complies with the government safety standards of the country or region where this product is sold.

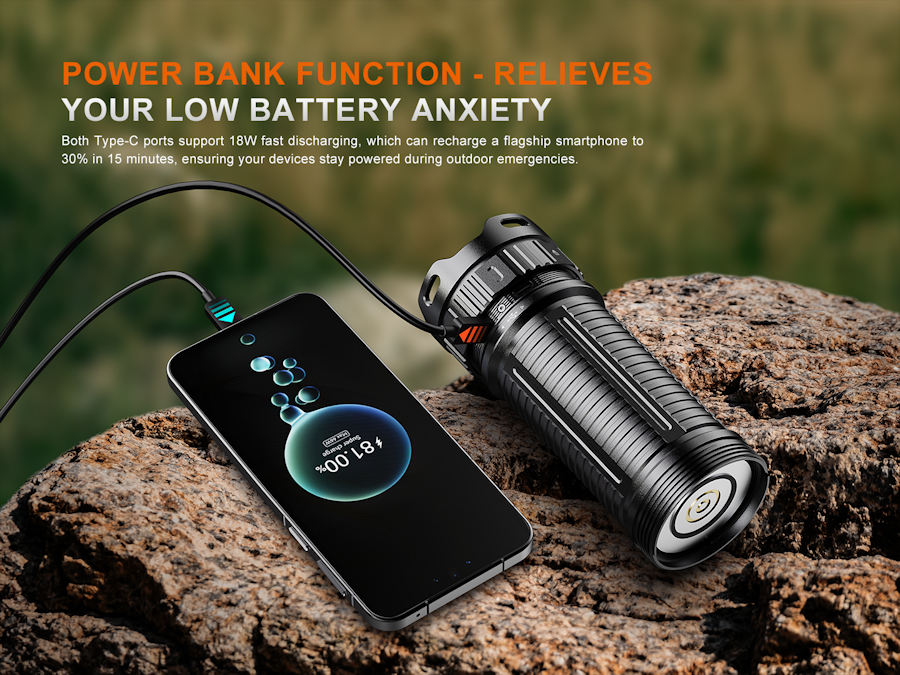

Power Bank Function:

Turn off the flashlight, unscrew the tail to open the hidden charging port, insert the charging cable's Type-C plug into the flashlight's discharge port, and insert the other end of the charging cable into the charging port of the electronic device that needs to be charged.
When discharging, the OLED screen automatically lights up to display the current battery percentage and discharge status icons, 10 green lights at the tail light up in a decreasing sequence to indicate discharging. After discharge is complete, unplug the charging cable then tighten the tail until it reaches the stop to hide the port. Compatible fast-discharge protocols: PD, QC, etc.

Remarks:

While the flashlight is charging or discharging, all modes support turning on and stepless brightness regulation; the maximum allowed output for white light is approximately 900 lumens; red light and red flash have no output limit; UV light is lighted up at a fixed output.
When discharging, turn on the flashlight. When the battery level falls below 5%, the maximum allowed white-light output is 100 lumens, and when the battery voltage drops below 2.8 V, discharge will stop and the device will shut down forcibly.

Battery Level Indication:

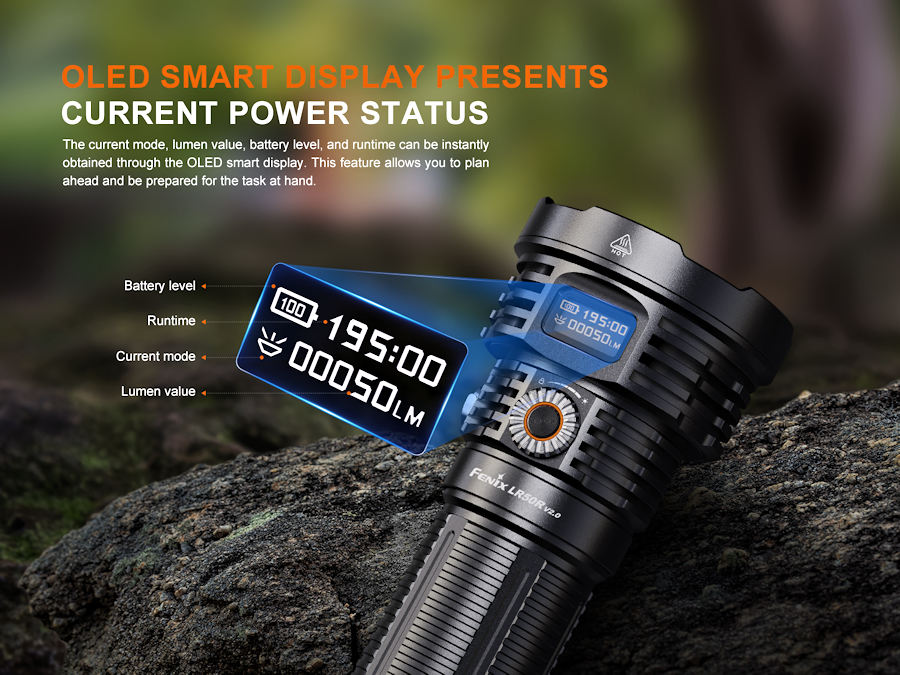

OLED smart display screen:

When the flashlight is turned on, the OLED smart display automatically lights up, showing the remaining battery percentage, the current lumen value*, and the runtime for the current mode, and remains continuously lit.

Remarks:
When the battery level falls below 5%, the OLED smart display will flash the low battery icon across the entire screen to indicate low power, and except UV light, the output of all modes is limited to 50 lumens in Spotlight mode, with the SOS mode flashing at 50 lumens.
* The displayed output is the output of the current level; actual output during use may be reduced due to intelligent overheat protection.

Tail battery level indicator:

Single click the tail electronic switch; the 10 green battery level indicators will show the remaining battery level and will turn off after 3 seconds. If the electronic switch is single clicked again within 3 seconds, the battery level display will be turned off.

10 lights on: 100% - 90%, 9 lights on: 90% - 80%, 8 lights on: 80% - 70%, 7 lights on: 70% - 60%, 6 lights on: 60% - 50%, 5 lights on: 50% - 40%, 4 lights on: 40% - 30%, 3 lights on: 30% - 20%, 2 lights on: 20% - 10%, 1 light on: below 10%

Low-voltage Warning:

When the voltage level drops below the pre-set level, the flashlight is programmed to downshift to a lower brightness level until the lowest output is reached. When this happens in the lowest output, the battery icon on the OLED smart display will keep flashing until the battery runs out, or one of the tail battery level indicator will automatically light up and keep blinking until the battery runs out to remind users to recharge the battery in a timely manner.

Intelligent Brightness Downshift Function:

On/Off:

With the light locked, press and hold the electronic switch for 6 seconds, and the flashlight will blink twice in Floodlight mode at Low (50 lumens), indicating this function is enabled.
With the light locked, press and hold the electronic switch for 6 seconds; the flashlight will blink 8 times in Floodlight mode at Low (50 lumens), indicating this function is turned off.

Intelligent Sensing Downshift:

When the light head is close to an illuminated object (about 2.36''/60 mm) for more than 1.5 seconds, the flashlight will automatically downshift to 50 lumens to avoid potential danger/burns caused by high temperatures. When the light head is away from the illuminated object for more than 0.8 seconds, the flashlight gradually recalls the previously used brightness level.

Intelligent Overheat Protection:

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the flashlight reaches a temperature of 65 °C/149 °F, or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65 °C/149 °F, the flashlight will gradually recall the pre-set output level.

Usage and Maintenance:

◎Disassembling the sealed components of the flashlight can cause damage to the flashlight and will void the warranty.
◎Fenix recommends using an excellent quality battery.
◎If the flashlight will not be used for an extended period, remove the battery, or the flashlight could be damaged by electrolyte leakage.
◎Rotate the toggle switch to the stop position, unscrew the light body half a turn, or take out the battery to prevent accidental activation during storage or transportation.
◎Long-term use can result in O-ring wear. To maintain a proper water seal, replace the O-ring with an approved spare.

Periodic cleaning of the flashlight and battery contacts improves the flashlight's performance as dirty contacts may cause the flashlight to flicker, shine intermittently or even fail to illuminate.
