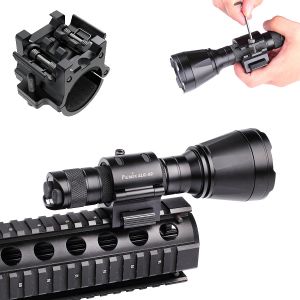

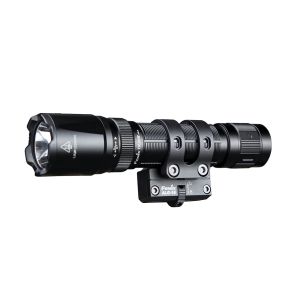

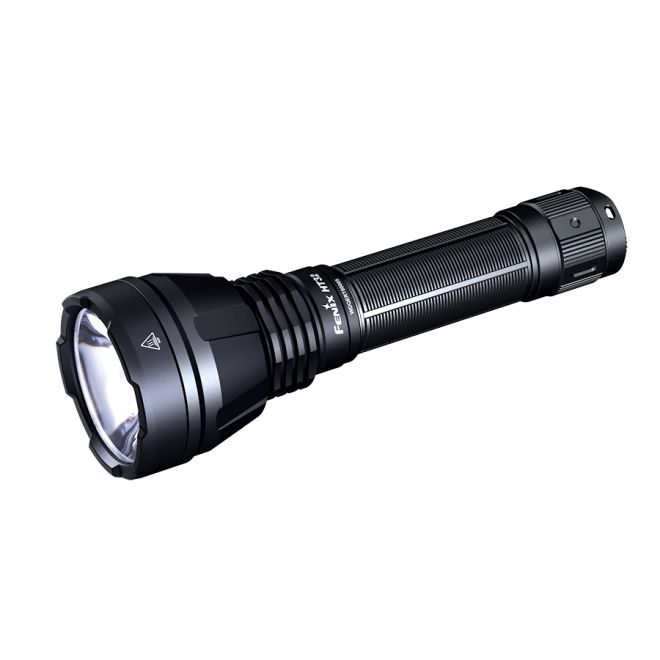

Fenix HT32 is a compact, powerful, long range torch designed primarily for outdoor sporting use. HT32 features 3 led colours with high quality beams. An intense 2500 lumen / 640m white beam, a 1400 lumen / 210m green beam and a 400 lumen / 120m red beam. Weapon mountable, HT32 is compatible with Fenix AER-05 remote switch, ALG-06 M-LOK remote switch mount, ALG-00 rail mount and ALG-16 M-LOK QR mount.
A Fenix ARB-L21-5000U high capacity, 5000 mAh USB-C battery is included for maximum run times and rechargeable convenience. Simply remove the battery from the torch and plug the supplied USB-C cable into the battery and your mobile phone charger to top up. The battery features charging and charged status LED's under the positive terminal cap.
On/off and mode/brightness switching are controlled via an intuitive dual button tail cap interface for simple, single handed intuitive operation.
• 6500K white light colour temperature
• Momentary/constant on off tactical tail switch
• Instant strobe with light switched off
• 65C overheat protection reduces output to protect the LED
• Intelligent memory circuit - remembers your last used brightness level
For full product details, please refer to the user manual in the images area.
Specification
LED Type
Luminus SFT70 White, SFT20 CG Green and SFT20 RA Red LEDs
Model
HT32
Battery Type
21700
Battery Quantity
1
Additional Battery Type
Accepts all Fenix ARB-L21 series batteries (separate charger required for non U (USB) series batteries)
Red High: 400 Lumens, (3hrs 15min), Red Low: 150 Lumens, (4hrs 50mins)
Green High: 1400 Lumens, (2hrs 30min), Green Low: 350 Lumens, (6hrs)
Flashing Modes
Strobe
Max Beam Distance
640m
Reflector
TIR Lens
Lens Type
TIR Lens
Switch Type
Dual tail cap switches. (mode switch and on - off - momentary switch)
Construction
A6061-T6 aircraft grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
No
Pocket Clip
No
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
160mm (Length) x 52mm (Head Diameter) x 25.4mm (Body Diameter)
258 grams (including battery)
Further Info
N/A
Operation
Fenix HT32 Operation:
On/Off:
Tap (half press) the tactical switch to momentarily turn on the light, release it and the light will go out. Fully press (click) the tactical switch to constantly turn on the light, fully press again to turn off the flashlight.
Output Selection:
White Light mode: With the white light switched on, single click the functional switch to cycle through Low→Med→High→Turbo. Red/Green light mode: With the red/green light switched on, single click the functional switch to cycle through Low→High.
Mode switching:
With the light switched on, press and hold the functional switch to cycle through White Light mode→Red Light mode→Green Light mode.
Strobe:
With the light switched off, press the functional switch to enter Strobe, release it and the light will go out.
Intelligent Memory Circuit:
The light memorises the last selected output, excluding strobe. When turned on again, the previously used output will be recalled.
Battery Specifications:
Fenix ARB- L21-5000 V2.0 21700 3.6 V Recommended √√ Fenix ARB- L21-5000U 21700 3.6 V Recommended √√ Fenix ARB- L21-4000P 21700 3.6 V Recommended √√ Other types of Li-ion battery 21700 3.6 V Caution* !
*21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only using quality batteries with circuit protection will reduce the potential for combustion or explosion; cell damage or short circuiting are considered user induced damage and are not covered by any Fenix warranty or liability.
Battery Replacement:
Unscrew the tail cap and insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.
Intelligent Overheat Protection:
The light will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 65°C/149°F or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C/149°F, it will then gradually return to the standard output level.
Low-voltage Warning:
When the voltage level drops below the pre-set level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this brightness level is reached (Low output), the light blinks 3 times every 5 minutes to remind users to recharge or replace the battery. Note: This feature only works with a Fenix ARB-L21 series rechargeable battery.
Usage and Maintenance:
â—ŽDisassembling the sealed head can cause damage to the light and will void the warranty. â—ŽFenix recommends using an excellent quality battery. â—ŽIf the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion. â—ŽRemove the battery to prevent accidental activation during storage or transportation. â—ŽLong-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare. â—ŽPeriodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
Problems:
A: Poor battery level. Solution: Replace or recharge the battery (Ensure the battery is inserted according to the manufacturer’s specifications). B: The threads, PCB board contact or other contacts are dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact your authorized distributor.
Package & Contents
Retail packaged Fenix HT32 LED Torch Fenix ARB-L21-5000U Battery USB-C Charger Lead Holster Lanyard Spare O-ring Warranty card User manual
