Seasonal Special Offer - Buy a Fenix PD40R V3.0 LED torch and receive an extra Fenix ARB- L21-5000 V2 21700 battery worth £28.95 free of charge!

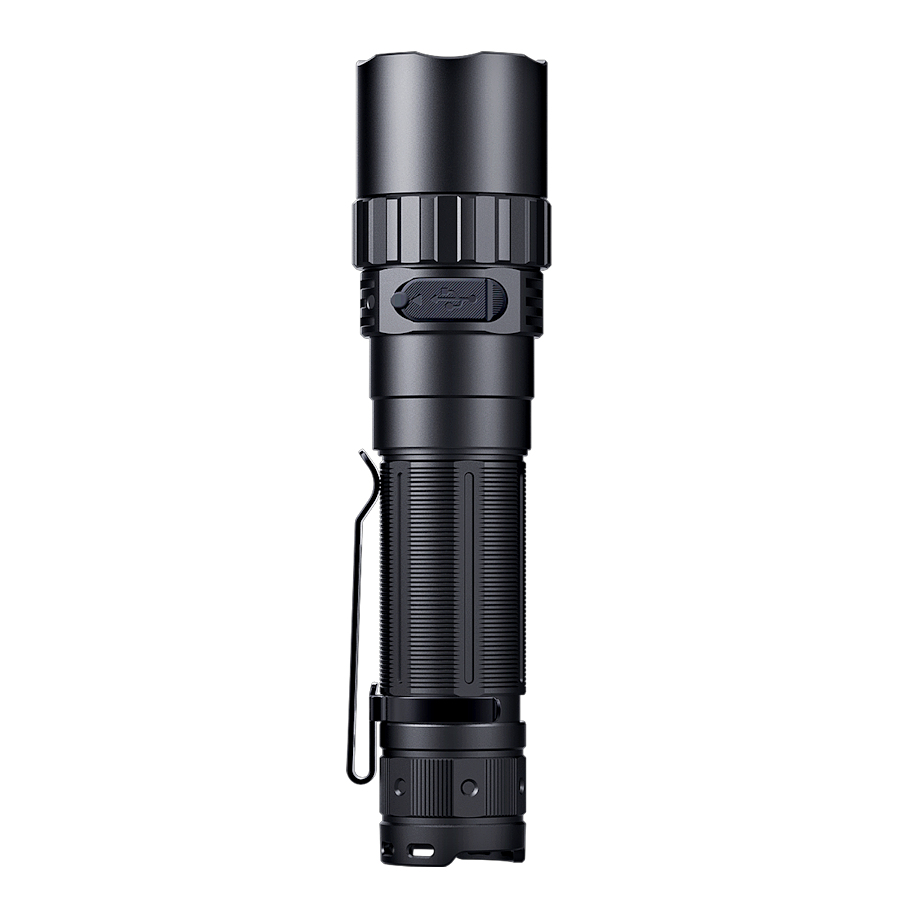

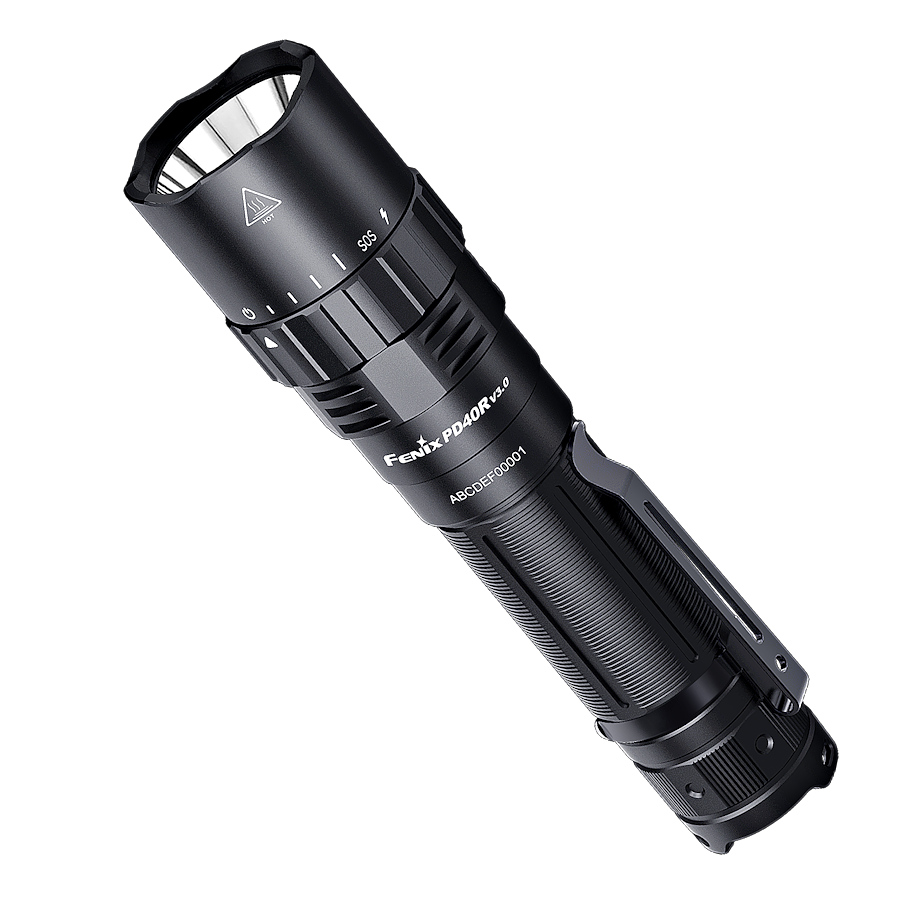

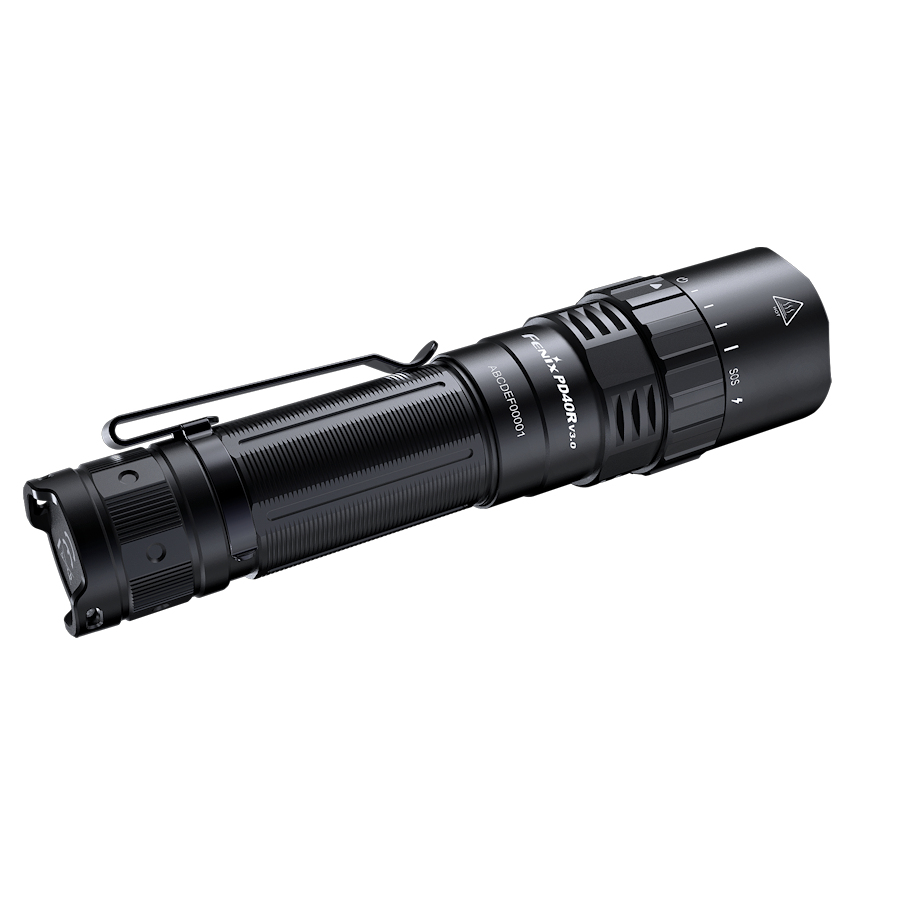

Fenix PD40R V3.0 is a compact 3000 lumen torch incorporating a patented mechanical rotary switch in the head. This controls four brightness levels from 30 to 3000 lumens plus SOS and Strobe modes.

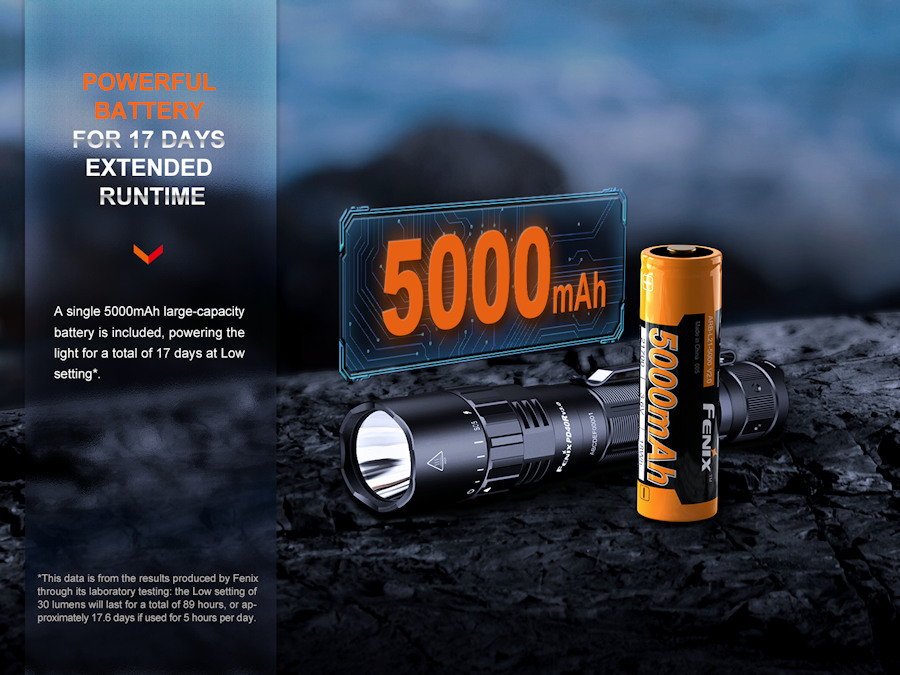

The included high capacity 21700 Li-ion battery delivers exceptional output and run times. The battery is charged inside the torch via a waterproof USB-C socket in the neck of the light (charging cable supplied). Ultra rugged and dependable, PD40RV3 is rated for use in temperatures from -35 to 45 degrees C and features IP68 rated waterproofing to 2 meters depth for 30 minutes.
The 500m central beam offers outstanding range for general outdoor and search use, combined with a wide spill beam to safely light your close surroundings. The light takes 3 hours to charge from empty using the supplied USB to USB-C cable and your 5V 2A mains adapter (phone charger or similar - not supplied). A built-in power indicator LED gives current battery status so you'll always know when it's time to recharge.

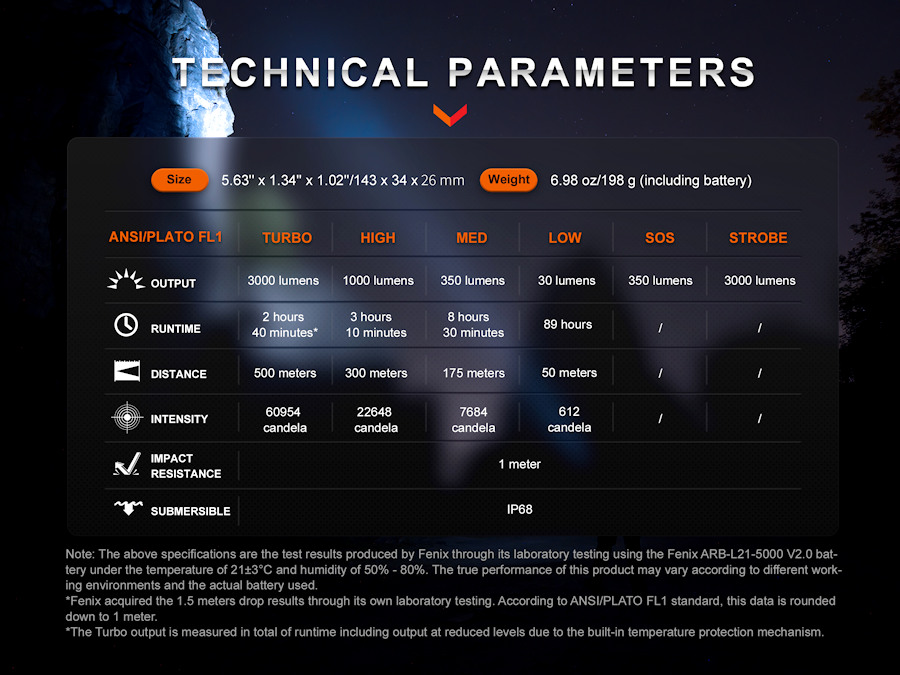

Low: 30 lumens (89 hrs) - 50m beam
Med: 350 lumens (8.5 hrs) - 175m beam
High: 1000 lumens (3 hrs 10 min run time to 10% output) - 300m beam
Turbo: 3000 lumens (2 hrs 40 min run time to 10% output) - 500m beam
SOS: 350 lumens
Strobe: 3000 lumens
Fenix PD40R V3.0 LED torch features:
• 3rd generation light with beam distance increased from 405 to 500m

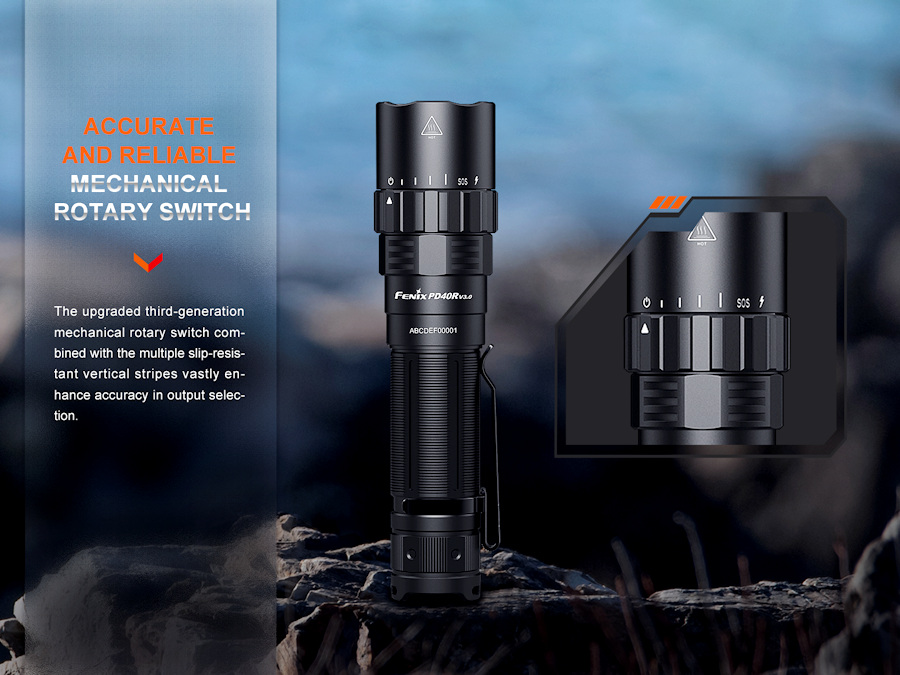

• New, deeply ribbed rotary switch for improved grip
• New SOS mode added
• 6500k colour temperature

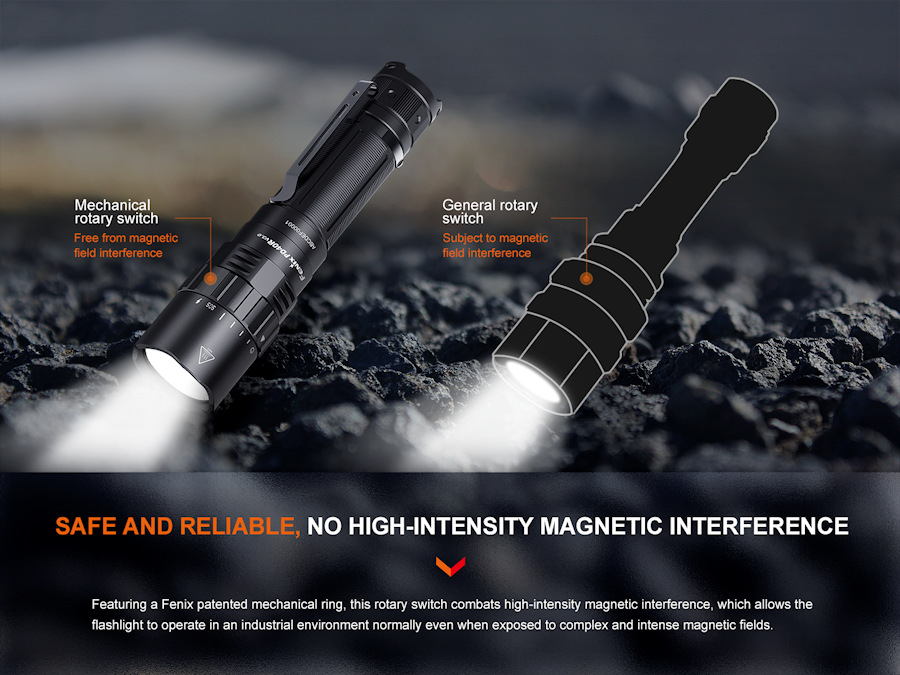

• Patented mechanical switch design protects against magnetic interference
• Neck mounted LED indicates remaining power and charge status
• Hugely powerful yet compact enough for everyday carry
• Built from high-grade components
• Premium Type 111 Hard-Anodized CNC machined body
• Tail stands for use as a candle
Fenix PD40R V3.0 is high performance, premium quality lighting tool that's equally at home in outdoor and industrial environments.

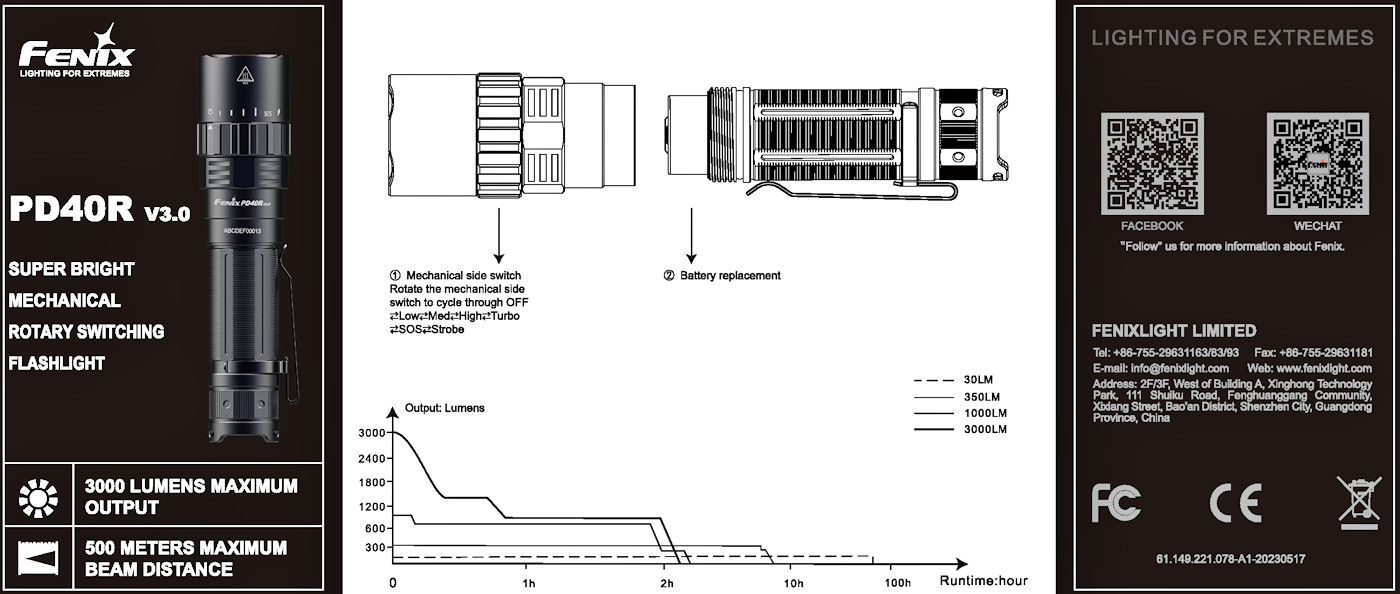

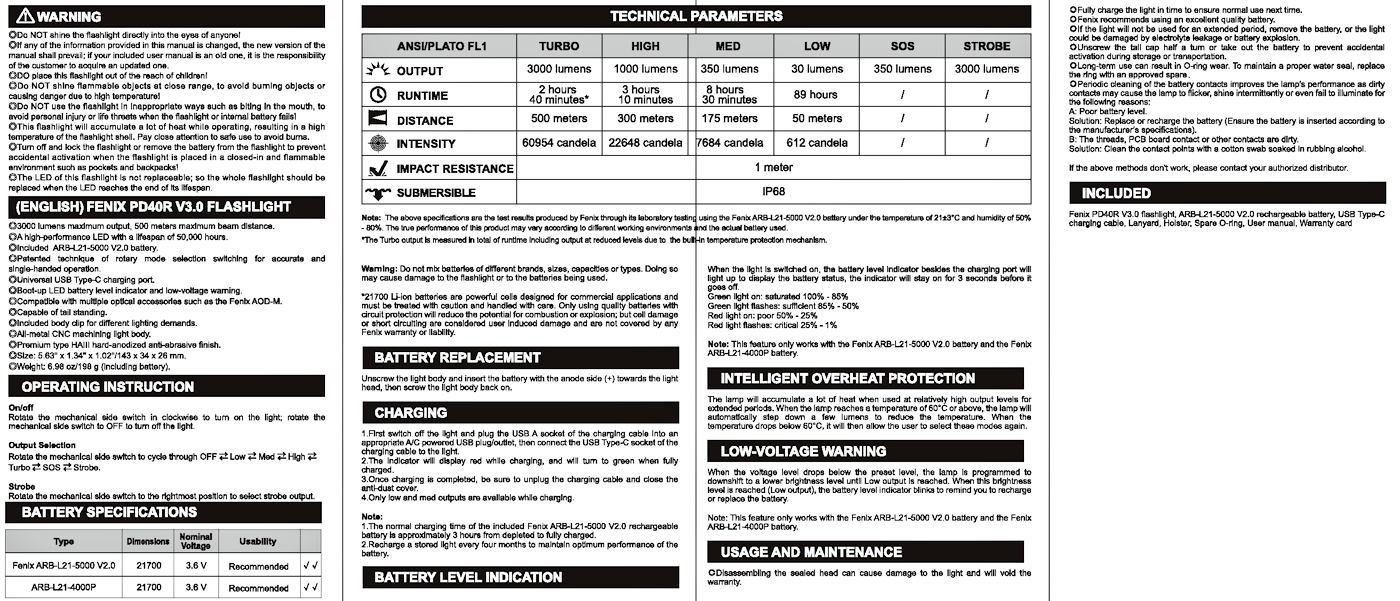

For full product details please refer to the user manual in the images area above.
Specification
LED Type
Luminus SFT70 LED
Model
PD40R V3 With Free Extra Battery
Battery Type
21700
Battery Quantity
1
Additional Battery Type
Fenix ARB-L21-4000P high current battery
(Please note that a Fenix ARB-L21-5000 version 2 battery is supplied with PD40R V3.0. The previous version, ARB-L21-5000 V1 battery may not provide Turbo mode on this model)
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Patented Mechanical Rotary On - Off - Mode Switch
Construction

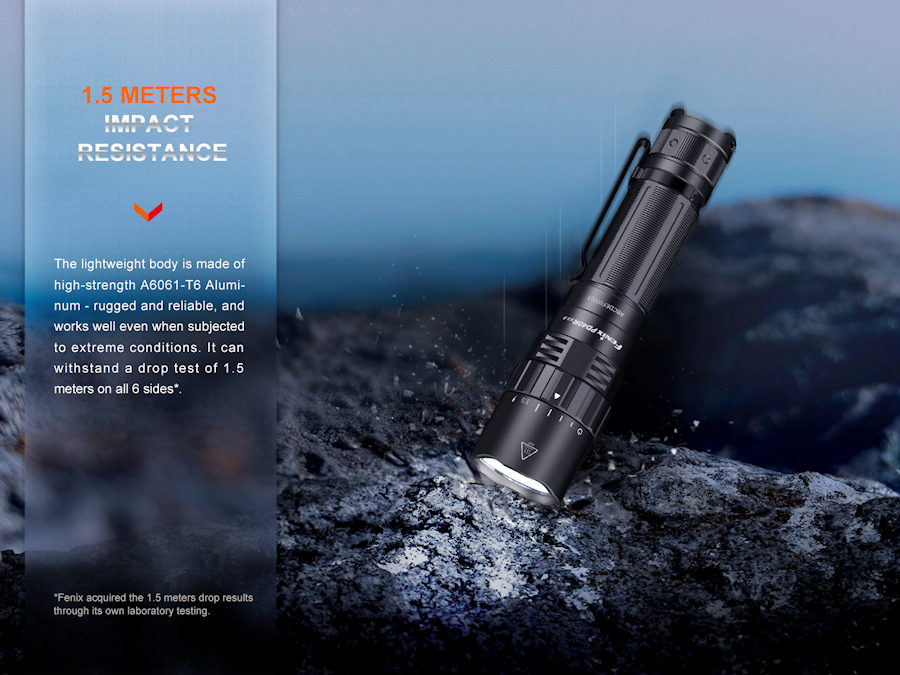

A6061-T6 aircraft grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
Yes
Pocket Clip
Yes
Waterproofing

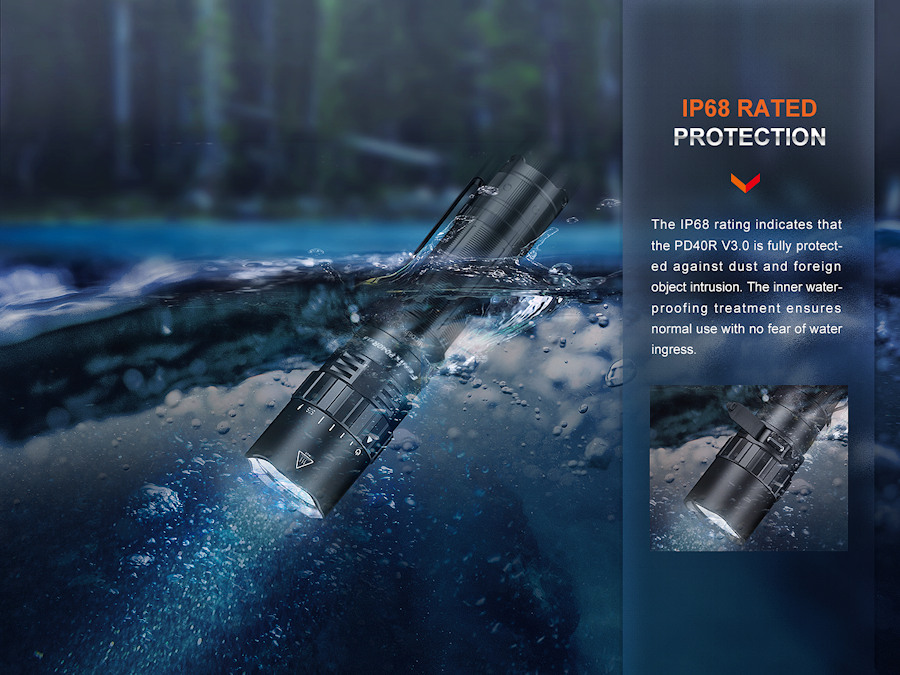

IP68, 2m depth & dustproof
Dimensions/Weight
143mm (Length) x 34mm (Head Diameter) x 26mm (Body Diameter)
198 grams (including battery)
Further Info
N/A
Operation
Fenix PD40R V3.0 Operation:
On/Off:
Rotate the mechanical side switch in clockwise to turn on the light; rotate the mechanical side switch to OFF to turn off the light.
Output Selection:
Rotate the mechanical side switch to cycle through OFF⇄Low⇄Med⇄High⇄Turbo⇄SOS⇄Strobe.
Strobe:
Rotate the mechanical side switch to the rightmost position to select strobe output.
Battery Specifications:
ARB-L21-5000 V2.0 21700 3.6 V Recommended √√ ARB-L21-4000P 21700 3.6 V Recommended √√
Warning: Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the flashlight or to the batteries being used.
*21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only using quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are considered user induced damage and are not covered by any Fenix warranty or liability.
Battery Replacement:
Unscrew the light body and insert the battery with the anode side (+) towards the light head, then screw the light body back on.
Charging:
First switch off the light and plug the USB A socket of the charging cable into an appropriate A/C powered USB plug/outlet, then connect the USB Type-C socket of the charging cable to the light. The indicator will display red while charging, and will turn to green when fully charged. Once charging is completed, be sure to unplug the charging cable and close the anti-dust cover. Only low and med outputs are available while charging.
Note:
The normal charging time of the included Fenix ARB-L21-5000 V2.0 rechargeable battery is approximately 3 hours from depleted to fully charged. Recharge a stored light every four months to maintain optimum performance of the battery.
Battery level indication:
When the light is switched on, the battery level indicator besides the charging port will light up to display the battery status, the indicator will stay on for 3 seconds before it goes off. Green light on: saturated 100% - 85% Green light flashes: sufficient 85% - 50% Red light on: poor 50% - 25% Red light flashes: critical 25% - 1%
Note: This feature only works with the Fenix ARB-L21-5000 V2.0 battery and the Fenix ARB-L21-4000P battery.
Intelligent Overheat Protection:
The lamp will accumulate a lot of heat when used at relatively high output levels for extended periods. When the lamp reaches a temperature of 60°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user to select these modes again.
Low-voltage Warning:
When the voltage level drops below the pre-set level, the lamp is programmed to downshift to a lower brightness level until Low output is reached. When this brightness level is reached (Low output), the battery level indicator blinks to remind you to recharge or replace the battery.
Note: This feature only works with the Fenix ARB-L21-5000 V2.0 battery and the Fenix ARB-L21-4000P battery.
Usage and Maintenance:
◎Disassembling the sealed head can cause damage to the light and will void the warranty. ◎Fully charge the light in time to ensure normal use next time. ◎Fenix recommends using an excellent quality battery. ◎If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion. ◎Unscrew the tail cap half a turn or take out the battery to prevent accidental activation during storage or transportation. ◎Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare． ◎Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
Problems:
A: Poor battery level. Solution: Replace or recharge the battery (Ensure the battery is inserted according to the manufacturer’s specifications). B: The threads, PCB board contact or other contacts are dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact your authorized distributor.
Package & Contents

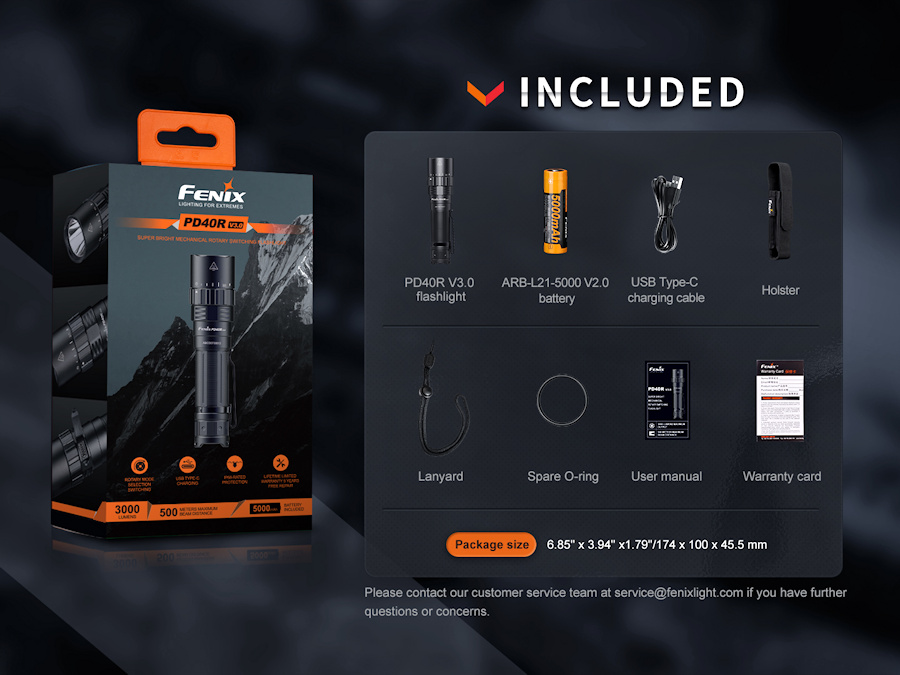

Retail packaged Fenix PD40R V3.0 Rechargeable LED Torch 2 x Fenix ARB-L21-5000 V2 Battery USB-C Charging Lead Holster Lanyard Spare O-ring Warranty card User manual
