£129.95
In Stock

  • Features Luminus SFT70 and SST20 LED's
  • 2700 Max lumen output
  • Uses 1 x Fenix ARB-L21-5000 battery (Included)

  • Add to Basket

    For commercial orders and large purchases, contact us at 02921157162, or

    Product Description
    Specification
    Package & Contents
    Product Description

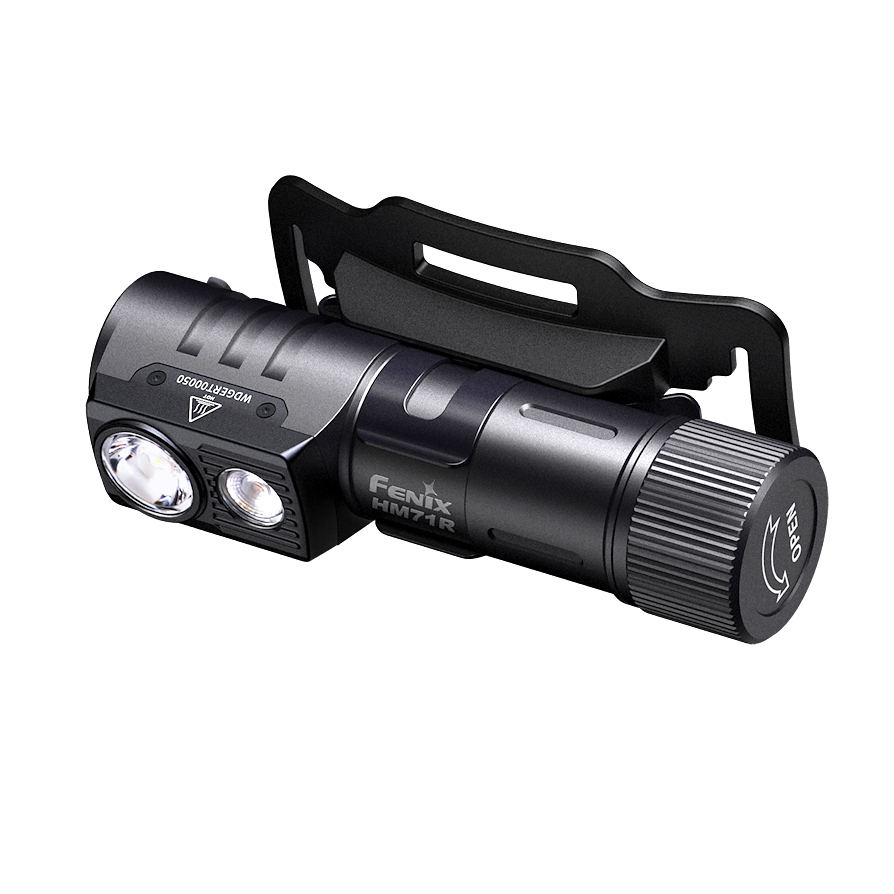

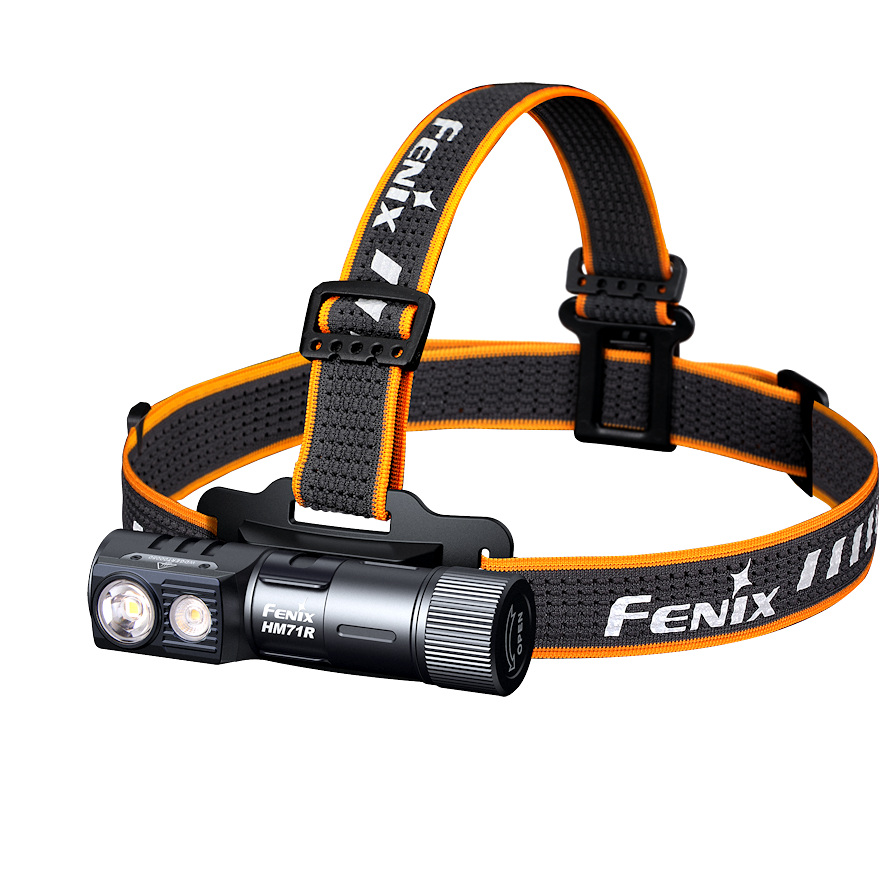

    Fenix HM71R is a versatile, rugged 2700 lumen rechargeable powerhouse of a headlamp designed for heavy duty industrial environments. All that power doesn't come at the expense of subtlety however, with 5, 50 and 200 lumen modes on hand for close work.

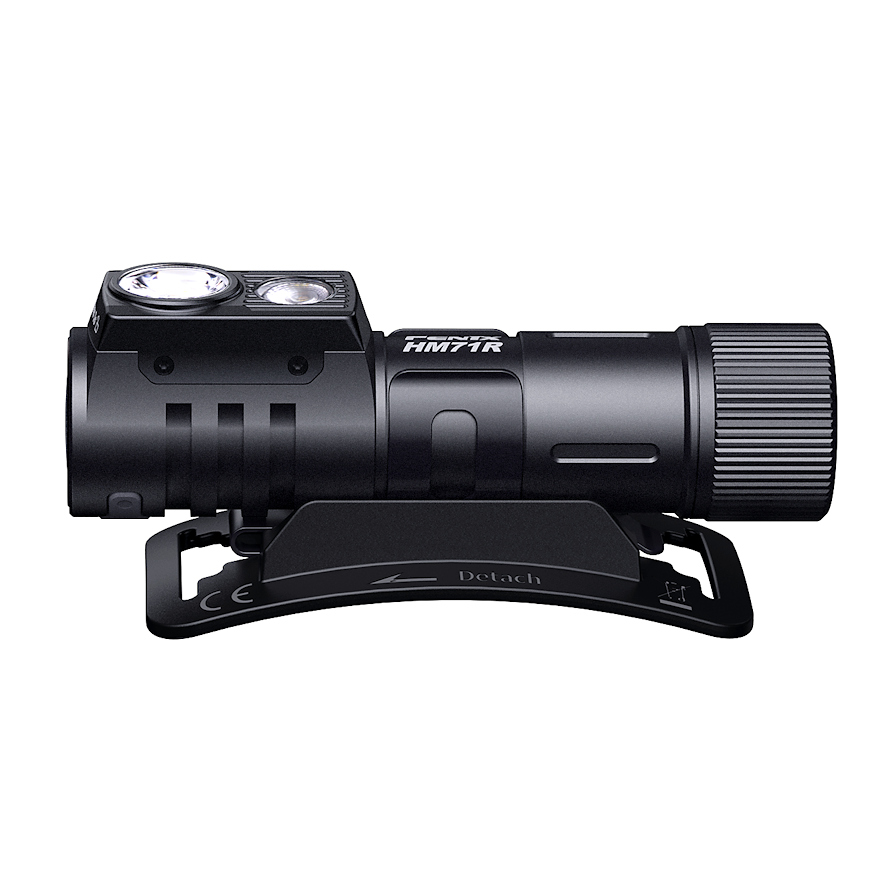

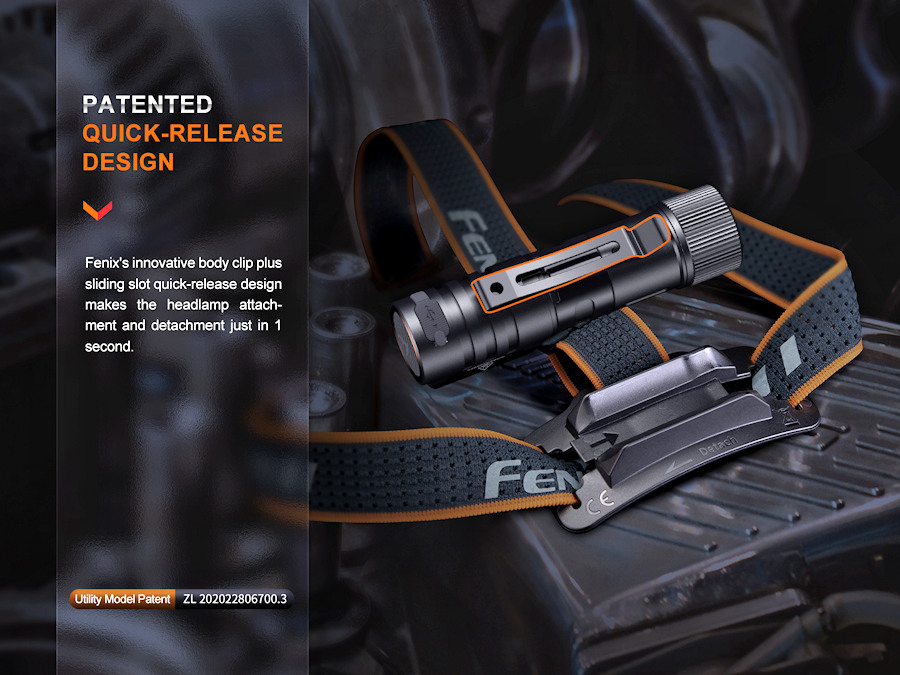

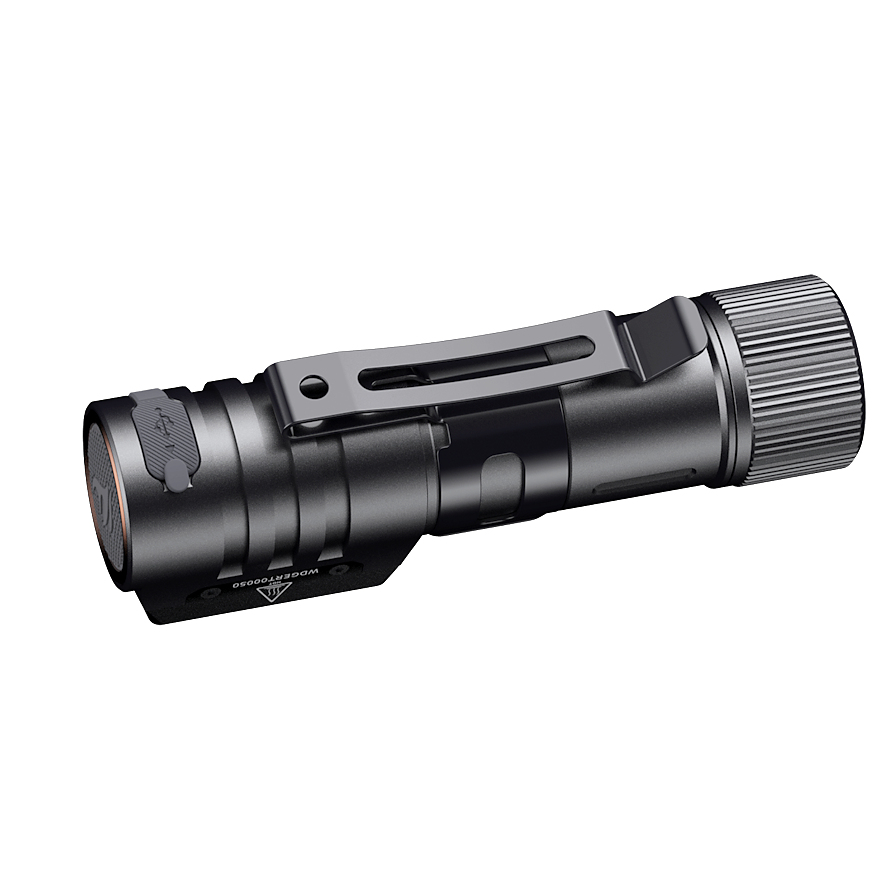

    HM71R converts to a right angle torch simply by snapping it out of its headlamp base. In this mode the lamp can free stand, be attached by its powerful magnetic tail cap or clipped to a pocket.

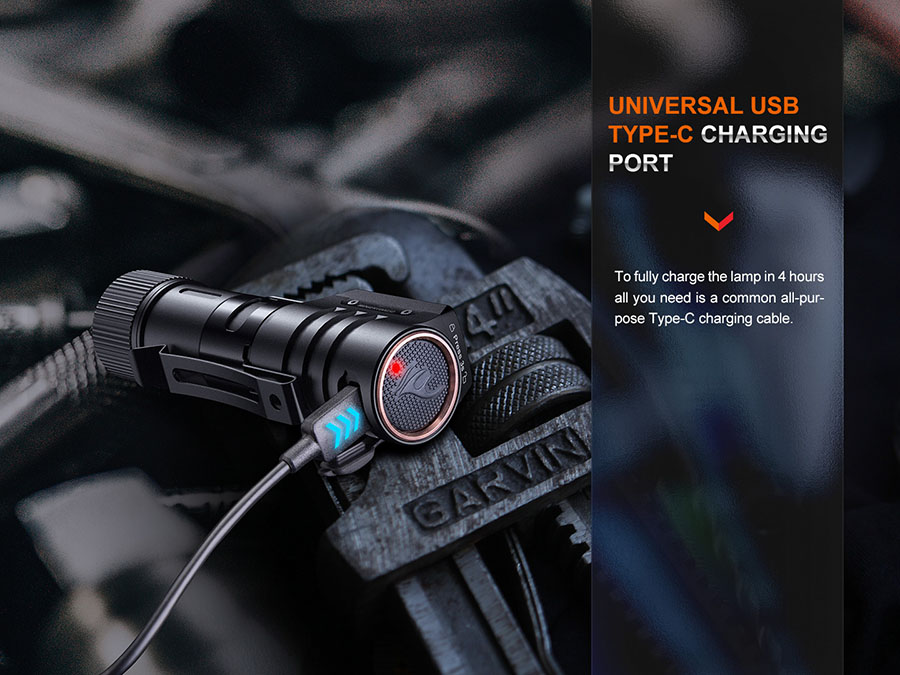

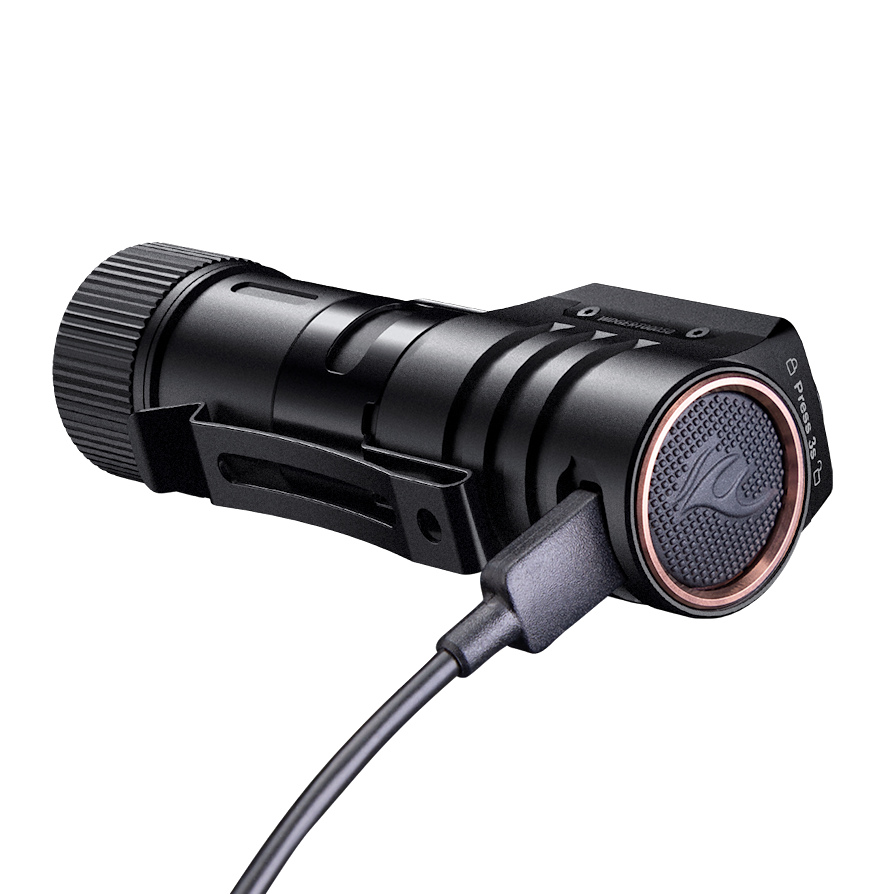

    The 5000mAh 21700 battery is charged via a 2 Amp USB-C socket in the lamp head, and easily replaced with a spare, adding further to the versatility of this hybrid industrial light source.

    Fenix HM71R performance:

    Low: 50 lumens (48 hrs) - 27m beam
    Med: 200 lumens (16 hrs) - 52m beam
    High 800 lumens (5 hrs total) - 104m beam
    Turbo: 2700 lumens (3 hrs total inc temperature and battery level step downs) - 230m beam

    Flood beam:

    Reading: 5 lumens (400 hrs) 5m beam
    Low: 50 lumens (48 hrs) 14m beam
    Med: 200 lumens (16 hrs) 30m beam
    High: 500 lumens (8 hrs total step inc downs) 47m beam

    Fenix tested run times at each output level are achieved by switching the light on and letting it run uninterrupted until the battery is drained as per the ANSI standard. Re setting the torch to a higher power level during operation will reduce these run times.

    Fenix HM71R other features:

    * Constructed from high grade industrial components
    * Large, silicone covered side switch, ideal for gloved hands
    * Operating tempearature: - 35 to + 45c
    * Tough stainless steel head unit
    * Durable A6061-T6 aluminium body
    * HA111 hard-anodized finish
    * IP68 waterproof - 2m depth for 4 hours
    * Impact resistant - 2m
    * Digital power regulation
    * LED battery status/ charge indicator below switch cover
    * Overheat protection at 65c
    * Spotlight memory circuit activates at last used brightness level

    Fenix HM71R operation:

    On/off

    Press and hold the switch for 0.5 seconds to turn on/off the lamp.
    Mode Switching

    With the lamp switched off, press and hold the switch for 0.5 seconds to enter Spotlight mode, or double click the switch to enter Floodlight mode.

    With the lamp switched on, press and hold the switch for 1.2 seconds to enter the other mode.

    Output Selection:

    In Spotlight mode, single click the switch to cycle through Low→Med→High→Turbo

    In Floodlight mode, single click the switch to cycle through Read→Low→Med→High.

    Lock/Unlock

    Lock: When the lamp is switched off, press and hold the switch for 3 seconds, the lamp will blink 4 times on Read mode to indicate locked status.

    Unlock: When the lamp is locked, press and hold the switch for 3 seconds, the lamp will be activated with 4 one-second Read mode blinks and activate on Read mode.

    In locked status, clicking the switch will activate 4 one-second blinks on Read mode to indicate the lamp is locked.

    Intelligent Memory Circuit

    The headlamp memorizes the last selected output of Spotlight mode. When turned on again the previously used output of Spotlight mode will be recalled. Floodlight mode is entered every time at Read mode.


    * If turning off the lamp in Turbo of the Spotlight mode, When turned on again the High output level of Spotlight mode will always be recalled.

    For full product details, please refer to the user manual in the images area.









    Specification
    ModelHM71R
    Battery Type21700
    Battery Quantity1
    Additional Battery TypeOnly use 21700 sized batteries with this light
    LED TypeLuminus SFT70 White LED (main beam), Luminus SST20 CRI90 Neutral White LED (flood beam)
    Output/RuntimeSpotlight Mode
    Turbo: 2700 Lumens, (3hrs), High: 800 Lumens, (5hrs), Med: 200 Lumens, (16hrs), Low: 50 Lumens, (48hrs)

    Floodlight Mode
    High: 500 Lumens, (8hrs), Med: 200 Lumens, (16hrs), Low: 50 Lumens, (48hrs) Reading: 5 Lumens, (400hrs)
    Flashing ModesN/A
    Max Beam Distance230m
    ReflectorTIR Lens
    Lens TypeTIR Lens
    Switch TypeHead mounted On - Off - Mode switch
    ConstructionA6061-T6 aircraft grade aluminum
    FinishPremium Type III hard-anodized anti-abrasive finish
    Tail StandYes
    Pocket ClipYes
    WaterproofingIP68, 2m depth & dustproof
    Dimensions/Weight106mm (Length) x 46mm (Width) x 45mm (Height)

    207.5 grams (including battery and headband)
    Further InfoN/A
    Package & Contents

    Retail packaged Fenix HM71R Rechargeable LED Headlamp
    Fenix ARB-L21-5000 V2 Battery
    USB-C Charge Lead
    Spare O-ring
    Warranty Card
    User manual
