Please note that this product is not recommended for caving or similar use as thick mud and other debris may cause issues with the operation of the sliding switch.

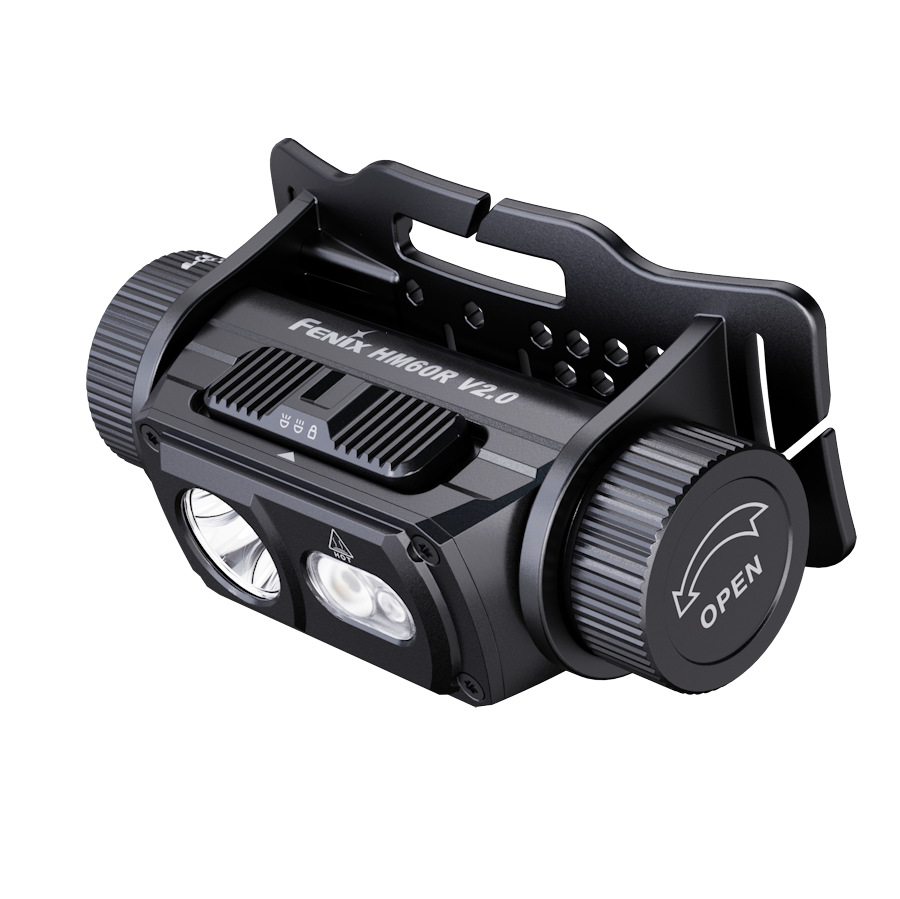

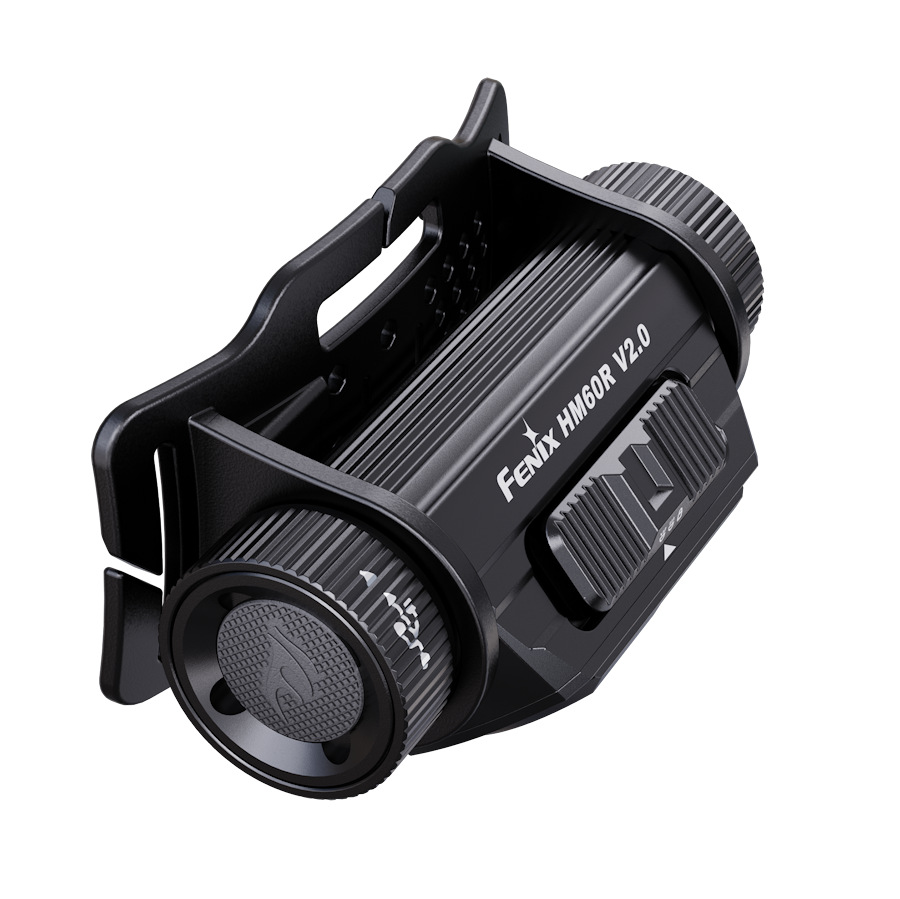

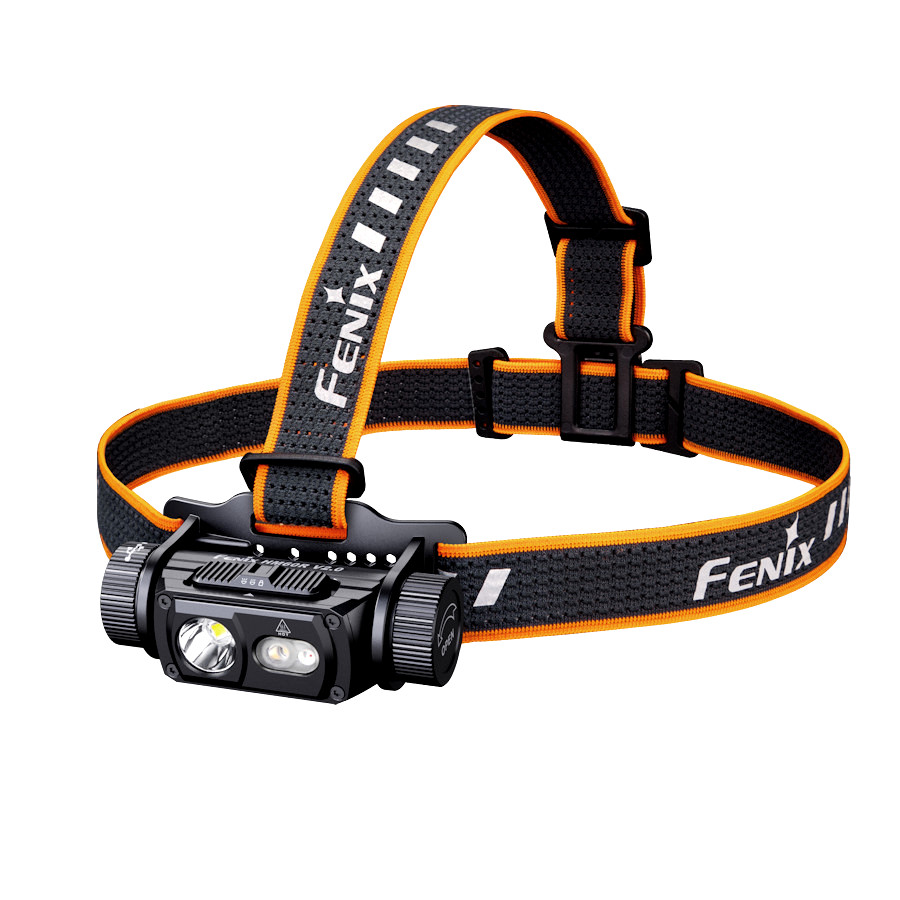

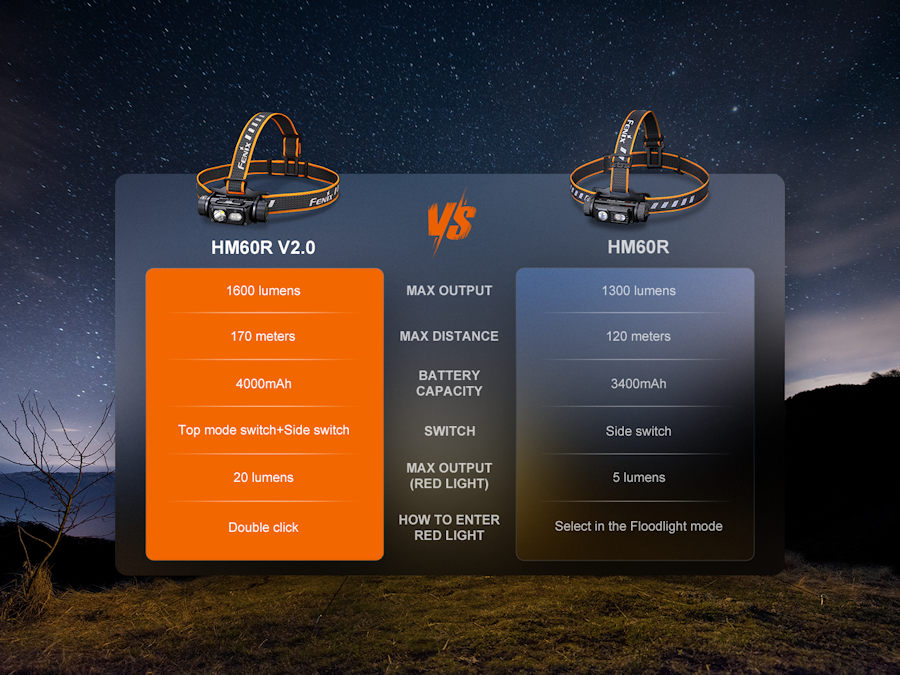

Fenix HM60R V2 headlamp is an impressive upgrade to the original model in terms of power output, switching system and battery capacity. Output has increased from 1300 lumens to 1600 lumens, a sliding mode switch with lock function has been added and the supplied battery is upgraded from 3400 to 4000 mAh capacity. Other changes include the removal of the cadence sensor for running and removal of the beam splitter, increasing beam distance from 120m to 170m.
Built tough and designed for industrial applications, this versatile light incorporates a powerful main beam, pure flood beam and red flood beam with flashing function into one compact unit. The red light has been upgraded from 5 lumens to dual outputs of 3 and 20 lumens. It can be activated from the off position via the side push button, isolating it so that the main and flood beams can't be accidentally activated.

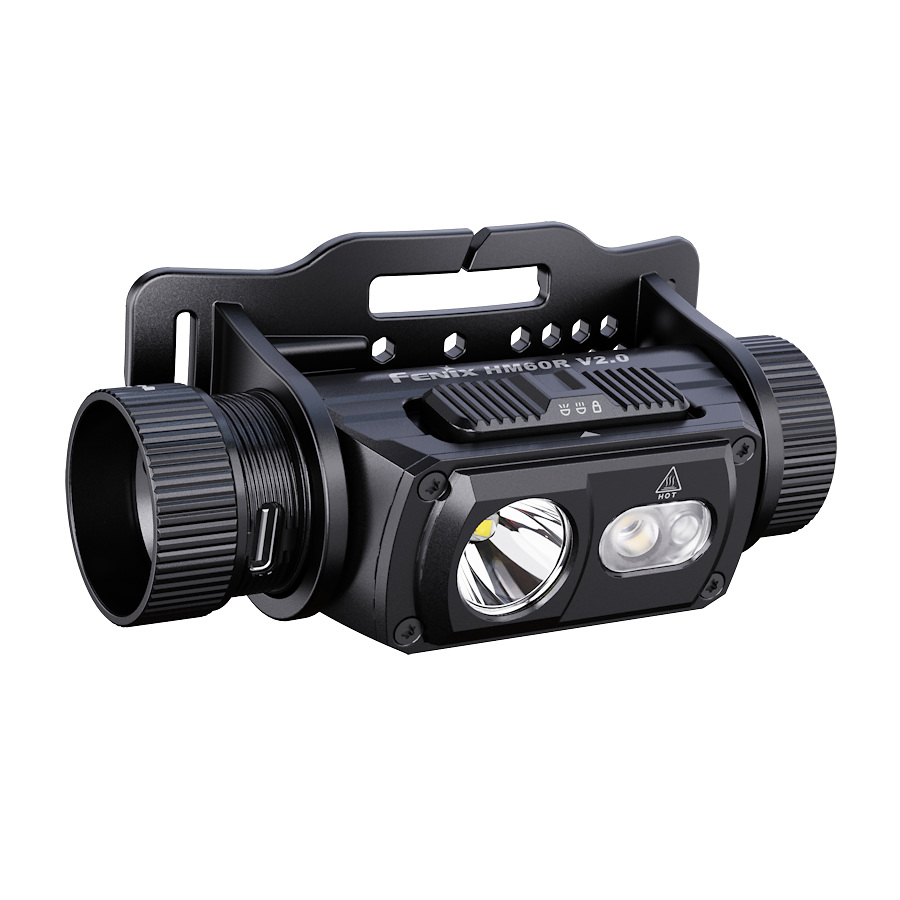

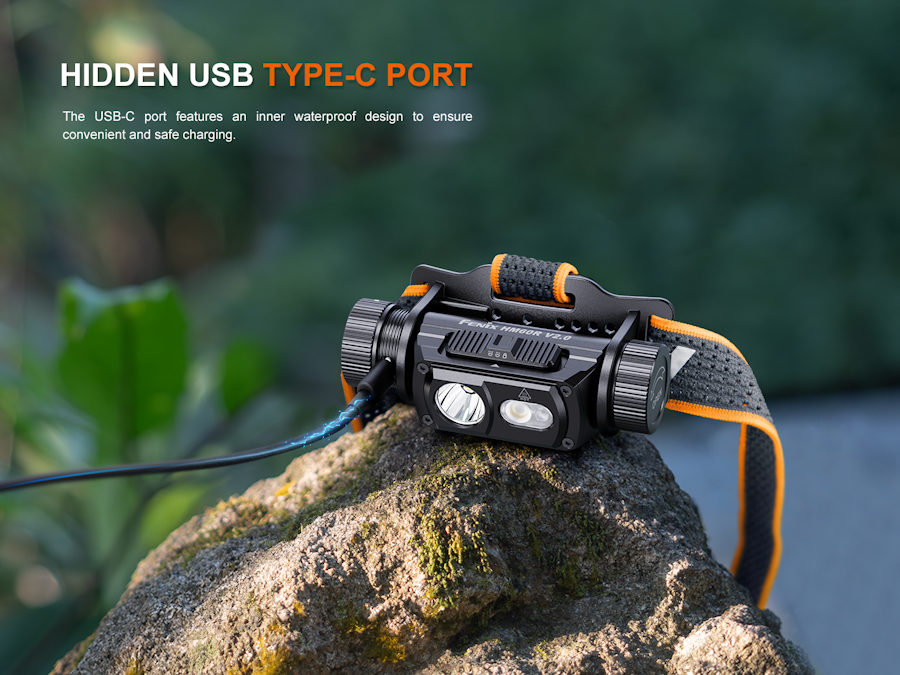

A modern inner waterproof USB-C type socket is fitted under an aluminium screw cover (charging cable supplied) to charge the included 18650 battery in just 2.5 hours using your 5V/2A mobile phone charger or similar.

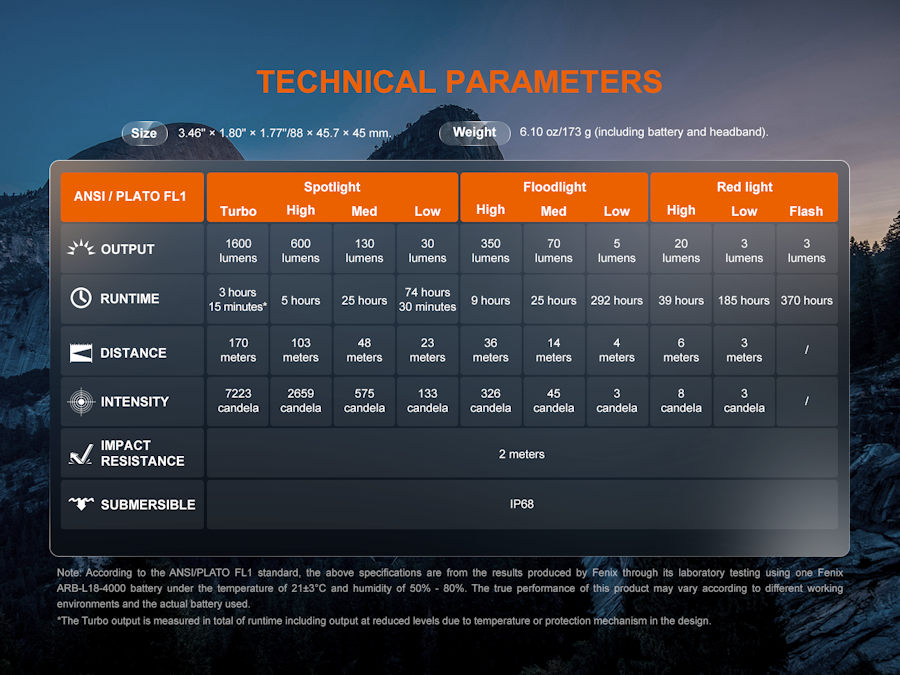

Fenix HM60R V2 performance:

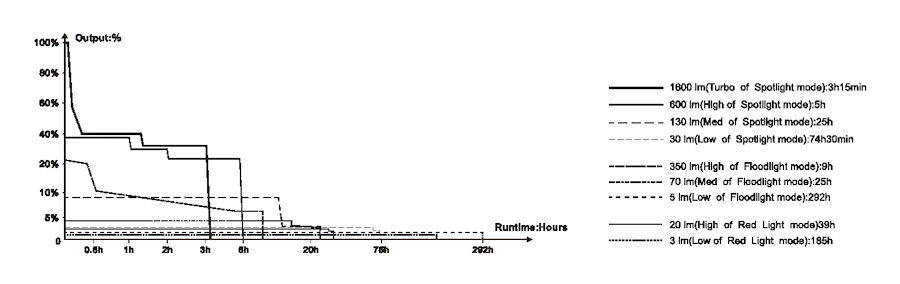

Main beam:
The main 1600 lumen beam features a balanced combination of spot light and wide area spill light. Safe illumination for a multitude of tasks.
Low - 30 lumens (74.5 hours) - 23m beam
Med - 130 lumens (25 hours) - 48m beam
High - 600 lumens (5 hours total run time including step-downs) - 103m beam
Turbo - 1600 lumens (3 hours 15 min total run time including step-downs) - 170m beam
Pure flood beam with no distracting hard edges:
The HM60R V2's pure flood beam offers 3 output levels. From a low level close working beam to a smooth, powerful pure flood with no hot spot, the flood light has you covered. Run times vary from a powerful 9 hours working light, to an impressive 292 hours at 5 lumens!
Protect your night vision or set up an emergency signal with the red beam.
Low - 3 lumens (185 hours) - 3m beam
High - 20 lumens (39 hours) - 6m beam
Red flash - 3 lumens (370 hours = 15 days emergency beacon!)
*** Please note that beams cannot be operated together ***
Fenix HM60R V2 headlamp features:
• Main beam - 6,000-7000K colour temp. Flood beam - 5000k colour temp
• Red beam can be used from locked mode, isolating other beams from accidental activation

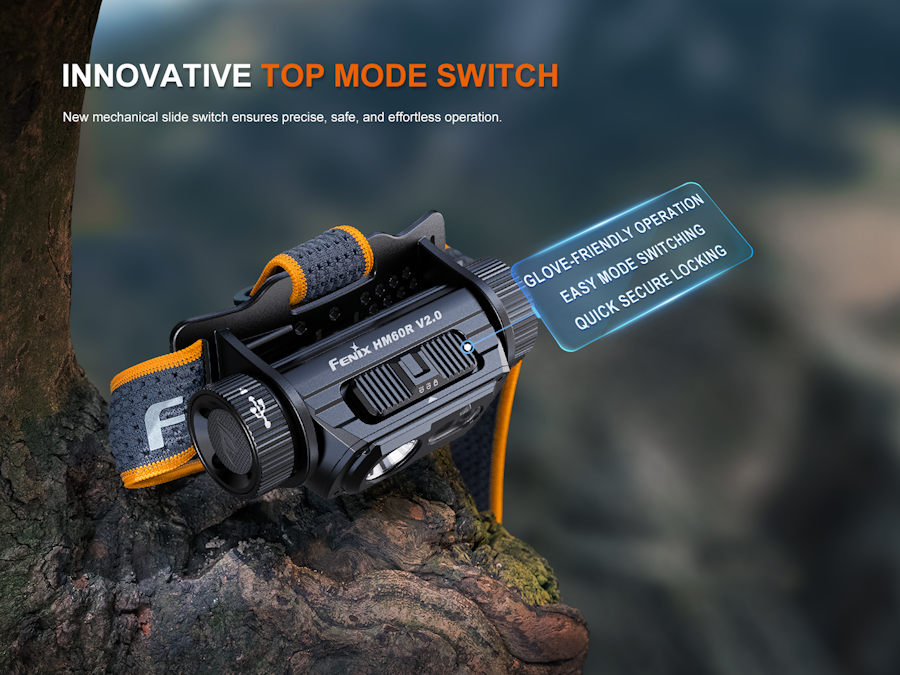

• Dual switch system. Sliding mode switch with lock function and large side button
• Glove friendly switches, perfect for cold weather

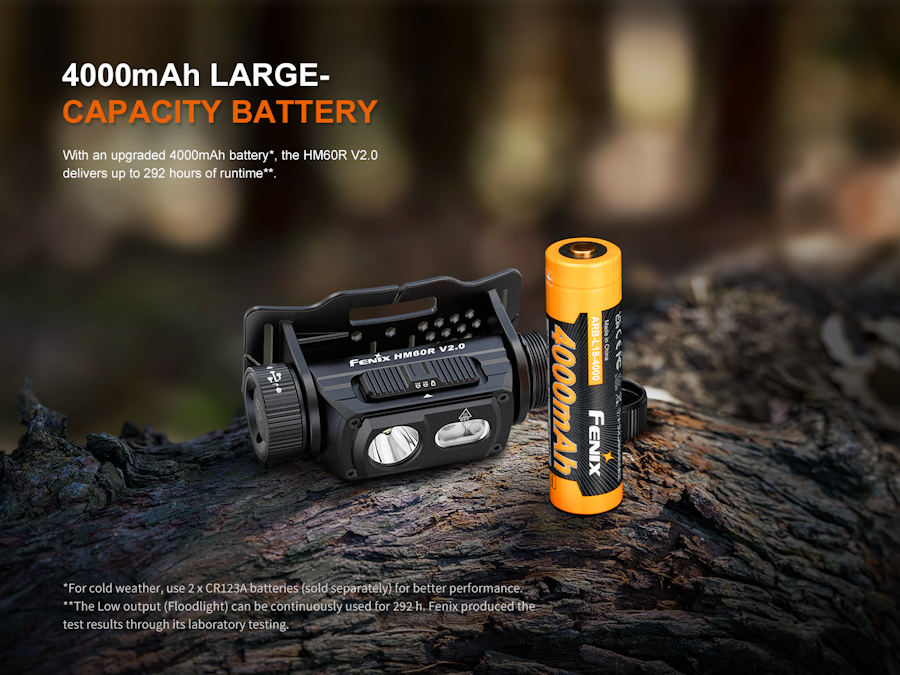

• 4,000 mAh 18650 battery supplied (can use 2 x CR123A non rechargeable)
• Mode memory - remembers last used lighting level (except red light)
• LED battery level / charging indicator behind silicon button cover
• Inner waterproof charging socket
• Perforated, breathable comfort headband
• Detachable headband
• Reflective strips on headband for added visibility
• 2m impact tested for durability
• 170 degree tilt mechanism for ideal beam alignment
• Beam lock out to help prevent accidental activation during transport

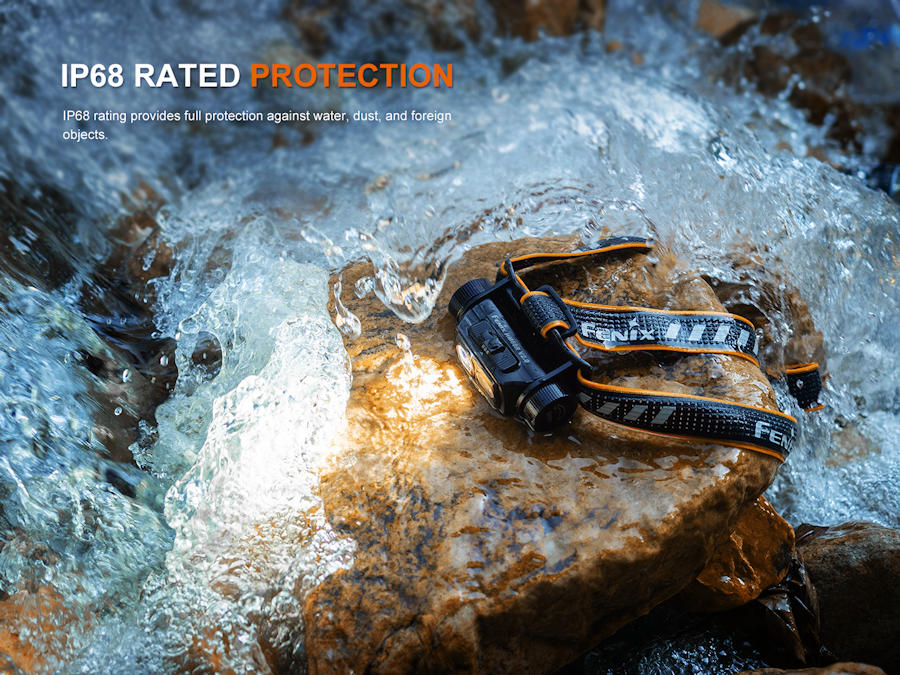

• IP68 water proof (2m) for the toughest conditions
• 2m drop tested
• Fits Fenix ALG-03 V2 helmet mount for hard hats and caving helmets
• Fits Fenix ALG-04 mount

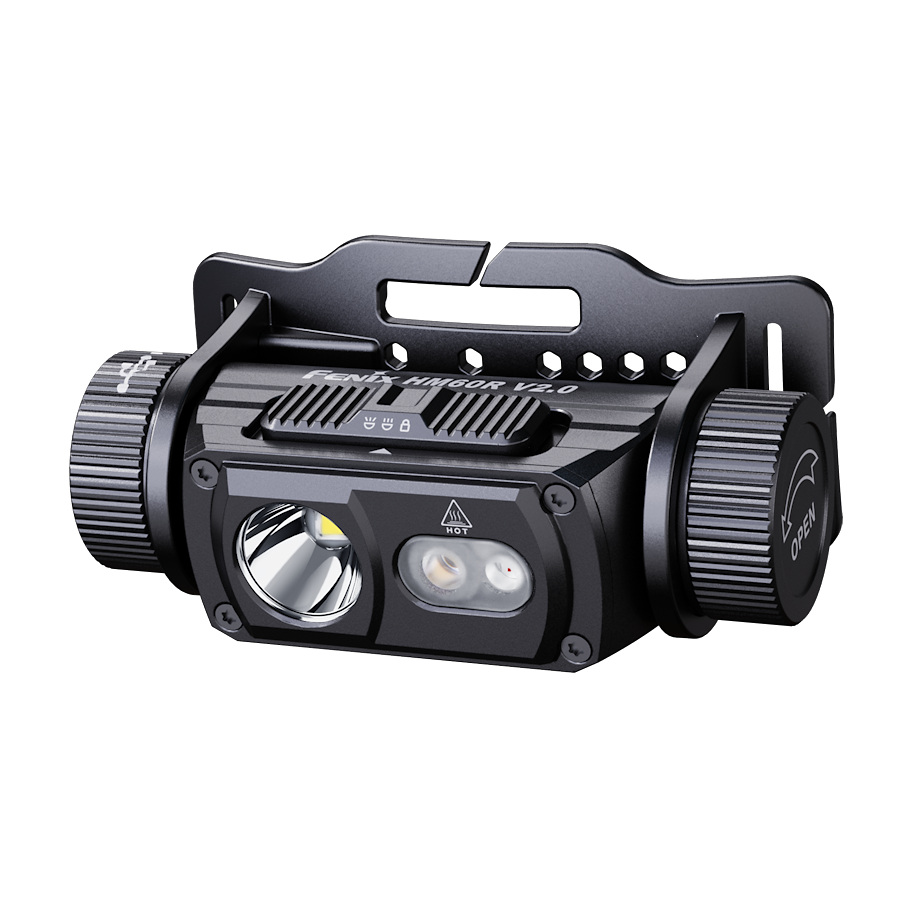

This headlamp offers all the hallmarks of premium Fenix build quality with no corners cut, including metal heat dissipating head (much more expensive to produce than plastic headlamp bodies) and best electronics and LED's available.

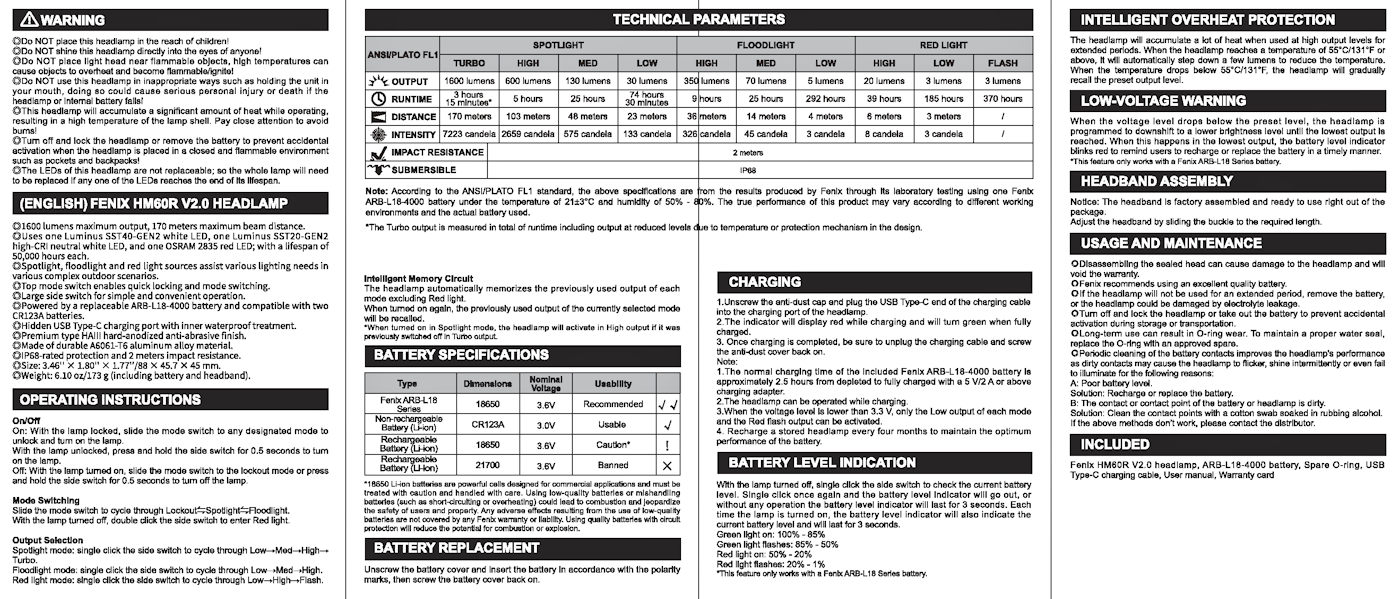

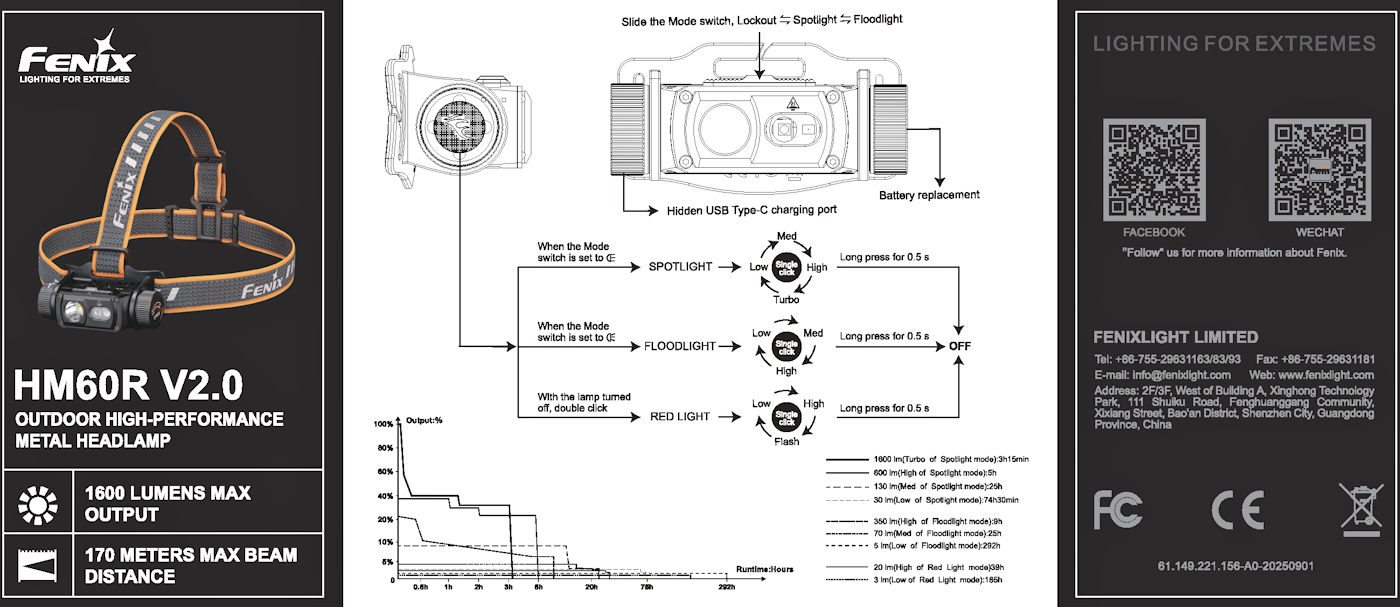

For full product details please refer to the user manual in the small images area above.
Specification
Model
HM60R V2.0
Battery Type
18650
Battery Quantity
1
Additional Battery Type
2 x CR123 non-rechargeable
LED Type
Luminus SST40 Gen 2, Luminus SST20 Gen 2 High CRI and Osram 2835 red LED's
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Top mode slider with Off/Lock detent, spot beam, and flood beam detents + large side button
Construction
A6061-T6 aircraft grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
No
Pocket Clip
No
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
88mm (Length) x 45mm (depth) x 45.7mm (backplate height)
173 grams (incl battery & headband)
Further Info
N/A
Operation
Fenix HM60R V2 headlamp operation: On/Off: On:
A. With the lamp locked, slide the mode switch to any designated mode to unlock and turn on the lamp. B. With the lamp unlocked, press and hold the side switch for 0.5 seconds to turn on the lamp. Off:
With the lamp turned on, slide the mode switch to the lockout mode or press and hold the side switch for 0.5 seconds to turn off the lamp. Mode Switching:

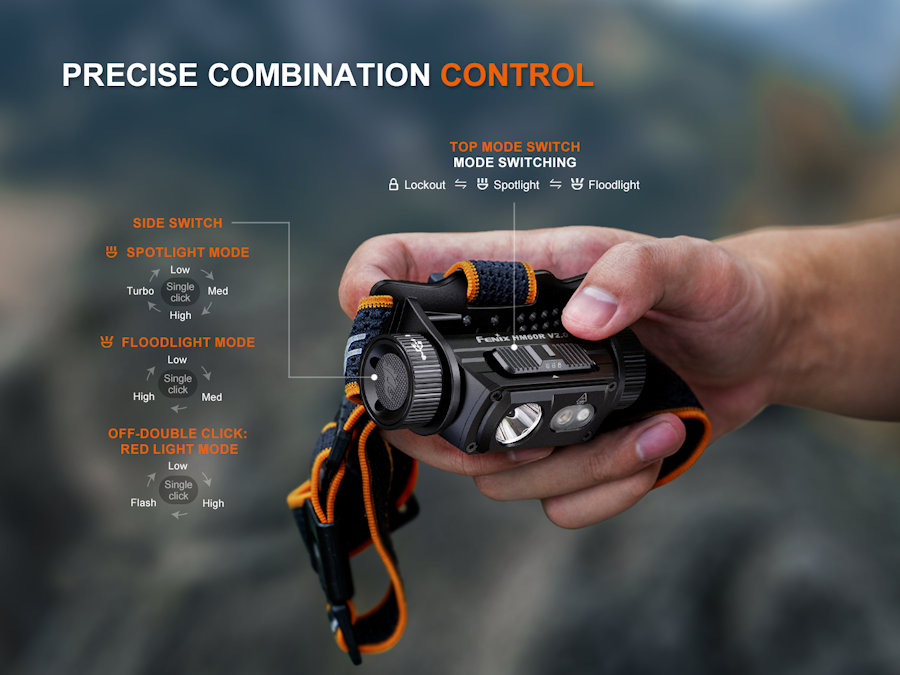

Slide the mode switch to cycle through Lockout⇋Spotlight⇋Floodlight. With the lamp turned off, double click the side switch to enter Red light. Output Selection:
Spotlight mode: single click the side switch to cycle through Low→Med→High→Turbo. Floodlight mode: single click the side switch to cycle through Low→Med→High. Red light mode: single click the side switch to cycle through Low→High→Flash. Intelligent Memory Circuit:
The headlamp automatically memorizes the previously used output of each mode excluding Red light. When turned on again, the previously used output of the currently selected mode will be recalled. *When turned on in Spotlight mode, the headlamp will activate in High output if it was previously switched off in Turbo output. Battery Specifications:
Fenix ARB-L18 Series 18650 3.6 V Recommended √√ Non-rechargeable Battery (Li-ion) CR123A 3.0 V Usable √ Rechargeable Battery (Li-ion) 18650 3.6 V Caution* ! Rechargeable Battery (Li-ion) 21700 3.6 V Banned ×
*18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion. Battery Replacement:
Unscrew the battery cover and insert the battery in accordance with the polarity marks, then screw the battery cover back on. Charging:
1. Unscrew the anti-dust cap and plug the USB Type-C end of the charging cable into the charging port of the headlamp. 2. The indicator will display red while charging and will turn green when fully charged. 3. Once charging is completed, be sure to unplug the charging cable and screw the anti-dust cover back on. Note:
1. The normal charging time of the included Fenix ARB-L18-4000 battery is approximately 2.5 hours from depleted to fully charged with a 5 V/2 A or above charging adapter. 2. The headlamp can be operated while charging. 3. When the voltage level is lower than 3.3 V, only the Low output of each mode and the Red flash output can be activated. 4. Recharge a stored headlamp every four months to maintain the optimum performance of the battery. Battery Level Indication:
With the lamp turned off, single click the side switch to check the current battery level. Single click once again and the battery level indicator will go out, or without any operation the battery level indicator will last for 3 seconds. Each time the lamp is turned on, the battery level indicator in the side button will also indicate the current battery level and will last for 3 seconds.
Green light on: 100% - 85% Green light flashes: 85% - 50% Red light on: 50% - 20% Red light flashes: 20% - 1%
*This feature only works with a Fenix ARB-L18 Series battery. Intelligent Overheat Protection:
The headlamp will accumulate a lot of heat when used at high output levels for extended periods. When the headlamp reaches a temperature of 55°C/131°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 55°C/131°F, the headlamp will gradually recall the preset output level. Low-voltage Warning:
When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until the lowest output is reached. When this happens in the lowest output, the battery level indicator blinks red to remind users to recharge or replace the battery in a timely manner.
*This feature only works with a Fenix ARB-L18 Series battery. Headband Assembly:
Notice: The headband is factory assembled and ready to use right out of the package. Adjust the headband by sliding the buckle to the required length.
Usage and Maintenance:
â—ŽDisassembling the sealed head can cause damage to the headlamp and will void the warranty. â—ŽFenix recommends using an excellent quality battery. â—ŽIf the lamp will not be used for an extended period, remove the battery, or the headlamp could be damaged by electrolyte leakage. â—ŽTake out the battery or unscrew the battery cover to prevent accidental activation during storage or transportation. â—ŽLong-term use can result in O-ring wear. To maintain a proper water seal, replace the O-ring with an approved spare. â—ŽPeriodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate: Problems:
A: Poor battery level. Solution: Recharge or replace the battery. B: The contact or contact point of the battery or headlamp is dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact the distributor.
Package & Contents
Retail Packaged Fenix HM60R V2 Headlamp Fenix ARB-L18-4000 Li-ion battery USB Type-C charging cable Spare O-ring User manual Warranty card
