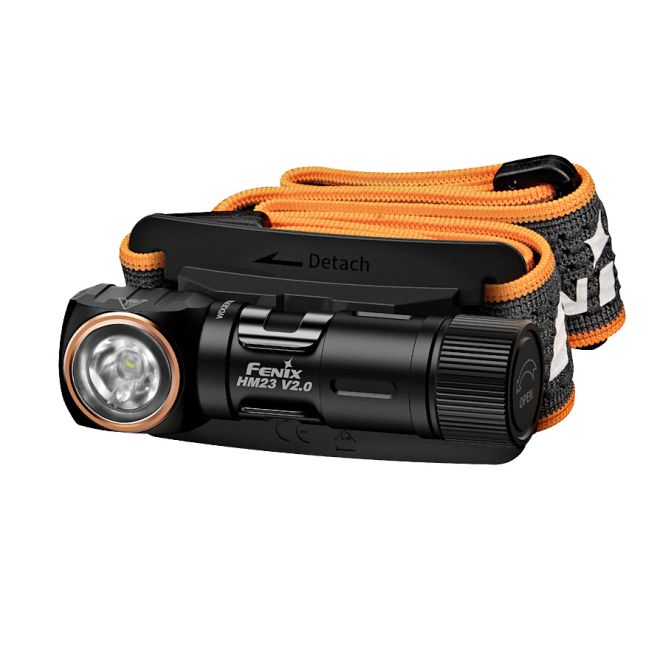

Fenix HM23 V2.0 head torch upgrades the hugely popular original model with added features and performance.
Completely re-designed, HM23 V2.0 easily snaps in and out of its headband holder for multi purpose use as headlamp or angle torch. A dual function pocket clip attaches the lamp unit to the headband or to a pocket, and the light features a magnetic battery cap for ultimate versatility.
The lamp body is built from virtually indestructible light weight aluminium alloy and features 2 metre waterproofing. This enables the 1 x AA battery powered HM23 v2.0 to handle anything you can throw at it, and excel in the harshest environments. Equipped with a powerful Luminus SST20 LED, this headlamp provides an impressive 300-lumen output with 88-metre beam distance. Direct access 5 lumen red light and red flash also feature.
With three white light brightness levels, HM23 V2.0 is a great choice as a work headlamp, and for your night time adventures whether running, camping, hiking, climbing, fishing, or for caving back-up. Due to its ruggedness, Fenix HM23 v2.0 LED head torch is also ideal for outdoor adventure centres and the tradesman's tool box, for years of dependable use.
Fenix HM23 performance with AA alkaline battery (supplied):
Red constant: 5 lumens (18 hrs) - 5m beam
Red flash: 5 lumens (36 hrs)
(Tested to ANSI standard - includes light level drop downs to extend run time. Please refer to the run time graph in the small images area.)
Fenix HM23 v2.0 headlamp features:
• White and red light sources
• Direct access to red light output
• 5700-6500k white LED
• Easily replaceable AA battery
• Can use Alkaline, Ni-mH and 1.5v Fenix Li-ion battery
• Up to 100 hrs runtime
• Large single button operation provides easy access to 3 levels of brightness and 2 red light modes
• Memory mode remembers your last used light setting
• 150 degree beam angle adjustment in headlamp mode
• Quick release design for use as a headlamp or angle torch
• Pocket clip and magnetic tail cap for hands free mounting
• Weighs only 86g inc battery and headband
• Reflective headband increases visibility at night for enhanced safety
• IP68 water (2m depth) and dust resistance
• -35 to +45c operating temperature range
For full product details please refer to the user manual in the images area.
Specification
LED Type
Luminus SST20 White and 2 x 2835 Red Led's
Includes a red LED
Yes
Battery Type
AA
Battery Quantity
1
Additional Battery Type
1 x AA NimH battery / Fenix ARB-L14-1600U 1.5v / Fenix ARB-L14-2200U 1.5v
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
Yes
Pocket Clip
Yes
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
73.6mm (Length) x 36mm (Head dia) x 30mm (Body dia)
86.3 grams (including battery & headband)
Further Info
N/A
Operation
Fenix HM23 V2.0 Operation:
On/Off:
Press and hold the switch for 0.5 seconds to turn on/off the lamp.
Mode switching:
With the lamp switched off, press and hold the switch for 0.5 seconds to turn on the lamp and enter the White light mode. With the lamp switched off, double click the switch within 0.5 seconds to turn on the lamp and enter the Red light mode.
Output selection:
White light mode: single click the switch to cycle through Low→Med→High. Red light mode: single click the switch to cycle through Constant-on→Flash.
Lockout Function:
Lock: with the lamp switched off, press and hold the switch for 3 seconds, the lamp will blink red 4 times at 2Hz to indicate locked status. Unlock: with the lamp locked, press and hold the switch for 3 seconds, the lamp will be activated on the Low output of White light mode after blinking red 4 times at 2Hz to indicate the unlocked status. In the locked status, a single click or double click of the switch will activate 4 red blinks to indicate the locked status. *Note: With the light locked, remove and re-insert the battery, the light will not be unlocked automatically. You must still press and hold the switch for 3 seconds to unlock the light.
Intelligent Memory Circuit:
The headlamp automatically memorises the last selected output of each mode. When turned on again the previously used output of selected mode will be recalled.
Battery Specifications:
Alkaline Battery AA 1.5V Recommended √√ Ni-MH Battery AA 1.2V Usable √ Fenix ARB-L14-U Series 14500 1.5V Usable √ Rechargeable Battery (Li-ion) 14500 3.6V Banned* ×
*It is recommended to use a 1.5V alkaline battery. The headlamp is compatible with either a Fenix ARB-L14-U series rechargeable battery or a Ni-MH battery with a voltage of 2.0V or lower. Using a battery with a voltage exceeding 2V will cause damage to the headlamp.
Battery Replacement:
Unscrew the battery cap and insert the battery with the anode side (+) towards the inner side, then screw the battery cap back on.
Low-voltage Warning:
When the voltage level drops below the pre-set level, the headlamp is programmed to downshift to a lower brightness level until the lowest output is reached. When this happens in the lowest output, the lamp blinks 3 times every 5 minutes to remind users to replace the battery.
Headband Assembly:
The headband is factory assembled by default. Adjust the headband by sliding the buckle to the required length.
Usage and Maintenance:
â—ŽDisassembling the sealed head can cause damage to the lamp and will void the warranty. â—ŽFenix recommends using an excellent quality battery. â—ŽIf the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage. â—ŽLock the lamp or take out the battery to prevent accidental activation during storage or transportation. â—ŽPeriodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
Problems:
A: The lamp is locked. Solution: Press and hold the switch for 3 seconds to unlock the lamp. B: Poor battery level. Solution: Replace the battery (Ensure the battery is inserted according to the manufacturer’s specifications). C: The threads, PCB board contact or other contacts are dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact the distributor.
Package & Contents
Retail packaged Fenix HM23 v2 Headlamp AA Alkaline Battery Headband Spare O-ring Warranty card User manual
