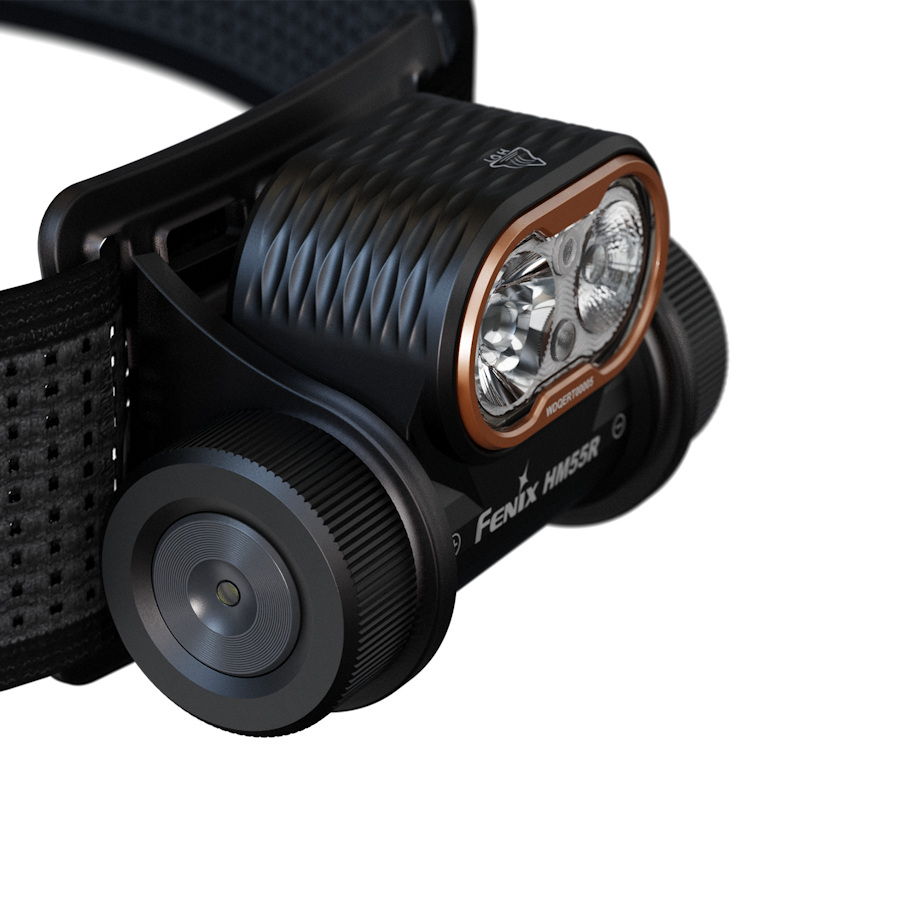

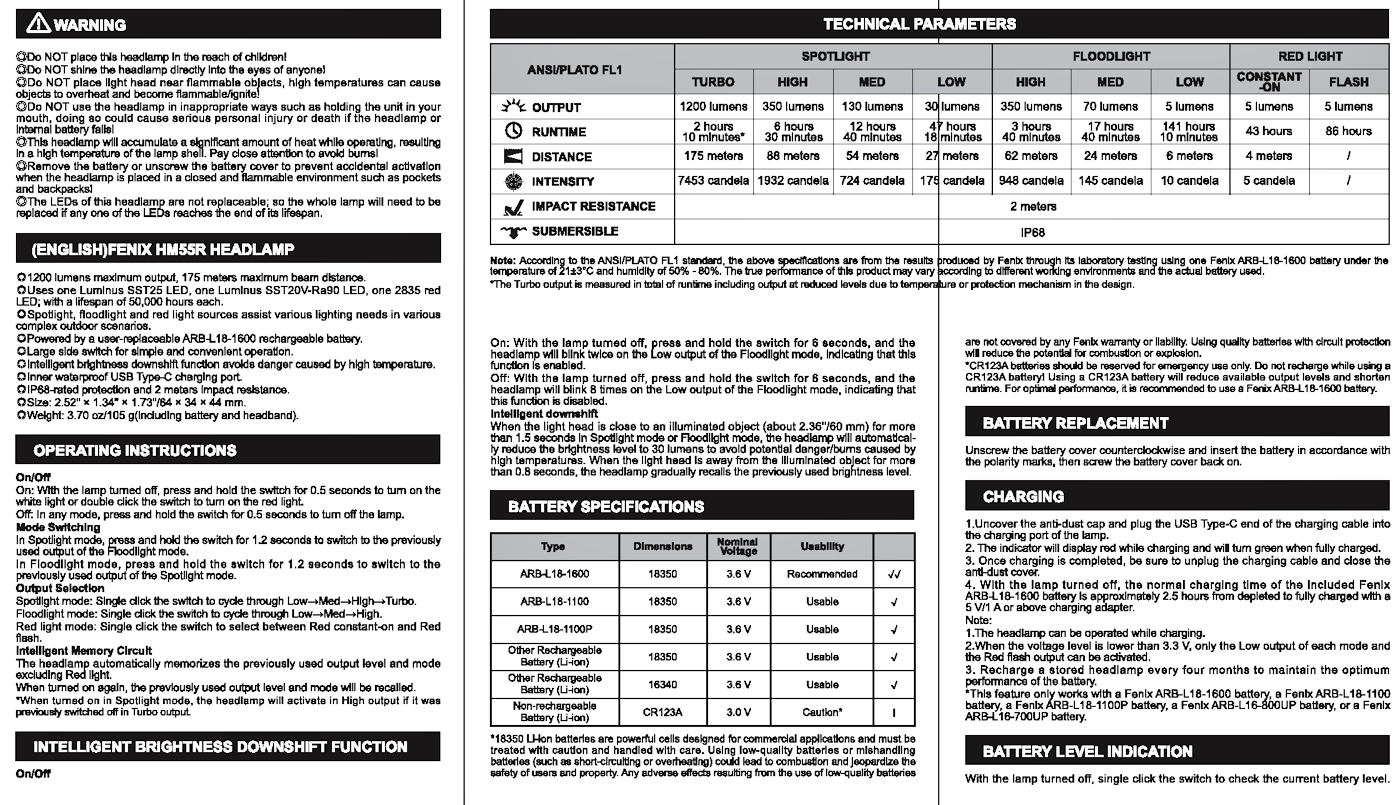

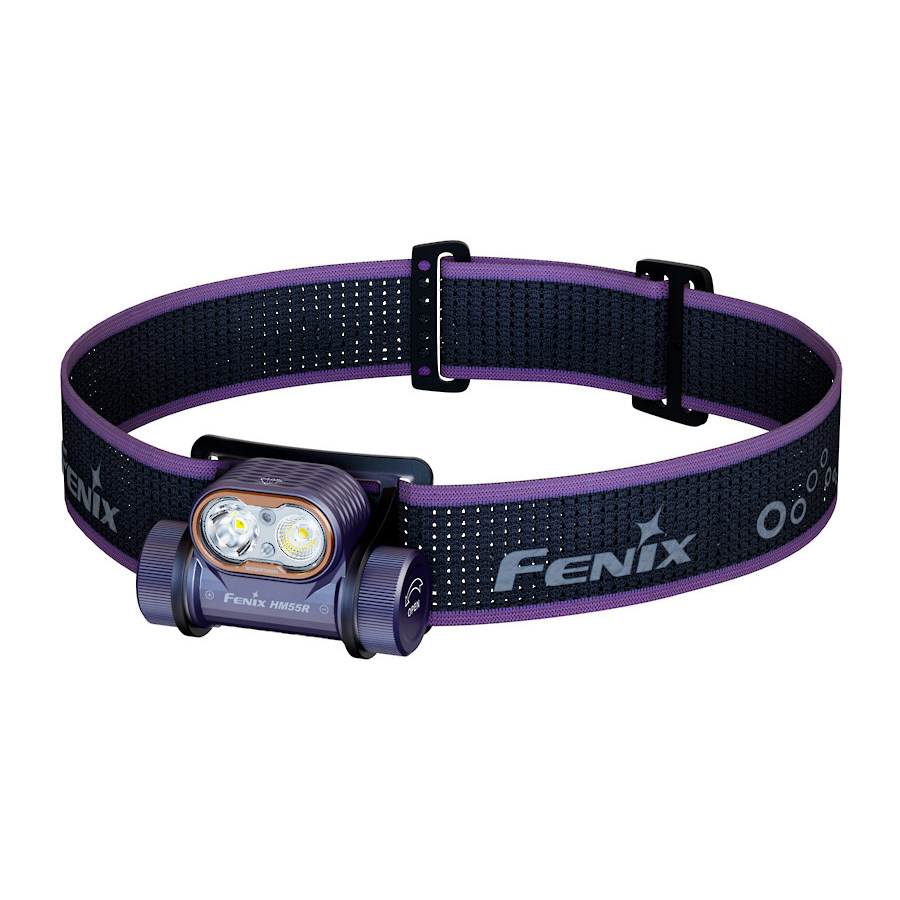

Fenix HM55R Compact Headlamp

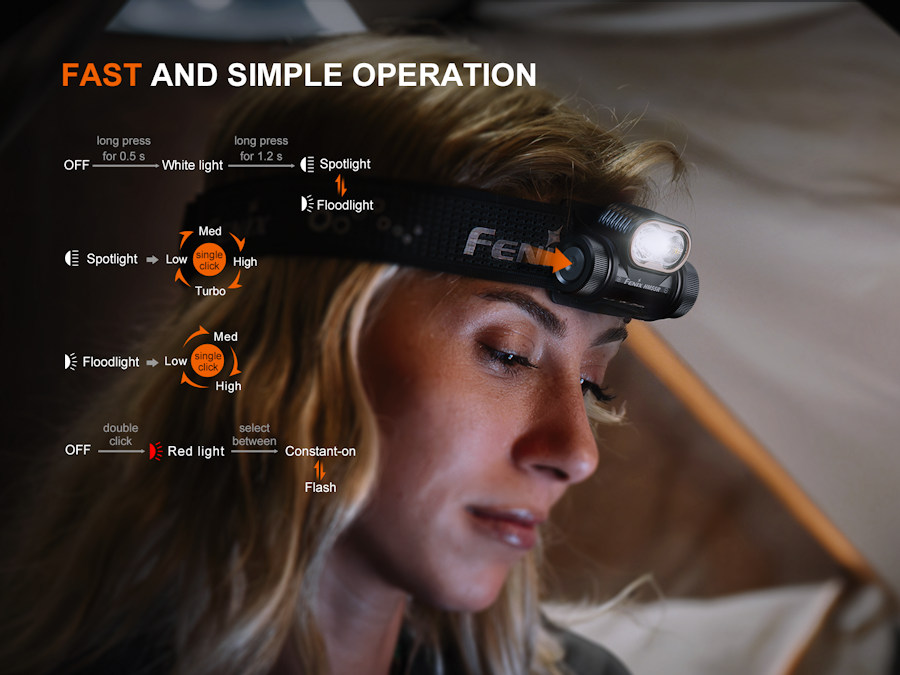

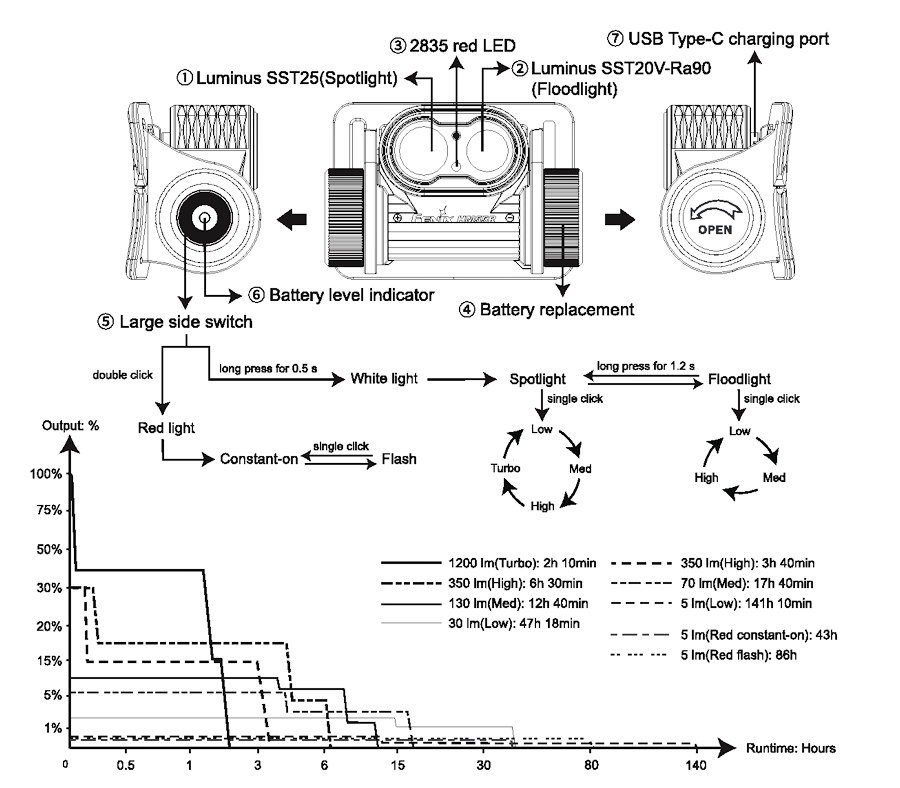

Fenix HM55R operation:

On/Off:

On: With the lamp turned off, press and hold the switch for 0.5 seconds to turn on the white light or double click the switch to turn on the red light.
Off: In any mode, press and hold the switch for 0.5 seconds to turn off the lamp.

Mode Switching:

In Spotlight mode, press and hold the switch for 1.2 seconds to switch to the previously used output of the Floodlight mode.
In Floodlight mode, press and hold the switch for 1.2 seconds to switch to the previously used output of the Spotlight mode.

Output Selection:

Spotlight mode: Single click the switch to cycle through Low→Med→High→Turbo.
Floodlight mode: Single click the switch to cycle through Low→Med→High.
Red light mode: Single click the switch to select between Red constant-on and Red flash.

Intelligent Memory Circuit:

The headlamp automatically memorizes the previously used output level and mode excluding Red light.
When turned on again, the previously used output level and mode will be recalled.
*When turned on in Spotlight mode, the headlamp will activate in High output if it was previously switched off
in Turbo output.

Intelligent Brightness Downshift Function:

On/off

On: With the lamp turned off, press and hold the switch for 6 seconds, and the headlamp will blink twice on the Low output of the Floodlight mode, indicating that this function is enabled.
Off: With the lamp turned off, press and hold the switch for 6 seconds, and the headlamp will blink 8 times on the Low output of the Floodlight mode, indicating that this function is disabled.

Intelligent downshift:

When the light head is close to an illuminated object (about 2.36''/60 mm) for more than 1.5 seconds in Spotlight mode or Floodlight mode, the headlamp will automatically reduce the brightness level to 30 lumens to avoid potential danger/burns caused by high temperatures. When the light head is away from the illuminated object for more than 0.8 seconds, the headlamp gradually recalls the previously used brightness level.

Battery Specifications:

Fenix ARB-L18-1600 18350 3.6 V Recommended √√
Fenix ARB-L18-1100 18350 3.6 V Usable √
Fenix ARB-L18-1100P 18350 3.6 V Usable √
Other Rechargeable Battery (Li-ion) 18350 3.6 V Usable √
Other Rechargeable Battery (Li-ion) 16340 3.6 V Usable √
Non-rechargeable Battery (Li-ion) CR123A 3.0 V Caution*!

*18350 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion.

*CR123A batteries should be reserved for emergency use only. Do not recharge while using a CR123A battery! Using a CR123A battery will reduce available output levels and shorten runtime. For optimal performance, it is recommended to use a Fenix ARB-L18-1600 battery.

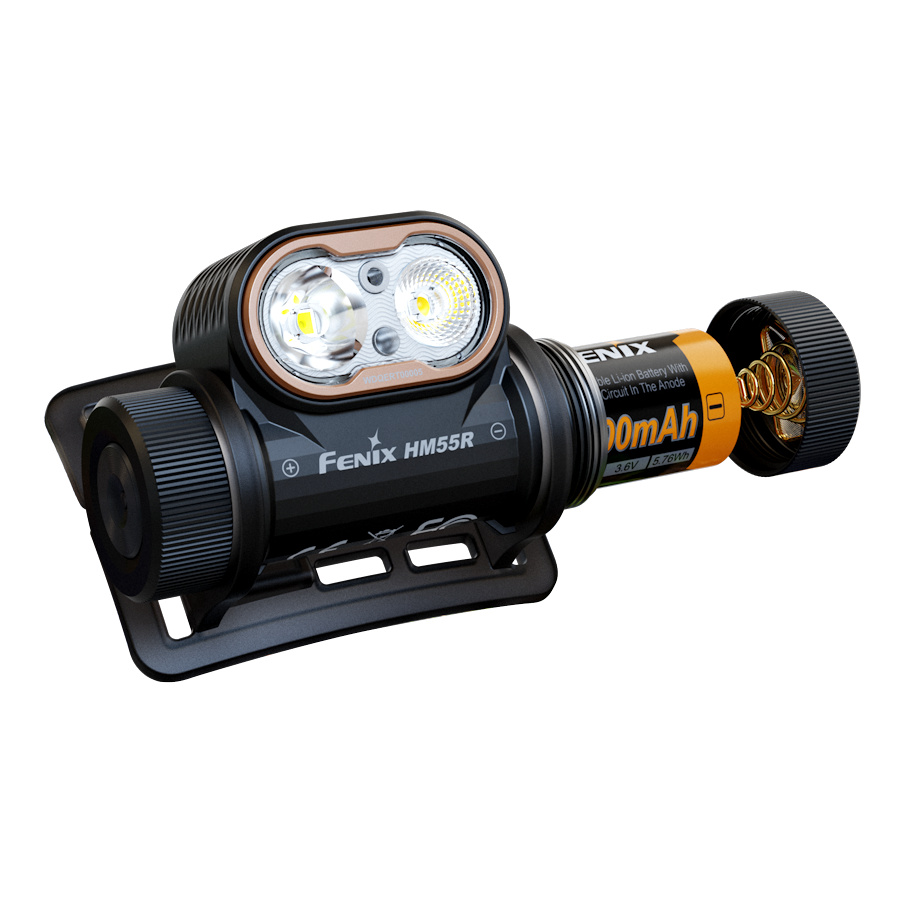

Battery Replacement:

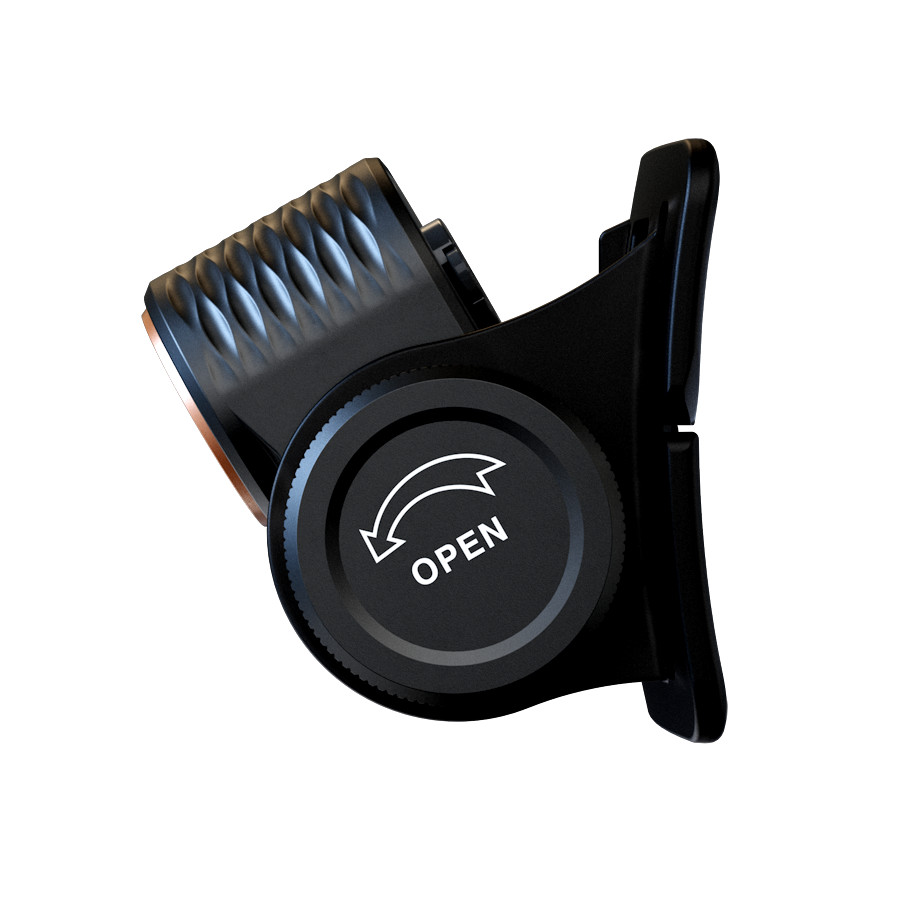

Unscrew the battery cover counter-clockwise and insert the battery in accordance with the polarity marks, then screw the battery cover back on.

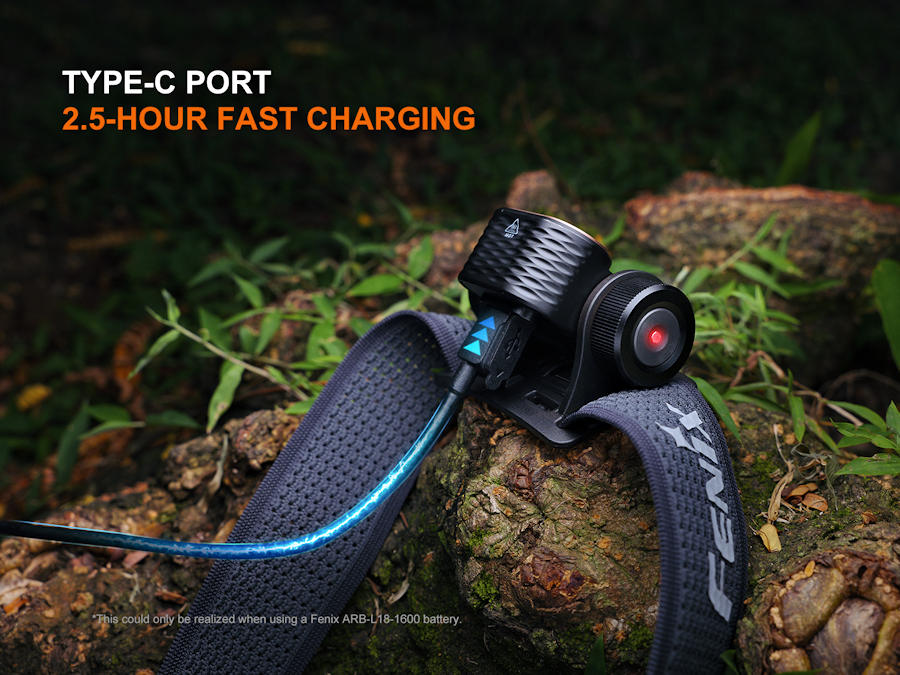

Charging:

1. Uncover the anti-dust cap and plug the USB Type-C end of the charging cable into the charging port of the lamp.
2. The indicator in the switch will display red while charging and will turn green when fully charged.
3. Once charging is completed, be sure to unplug the charging cable and close the anti-dust cover.
4. With the lamp turned off, the normal charging time of the included Fenix ARB-L18-1600 battery is approximately 2.5 hours from depleted to fully charged with a 5 V/1 A or above charging adapter.

Note:

1. The headlamp can be operated while charging.
2. When the battery level is lower than 3.3 V, only the Low output of each mode and the Red flash output can be activated.
3. Recharge a stored headlamp every four months to maintain the optimum performance of the battery.

*This feature only works with a Fenix ARB-L18-1600 battery, a Fenix ARB-L18-1100 battery, a Fenix ARB-L18-1100P battery, a Fenix ARB-L16-800UP battery, or a Fenix ARB-L16-700UP battery.

Battery Level Indication:

With the lamp turned off, single click the switch to check the current battery level. Single click once again and the battery level indicator will go out, or without any operation the battery level indicator will last for 3 seconds. Each time the lamp is turned on, the battery level indicator will also indicate the current battery level and will last for 3 seconds.

Green light on: 100% - 80%
Green light flashes: 80% - 50%
Red light on: 50% - 20%
Red light flashes: 20% - 1%

*This feature only works with a Fenix ARB-L18-1600 battery, a Fenix ARB-L18-1100 battery, a Fenix ARB-L18-1100P battery, a Fenix ARB-L16-800UP battery, or a Fenix ARB-L16-700UP battery.

Intelligent Overheat Protection:

The headlamp will accumulate a lot of heat when used at high output levels for extended periods. When the headlamp reaches a temperature of 55°C/131°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 55°C/131°F, the headlamp will gradually recall the preset output level.

Low-voltage Warning:

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until the lowest output is reached. When this happens in the lowest output, the battery level indicator blinks red to remind users to recharge or replace the battery in a timely manner.

*This feature only works with a Fenix ARB-L18-1600 battery, a Fenix ARB-L18-1100 battery, a Fenix ARB-L18-1100P battery, a Fenix ARB-L16-800UP battery, or a Fenix ARB-L16-700UP battery.

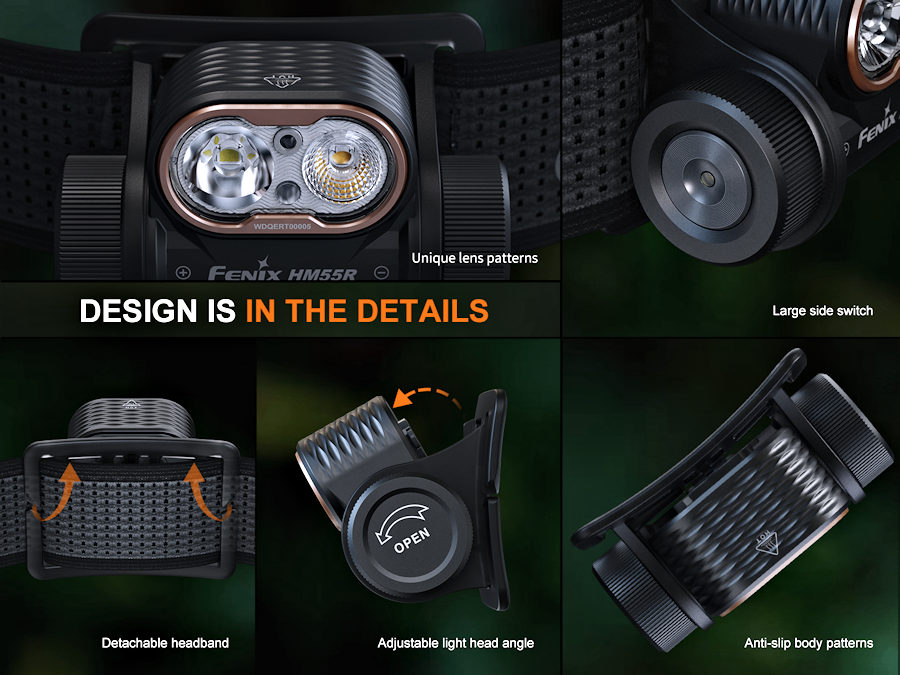

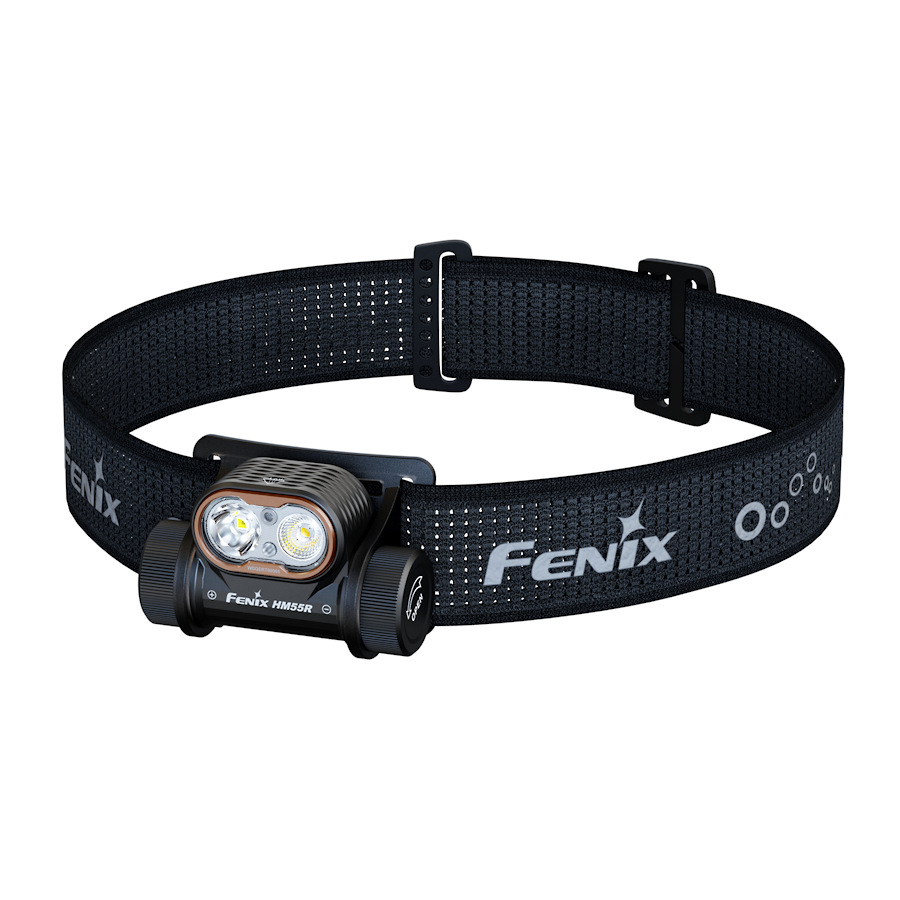

Headband Assembly:

Notice: The headband is factory assembled and ready to use right out of the package.
Adjust the headband by sliding the buckle to the required length.

Usage and Maintenance:

◎Disassembling the sealed head can cause damage to the lamp and will void the warranty.
◎Fenix recommends using an excellent quality battery.
◎If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
◎Take out the battery to prevent accidental activation during storage or transportation.
◎Long-term use can result in O-ring wear. To maintain a proper water seal, replace the O-ring with an approved spare.
◎Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate.

Problems:

A: Poor battery level.
Solution: Recharge or replace the battery.
B: The contact or contact point of the battery or headlamp is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact the distributor.
