HL40R is a rugged, rechargeable, focusing Fenix head torch with a built-in 2000 mAh Lipo battery (charging cable supplied), enabling the headlamp to offer exceptional performance from compact dimensions. HL40R features a burst output of 600 lumens, constant max output of 300 lumens and dual switch operation with 2 operating modes.

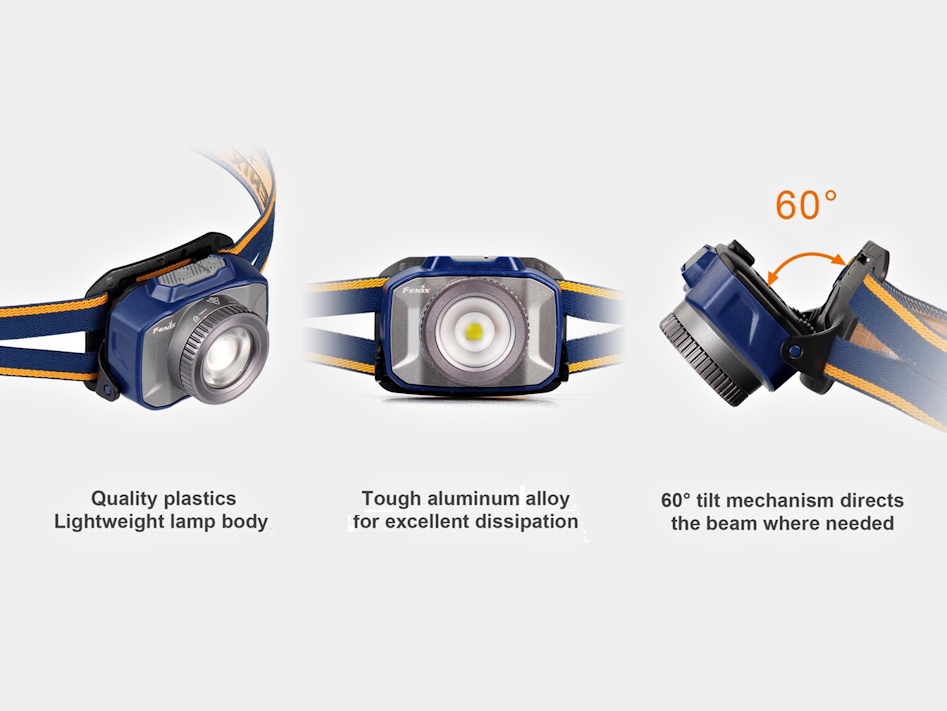

General mode offers Low - Mid - High outputs and is accessed via the large right hand button. Functional mode offers Reading and SOS outputs and is accessed via the smaller left hand button. The switches can be locked out by the user to prevent accidental operation. A twist of the lamp head focuses the beam from spot to flood, and the head is angle adjustable through 60 degrees for perfect beam alignment.

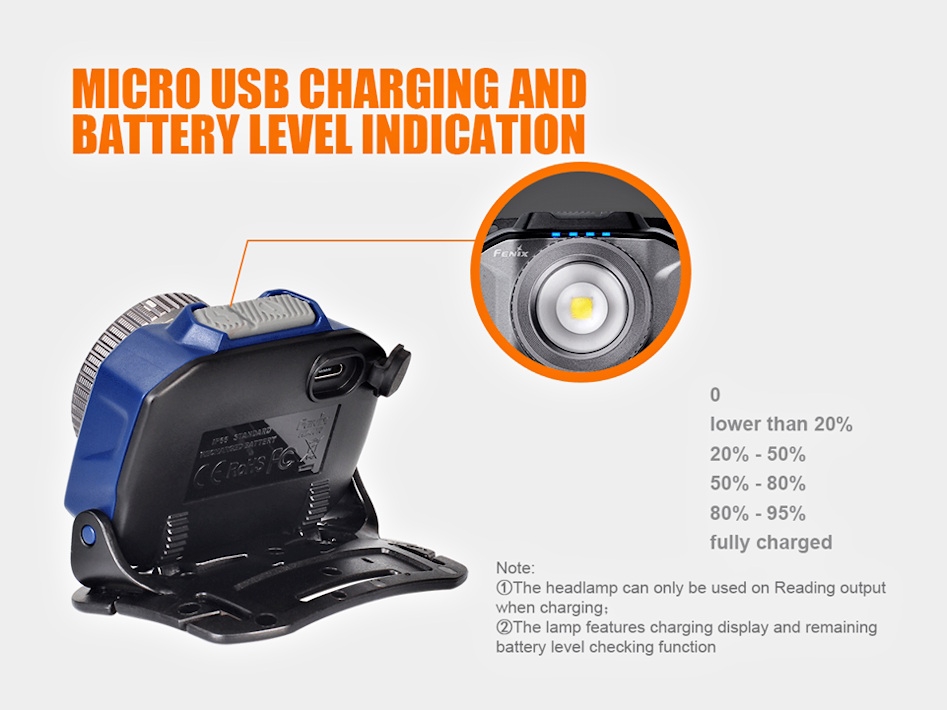

A battery meter (4 LED's) is built into the lamp unit to indicate both remaining battery level in use and charge status while charging with the supplied micro USB cable. The newly designed split head band covers a wide area for the ultimate in comfortable use.
Completely weather proof, Fenix HL40R can be used in the most extreme outdoor conditions.
IMPORTANT: Please recharge the battery every 4 months to maintain battery health.
Durable aircraft-grade aluminum and quality plastics
Finish
N/A
Tail Stand
No
Pocket Clip
No
Waterproofing
IP66, weatherproof and dustproof
Dimensions/Weight
68mm (Length) x 54mm (Width) x 42mm (Height)
130 grams (including battery and headband)
Further Info
N/A
Operation

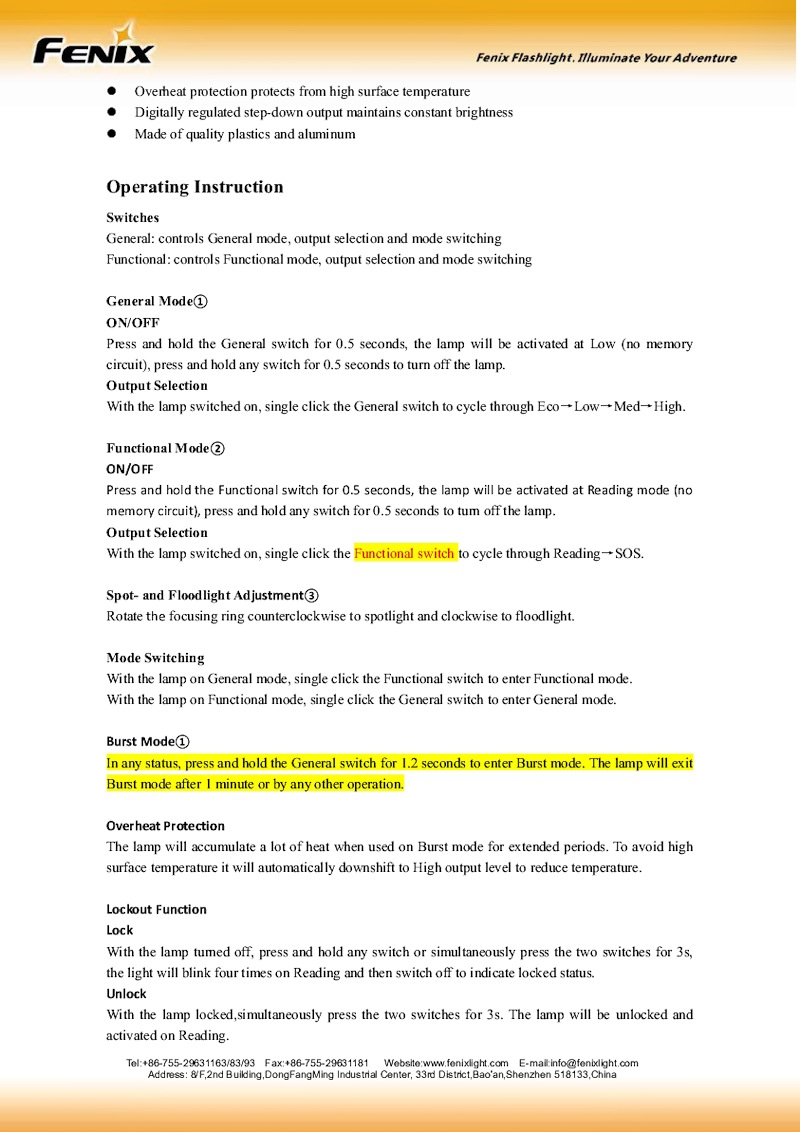

Fenix HL40R operation:
Switches:
General switch:
Controls General mode, output selection and mode switching.
Functional switch:
Controls Functional mode, output selection and mode switching.
General Mode:
On/Off:
Press and hold the General switch for 0.5 seconds, the lamp will be activated at Low brightness (no memory circuit). Press and hold either switch for 0.5 seconds to turn off the lamp.
Output Selection:
With the lamp switched on, single click the General switch to cycle through Eco-Low→Med→High.
Functional Mode:
On/Off:
Press and hold the Functional switch for 0.5 seconds, the lamp will be activated in Reading mode (no memory circuit), press and hold any switch for 0.5 seconds to turn off the lamp.
Output Selection:
With the lamp switched on, single click the Functional switch to cycle through Reading→SOS.
Mode Switching:
With the lamp on General mode, single click the Functional switch to enter Functional mode. With the lamp on Functional mode, single click the General switch to enter General mode.
Burst Mode:
In any status, press and hold the General switch for 1.2 seconds to enter Burst mode. The lamp will exit Burst mode after 1 minute or by any other operation.
Overheat Protection:
The lamp will accumulate a lot of heat when used on Burst mode for extended periods. To avoid high surface temperature it will automatically downshift to High output level to reduce the temperature.
Lockout Function:
Lock:
With the lamp tumed off, press and hold any switch or simultaneously press the two switches for 3s, the light will blink four times on Reading mode and then switch off to indicate locked status.Â
Unlock:
With the lamp locked, simultaneously press the two switches for 3s. The lamp will be unlocked and activated on Reading mode.
Spot- and floodlight adjustment:
Rotate the focusing ring counterclockwise to spotlight and clockwise to floodlight beam.
Package & Contents
Retail Packaged Fenix HL40R Rechargeable Focusing Headlamp New Design Overlapping Headband USB Charger Cable Warranty Card User Manual
