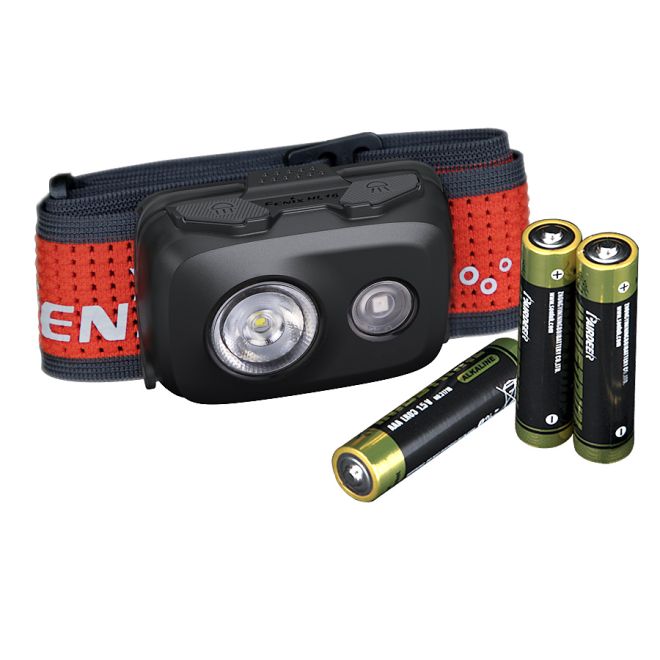

Fenix HL16 is a lightweight, 450 lumen outdoor hiking/running head torch with 104m max beam distance. HL16 is also suitable for several outdoor activities, such as camping, climbing and trekking.
Power is provided by 3 x AAA alkaline batteries (included). These can be replaced with AAA Ni-Mh rechargeable batteries for low cost operation if desired.
Convenient dual switches (one for each beam) allow for quickly switching between four brightness levels in white light mode and two red light functions (continuous and SOS mode). The lighting angle can be adjusted vertically up to 60°, and the headlamp contains built in electronic lockout functionality to avoid accidental activation, overheat protection, plus an intelligent memory circuit to memorise the last selected white light mode.
Made from high-strength polycarbonate (PC) material with an internal aluminium heat sink, this tough little headlamp weighs only 62.2 g (97.2g with batteries and headband) and is rated IP66, so is weather resistant and dustproof.
The wide 36mm perforated headband is light-weight, provides excellent breathability, size adjustment and is easily detachable for cleaning.
HL16 is available in 3 different colours (Black, Green and Pink)
• 104 meters maximum beam distance.
• Dual button design for simple and fast operation
• Intelligent overheat protection, automatically steps down output if the lamp reaches 65°C
For full product details, please refer to the user manual in the images area.
Specification
Model
HL16
Battery Type
AAA
Battery Quantity
3
Additional Battery Type
3 x AAA NimH battery (Do not use 10440 sized Li-ion batteries in this product)
Right: For on/off, mode switching, lockout function and output selection on white light mode.
Left: For on/off, mode switching, lockout function and output selection on red light mode.
On/off:
With the headlamp switched off, press and hold the right switch for 0.5 seconds to enter the white light mode. With the headlamp switched off, press and hold the left switch to enter the red light mode. With the headlamp switched on, press and hold either of the switches for 0.5 seconds to turn off the headlamp.
Mode switching:
With the headlamp switched on, single click the right switch to enter the previously used output on white light mode, or left switch to enter red light mode.
Output Selection:  White light mode: single click the right switch to cycle through Low→Med →High →Turbo. Red light mode: single click the left switch to cycle through Red light→SOS.
Lock/Unlock:
Lock:
When the lamp is switched off, simultaneously press the two switches for 3 seconds, the lamp will blink red 4 times to indicate locked status.
Unlock:Â
When the lamp is locked, simultaneously press the two switches for 3 seconds, the lamp will be activated with 4 one-second red blinks and activated on Red Light. In locked status, clicking or pressing the switches will activate 4 one-second red blinks to indicate locked status.
Intelligent Memory Circuit:
The headlamp memorizes the last selected output on white light mode. When turned on again the previously used output will be recalled. Each time the Red Light mode is entered with constant red light.
