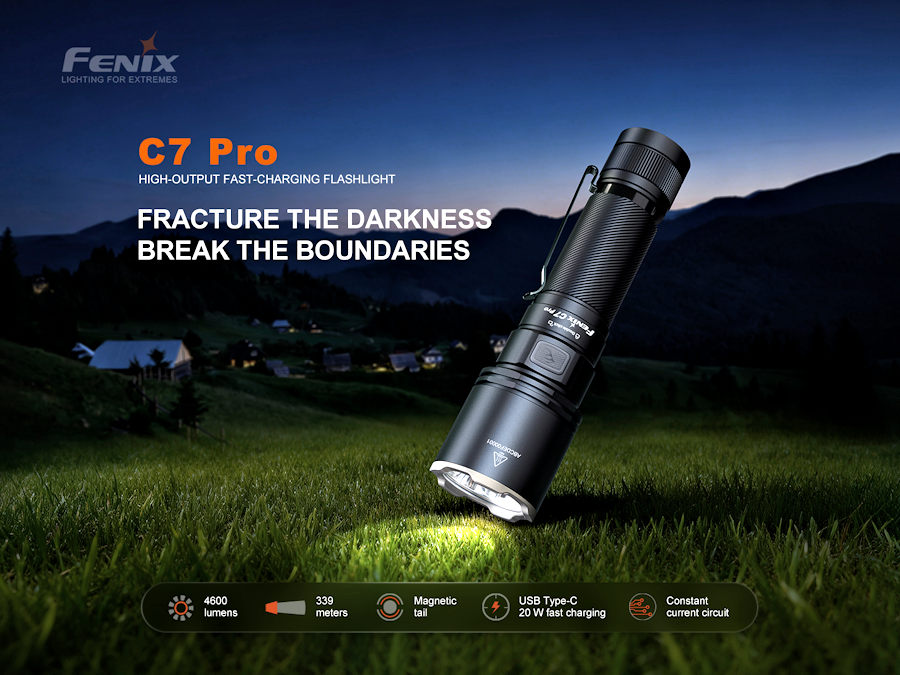

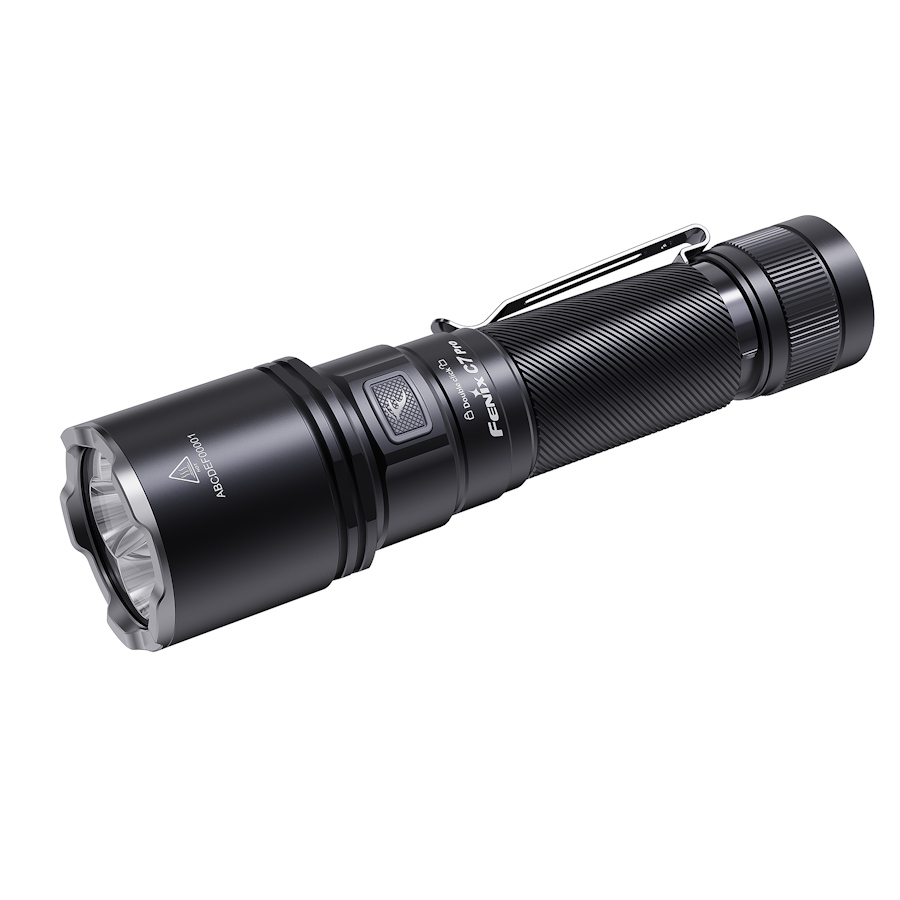

Fenix C7 Pro is a powerful, ultra durable work torch with a maximum output of an impressive 4600 lumens from its 4 x Luminus SST25 LED's and included Fenix 5000 mAh 21700 battery. With a relatively broad central beam and wide-area spill light, C7 Pro is perfect for comfortable use at short to mid distance, but can reach out to 339m at full power.
A highly efficient constant-current drive circuit maintains a steady 100 lumens for over 35 hours or 600 lumens for nearly 6 hours. Highly practical for a nights use on a single battery.
The torch is operated by a single button, and features 5 brightness levels between 30 and 4600 lumens, plus a flashing mode with Strobe and SOS functions. Charging is via USB-C (cable included) and a handy magnetic tail cap is fitted for hands free use.

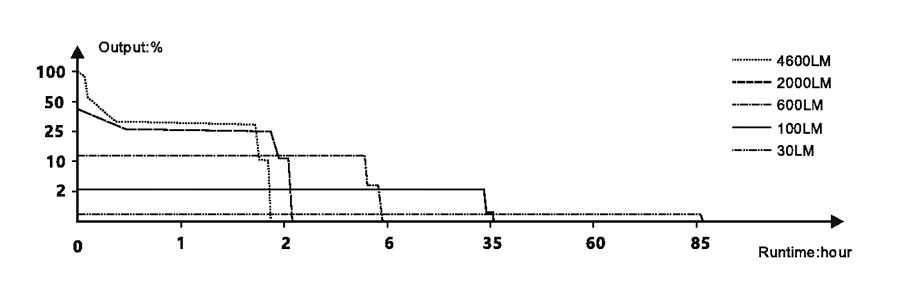

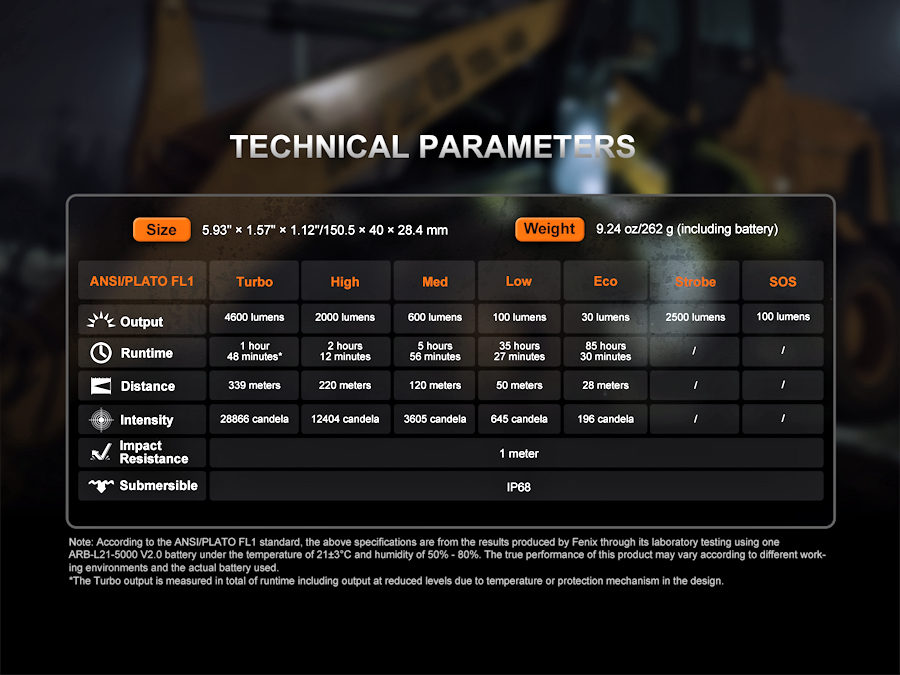

Fenix C7 Pro performance: (6500k colour temperature)
Eco: 30 lumens (85.5 hrs) - 28m beam
Low: 100 lumens (35.5 hrs) - 50m beam
Mid: 600 lumens (5 hrs 56 min) - 120m beam
High: 2000 lumens (2 hrs 12 min total) - 220m beam /
Turbo: 4600 lumens (1 hr 48 min total) - 339m beam / Over heat protection steps down brightness to protect the LED and circuit. Full power can be re set when the torch cools.
Flashing Mode:
Strobe: 2500 lumens
SOS: 100 lumens Fenix C7 Pro work torch features:
• 4 x Luminus SST25 LED's
• Dual mode. General mode and Flash mode
• Simple single switch operation
• Switch cycles through Eco, Low, Mid, High and Turbo outputs

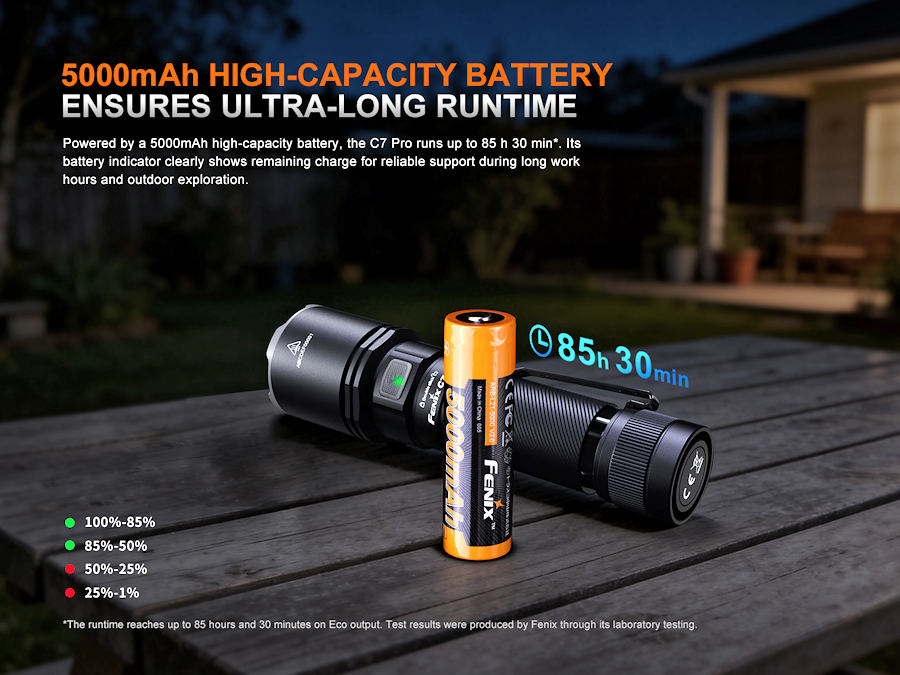

• Fenix ARB-L21-5000 V2 high capacity 21700 battery
• Reverse polarity battery protection
• Constant-current circuit for stable brightness at Eco/Low/Mid settings
• USB-C charge socket built-in.

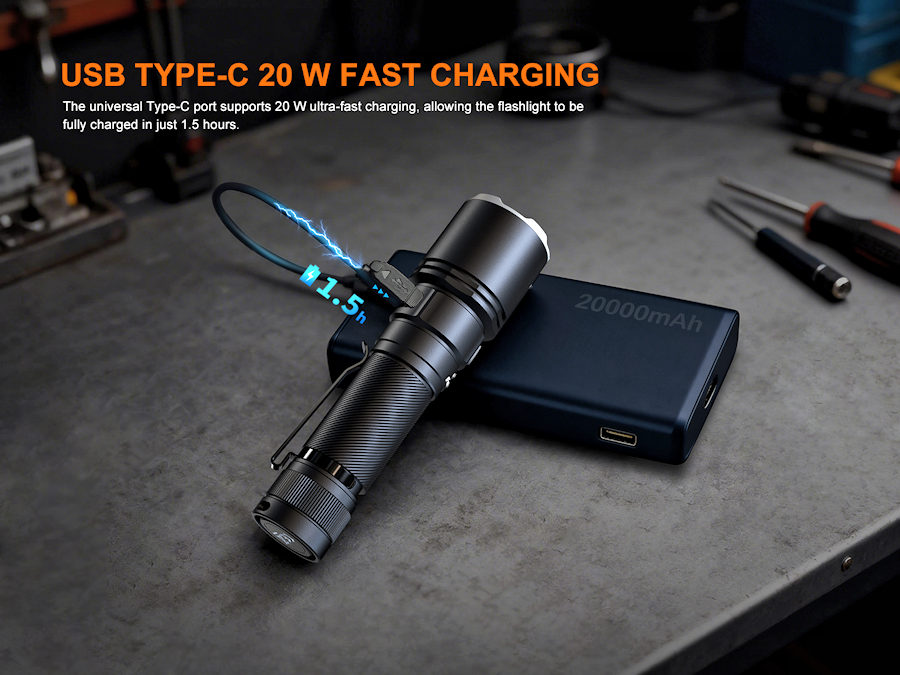

• Can use 5V and 9V chargers. (USB-C cable supplied) Features 20w fast charging at 9V 3A
• Charge status / battery level indicator LED under switch rubber
• Can be used while charging
• Intelligent memory remembers your last used brightness level next time you switch on for 30, 100 and 600 lumen settings
• Disorienting Strobe and emergency SOS modes
• Electronic lock-out, double click the switch to lock / unlock the light
• Built-in over heat protection

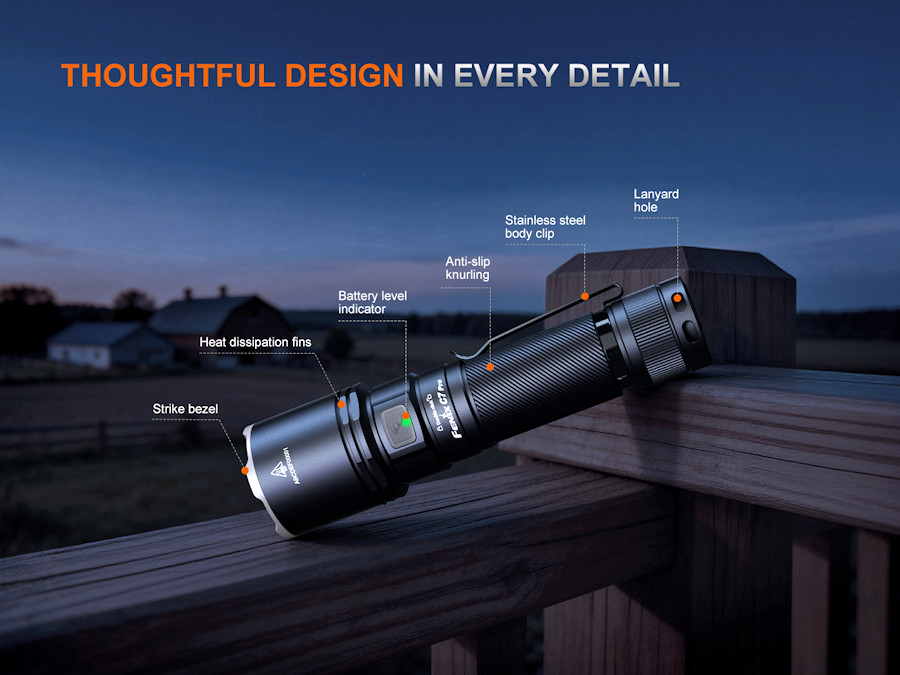

• Reinforced 6061 aluminium housing with Type 111 hard anodized finish
• Anti-roll anti slip body with pocket clip
• Toughened ultra-clear glass lens with anti-reflective coating (98% light transmission)
• 1.5m drop resistant
• Powerful magnetic tail cap for use as a hands free work light
• IP68 waterproof to 2m
Compatible accessories:
AOT-04 traffic wand
AOD-M diffuser tip
AOD-05 helmet holder

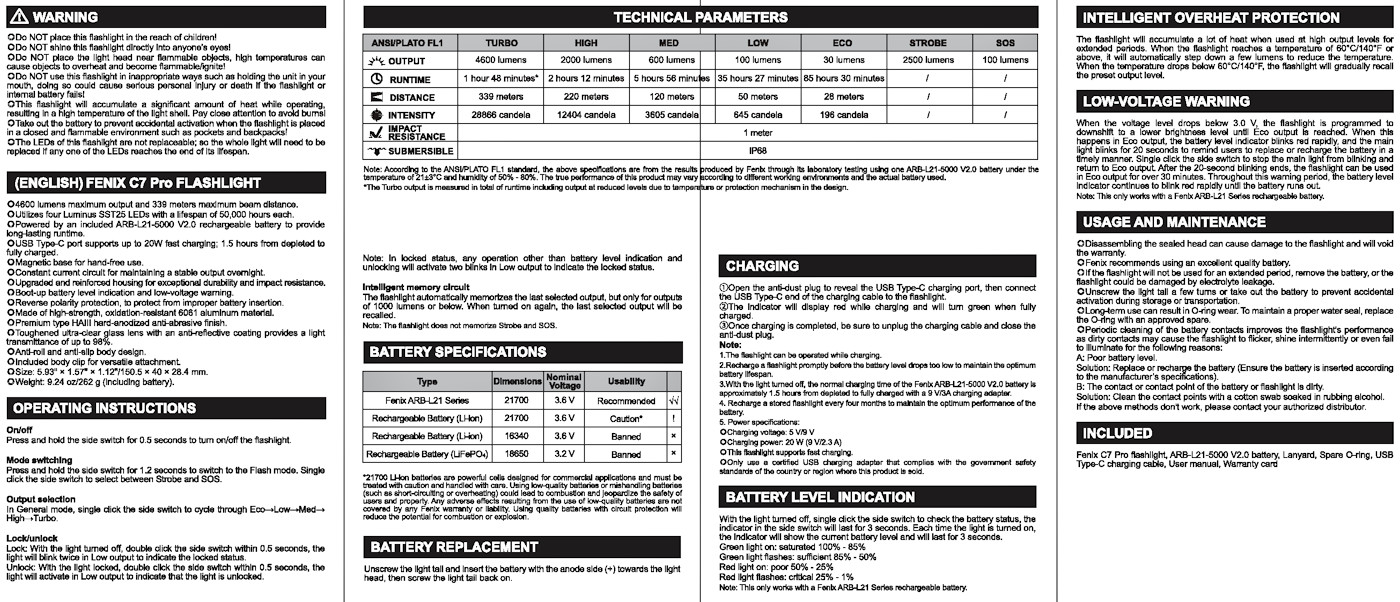

For full product details, please refer to the user manual in the small images area.
Specification
LED Type
4 x Luminus SST25 LED's
Model
C7 PRO
Battery Type
21700
Battery Quantity
1
Additional Battery Type
Accepts full range of Fenix ARB-L21 series 21700 batteries
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Side button
Construction
A6061-T6 aircraft grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
Yes
Pocket Clip
Yes
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
150.5mm (Length) x 40mm (Head Diameter) x 28.4mm (Body Diameter)
262 grams (including battery)
Further Info
N/A
Operation

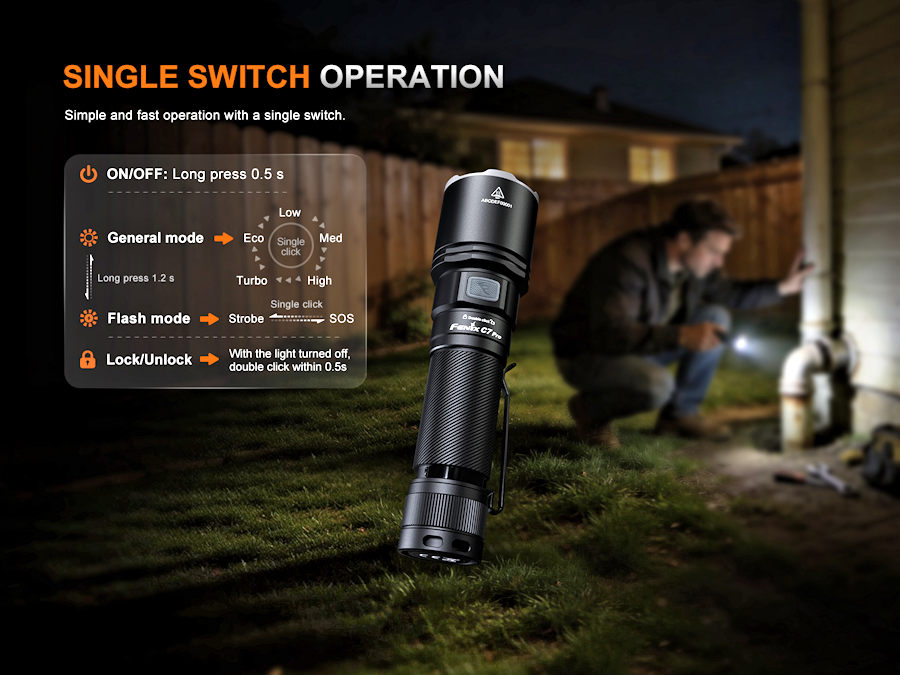

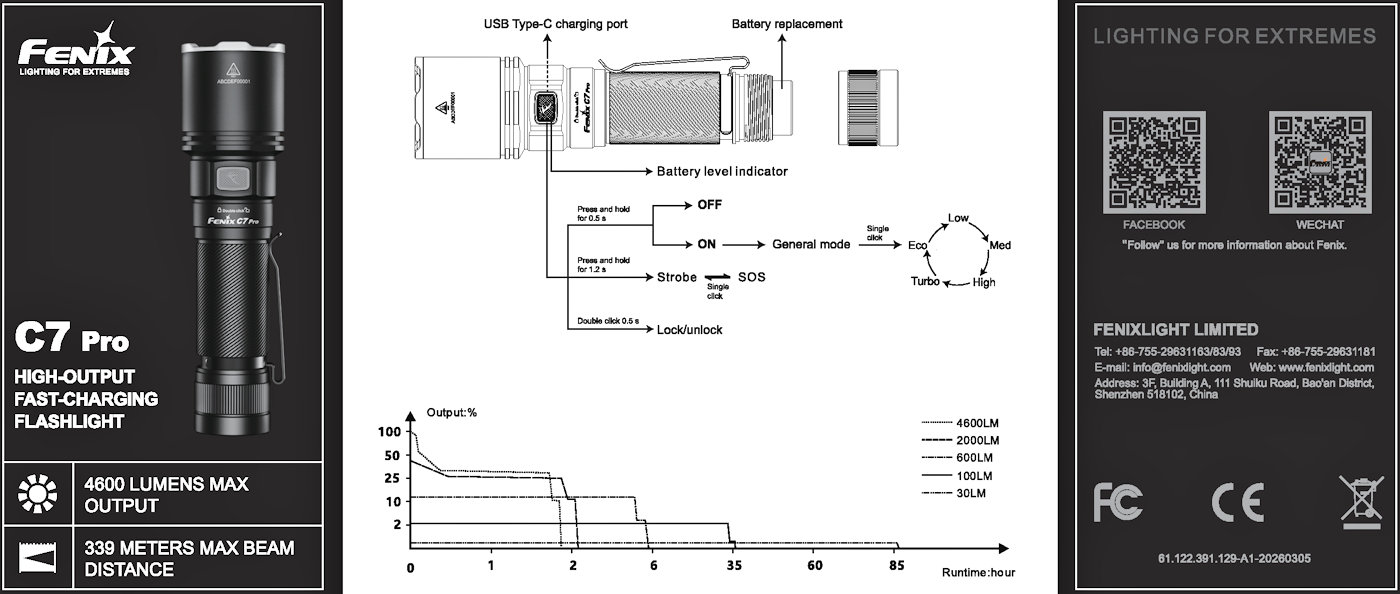

Fenix C7 Pro work torch operation:
On/off:
Press and hold the side switch for 0.5 seconds to turn on/off the flashlight.
Mode switching:
Press and hold the side switch for 1.2 seconds to switch to the Flash mode. Single click the side switch to select between Strobe and SOS.
Output selection:
In General mode, single click the side switch to cycle through Eco→ Low→ Med→ High→ Turbo.
Lock/unlock:
Lock:Â With the light turned off, double click the side switch within 0.5 seconds, the light will blink twice in Low output to indicate the locked status.
Unlock:Â With the light locked, double click the side switch within 0.5 seconds, the light will activate in Low output to indicate that the light is unlocked.
Note: In locked status, any operation other than battery level indication and unlocking will activate two blinks In Low output to indicate the locked status.
Intelligent memory circuit:
The flashlight automatically memorizes the last selected output, but only for outputs of 600 lumens or below. When turned on again, the last selected output will be recalled.
Note: The flashlight does not memorize Strobe and SOS.
Battery specifications:
Fenix ARB-L21 Series 21700 3.6V Recommended √√ Rechargeable Battery (Li-on) 21700 3.6 V Caution*! Rechargeable Battery (Li-ion) 16340 3.6 V Banned x Rechargeable Battery (LiFePO4) 18650 3.6 V Banned x
*21700 Li-on batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and Jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion.
Battery replacement:
Unscrew the light tail and Insert the battery with the anode side (+) towards the light head, then screw the light tail back on.
Intelligent overheat protection:
The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the flashlight reaches a temperature of 60°C/140°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C/140°F, the flashlight will gradually recall the pre-set output level.
Low voltage warning:
When the voltage level drops below 3.0 V, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the battery level indicator blinks red rapidly, and the main light blinks for 20 seconds to remind users to replace or recharge the battery in a timely manner. Single click the side switch to stop the main light from blinking and return to Eco output. After the 20-second blinking ends, the flashlight can be used in Eco output for over 30 minutes. Throughout this warning period, the battery level Indicator continues to blink red rapidly until the battery runs out.
Note: This only works with a Fenix ARB-L21 Series rechargeable battery.
Usage and maintenance:
• Disassembling the sealed head can cause damage to the flashlight and will void the warranty. • Fenix recommends using an excellent quality battery. • If the flashlight will not be used for an extended period, remove the battery, or the flashlight could be damaged by electrolyte leakage. • Unscrew the light tail a few turns or take out the battery to prevent accidental activation during storage or transportation. • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the O-ring with an approved spare. • Periodic cleaning of the battery contacts improves the flashlight's performance as dirty contacts may cause the flashlight to flicker, shine intermittently or even fail to Illuminate.
Problems and solutions:
A: Poor battery level. Solution: Replace or recharge the battery (Ensure the battery is inserted according to the manufacturer's specifications).

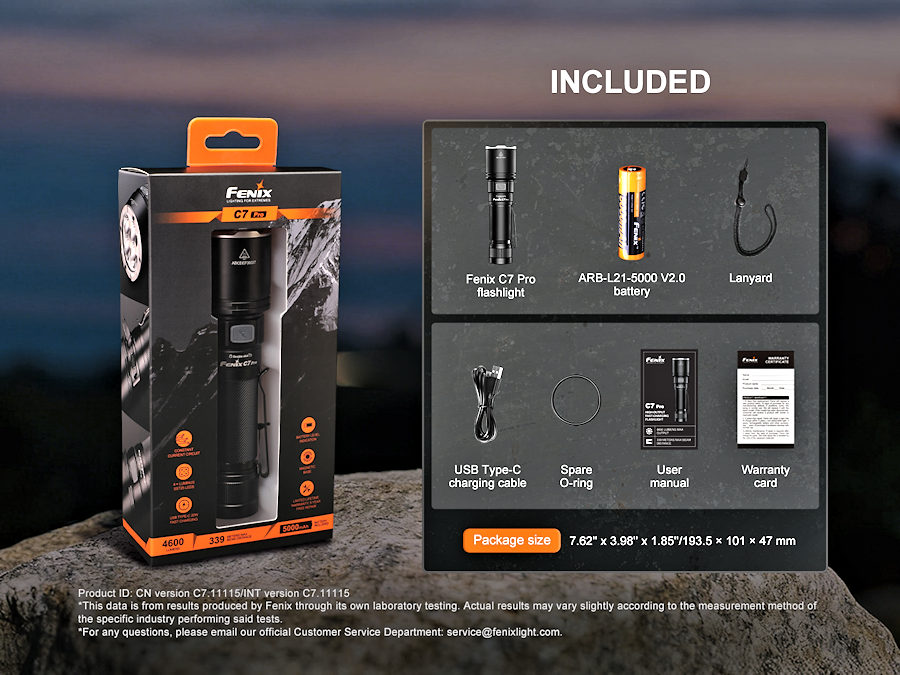

Package & Contents
Retail packaged Fenix C7 PRO rechargeable LED torch Fenix ARB-L21-5000 V2 21700 battery USB-C charging lead Lanyard Spare O-ring Warranty card User manual
