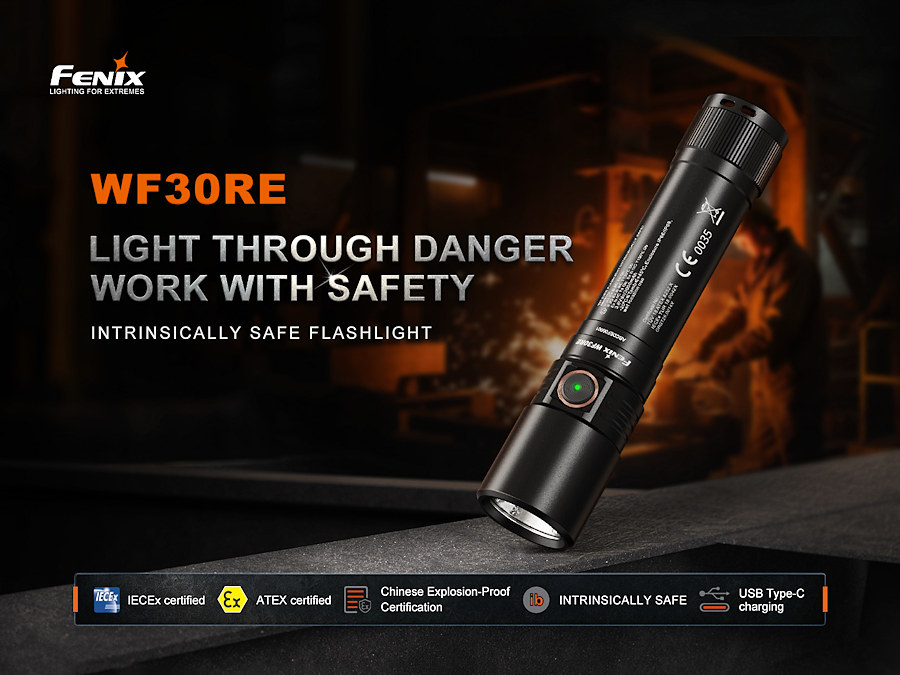

Fenix WF30RE 2025 ATEX Torch

Fenix WF30RE 2025 operation:

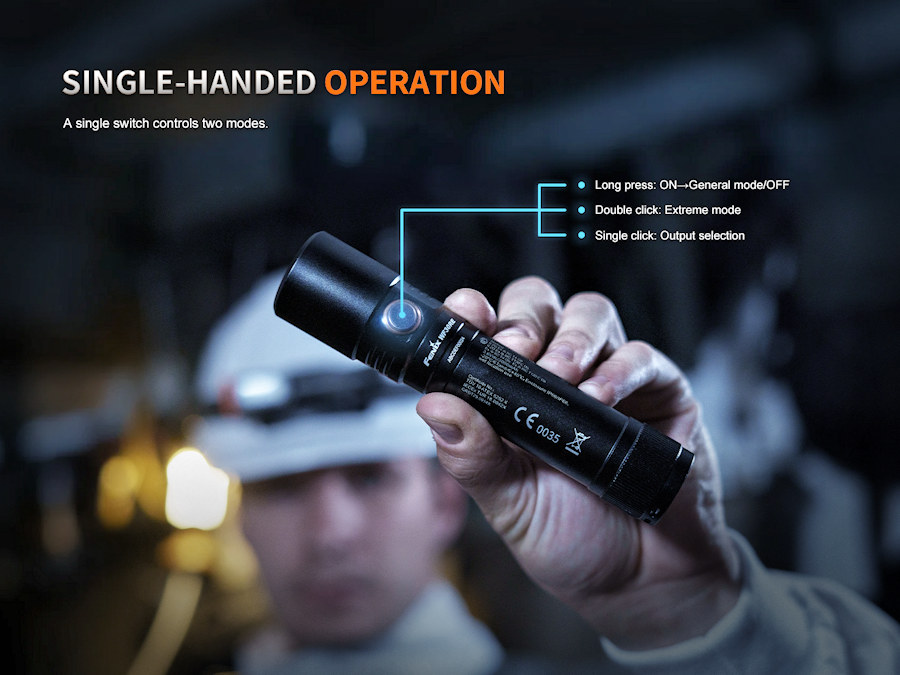

On/off:

With the light turned off, press and hold the switch for 0.5 seconds to turn on the light and enter the General mode.
With the light turned off, double click the switch to turn on the light and enter the Extreme mode.
With the light turned on, press and hold the switch for 0.5 seconds to turn off the light.

Output Selection:

In the General mode, single click the switch to cycle through Low→Med→High.
In the Extreme mode, single click the switch to select between Eco and SOS.

Intelligent Memory Circuit:

The light memorizes the last selected output excluding the outputs of the Extreme mode. When turned on again, the previously used output will be recalled.
The light will activate on Eco output if it was previously turned off on Eco or SOS output.

Battery Specification:

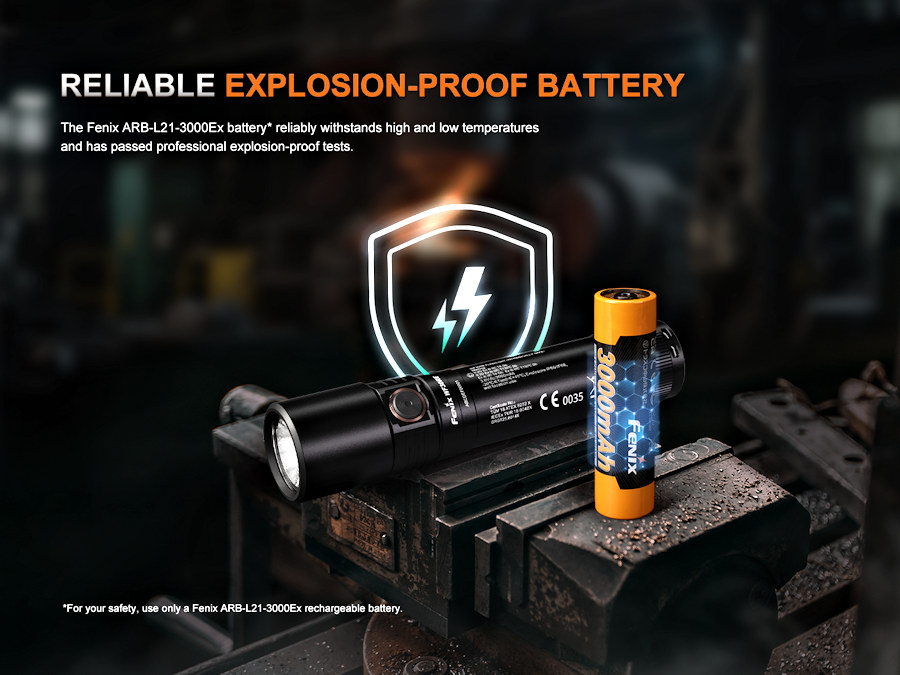

For your safety, use only a Fenix ARB-L21-3000Ex battery.

Battery Replacement:

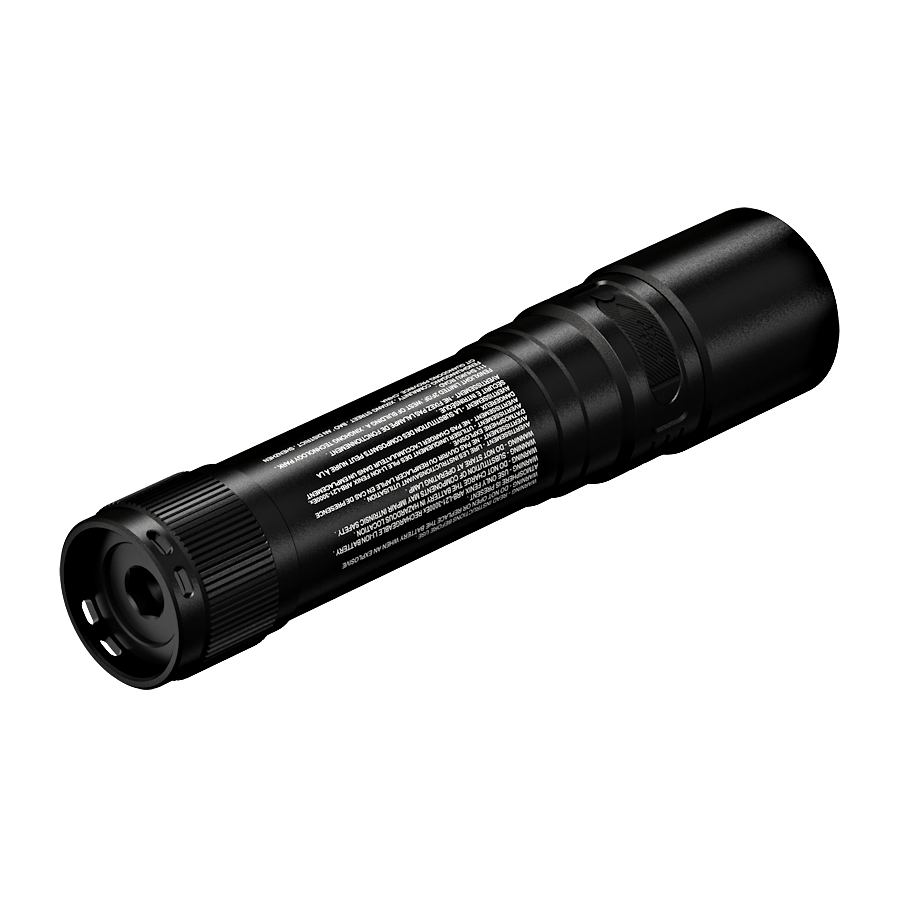

Open the light tail with an 8 mm Allen wrench, insert a Fenix ARB-L21-3000Ex battery with the electrode towards the light head, then screw the light tail back on.

Warning:

1. Do not open the light in explosive atmospheres.
2. Do not recharge the light or change the battery in explosive atmospheres.
3. For your safety, only use a Fenix ARB-L21-3000Ex rechargeable battery.

Specific Conditions of Use FOR HAZARDOUS AREAS:

1. Do not open and replace battery when an explosive atmosphere is present.
2. Use only Fenix ARB-L21-3000Ex rechargeable li-ion battery.
3. Do not charge the battery in hazardous location.

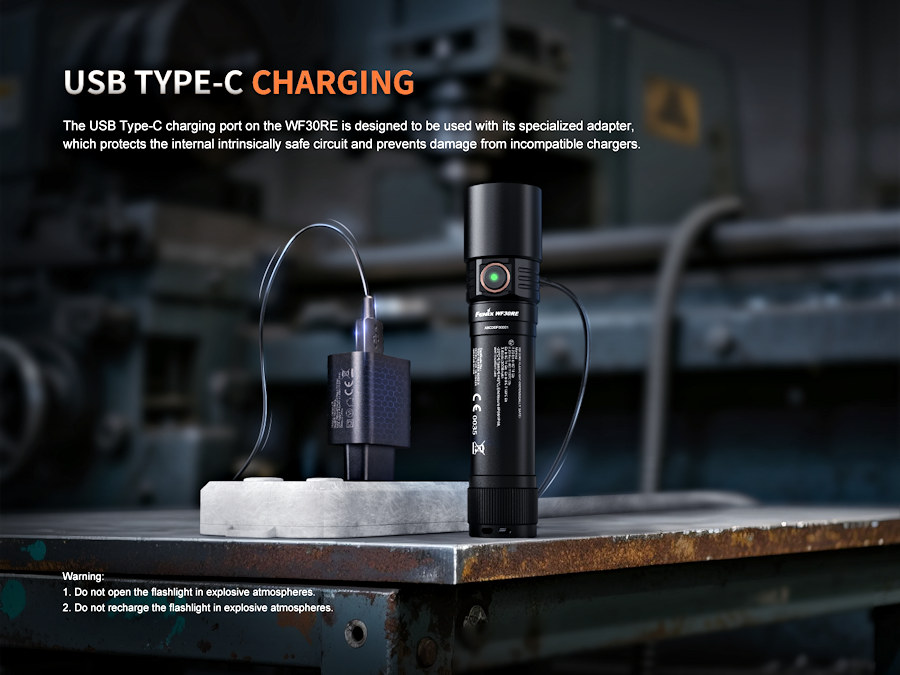

4. Use only the specific charger provided by the manufacturer “Fenixlight Limited.”
5. Do not use in explosive atmospheres if the flashlight is missing parts (especially the dust cap of the charging socket) or if the shell is obviously broken.

Battery level indication:

With the light turned off, single click the switch to check the battery status. The battery level indicator in the switch will display the battery status for 3 seconds.

Green light on: saturated 100% - 85%
Green light flashes: sufficient 85% - 50%
Red light on: poor 50% - 25%
Red light flashes: critical 25% - 1%

Low-voltage Warning:

When the voltage level drops below the pre-set level, the light is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output, the battery level indicator blinks red to remind users to recharge or replace the battery in a timely manner.

Usage and Maintenance:

◎ Disassembling the sealed head can cause damage to the light and will void the warranty.
◎ Only use a Fenix ARB-L21-3000Ex battery.
◎ If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
◎ Ambient temperature range: -20℃ ~ 45℃
◎ The included battery needs to be charged when it is near depletion. Please immediately recharge the battery when it is depleted without concern of affecting the battery. It has no memory effect.
◎ Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.

Others:

◎Ambient pollution degree: 3
◎Overvoltage category: II

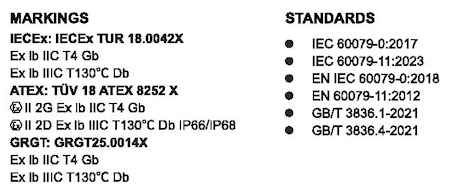

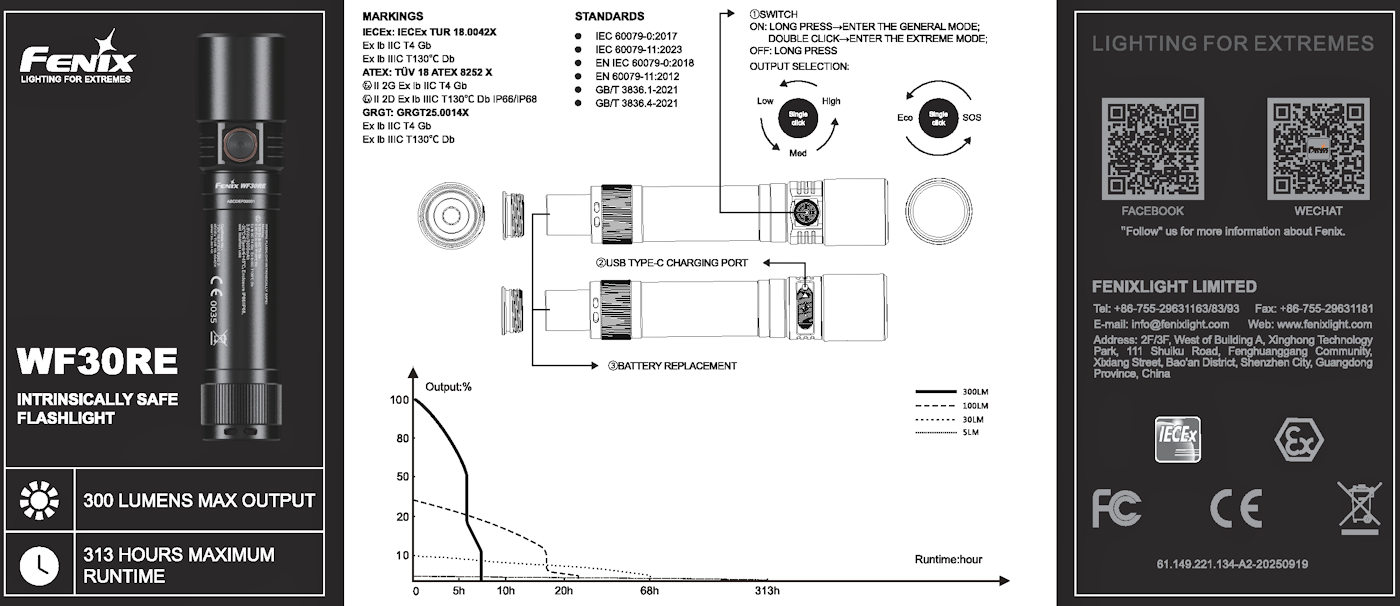

Markings:

IECEx: IECEx TUR 18.0042X
Ex ib IIC T4 Gb
Ex ib IIIC T130℃ Db
ATEX: TÜV 18 ATEX 8252 X
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T130℃ Db IP66/IP68
GRGT: GRGT25.0014X
Ex ib IIC T4 Gb
Ex ib IIIC T130℃ Db

Intend for use:

This flashlight /Headlamp can be used in Zone 1 and Zone 2, where there is explosive gas mixture belongs IIA, IIB and IIC; and can be used in combustible dust areas: Zone 21 and Zone 22.

Standards:

 IEC 60079-0:2017
 IEC 60079-11:2023
 EN IEC 60079-0:2018
 EN 60079-11:2012
 GB/T 3836.1-2021
 GB/T 3836.4-2021
