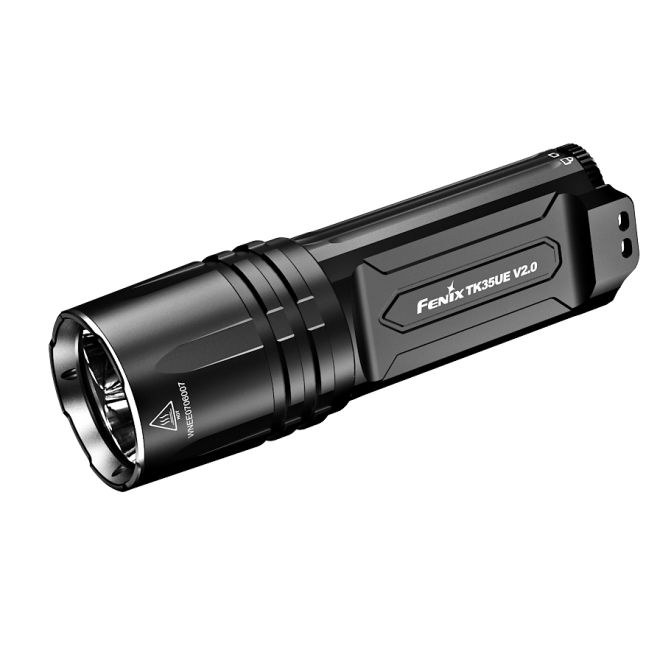

Fenix TK35 Ultimate V2.0 is a powerful upgrade over the 2018 model. Whilst making the torch much more compact and 29% lighter, Fenix have incorporated 3 x Luminus SST-40 LED's, increasing output from 3200 to 5000 lumens. Beam range has also increased from 300 to 400m.
This impressive light is operated by a rubber covered Tactical Click Switch which activates the torch and offers Momentary, Constant - On and Off functions.
TK35UE V2.0 also features a rotary switch in the tail of the torch which cycles between Lockout, General and Tactical Modes. Once in your preferred mode a push button in the centre of the rotary switch selects between the available output levels in that mode.
TK35 UE V2's battery holder is built into the grip and designed to take 2 x button top 18650 rechargeable batteries (not supplied). 4 x CR123 batteries can also be used or 1 x 18650 / 2 x CR123 batteries can be used in an emergency.
5 brightness levels from 30 to 5000 lumens deliver a wide a choice of output and run time combinations to suit your task.
(800, 2,000 and 5000 lumen outputs are over-heat protected - output will reduce to protect the LED and circuitry at 65c. Max power can be re set once the light cools)
Tactical and Outdoor Modes: With the torch switched off or on - press and hold the mode button for Instant 3500 lumen disorienting strobe. (Does not operate in Lockout Mode)
Fenix TK35UE V2.0 features:
• The built-in intelligent memory function remembers your last used output in Outdoor Mode (except strobe)
• Overheat protection ensures long service life.
• Battery level indication and low voltage warning let you know when it's time to replace or charge the batteries.
• Impact resistant to 1 meter.
• Waterproof to 2 meters for 4 hours
• Fenix 5 year warranty.
Please note that flat top 18650 cells cannot be used in this product.
A compact powerhouse LED light suitable as a police torch, security torch, search and rescue torch and also ideal for general use.
For full product details please refer to the user manual in the images area.
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Forward Clicky on - off - momentary. Push button brightness adjustment. Rotary mode / lock switch
Construction
Durable aircraft-grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish (aluminium surfaces)
Tail Stand
Yes
Pocket Clip
Yes
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
143mm (Length) x 43mm (Head Diameter) 202 grams (excluding batteries)
Further Info
N/A
Operation
Fenix TK35UE V2 operation:
On/off:
In tactical or duty mode, tap (half press) the tactical switch to momentarily tum on the light, release and the light will go out. Fully press the tactical switch (click) to constantly turn on the light, press again (click) to turn off the light.
Mode Switching:
Rotate the toggle switch to select the required mode.Â
Rotate the toggle switch fully to the left to enter Tactical mode, to the centre to enter Duty mode, and to the right to enter Lockout mode.
Output Selection:
Tactical Mode:
With the light switched on, single click the functional switch to enter strobe mode, single click again to return to constant output.
With the light switched off, press and hold the functional switch to enter strobe mode, release the light will go out.
Duty Mode:
With the light switched on, single click the functional switch to cycle through Eco-Low-Med High-Turbo. Press and hold the functional switch to enter Strobe mode, single click again to turn back to the previously used output in Duty mode.
*The light memorizes the last selected output excluding strobe. When turned on again the previously used output of Duty mode will be recalled.
Lock/Unlock:
Lock:
With the light switched on, rotate the toggle switch fully to the right to lock the light, at this time, the light will go out and the battery level indicator blinks red and green in turn to indicate the light is locked.Â
With the light switched off, rotate the toggle switch to the right end to lock the light, at this time, single clicking the Tactical switch will cause the battery level indicator to blink red and green, indicating that the light is locked.
Strobe:
With the light switched on, press and hold the functional switch for 0.5 seconds to enter strobe, click the functional switch once again to turn back to the general mode.
With the light switched off, press the functional switch to enter strobe, release and the light will go out.
Intelligent Memory Circuit:
The light memorizes the last selected output excluding strobe. When turned on again the previously used output of general mode will be recalled.
Package & Contents
Retail Packaged Fenix TK35 Ultimate V2.0 Spare O-Ring Lanyard Holster User Manual Warranty card (Please note batteries are not supplied with this product)
