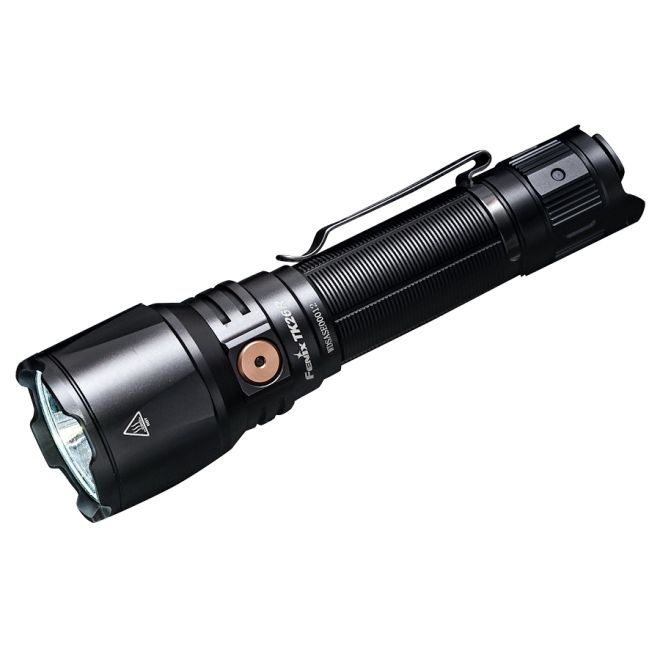

Fenix TK26R is a compact Tactical / Police led torch with superb performance. This Fenix torch features a main beam of 1500 lumens output / 350 metres range and incorporates secondary 150 lumen red and 200 lumen green LED's, ideal to light up the separately available Fenix AOT-02 diffuser for use as a traffic wand. TK26R is supplied with a Fenix ARB-L18-3400 battery which is rechargeable via the on board USB-C socket and supplied cable. 2 x CR123 batteries can also be used in an emergency.
Fenix TK26R features dual switches in the tail cap. A forward clicky which controls constant on / off and momentary lighting of the main beam and a mode switch for output selection. The mode switch also provides access to instant strobe whether the light is on or off. A switch in the neck of the light operates the red and green secondary LED's. Please refer to the user manual in the images area for a full description of torch operation.
Digitally regulated output maintains constant brightness and the intelligent memory circuit remembers your last used brightness level (main beam) next time you turn on. Turbo Mode at 1500 lumens is temperature controlled and will step down gradually to 900 lumens to protect the LED and driver circuit from excess heat. as the torch cools, maximum output is restored.
• Low voltage warning and battery level indicator built in to side switch
• Reverse polarity protection
• USB-C charging socket features inner waterproofing
• Submersible to 2 metres for 30 minutes
Compatible with Fenix accessories:Traffic Wand (AOT-02) and (AOT-L), Filter Adaptor (A0F-L), Diffuser Tip (A0D-M), Gun mounts (ALG-00 and ALG-01)
Product is now supplied with a 3400mAh battery not a 3500mAh as shown.
For full product details please refer to the user manual in the images area.
Specification
Model
TK26R
Battery Type
18650
Battery Quantity
1
Additional Battery Type
2 x CR123 non-rechargeable (Do NOT use rechargeable 3.7v CR123 / RCR123 / 16340 batteries in this product)
LED Type
LUMINUS SST40 Cool White and Cree XP-E2 Green and Red LEDs
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Tail on - off and main beam / strobe mode switches, Side colour LED switch
Construction
A6061-T6 aircraft grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
No
Pocket Clip
Yes
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
150mm (Length) x 40mm (Head Diameter) x 25.4mm (Body Diameter)
157 grams (excluding battery)
Further Info
N/A
Operation
Fenix TK26R torch operation:
Three switches:
The round switch is the tactical tail switch, the oval switch is the functional tail switch; the functional side switch is to switch between white, red and green lights.
On/Off:
Tap (half press) the tactical tail switch to momentarily turn on the light, release and the light will go out. Fully press the tactical tail switch (click) to constantly turn on the light. Press again (click) to turn off the light.
Output Selection:
With the light switched on - single click the functional tail switch to cycle through Turbo→Low→Med→High.
Red and Green Lights:
With the light switched on - single click the functional side switch to cycle through red light, green light; single click the functional tail switch to turn back to the previously used white light.
Strobe:
With the light switched on - press and hold the functional tail switch for 0.8 seconds to activate strobe, click the functional tail switch or functional side switch to exit strobe.
With the light switched off- fully press the functional tail switch to rapidly enter strobe, release and the light will go out.
Intelligent Memory Circuit:
The light memorizes the last selected brightness level on White light mode (excluding strobe). When turned on again the previously used brightness level will be recalled.
Package & Contents
Retail Packaged Fenix TK26R Holster Fenix ARB-L18-3400 18650 Battery USB C Charger Cable Lanyard Spare O-Ring Spare Rubber Switch Boot User Manual Warranty card
