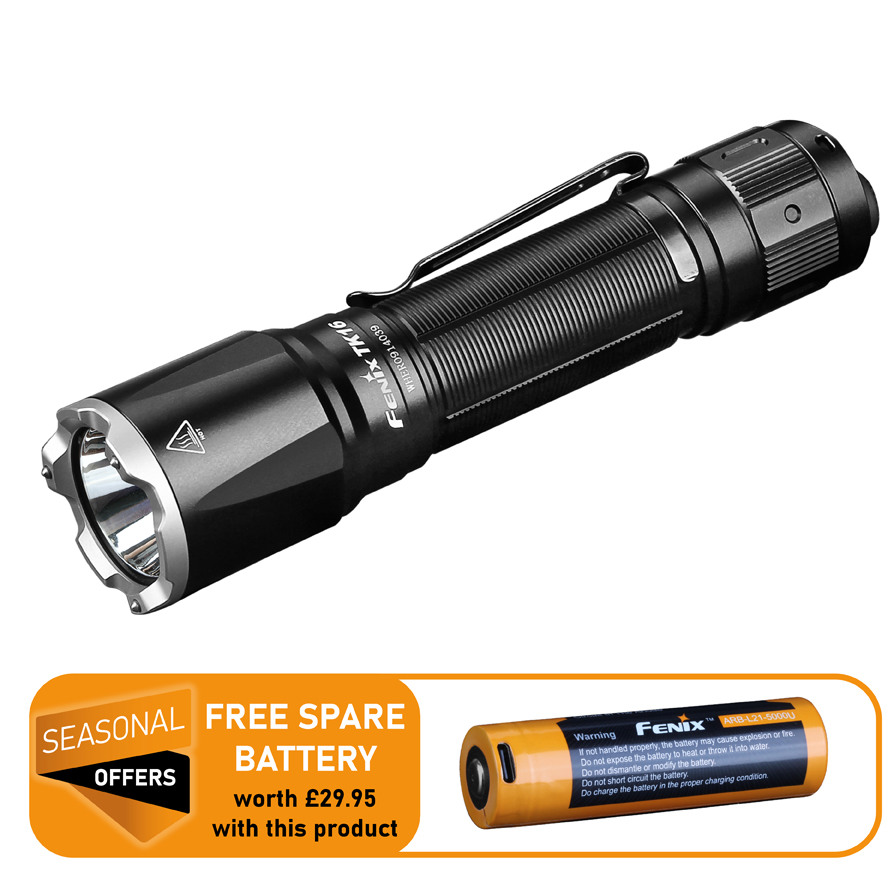

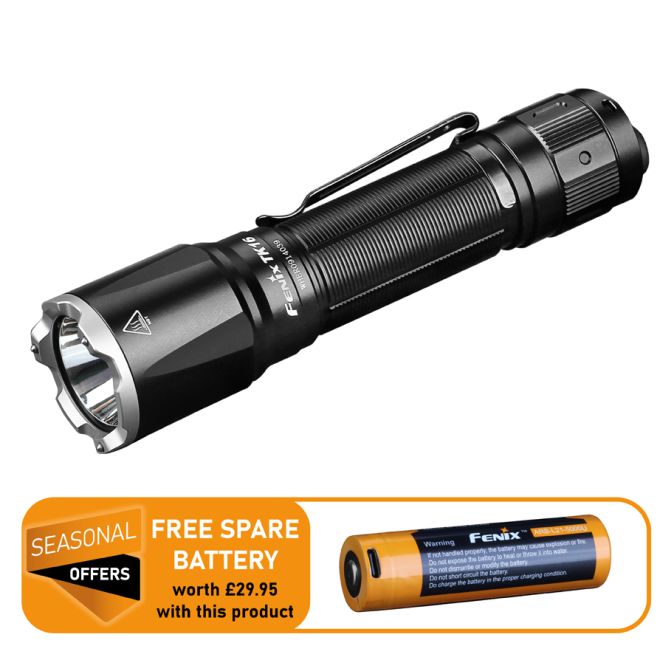

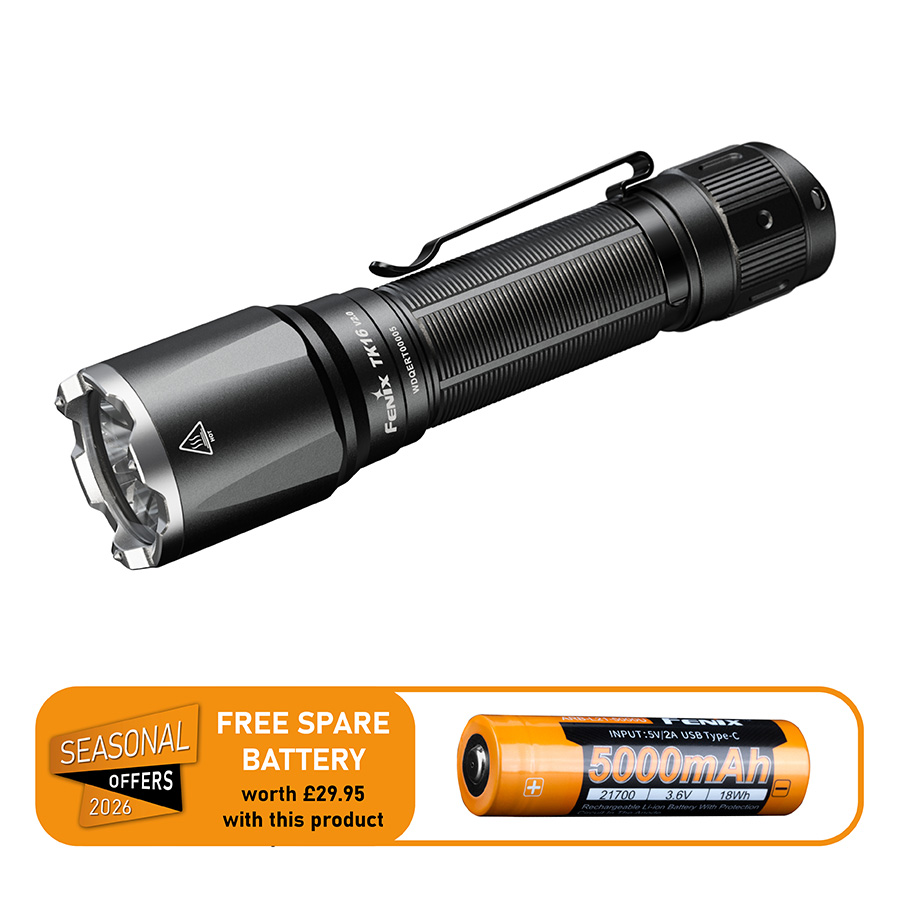

Seasonal Special Offer - Buy a Fenix TK16 V2.0 LED torch and receive an extra Fenix ARB- L21-5000U 21700 battery worth £29.95 free of charge!

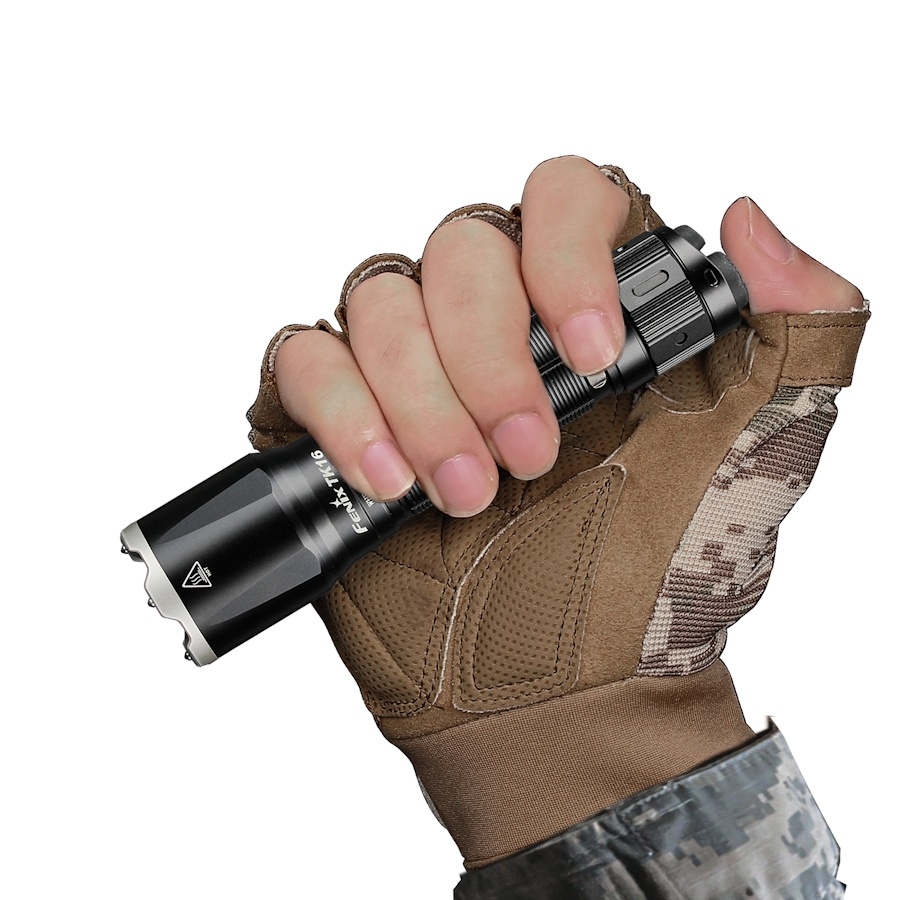

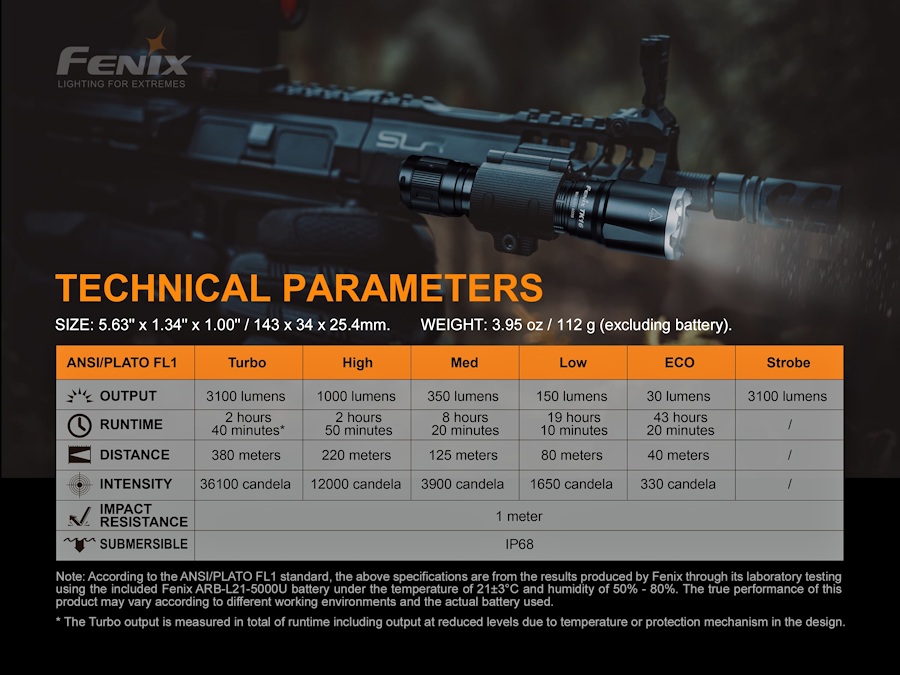

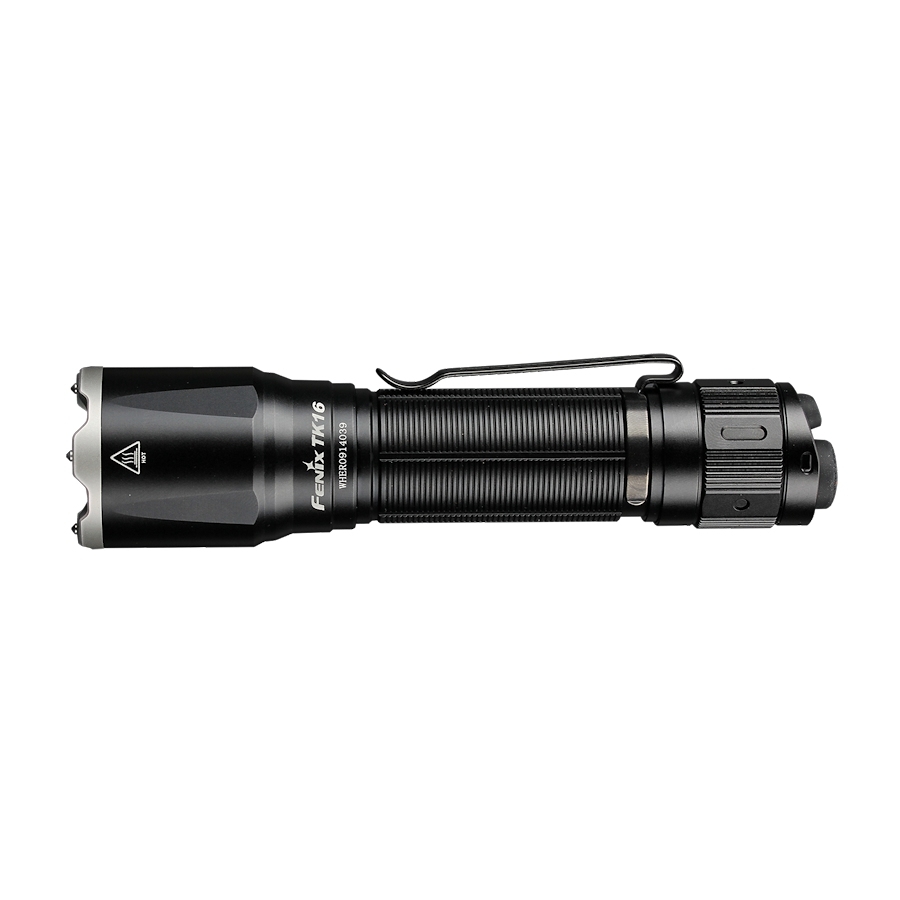

Fenix TK16 V2.0 Tactical flashlight is powered by an ultra capacity 5000mAh 21700 USB-C rechargeable battery (supplied) and upgrades the popular original model with a temperature regulated boost mode capable of a blistering 3100 lumens, translating to a beam range of 380 meters. All this performance is housed in a compact form factor ideal for both hand held and weapon mounted use. The exposed dual tail cap switch system enables single handed control of all output options including momentary and constant-on lighting, 5 brightness levels and strobe function. Instant 3100 lumen strobe is available whether the TK16 V2 is switched on or off.

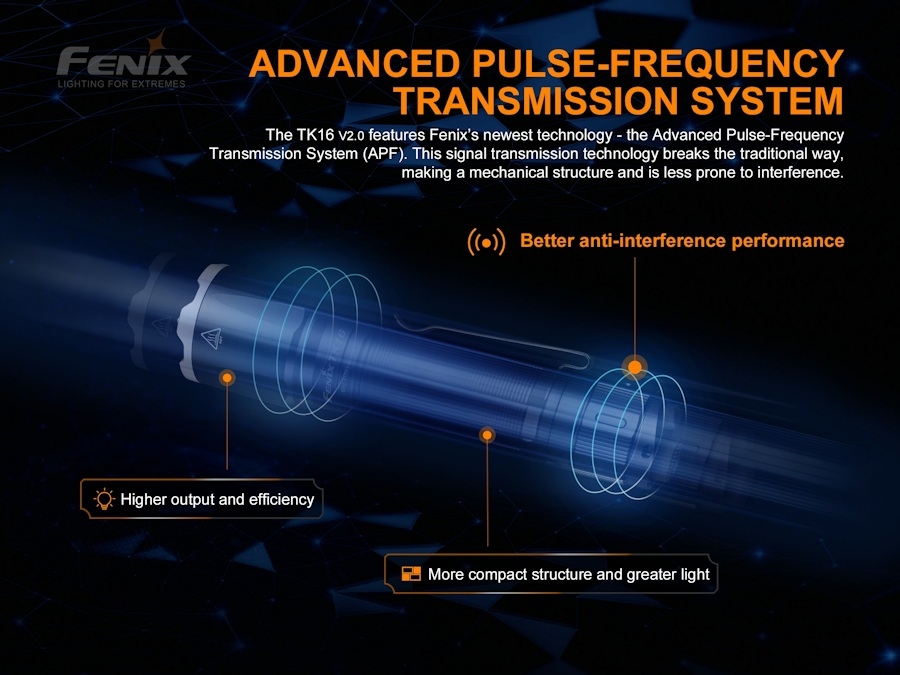

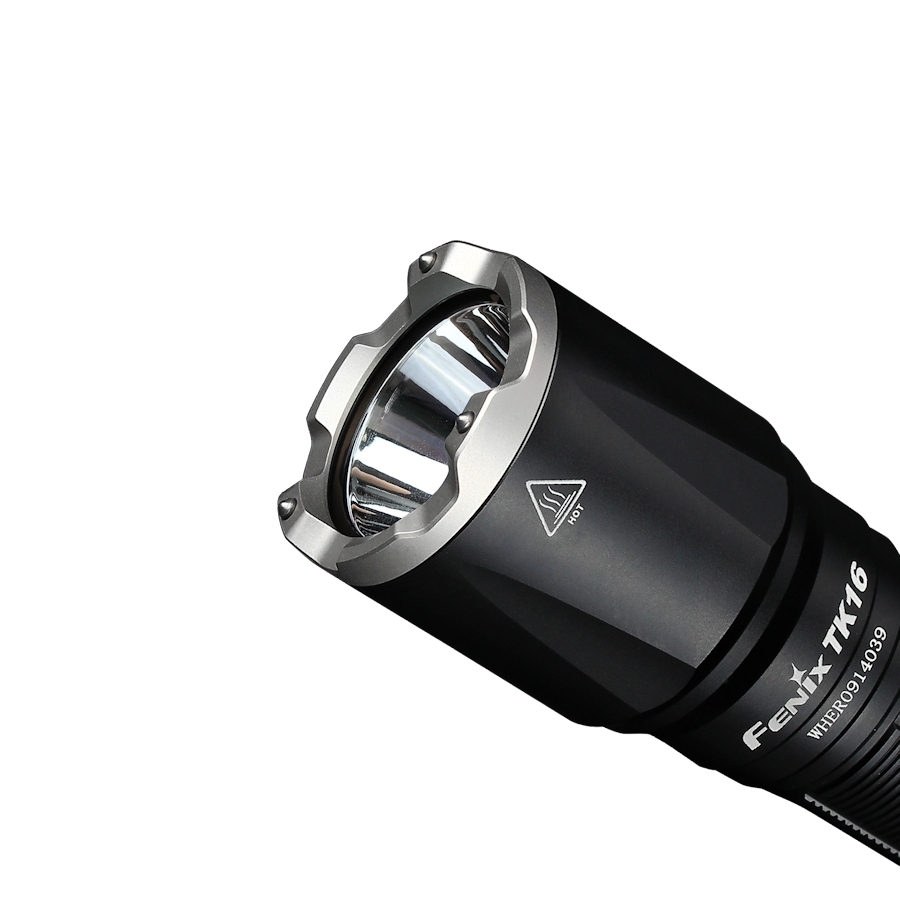

Other stand out features of this Fenix Torch include a crenulated stainless steel bezel fitted with tungsten alloy glass breakers, a recoil protected battery tube featuring dual springs and Fenix proprietary Pulse Frequency Signal Transmission Switching Technology for enhanced performance and reliability.
The Fenix ARB-L21-5000U lithium battery is charged via an included USB - USB-C cable and your existing mobile phone charger or similar.
For weapon mounted use a number of Fenix accessories are available including the AER 05 remote pressure switch, Fenix ALG-05 remote switch mounting base and ALG-00 torch rail mount. The light is also compatible with Fenix ALP-10L holster and AOT-M traffic wand.
• Luminus SST70 LED
• Fenix ARB-L21-5000 V2 high power USB rechargeable 21700 battery
• Forward clicky tail switch with momentary and constant-on activation
• Tail mode switch for brightness control and Instant Strobe activation
• Digitally regulated output maintains constant brightness
• Last mode memory - remembers your brightness setting (except Strobe)
• Strobe can be activated with the light switched on or off
• Charging / charged LED's built into the battery
• Overheat protection at 60 degrees C (max power can be set once the light cools)
• Low battery voltage warning
• 1.5m drop tested

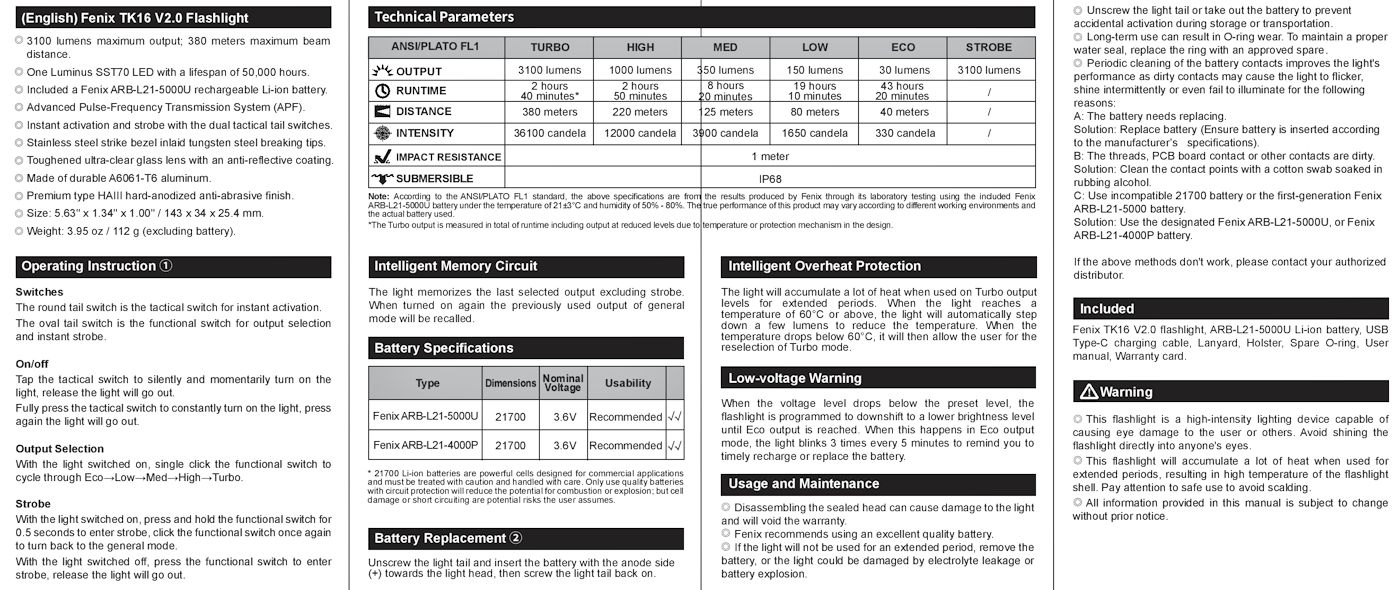

For full product details please refer to the user manual in the images area.
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Dual tail cap switches. (mode switch and on - off - momentary switch)
Construction
Durable aircraft-grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
Yes
Pocket Clip
Yes
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
143mm (Length) x 34mm (Head Diameter) x 25.4mm (Body Diameter)
112 grams (excluding battery)
Further Info
N/A
Operation
Fenix TK16R V2.0 Operation:
Switches:

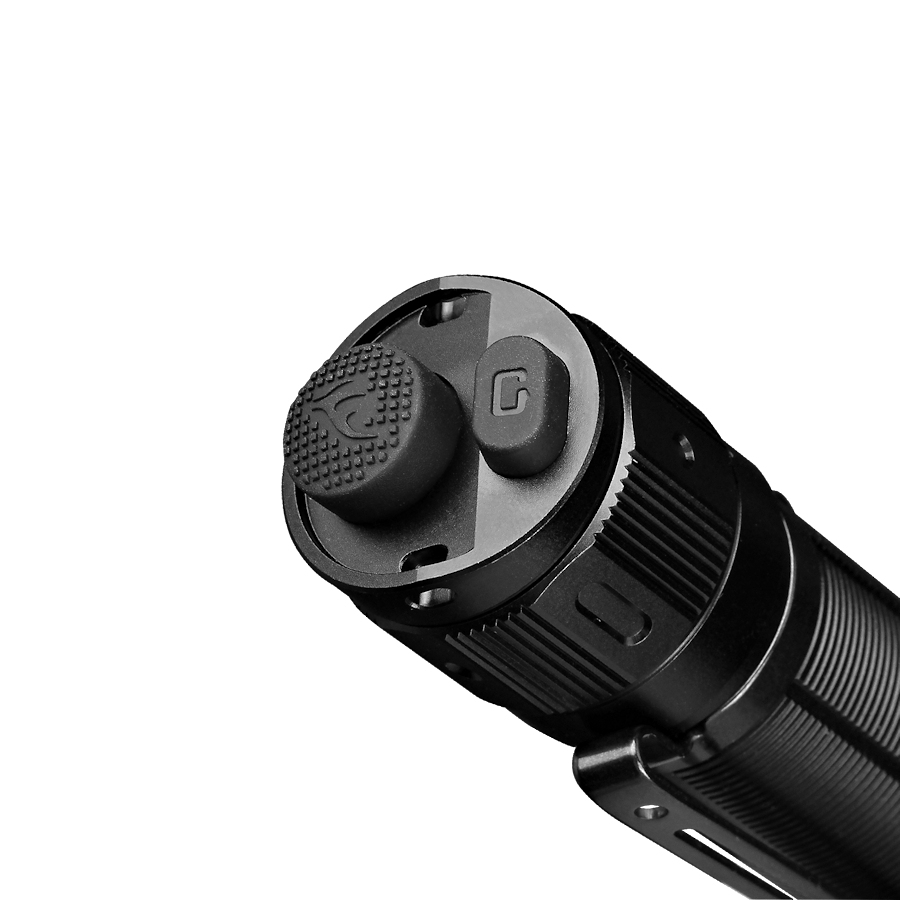

The round tail switch is the tactical switch for instant activation. The oval tail switch is the functional switch for output selection and instant strobe.
On/Off:
Tap the tactical switch to silently and momentarily turn on the light, release the light will go out. Fully press the tactical switch to constantly turn on the light, press again the light will go out.
Output Selection:
With the light switched on, single click the functional switch to cycle through Eco→Low→Med→High→Turbo.
Strobe:
With the light switched on, press and hold the functional switch for 0.5 seconds to enter strobe, click the functional switch once again to turn back to the general mode. With the light switched off, press the functional switch to enter strobe, release the light will go out.
Intelligent Memory Circuit:
The light memorises the last selected output excluding strobe. When turned on again the previously used output of general mode will be recalled.
* 21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.
Battery Replacement:
Unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tail back on.
Intelligent Overheat Protection:
The light will accumulate a lot of heat when used on Turbo output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the reselection of Turbo mode.
Low-voltage Warning:
When the voltage level drops below the pre-set level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output mode, the light blinks 3 times every 5 minutes to remind you to recharge or replace the battery.
Usage and Maintenance:
Disassembling the sealed head can cause damage to the light and will void the warranty. Fenix recommends using an excellent quality battery. If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion. Unscrew the light tail or take out the battery to prevent accidental activation during storage or transportation. Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare． Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:
Problems:
A: The battery needs replacing. Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications). B: The threads, PCB board contact or other contacts are dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol. C: Use incompatible 21700 battery or the first-generation Fenix ARB-L21-5000 battery. Solution: Use the designated FenixARB-L21-5000U, or Fenix ARB-L21-4000U battery.
If the above methods don't work, please contact your authorised distributor.
Warning:
This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone's eyes. This flashlight will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to safe use to avoid scalding. All information provided in this manual is subject to change without prior notice.
