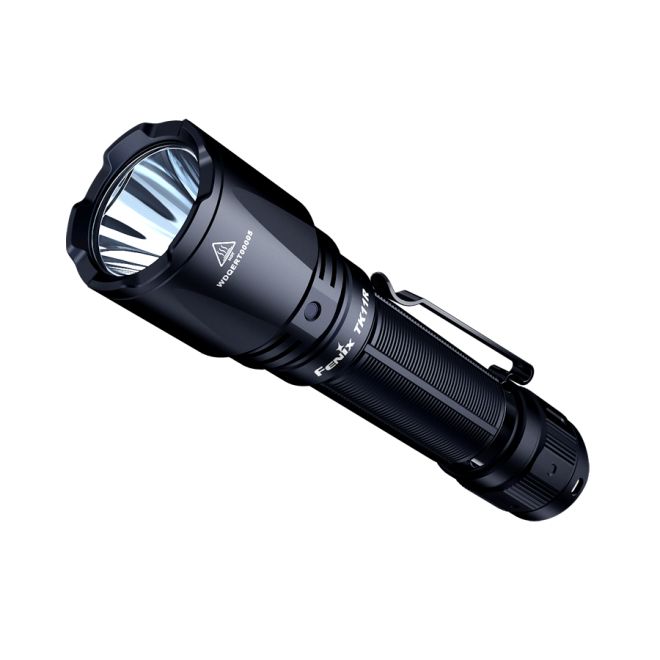

Fenix TK11R Rechargeable Tactical Light

Fenix TK11R Operation:

On/Off:

Tap the tactical switch to instantly turn on the light, release and the light will go out. Fully press the tactical switch to constantly turn on the light, fully press again to turn off the flashlight.

Output Selection:

With the light switched on, single click the functional switch to cycle through Low→Med→High.

Strobe:

With the light switched off, press the functional switch to enter strobe, release the light will go out.
With the light switched on, press and hold the functional switch for 0.5 seconds to enter the strobe mode, click the functional switch once again to turn back to the previously used output or fully press the tactical switch to turn the flashlight off.

Intelligent Memory Circuit:

The light memorises the last selected output excluding strobe. When turned on again the previously used output will be recalled.

Battery Specifications:

Fenix ARB-L18 18650 3.6 V Recommended √√
Non-rechargeable Battery (Lithium) CR123A 3.0 V Emergency √
Other types of Li-ion battery 18650 3.6 V Caution* !

*18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only using quality batteries with circuit protection will reduce the potential for combustion or explosion. Cell abuse or short circuiting are considered user induced damage and are not covered by any Fenix warranty or liability.

Battery Replacement:

Unscrew the tail cap and insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

Charging:

First switch off the light and plug the USB A socket of the charging cable into an appropriate A/C powered USB plug/outlet, then connect the USB Type-C socket of the charging cable to the light.
The indicator will display red while charging, and will turn to green when fully charged.
Once charging is completed, be sure to unplug the charging cable and close the anti-dust cover.

Note:

When charging fails or the battery is inserted backwards, the battery indicator will flash red or stop working to notify the user to check the battery condition.
The normal charging time of the flashlight is approximately 3.5 hours from depletion to fully charged.
Recharge a stored light every four months to maintain the optimum performance of the battery.
If the battery level indicator blinks or fails to operate, please check out the battery. It is strictly prohibited to charge a CR123A or a 16340 battery.
Note: These features only work with a Fenix ARB-L18 battery.

Battery level indication:

Each time the light is turned on, the indicator will indicate the battery level and will last for 3 seconds.
Green light on: saturated 100% - 85%
Green light flashes: sufficient 85% - 50%
Red light on: poor 50% - 25%
Red light flashes: critical 25% - 1%
Note: This feature only works with a Fenix ARB-L18 battery.

Intelligent Overheat Protection:

The lamp will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 65°C/149°F or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C/149°F, it will then allow the user to select these heat intensive modes again.

Low-voltage Warning:

When the voltage level drops below the pre-set level, the lamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output, the battery level indicator blinks red to remind you to replace or recharge the battery.
Note: This feature only works with a Fenix ARB-L18 battery.

Usage and Maintenance:

◎Disassembling the sealed head can cause damage to the light and will void the warranty.
◎Fenix recommends using an excellent quality battery.
◎If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
◎Remove the battery to prevent accidental activation during storage or transportation.
◎Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare．
◎Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:

Problems:

A: Poor battery level.
Solution: Replace or recharge the battery (Ensure the battery is inserted according to the manufacturer’s specifications).
B: The threads, PCB board contact or other contacts are dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorised distributor.
