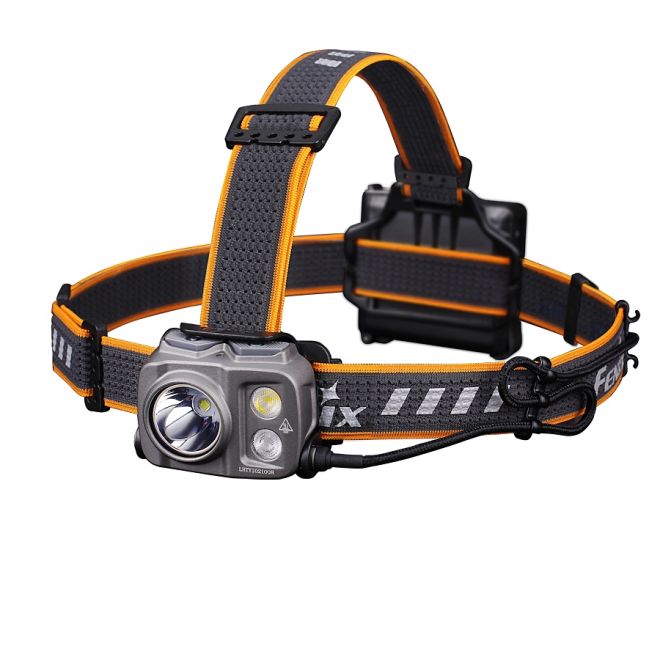

Fenix HP16R is a versatile, light weight 1250 lumen outdoor head torch that is ideal for work, walking, climbing, camping, running and every day use. HP16R is powered by the supplied 3000 mAh lithium polymer battery or can use 4 x regular AA alkaline or AA / NiMH rechargeable batteries. This powerful Fenix head torch features 3 beams with a choice of lighting from low level to high power, near or far.
Main and flood beams feature their own independent switches and can be used individually or combined to provide the perfect light setting for any task. The primary beam with its spotlight and spill lighting, illuminates both near and far simultaneously, avoiding trip hazards when walking or running. Both beams can be used together, combining the close-in flood beam with extra reach from the main beam to reduce the need to regularly adjust your lighting in mixed environments. The secondary 5 lumen red flood is ideal for map reading and protecting your night vision when only a little light is needed. All LED's feature a memory mode that will activate the light in your last used setting, ideal for sensitive environments.
The Fenix HP16R head unit features a die cast aluminium main body with internal heat sink, transferring heat from the LED to the large surface area outer casing for efficient cooling and long service life at high power settings.The head unit weighs only 75 grams, with a separate, light weight rear mounted battery box for even weight distribution and comfortable wear over long periods.
The battery box features a modern USB-C socket to charge the supplied Li-Po battery in just 3 hours, using your 2A mobile phone charger or similar. If power runs out, simply lift the quick release aluminium clasp to open the battery door, remove the Li-Po battery and insert 4 x universally available AA batteries and keep your adventure going.
Fenix HP16R performance:
Main beam:
The main 1600 lumen LED and reflector provide a balanced combination of far reaching spot and area spill light, lighting near and far. Safe illumination for a multitude of tasks.
Combine main and flood beams to create your ideal beam profile. For example, 150 lumens close in flood lighting combined with 50 lumens, 59 meter main beam. Work in close yet have a little extra reach without adjusting the headlamp.
Red beam:
Protect your night vision or set up an SOS signal with the low level red beam.
• High CRI pure flood LED (4500k / CRI 75) retains the beauty of vivid natural colours
• Reflective strips on battery box rear for added visibility
• 2m impact tested for durability
• 60 degree tilt mechanism for ideal beam alignment
• Dual lock out (electronic and plastic cover) to prevent accidental activation during transport
• IP66 weather proof for all outdoor conditions
• Wide operating temperature of -35 to + 45 Deg C
• Helmet attachment hooks supplied
A high quality product in design, construction and operation, Fenix HP16R is built for your outdoor adventures.
For full product details please refer to the user manual in the images area.
Red light - Red: 5 Lumens (300 hrs), Red Flash: 5 Lumens (600 hrs)
Flashing Modes
Red, Red Flash
Max Beam Distance
255m
Reflector
Smooth aluminium reflector
Lens Type
Toughened Ultra - Clear glass lens with anti - reflective coating plus Red / White floodlight lenses
Switch Type
Dual on - off - mode switches
Construction
Body made from cast aluminium with a high quality PC plastic rear cover and PC plastic / metal battery carrier
Finish
Body has a premium Type III hard-anodized anti-abrasive finish
Tail Stand
No
Pocket Clip
No
Waterproofing
IP66, weatherproof and dustproof
Dimensions/Weight
Headlamp - 62 x 47 x 32 mm. Battery case - 73 x 69 x 25 mm
216 g (including battery and headband)
Further Info
N/A
Operation
Fenix HP16R Operation: Switches:
General switch: for on/off and output selection on General mode. Functional switch: for on/off and output selection on Functional mode.
On/Off:
Press and hold either of the switches for 0.5 seconds to turn on/off the lamp.
Output Selection:
General mode: single click the general switch to cycle through Low→Med→High→Turbo of spotlight. Functional mode: single click the functional switch to cycle through Low→Med→High→Red Light→Red Flash.
Intelligent Memory Circuit:
The headlamp memorises the last selected output. When turned on again the previously used output will be recalled. *If the headlamp is turned off on Turbo level of Spotlight mode, when turned on again, it will be activated on High output of Spotlight mode.
Lockout Function: Lock: when the lamp is switched off, press and hold either of the two switches, or simultaneously press the two switches for 3 seconds, the lamp will blink red three times to indicate locked status. Unlock: when the lamp is locked, simultaneously press the two switches for 3 seconds, the lamp will be activated with 3 one-second red blinks and activated on Red Light. In locked status, clicking or pressing the switches will activate 3 one-second red blinks to indicate locked status.
Battery Specifications:
Fenix ARB-LP3000 58x50x14 mm 3.7 V Recommended √√ Fenix ARB-L14-1600U 14500 1.5V Recommended (no charging) √√ Ni-MH Battery AA 1.2 V Usable (no charging) √ Alkaline Battery AA 1.5 V Usable (no charging) √ Non-rechargeable Battery (Lithium) AA 1.5V Banned (no charging) × Rechargeable Battery (Li-ion) 14500 3.7V Banned (no charging) ×
1. It is strictly prohibited to charge non-rechargeable batteries. 2. Recharge a stored headlamp every four months to maintain optimal Li-polymer battery performance. 3. If the lamp will not be used for an extended period, remove the AA batteries from the lamp in case of damage by electrolyte leakage.
Battery Replacement:
1. Pull latch to open the battery cover. 2. Insert the battery/batteries in accordance with the polarity marks. 3. Replace the battery cover and fasten the latch.
Charging:
The included Li-polymer battery pack can be charged via the headlamp. It is strictly prohibited to charge non-rechargeable AA (NI-MH/Alkaline )batteries via the headlamp. Uncover the anti-dust cap of the battery case and plug the USB Type-C side of the charging cable into the charging port of the battery case. The indicator on the battery case will display red while charging, and will turn to green when fully charged. Replace the anti-dust cap to ensure waterproof and dustproof ability. The normal charging time of the Fenix ARB-LP3000 Li-polymer battery is about 3 hours with the lamp being switched off.
Battery Level Indication:
With the lamp switched off, single click either of the switches to check the battery status, the indicator will last for 3 seconds. Green light on: saturated 100% - 85% Green light flashes: sufficient 85% - 50% Red light on: poor 50% - 25% Red light flashes: critical 25% - 1% Note: This only works with Fenix ARB-LP3000 Li-polymer battery.
Intelligent Overheat Protection:
The lamp will accumulate a lot of heat when used relatively high output levels for extended periods. When the lamp reaches a temperature of 65°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user for the reselection of the modes.
Low-voltage Warning:
When the voltage level drops below the pre-set level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, the battery level indicator blinks to remind you to timely recharge or replace the battery. Note: This only works with Fenix ARB-LP3000 Li-polymer battery.
Headband Assembly:
1. The headband is factory assembled by default. 2. Adjust the headband by sliding the buckle to required length.
Usage and Maintenance:
Disassembling the sealed head can cause damage to the lamp and will void the warranty. Fenix recommends using an excellent quality Fenix battery. If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage. Lock the lamp or take out the battery to prevent accidental activation during storage or transportation. Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
Problem:
A: The battery needs replacing. Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications). B: The contact point or contact of the battery or headlamp is dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact the distributor.
Package & Contents
Retail Packaged Fenix HP16R headlamp ARB-LP3000 Li-polymer battery USB Type-C charging cable Storage bag 4 x Helmet attachment hooks 3 x Cable clips, Storage bag Spare O-ring User manual Warranty card
