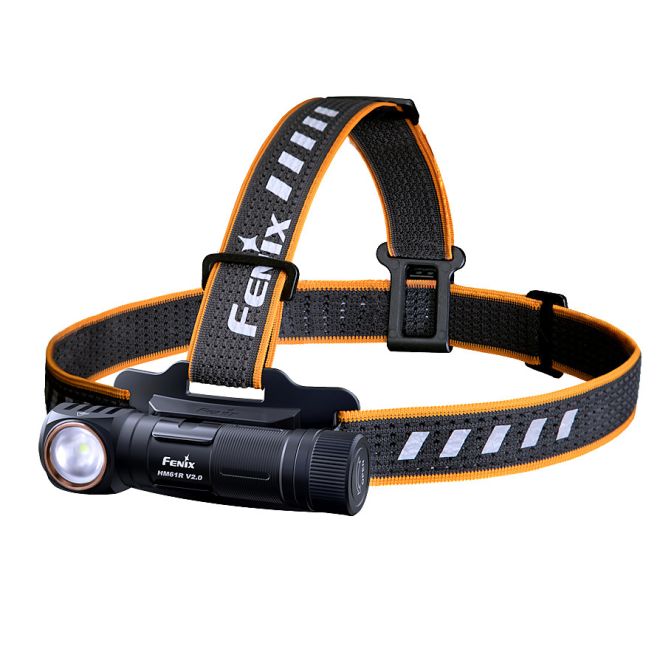

Built tough and offering exceptional performance, Fenix HM61R V2 magnetically rechargeable head torch has been upgraded from the original model. Output has increased from 1200 to 1600 lumens, max beam range from 145 to 162m and a new snap-in head band system added for greater convenience when swapping between headlamp and worklight mode.
HM61R V2.0 is designed primarily for job sites and tradesmen but is equally suitable for outdoor activities such as camping and fishing. With a fairly wide beam profile, this model is ideal for close work at lower brightness settings yet can reach out much further at high brightness.
The lamp can be removed easily from the headband to be used as a right angle torch, and is highly adaptable with its pocket clip and magnetic tail cap enabling use as a right angle pocket light, tail standing light or magnetically attached work light.
Fenix tested run times at each output level are achieved by switching the light on and letting it run uninterrupted until the battery is drained as per the ANSI standard. Re setting the torch to a higher power level during operation will reduce these run times.
Fenix HM61R V2 headlamp features:
• Digitally regulated power output
• Lockout mode helps prevent accidental operation
• Large silicon rubber covered switch, easy to operate with gloved hands
• Operates from -35 to 45 degrees C
• Industrial quality - A6061 T6 aluminium construction
• HA111 hard anodized finish
• 2m drop tested
• IP68 - Waterproof 2m for 30 minutes
• Reflective headband for safety
• Tilt adjustable headlamp mounting
• Magnetic snap-on charging cable (supplied)
• 4 hour re charge from empty (charger dependent)
• Battery meter LED under the switch cover
• Light weight, comfortable to wear for long periods
Charging:
HM61R V2 is supplied with a Fenix ARB-L18- 3400mAh 18650 battery, rechargeable on board using the included magnetic charging cable. Simply plug this into your phone charger or similar USB output device to charge your light. Place the cable near the receiver on the light head and it will snap into place and begin charging. For full product details please refer to the user manual in the images area.
Specification
Model
HM61R v2.0
Battery Type
18650
Battery Quantity
1
Additional Battery Type
2 x CR123 non-rechargeable battery, do NOT attempt to recharge CR123 batteries, the built in charger should only be used to charge 3.6/3.7v Li-ion 18650 batteries
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
Yes
Pocket Clip
Yes
Waterproofing
IP68, 2m depth & dustproof
Dimensions/Weight
101mm x 45mm x 36mm
152 grams (including battery and headband)
Further Info
N/A
Operation
Fenix HM61R V2 operation:
On/Off:
With the lamp switched off, press and hold the switch for 0.5 seconds to enter white light mode, or double tap the switch to go direct to Red mode. With the lamp switched on, press and hold the side switch for 0.5 seconds to turn off.
Output selection:
In white light mode, single click the switch to cycle through Eco-Low-Med-High-Turbo. In red light mode, single click the switch to cycle through Red low-Red Med-Red flash.
Mode switching:
With the lamp switched on, press and hold the switch for 1.2 seconds to select red or white mode.
Lock / Unlock:
Lock:With the lamp switched off, press and hold the switch for 3 seconds, the lamp will blink red 4 times to indicate locked status. Unlock:When the lamp is locked, press and hold the switch for 3 seconds. The lamp will blink red 4 times and activate on Red Low. In locked status:Clicking or pressing the switch will activate 4 x 1 second red blinks to indicate the light is locked.
Intelligent memory:
The headlamp memorizes the last selected output in white light mode. When turned on again the previously selected output will be recalled. Red light is entered in low mode each time. If the lamp was previously operated in White Turbo, white high will be activated next time the light is switched on.
Package & Contents
Retail packaged Fenix HM61R v2 Rechargeable LED Headlamp Fenix ARB-L18-3400 Battery Magnetic Charging Lead v2 Spare O-ring Warranty card User manual
