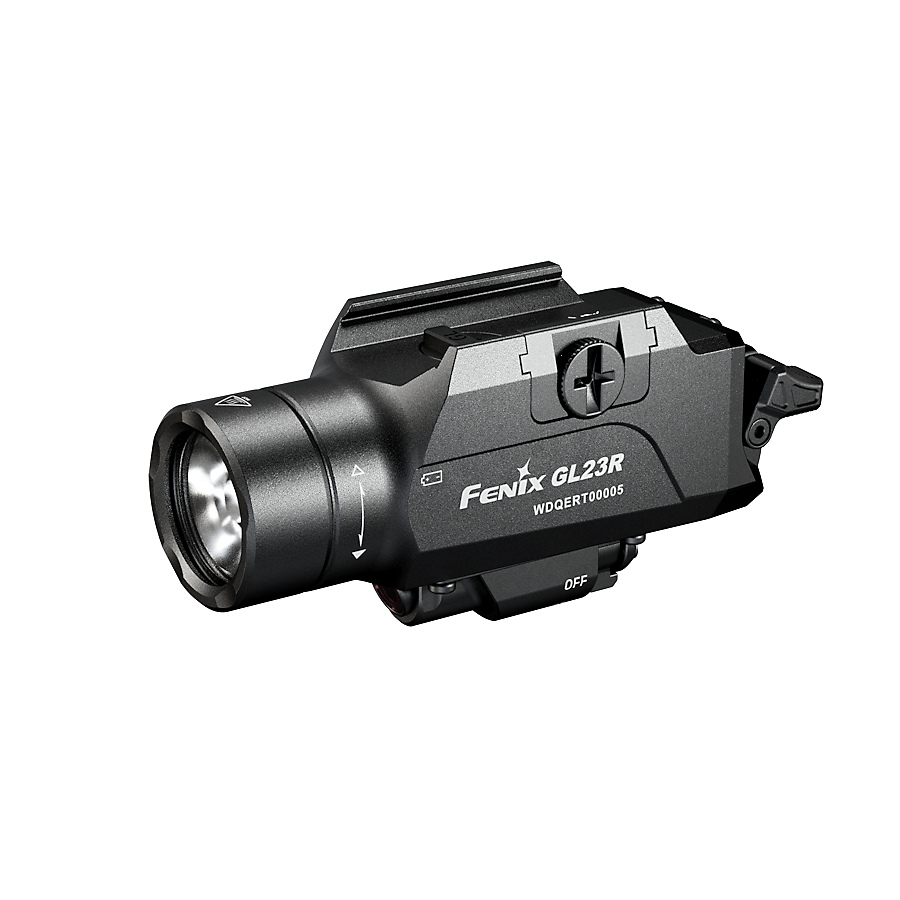

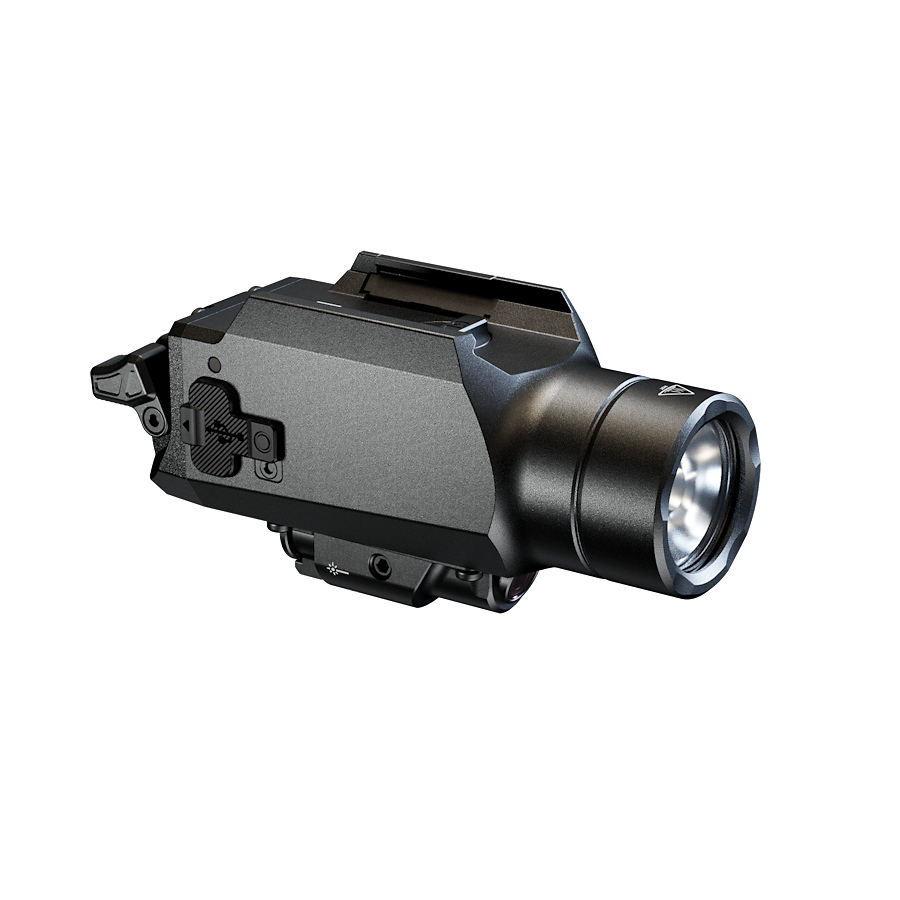

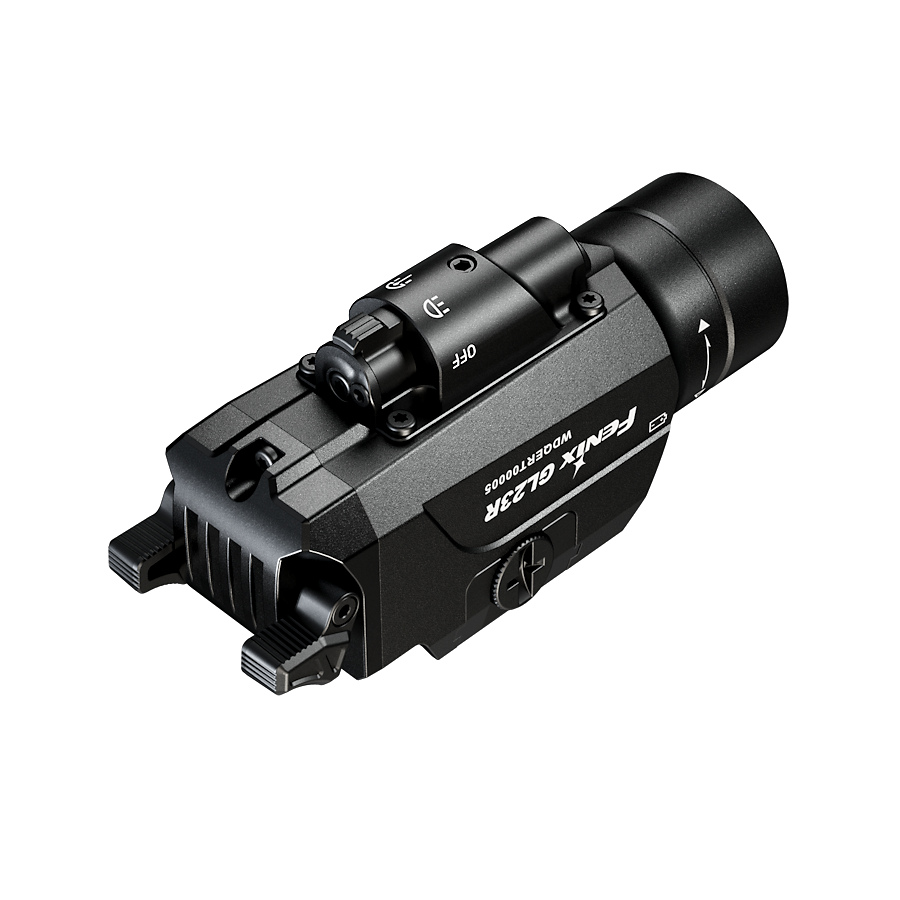

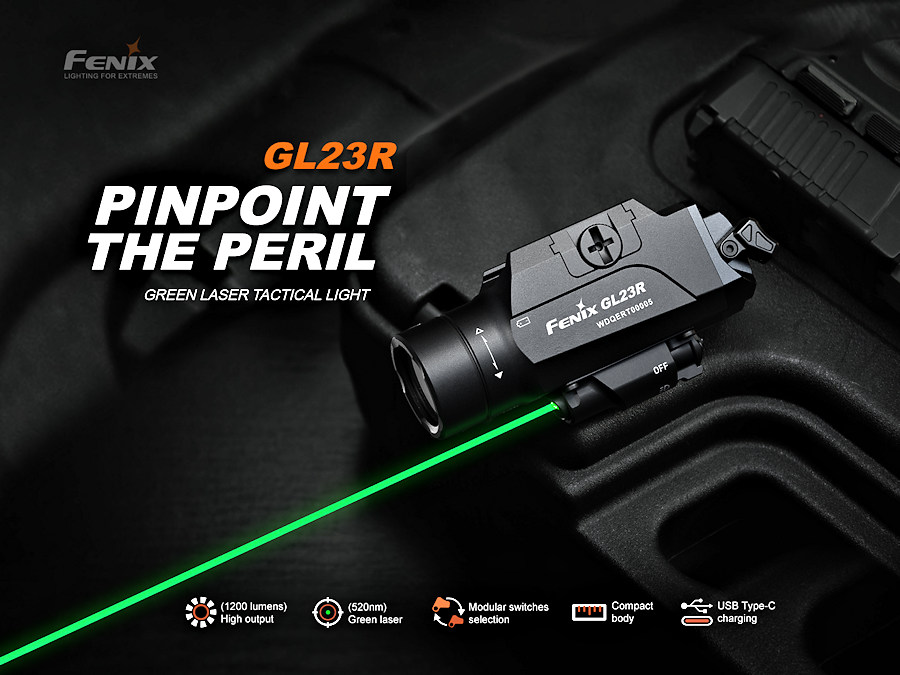

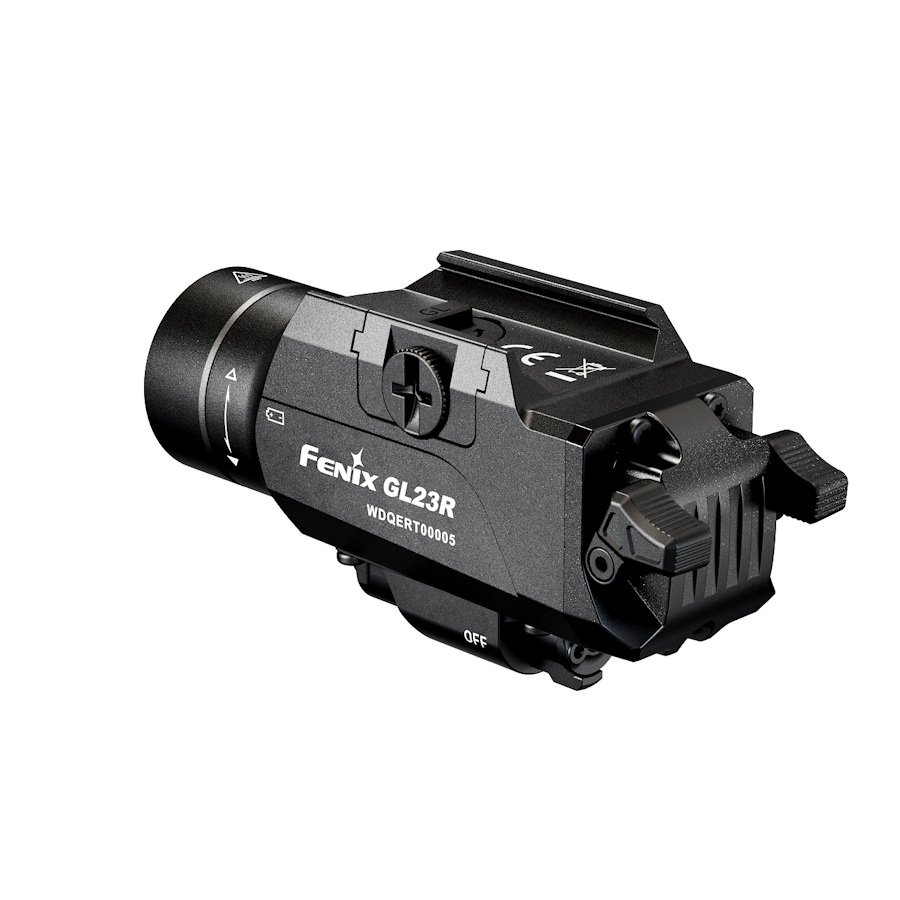

Fenix GL23R Tactical Rail Light With Green Laser - COMING SOON!

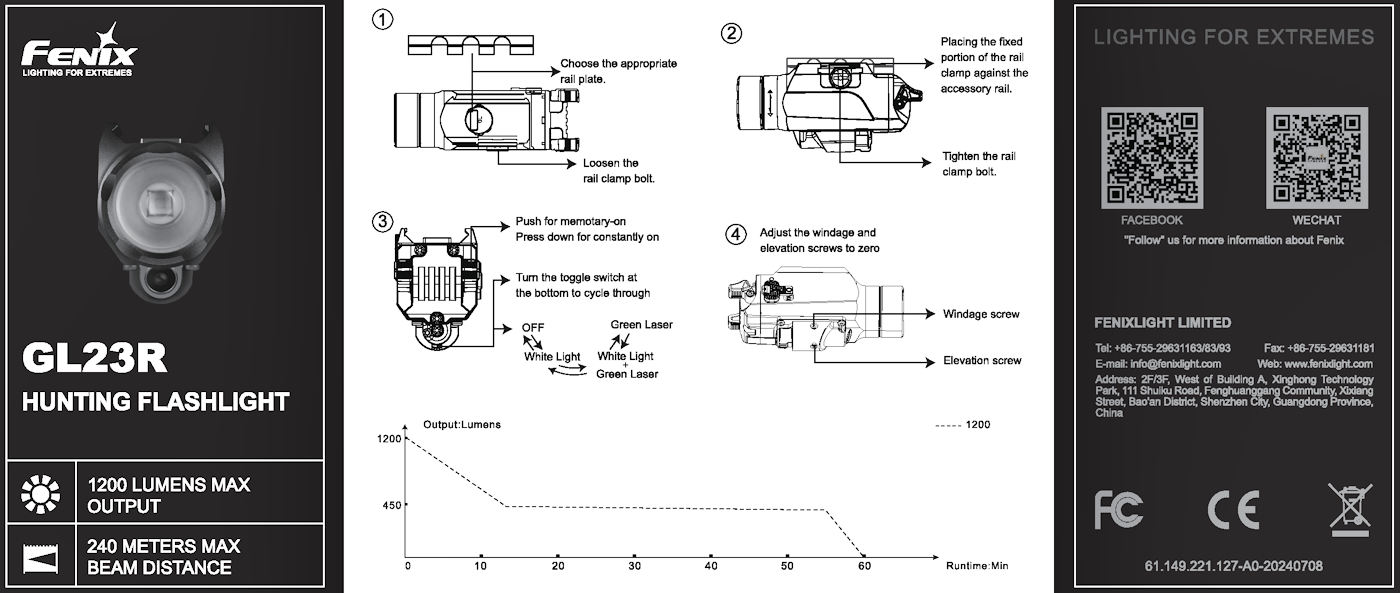

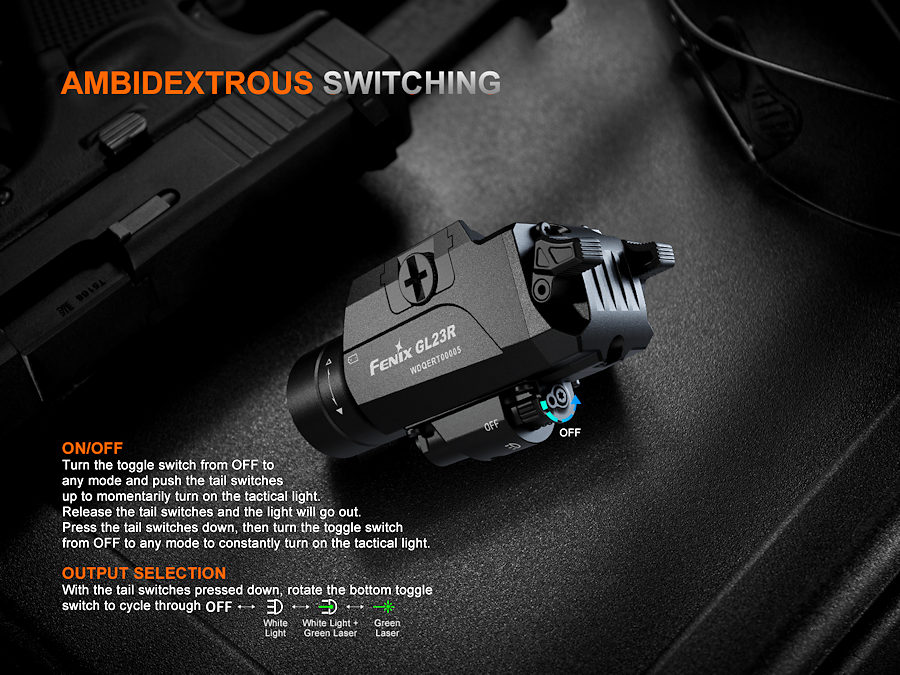

Fenix GL23R operation:

The tail switches can be operated with both hands. Rotate the toggle switch at the bottom to select the designated mode.

On/off:

Rotate the bottom toggle switch from OFF to any mode and push the tail switches up or down to turn on the tactical light. Reset the tail switches to turn off the tactical light.

Output Selection:

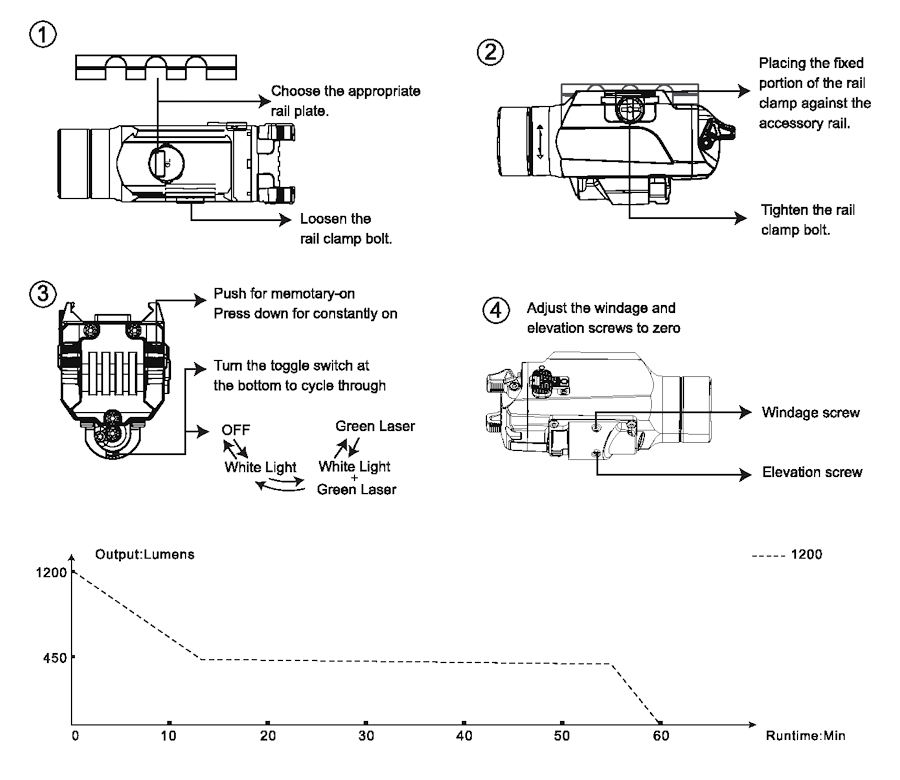

With the tail switches pressed down, rotate the bottom toggle switch to cycle through OFF⇄White Light⇄White Light + Green Laser⇄Green Laser.

Laser Sight Zeroing: *Laser parameters: CLASS 3R laser product, laser wavelength 510 - 530nm, laser optical power output ≤5mW.

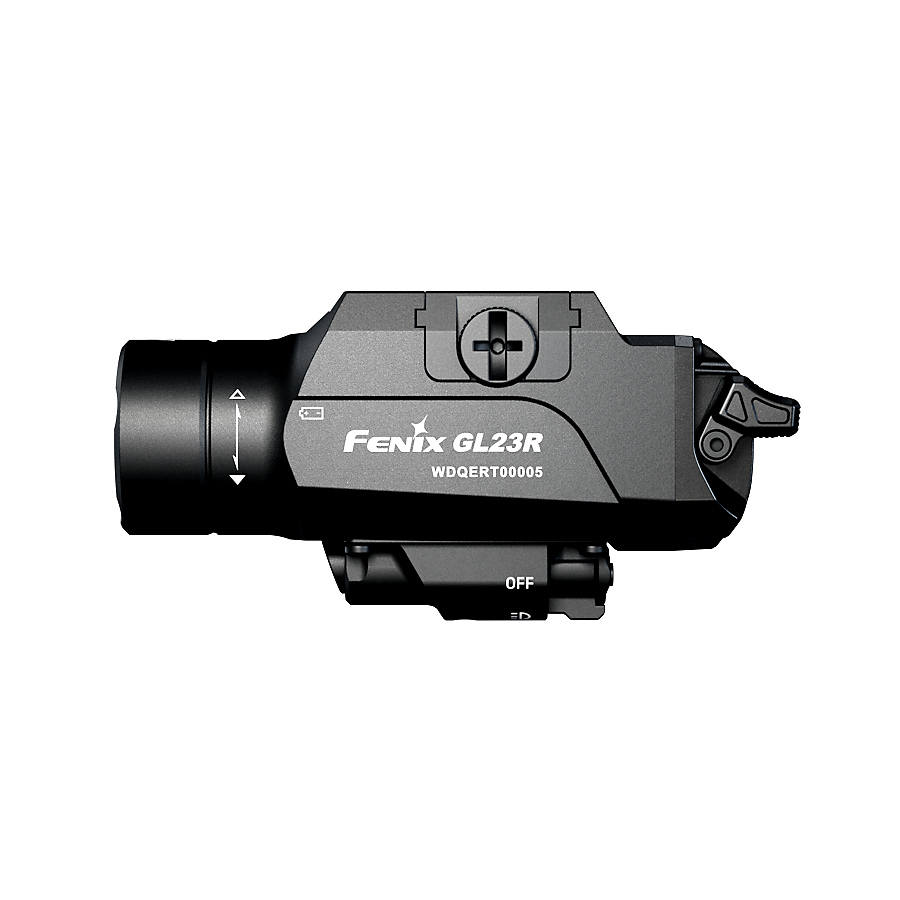

The windage adjustment is at the left side of the light. Turn the included Allen wrench clockwise or counter-clockwise to move the laser point.
The elevation adjustment is located at the bottom of the light, turn the included Allen wrench clockwise or counter-clockwise to move the laser point.

When making large adjustments there may be an interaction that causes the laser to move diagonally or bind. It may become necessary to rotate the opposing adjustment screw counter-clockwise to allow the laser cartridge to move to the desired position.

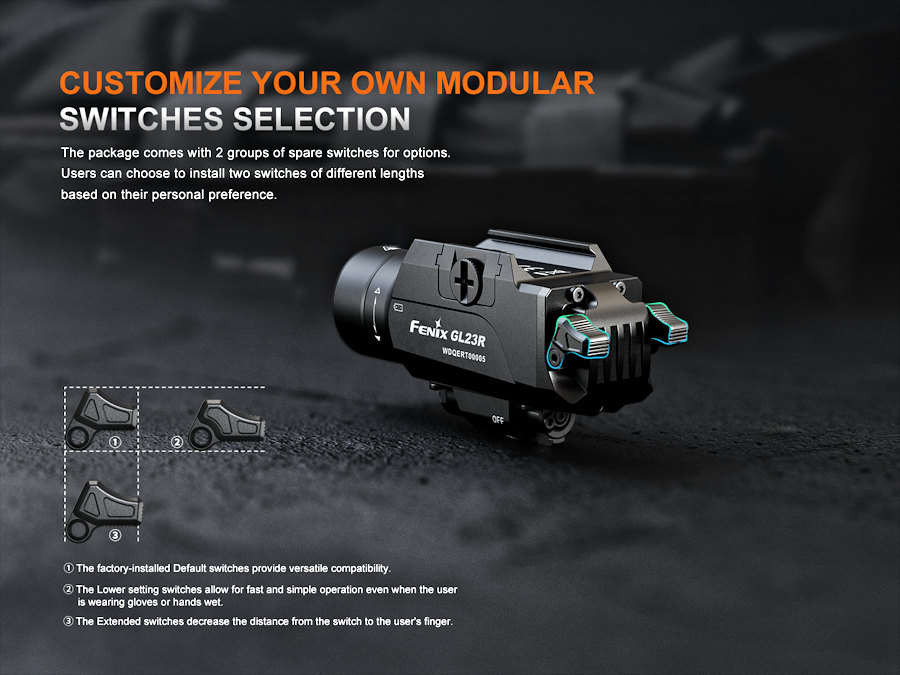

Tail Switches Replacement:

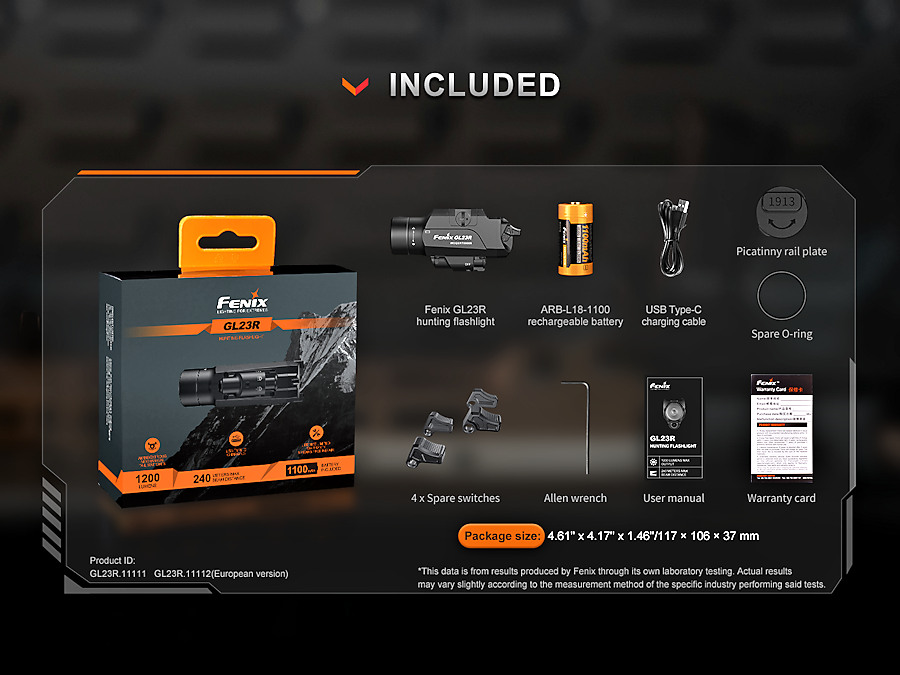

Three groups of spare switches are included:

Use the included Allen wrench to remove the T4 screw on the tail switch, then replace the tail switch and screw the T4 screw back on.
Users can choose to install two switches of different lengths based on their usage habits.

Battery Specifications:

Fenix ARB-L18-1100, 18350 3.6 V Recommended √√
Other types of 18350 battery 3.6 V Usable √

Warning:

*18350 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only using quality batteries with circuit protection will reduce the potential for combustion or explosion. Cell damage or short circuiting caused by using this type of battery is considered user induced damage and is not covered by any Fenix warranty or liability.

Battery Replacement:

Unscrew the light head and insert the battery with the anode side (+) towards the light head, then screw the light head back on.

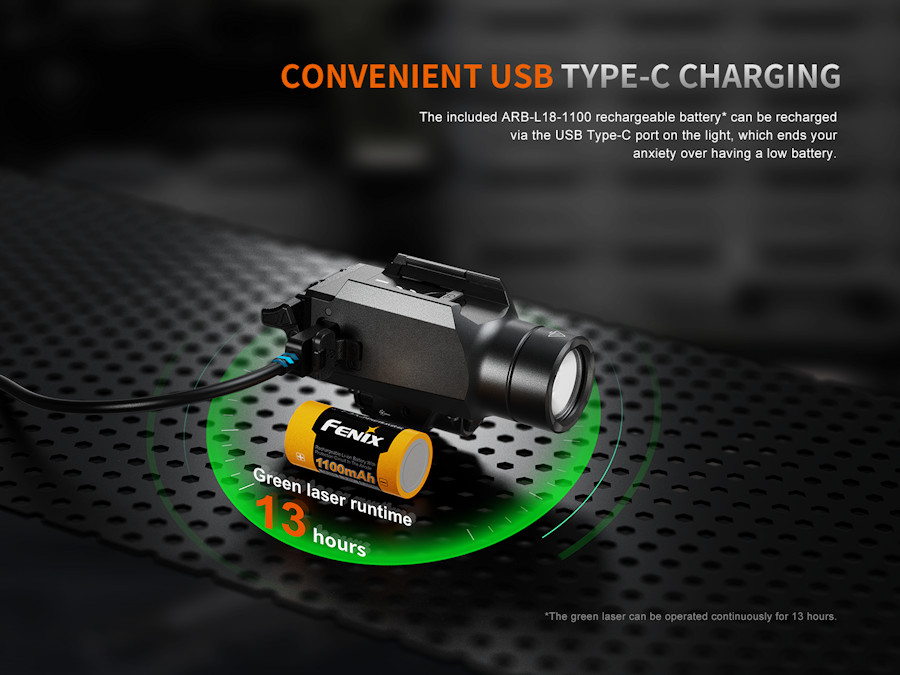

Charging:

With the light switched off, open the anti-dust cover to reveal the charging port, then connect the USB Type-C end of the charging cable to the tactical light.
The indicator will display red while charging, and will turn to green when fully charged.
Once charging is completed, be sure to unplug the charging cable and close the anti-dust cover.

Note:

The light cannot be operated while charging.
Recharge the battery promptly to ensure its normal life.
The normal charging time of the tactical light is approximately 2 hours from depleted to fully charged.
Recharge a stored light every four months to maintain the optimum performance of the battery.

Battery level indication:

Turn the toggle switch to OFF state, then push the tail switches up or down. The indicator will display the current battery level for 3 seconds.

Green light on: 100% - 85%
Green light flashes: 85% - 50%
Red light on: 50% - 25%
Red light flashes: 25% - 1%

Intelligent Overheat Protection:

The light will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 60°C/140°F or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 55°C/131°F, the light automatically recalls the previously used output level.

Low-voltage Warning:

When the voltage level drops below the pre-set level, the light is programmed to downshift to a lower brightness level until it reaches 50 lumens. When this happens, the battery level indicator blinks to remind you to recharge or replace the battery.

Usage and Maintenance:

◎Disassembling the sealed parts can cause damage to the light and will void the warranty.
◎Fenix recommends using an excellent quality battery.
◎If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
◎If you shoot live ammunition and get the lens dirty, try rubbing the lens with fine steel wool or Froglube clp should normal cleaning fail to remove the residue.
◎Since gun maintenance requires the use of organic solvents, organic solvents contaminating key components of the light or laser module may cause malfunctions, and the light will not receive normal warranty service.
◎Remove the battery to prevent accidental activation.
◎Long-term use can result in O-ring wear. To maintain a proper water seal, lubricate the O-ring with a tiny amount of silicone oil / grease. Replace the ring with an approved spare if worn out．
◎Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate.

Problems:

A: Poor battery level.
Solution: Replace or recharge the battery (Ensure the battery is inserted according to the manufacturer’s specifications).
B: The threads, PCB board contact or other contacts are dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.
