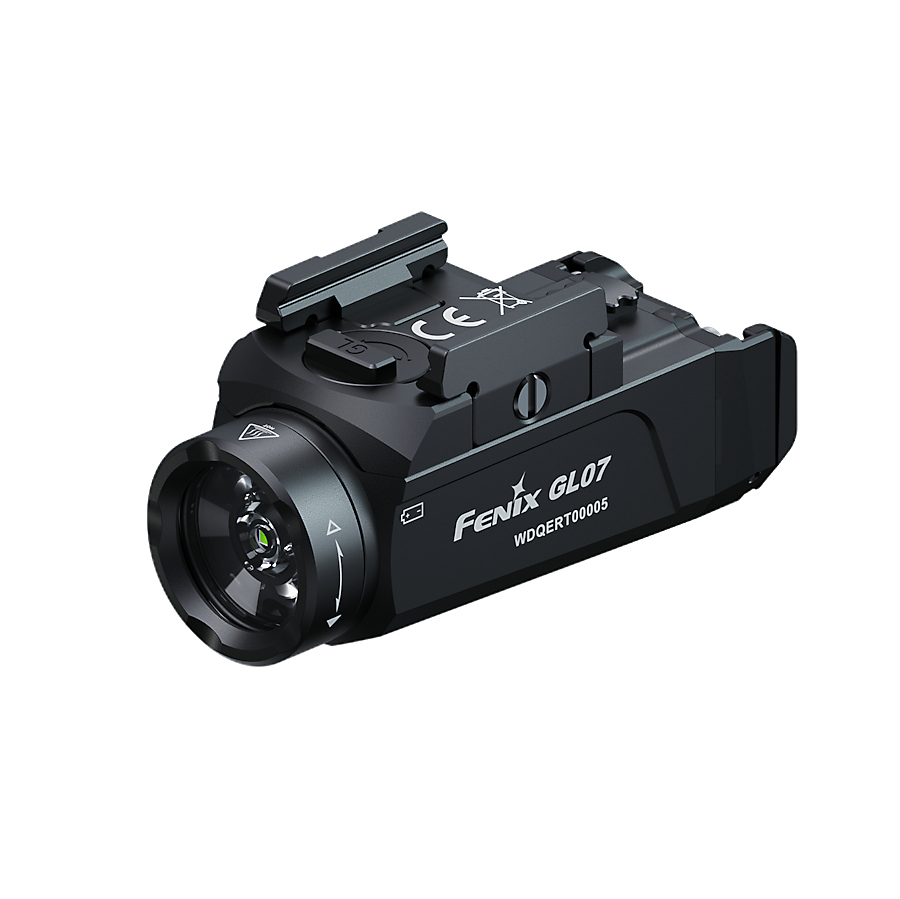

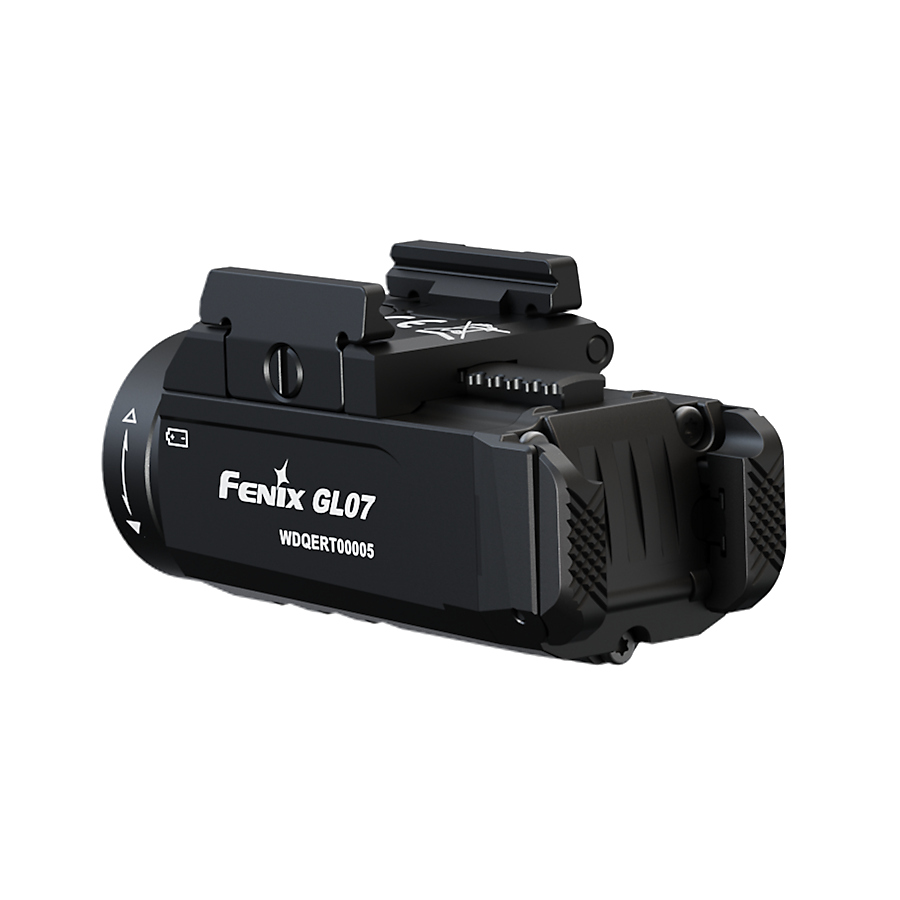

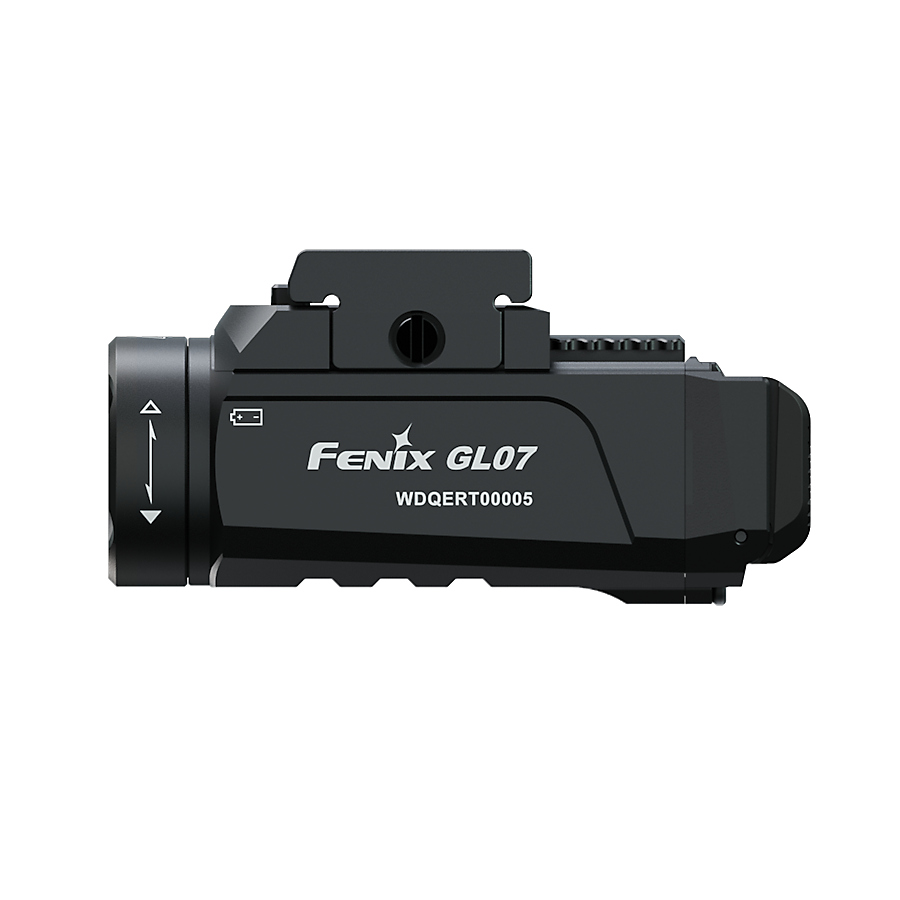

Fenix GL07 is a powerful, versatile rail mounted light that is ideal for Police, Military and Airsoft use. Maximum output is 700 lumens with an impressive 240m beam distance.
GL07 is supplied with both Glock (GL) and Picatinny (1913) rail inserts, and features a handy quick release mount with sliding rail incorporated that enables exact positioning of the light.

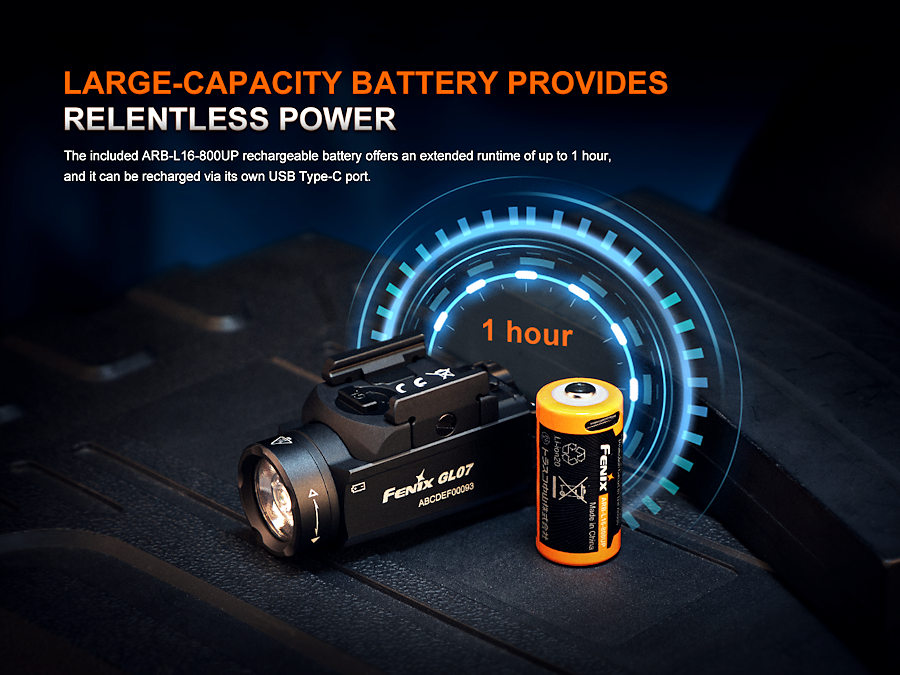

A rechargeable Fenix ARB-L16-800UP battery is included. This is recharged by unscrewing the lamp head, removing the battery and plugging the supplied USB-C lead directly into the battery. CR123A non rechargeable batteries can also be used, with output limited to 180 lumens but run time greatly extended.
Dual rear switches control momentary-on, constant-on and fast activation strobe modes.
• Luminus SFT12R LED
• 700 Lumens output
• Blinding Strobe Mode
• Dual tail switch operation
• Fenix 800 mAh removable rechargeable battery

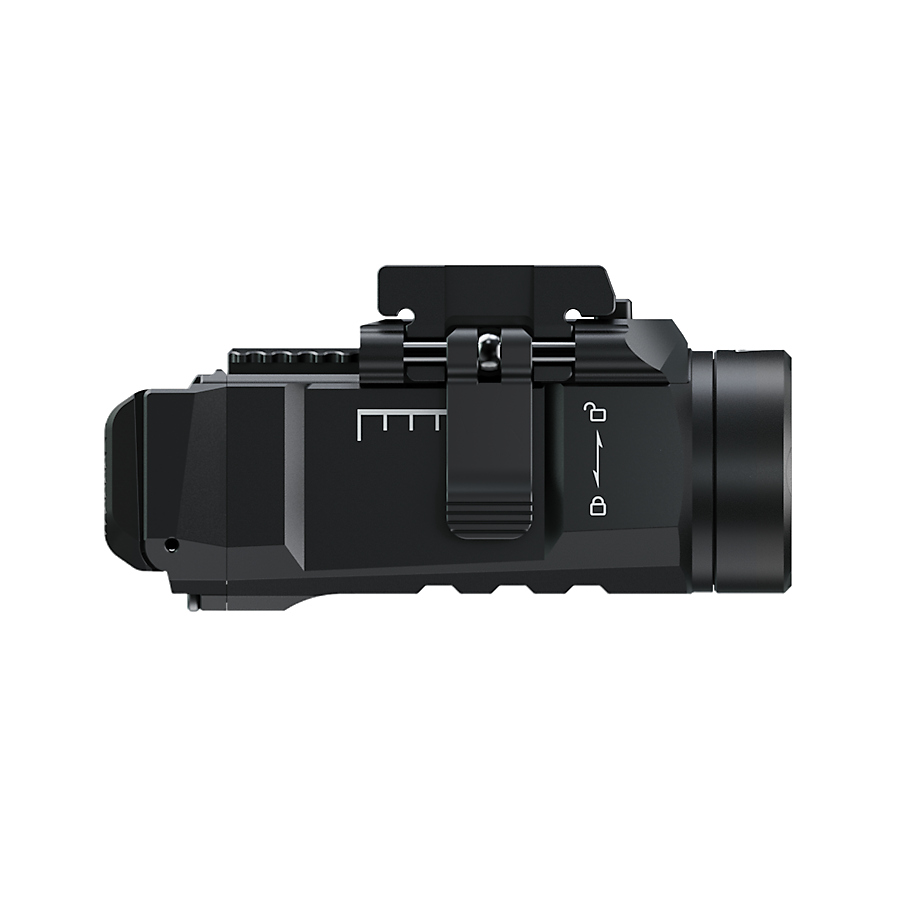

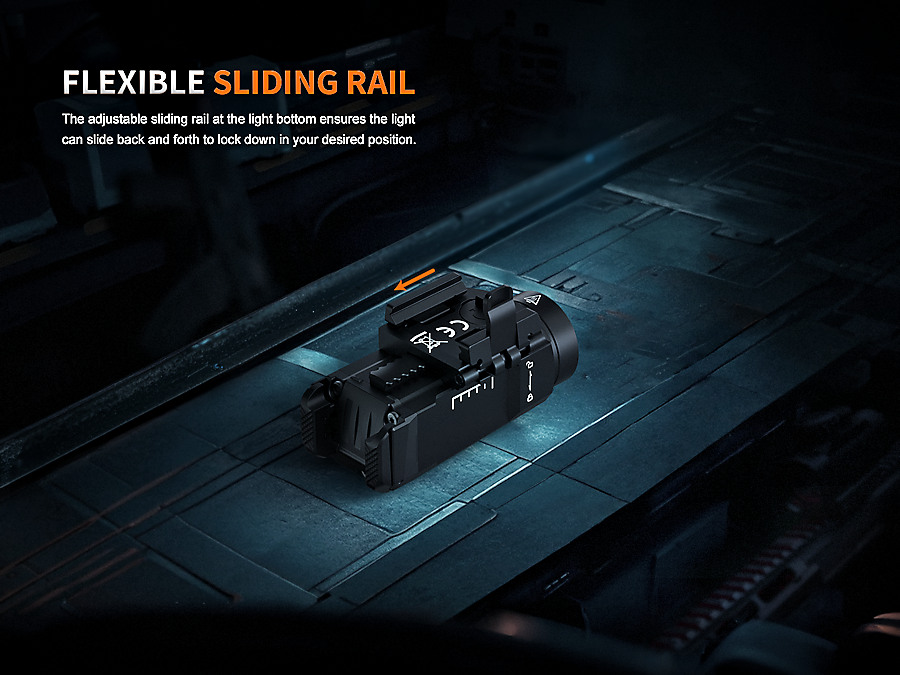

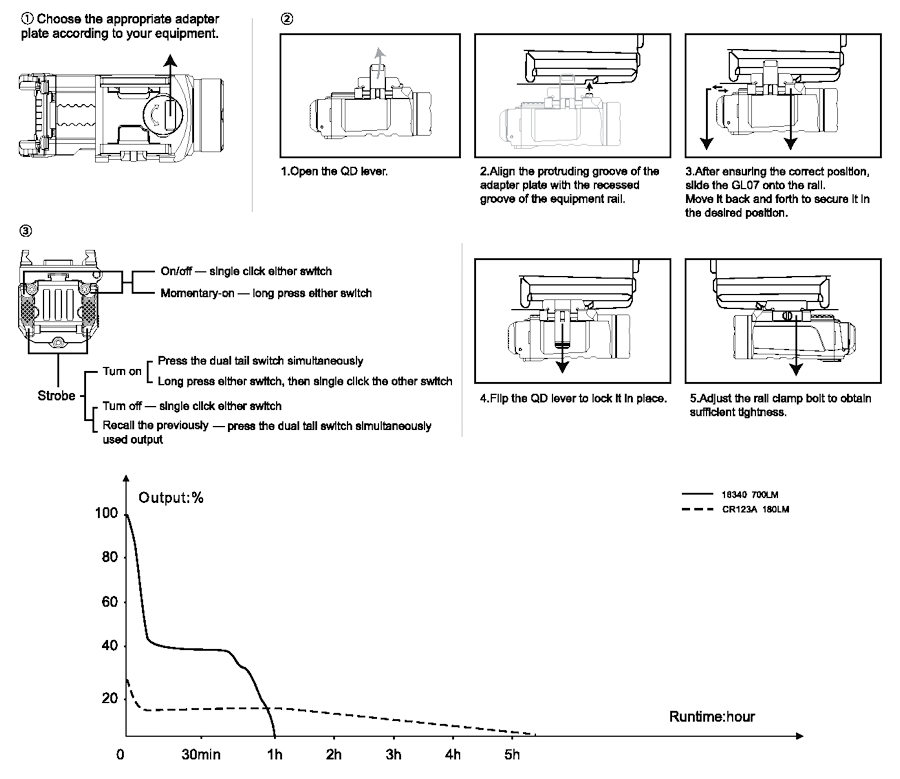

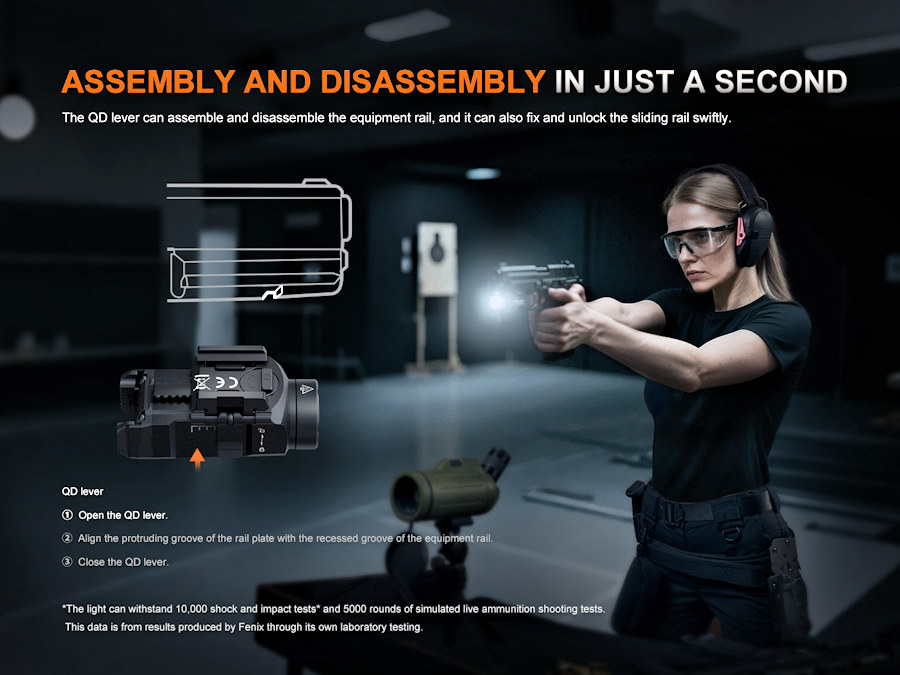

• Quick release lever mount with integrated sliding rail for precise fit
• Includes Glock and 1913 / Picatinny rail plates (Glock installed)
• 55c intelligent overheat protection
• Fits most pistols with Glock and 1913 Picatinny rails
• Made from A6061 T6 aluminium
• Type 111 hard-anodized finish
• Low voltage warning

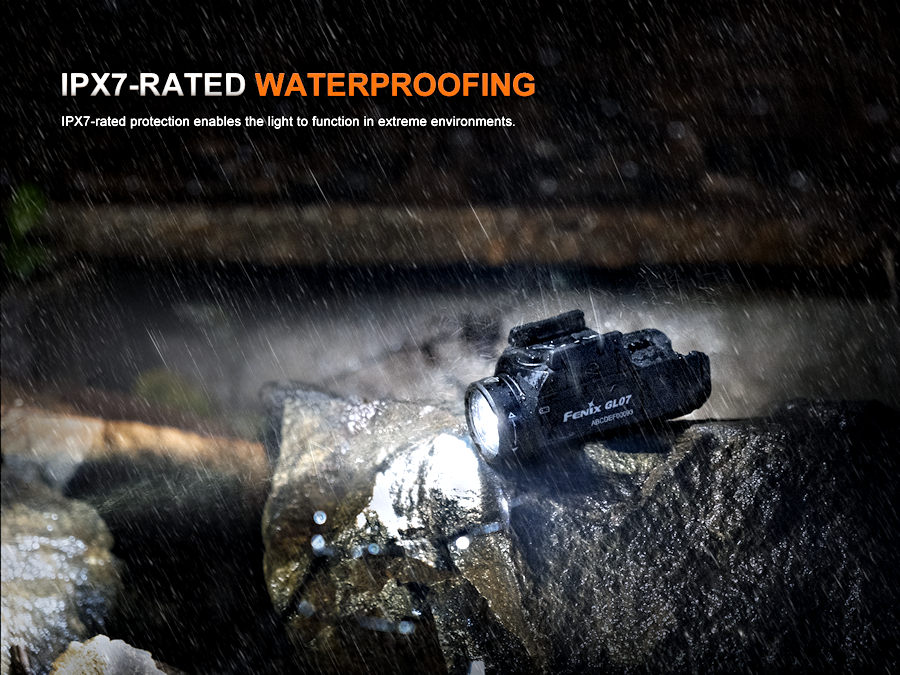

• IPX-7 waterproof
• Weighs only 74g

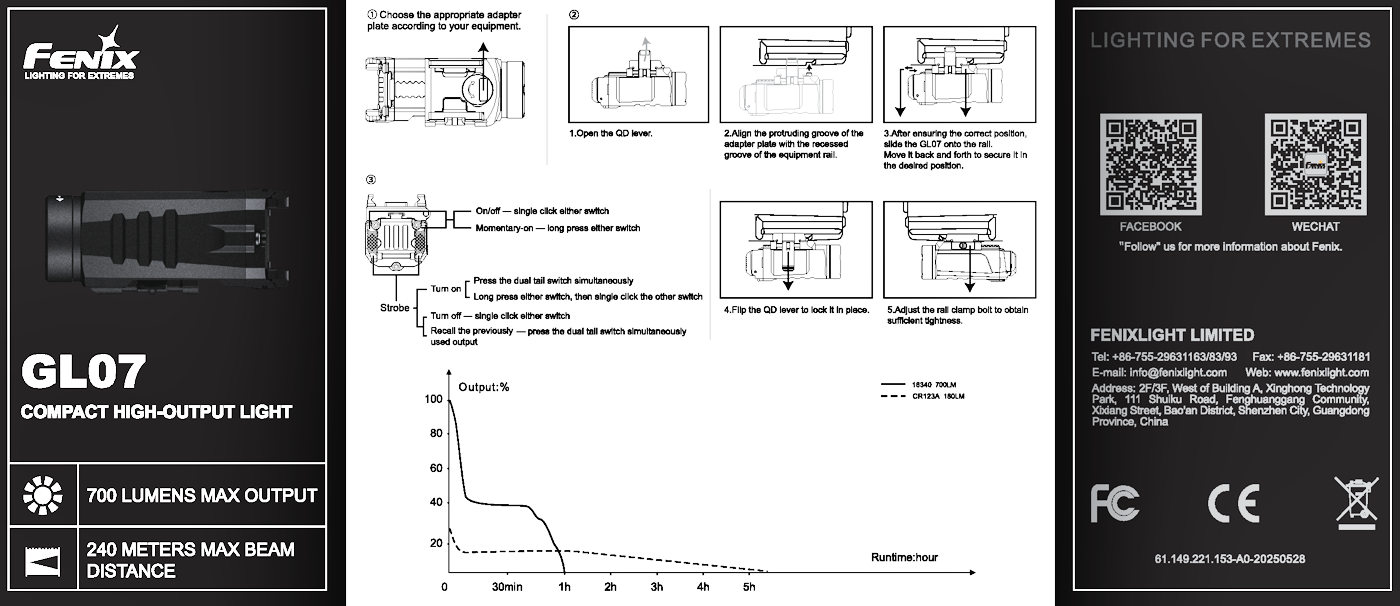

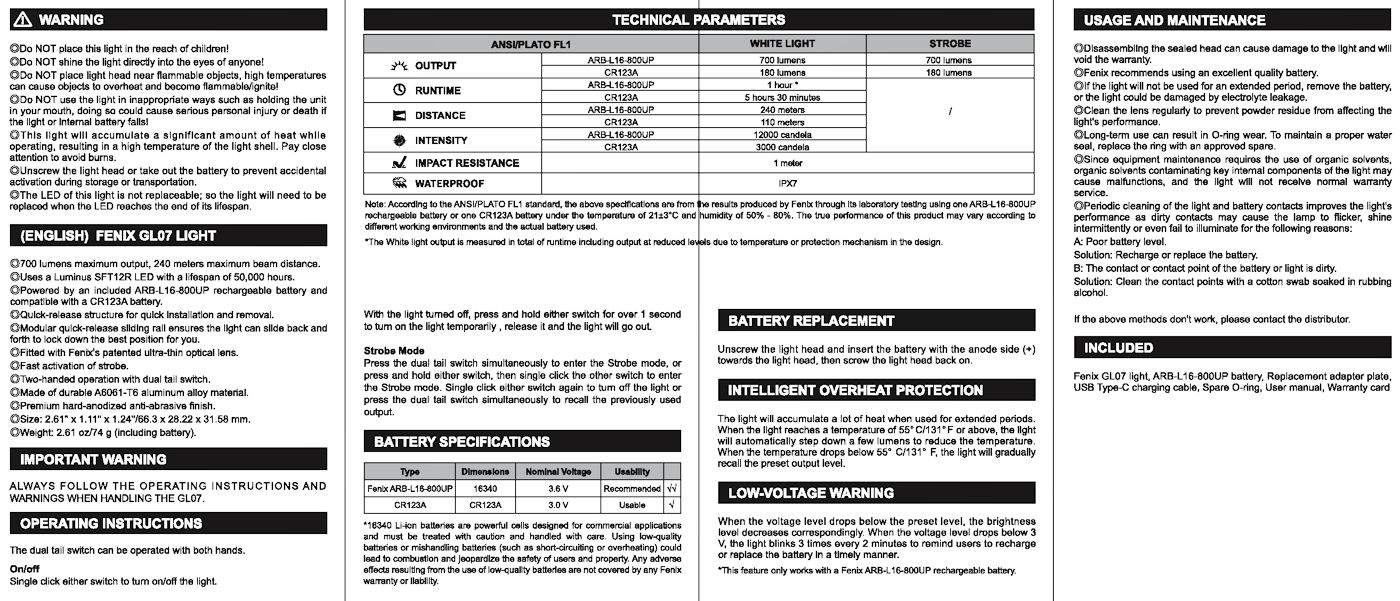

For full product details please refer to the user manual in the images area.

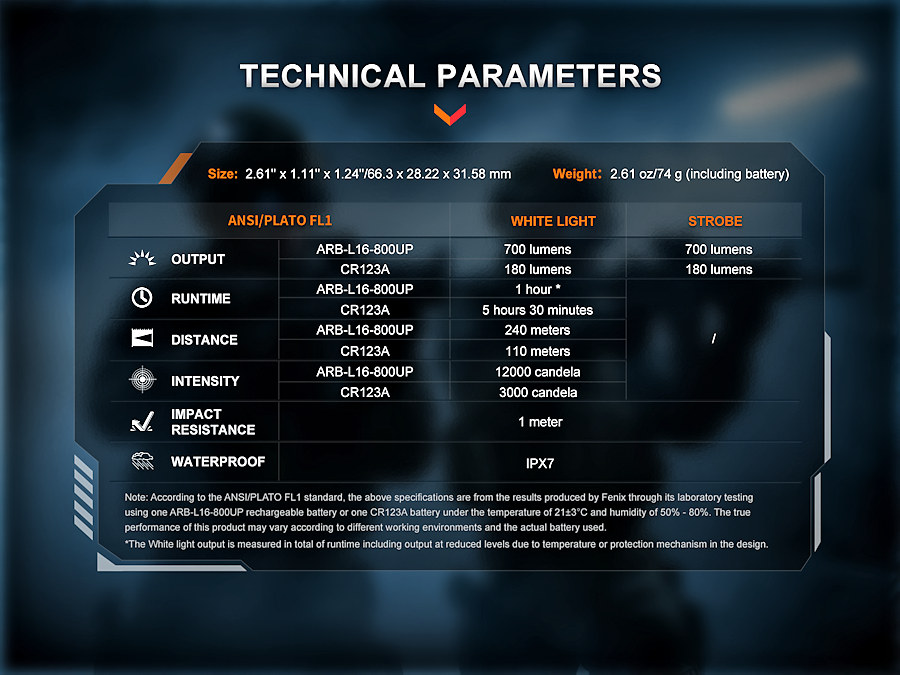

Specification
Model
GL07
Battery Type
16340
Battery Quantity
1
Additional Battery Type
1 x CR123a
LED Type
LUMINUS SFT12R LED
Output/Runtime
700 lumens (1 hr with included rechargeable battery), 180 lumens (5.5 hrs) with non rechargeable CR123a battery
Flashing Modes
Strobe
Max Beam Distance
240m
Reflector
Smooth aluminium reflector
Lens Type
Toughened Ultra - Clear glass lens with anti - reflective coating
Switch Type
Dual tactical On - Off - Mode tail switches
Construction
A6061-T6 aircraft grade aluminum
Finish
Premium Type III hard-anodized anti-abrasive finish
Tail Stand
No
Pocket Clip
No
Waterproofing
IPX7
Dimensions/Weight

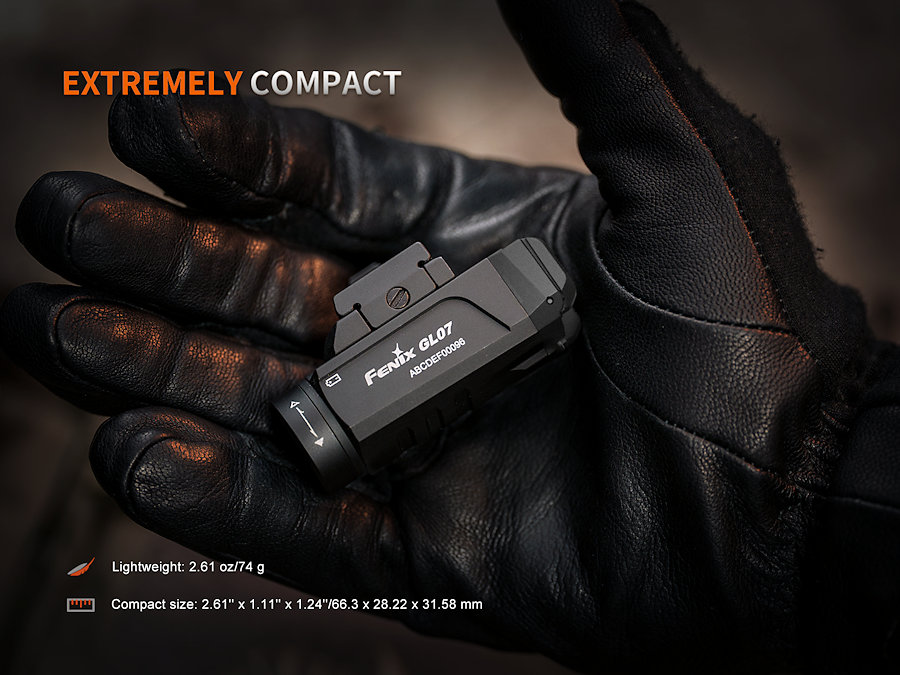

66.3mm (Length) x 28.22mm (Body Height) x 31.58mm (width)
74 grams (including battery)
Further Info
N/A
Operation
Fenix GLO7 Operation:

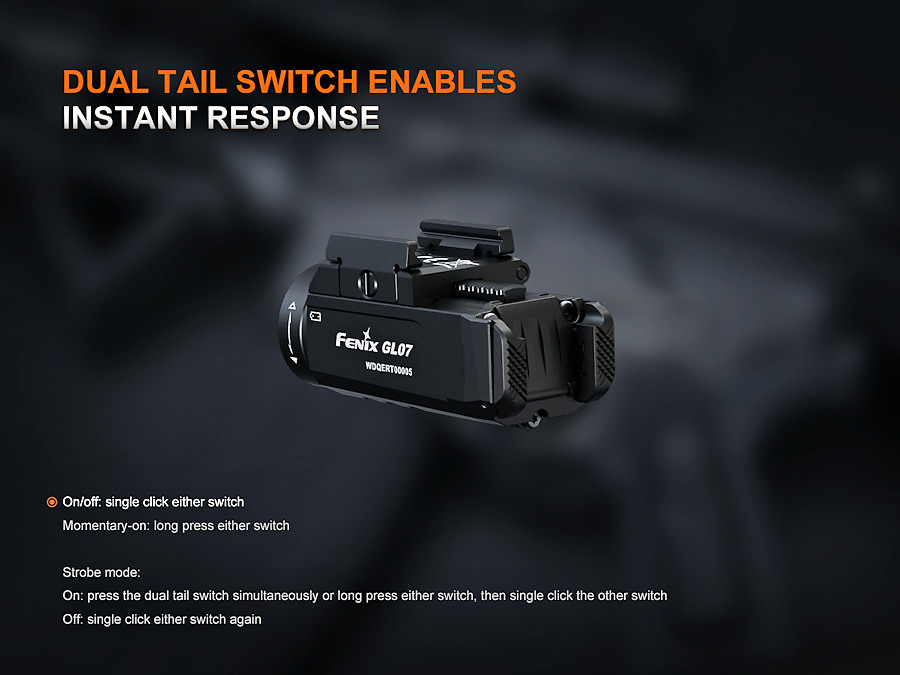

The dual tail switch can be operated with either hand.
On/off:
Single click either switch to turn on/off the light.
With the light turned off, press and hold either switch for over 1 second to turn on the light temporarily, release it and the light will go out.
Strobe Mode:
Press the dual tail switches simultaneously to enter the Strobe mode, or press and hold either switch, then single click the other switch to enter the Strobe mode. Single click either switch again to tum off the light or press the dual tail switches simultaneously to recall the previous output.
Battery Specifications:
Туре: Fenix ARB-L16-800UP (16340) Nominal Voltage - 3.6 V CR123A 3.0 V non rechargeable (Usable √)
*16340 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and Jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability.
Battery Replacement:

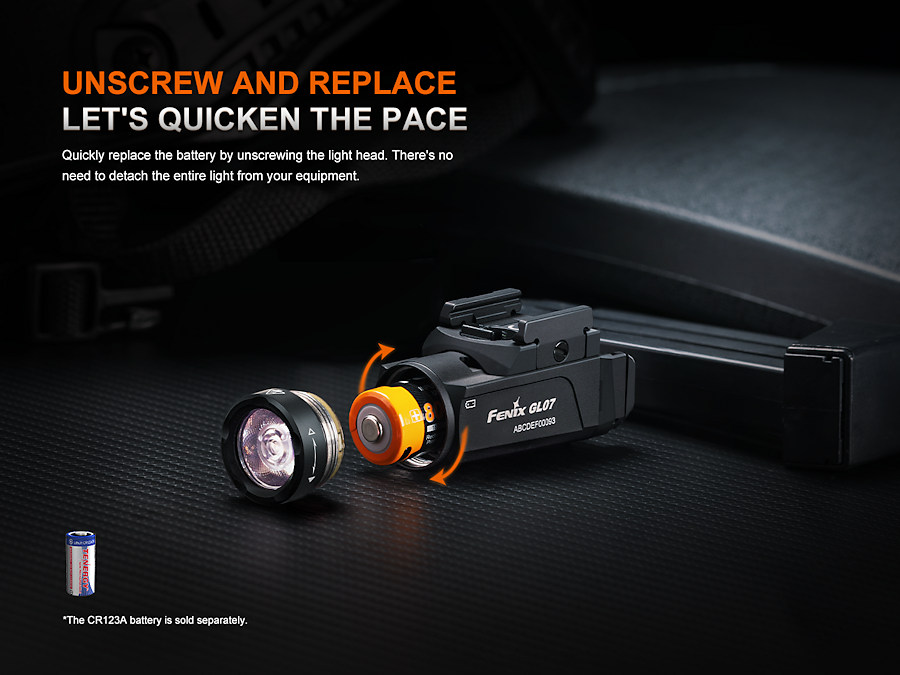

Unscrew the light head and insert the battery with the anode side (+) towards the light head, then screw the light head back on.
Intelligent Overheat Protection:
The light will accumulate a lot of heat when used for extended periods. When the light reaches a temperature of 55°C/131°F or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 55° C/131° F, the light will gradually recall the pre-set output level.
Low Voltage Warning:
When the voltage level drops below the pre-set level, the brightness level decreases correspondingly. When the voltage level drops below 3 V, the light blinks 3 times every 2 minutes to remind users to recharge or replace the battery In a timely manner.
*This feature only works with a Fenix ARB-L16-800UP rechargeable battery.
Usage and Maintenance:
Disassembling the sealed head can cause damage to the light and will void the warranty. Fenix recommends using an excellent quality battery. If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage. Clean the lens regularly to prevent powder residue from affecting the light's performance. Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare. Since equipment maintenance requires the use of organic solvents, organic solvents contaminating key internal components of the light may cause malfunctions, and the light will not receive normal warranty service. Periodic cleaning of the light and battery contacts improves the light's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate:
Problem:
A: Poor battery level. Solution: Recharge or replace the battery. B: The contact or contact point of the battery or light is dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact the distributor

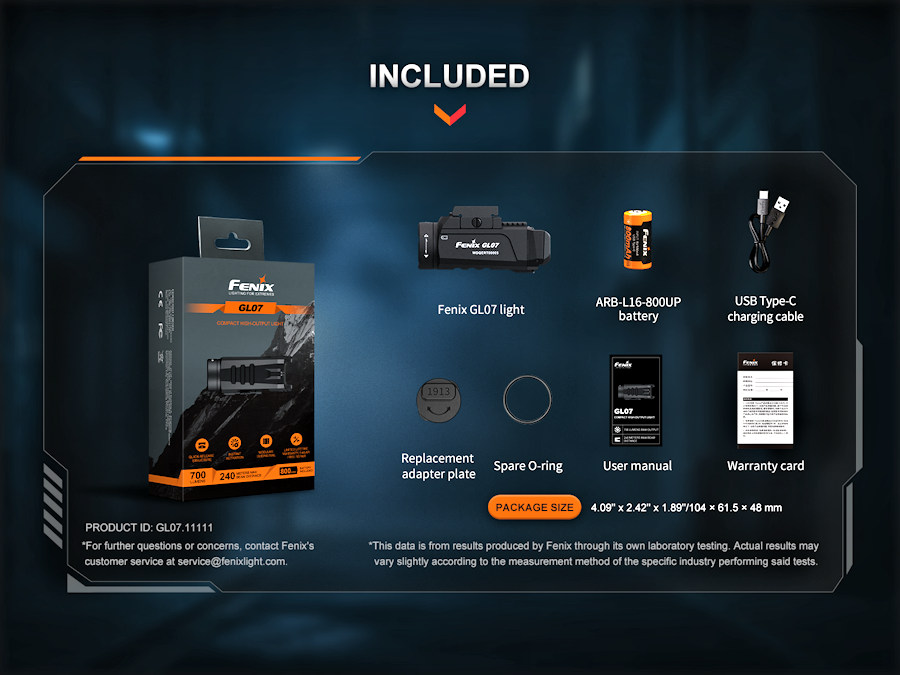

Package & Contents
Retail packaged Fenix GL07 Fenix ARB-L16-800UP Battery USB-C Charger Lead Picatinny Adaptor Plate Spare O-ring Warranty card User manual
