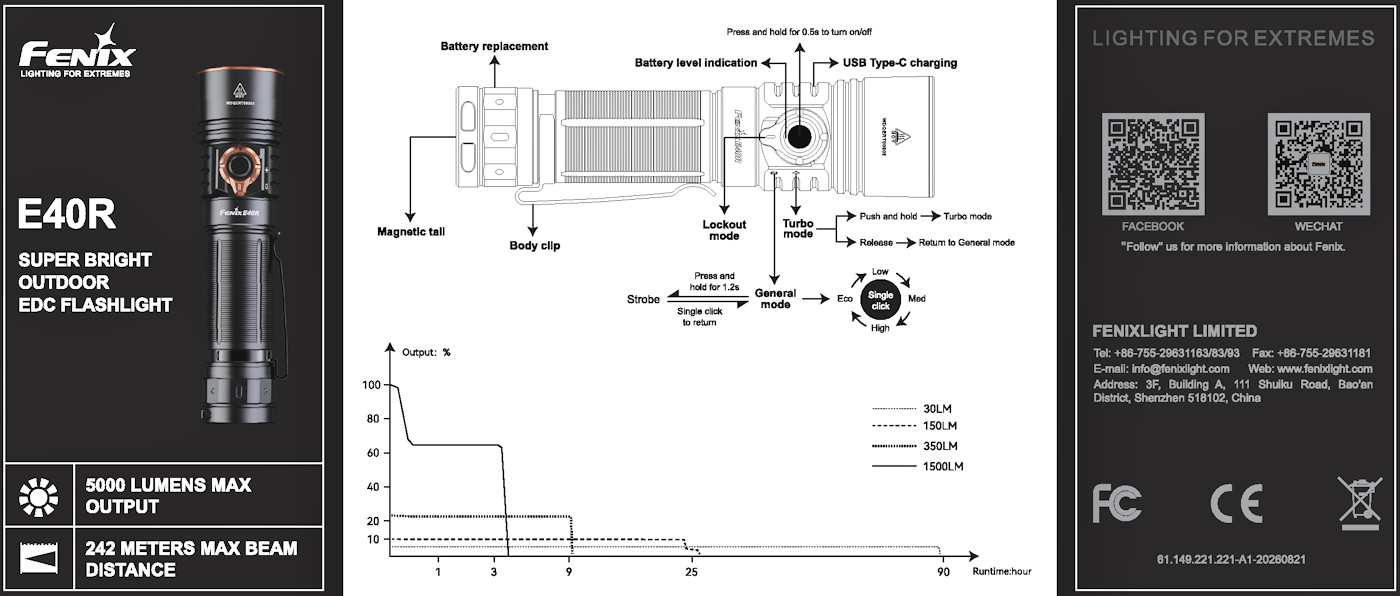

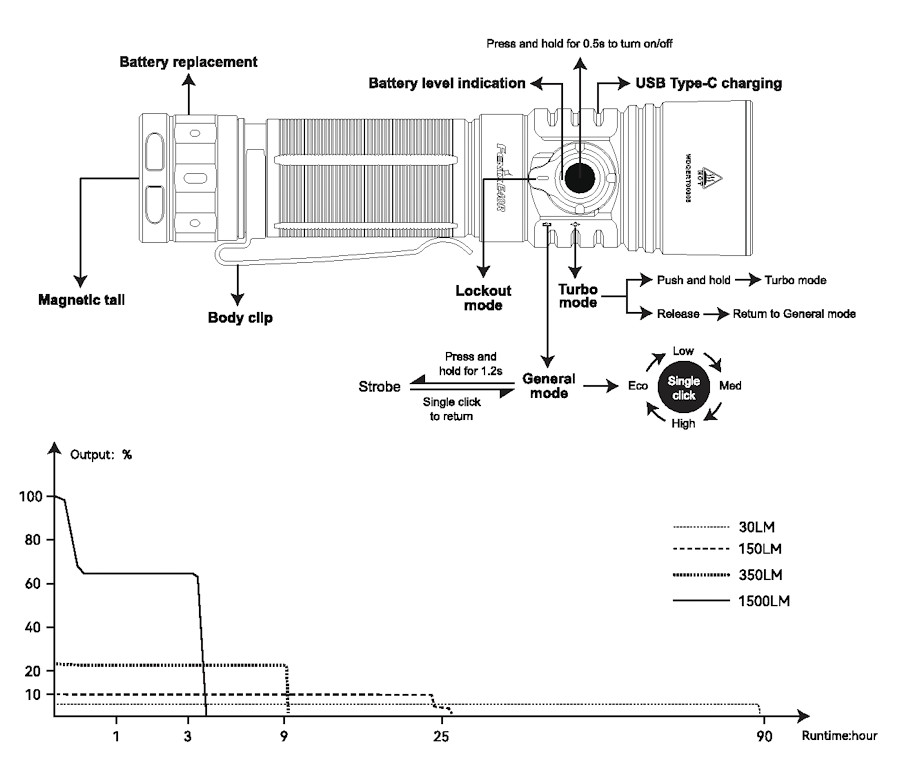

Fenix E40R Operation:

On/Off:

When the toggle switch is set to Lockout mode, turn the toggle switch to General mode to turn on the flashlight. Turn the toggle switch to Lockout mode to turn off and lock the flashlight.

When the toggle switch is set to General mode, press and hold the electronic switch for 0.5 seconds to turn on/off the flashlight.

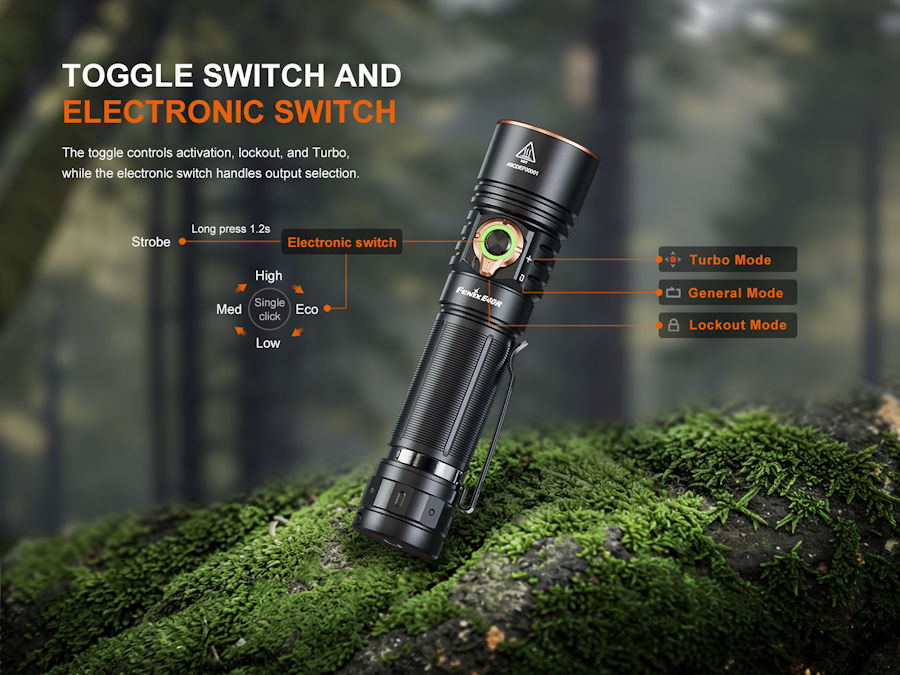

Mode Switching:

In any state, turn the toggle switch to cycle bidirectionally through Lockout mode⇄General mode⇄Turbo mode.

General Mode:

Press and hold the electronic switch for 1.2 seconds to enter Strobe.
With the light turned on, single click the electronic switch to cycle through Eco→Low→Med→High.

Turbo Mode:

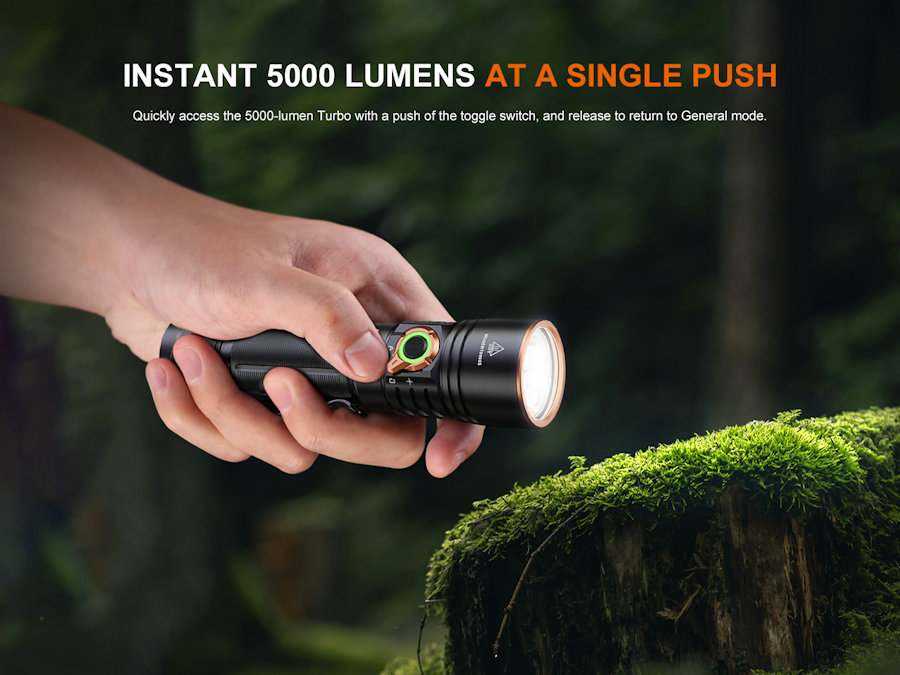

Keep pushing the toggle switch to enter Turbo Mode ; release to return to General mode.

Lockout Mode:

Rotate the toggle switch to lock or unlock the flashlight. In locked status, single click the electronic switch to check the current battery level.

Intelligent Memory Circuit:

The flashlight automatically memorises the last selected output of General mode. When turned on again in General mode, the last selected output will be recalled.

*The flashlight will activate in Med output if it was previously switched off in High output.

Battery Specifications:

Fenix ARB-L21 Series 21700 3.6 V Recommended √√
Rechargeable Battery (Li-ion) 21700 3.6 V Caution* !
Rechargeable Battery (Li-ion) 16340 3.6 V Banned ×
Rechargeable Battery (LiFePO4) 18650 3.2 V Banned ×

* 21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion.

Battery Replacement:

Unscrew the tail cap and insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

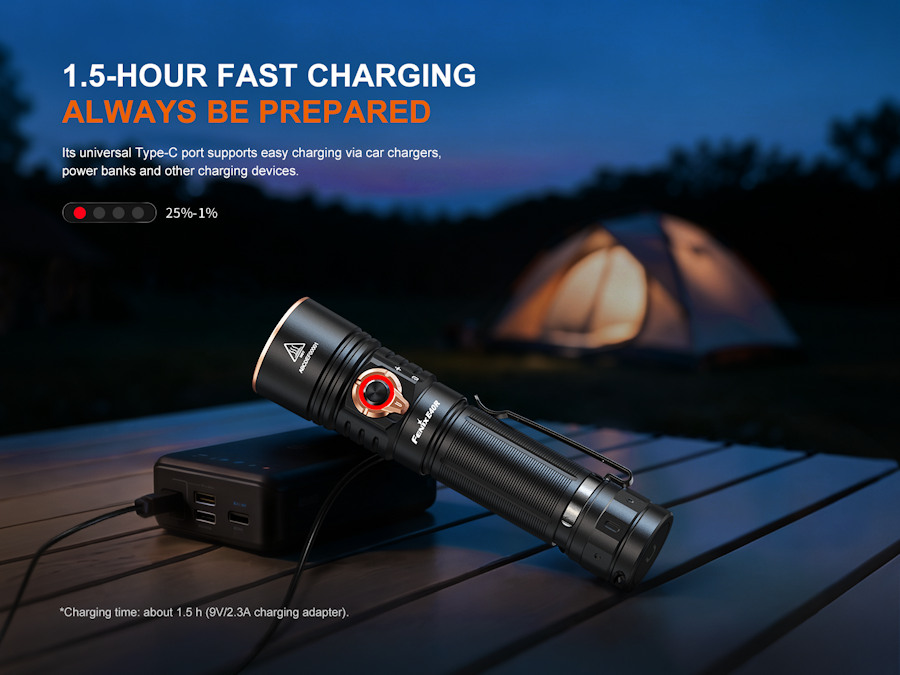

Charging:

Open the anti-dust plug to reveal the USB Type-C charging port, then connect the USB Type-C end of the charging cable to the flashlight.
The indicator will display red while charging and will turn green when fully charged.
Once charging is completed, be sure to unplug the charging cable and close the anti-dust plug.

Note:

The flashlight can be operated while charging.
Recharge a flashlight promptly before the battery level drops too low to maintain the optimum battery lifespan.
With the light turned off, the normal charging time of the Fenix ARB-L21-5500 battery is approximately 1.5 hours from depleted to fully charged with a 9 V/2.3 A charging adapter.
Recharge a stored flashlight every four months to maintain the optimum performance of the battery.

Power specifications:

◎Charging voltage: 5 V/9 V
◎Charging power: 20 W (9 V / 2.3 A)
◎This flashlight supports fast charging.
◎Only use a certified USB charging adapter that complies with local safety standards.

Battery Level Indication:

With the light turned off, single click the electronic switch to check the battery status, the indicator will last for 3 seconds. Each time the light is turned on, the indicator will show the current battery level and will last for 3 seconds.

Green light on: saturated 100% - 85%
Green light flashes: sufficient 85% - 50%
Red light on: poor 50% - 25%
Red light flashes: critical 25% - 1%

*Note: This feature only works with a Fenix ARB-L21 Series battery.

Intelligent Overheat Protection:

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the flashlight reaches a temperature of 60°C/140°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C/140°F, the flashlight will gradually recall the pre-set output level.

Low-voltage Warning:

When the voltage level drops below the pre-set level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the battery level indicator blinks red to remind users to recharge or replace the battery in a timely manner. When the voltage level drops below 2.8 V, the flashlight will trigger over -discharge protection and automatically turn off to prevent battery damage, maintain battery lifespan, and ensure safe operation.

*Note: This feature only works with a Fenix ARB-L21 Series battery.

Usage and Maintenance:

◎Disassembling the sealed head can cause damage to the flashlight and will void the warranty.
◎Fenix recommends using an excellent quality battery.
◎If the flashlight will not be used for an extended period, remove the battery, or the flashlight could be damaged by electrolyte leakage.
◎Lock the flashlight or take out the battery to prevent accidental activation during storage or transportation.
◎Long-term use can result in O-ring wear. To maintain a proper water seal, replace the O-ring with an approved spare.
◎Periodic cleaning of the battery contacts improves the flashlight's performance as dirty contacts may cause the flashlight to flicker, shine intermittently or even fail to illuminate.

Problems:

A: Low battery level.
Solution: Replace or recharge the battery.
B: The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.
