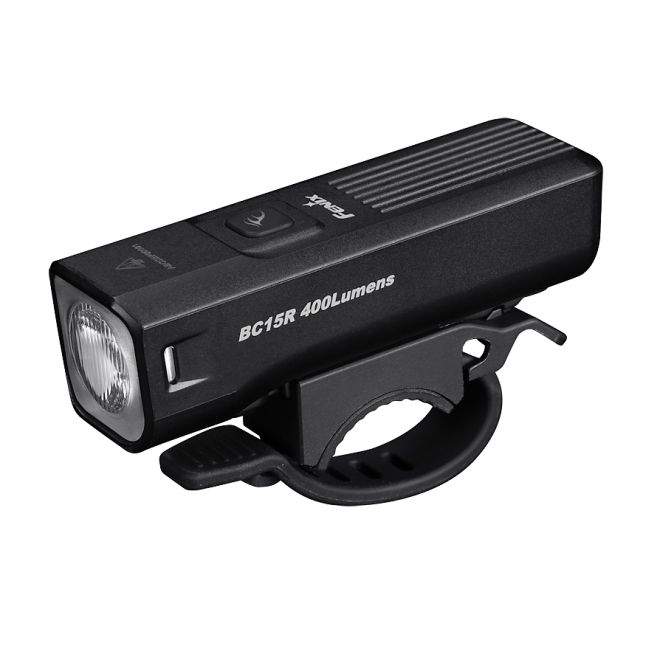

Fenix BC15R is a high quality rechargeable bike light for every day cycling. It converts to a useful general purpose torch with the quick release mount removed.
This compact, light weight rechargeable cycle light features 3 brightness levels of 50, 150 and 400 lumens, plus flashing mode. The light incorporates a dual distance beam system with anti glare beam profile to avoid dazzling oncoming traffic, and full weatherproofing.
BC15R is recharged via a built-in USB-C port.
Useful light outputs and long run times elevate this light to a great choice in the commuter and leisure riding classes.
• Single push button operation
• Battery level / charging indicator LED in the push button
• USB-C charging with 2 hour charge time
• Can operate at low output while charging
• Low voltage warning
• 2600 mAh built-in lithium battery
• Side light windows for added safety
• Quick release slide off mount
• Tough polycarbonate construction
• 1.5m drop tested
• IP66 waterproof
• Fits Fenix ALD-08 helmet holder (sold seperately)
For full product details please refer to the user manual in the images area.
Press and hold the switch for 0.5 seconds to turn/off the light.
Output Selection:
With the light switched on, single click the switch to cycle through Low→Med→High.
Flash Mode:
With the light switched on, double click the switch to enter Flash mode, single click again to exit flash mode and return to the previously used mode.
Intelligent Memory Circuit:
The bicycle light memorizes the last selected output excluding Flash mode. When turned on again the previously used mode will be recalled.
Charging:
Switch off the light and open the anti-dust cap to reveal the USB Type-C charging port and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light. The indicator will display red while charging and will turn green when fully charged. Once charging is completed, be sure to close the anti-dust cap to maintain the dustproof and waterproof ability.
Note:
The normal charging time of the light is approximately 2 hours from depletion to fully charged. Recharge a stored light every four months to maintain the optimum performance of the battery. The Low mode can be operated while charging but the charging time will be prolonged.
Battery Level Indication:
With the light switched off, single click the switch to check the battery status, the indicator in the switch will last for 3 seconds. Green light on: saturated 100% - 85% Green light flashes: sufficient 85% - 50% Red light on: poor 50% - 25% Red light flashes: critical 25% - 1%
Intelligent Overheat Protection:
The light will accumulate a lot of heat when used at relatively high modes for extended periods. Therefore it will automatically downshift to a lower brightness level to reduce the temperature to a safe level when this situation occurs. High mode can be reselected if needed. Low-voltage Warning When the voltage level drops below the pre-set level, the bicycle light is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output, the battery level indicator constantly blinks red to remind you to recharge the battery till the battery level runs out.
Usage and Maintenance:
â—ŽDisassembling the sealed head can cause damage to the light and will void the warranty. â—ŽRecharge the battery in time to ensure normal use for next time. â—ŽRecharge a stored light every four months to maintain optimum performance of the battery. â—ŽOnce charging is completed, be sure to close the anti-dust cover.
Package & Contents
Retail Packaged Fenix BC15R Bike Light USB-C Charging cable Quick Release Handlebar Mount User Manual Warranty card
